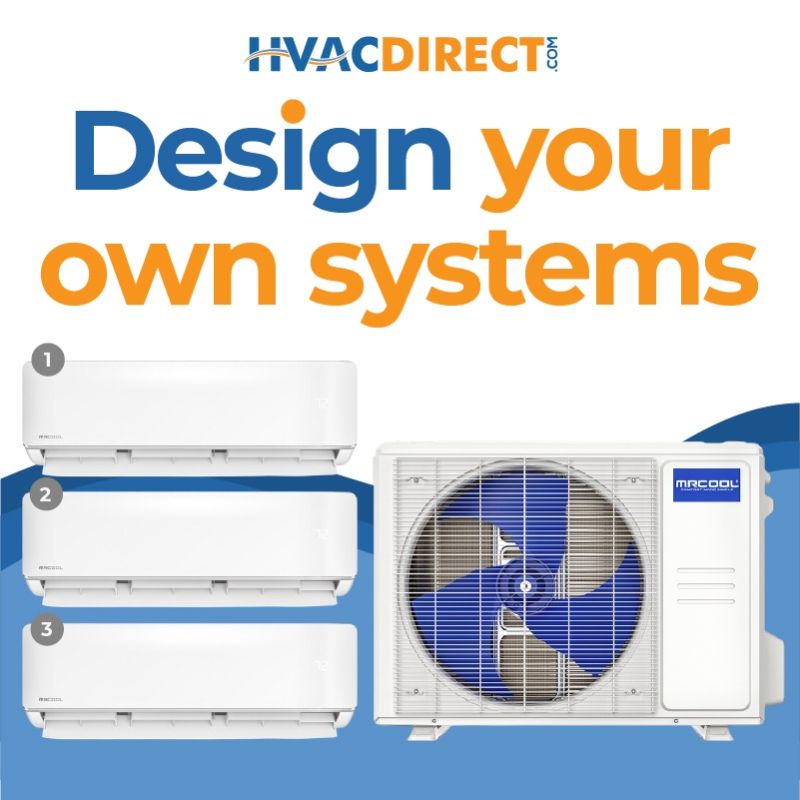

MRCOOL Design Your Own Tri Zone Heat Pump System-R410A

Name: MRCOOL Design Your Own Tri Zone Heat Pump System-R410A
Brand: MRCOOL
SKU: MRCOOL DIY Tri Zone
Availability: OutOfStock

SAVE $0.00

Required Fields *

Customer reviews

Rating:

4.4 out of 5

4.4 out of 5 View All 5 Reviews Add Your Review

Out of stock

MRCOOL

Out of stock

Model

MRCOOL DIY Tri Zone

192541

Description

The MRCOOL DIY Tri Zone Mini Split Systems are innovative ductless heat pump solutions that provide efficient heating and cooling for your home. Designed for easy DIY installation, these systems let homeowners set them up without the need for professional help. With a SEER rating of up to 21, the energy-efficient inverter compressor delivers reliable performance while keeping energy costs low. Each zone can be customized with either a wall-mounted air handler or a ceiling cassette, both equipped with a wireless remote for personalized comfort in every room.

Product Specs

More Information
MRCOOL DIY 4th Gen 48,000 BTU Multi-Zone Heat Pump Condenser-R410A
Feature	Spec
SKU	DIY-MULTI5-48HP230C
Weight (in lbs)	223
AHRI Certificate Number	208552972
Brand/Manufacturer	MRCOOL
UPC	810063869526
Cooling BTU	48000 BTU
Heating BTU	48000 BTU
Decibel Level (dBA)	61.5
Refrigerant	R410A
HSPF2	9.2
SEER2 (Efficiency)	20.5
EER2	11
Electrical	230 V. 1 Phase 60 Hz
Max Breaker Size	60
Min. Breaker Size	40
Tonnage	4 Ton
BTU/Tonnage	48,000 BTU/4 Ton
Zone Compatibility	Multi Zone
Height	52.48"
Width	37.48"
Depth	16.34"
Warranty	5-year Parts / 7-year Compressor
Resources	Brochure Installation Manual and Owner's Guide Spec Sheets AHRI Certificate You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
MRCOOL DIY 4th Gen 27,000 BTU Multi-Zone Heat Pump Condenser-R410A
Feature	Spec
SKU	DIY-MULTI3-27HP230
Weight (in lbs)	145
AHRI Certificate Number	205572571
Brand/Manufacturer	MRCOOL
UPC	810035931763
Cooling BTU	27,000 BTU
Heating BTU	27,000 BTU
Refrigerant	R410A
SEER2 (Efficiency)	22.5
Electrical	230 V. 1 Phase 60 Hz
Max Breaker Size	35
Min. Breaker Size	21
BTU/Tonnage	27,000 BTU/2.25 Ton
Mini Split Type	Wall Mounted
Height	31-9/10"
Width	37-1/4"
Depth	16-1/5"
Warranty	5-year Parts / 7-year Compressor
Resources	Brochure Installation Manual and Owner's Guide AHRI Certificate Performance Specification You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
MRCOOL DIY 4th Gen 36,000 BTU Multi-Zone Heat Pump Condenser-R410A
Feature	Spec
SKU	DIY-MULTI4-36HP230
Weight (in lbs)	185
AHRI Certificate Number	205572572
Brand/Manufacturer	MRCOOL
UPC	810063869519
Cooling BTU	36,000 BTU
Heating BTU	36,000 BTU
Refrigerant	R410A
SEER2 (Efficiency)	22.5
Electrical	230 V. 1 Phase 60 Hz
Max Breaker Size	45
Min. Breaker Size	30
Tonnage	3 Ton
BTU/Tonnage	36,000 BTU/3 Ton
Mini Split Type	Wall Mounted
Height	31-9/10"
Width	37-1/4"
Depth	16-1/5"
Warranty	5-year Parts / 7-year Compressor
Resources	Brochure Installation Manual and Owner's Guide AHRI Certificate Performance Specification You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
MRCOOL DIY 9,000 BTU R410A 4th Gen Multi-Zone Wall Mounted Air Handler with Enhanced WiFi
Feature	Spec
SKU	DIY-09-HP-WMAH-230C25
Weight (in lbs)	23.8
Brand/Manufacturer	MRCOOL
UPC	810063869533
Cooling BTU	9,000 BTU
Heating BTU	9,000 BTU
Decibel Level (dBA)	25-40 dBA
Refrigerant	R410A
SEER1 (Efficiency)	22
Liquid Line	1/4"
Suction Line	1/2"
Electrical	208/230V \| 1 Phase \| 60Hz
Max Breaker Size	15
Min. Breaker Size	3
BTU/Tonnage	9,000 BTU/0.75 Ton
Mini Split Type	Wall Mounted
Height	11.69"
Width	31.57"
Depth	7.44"
Warranty	5-year Parts / 7-year Compressor
Resources	Brochure Installation Manual and Owner's Guide Quick Start Guide You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
MRCOOL DIY 12,000 BTU R410A 4th Gen Multi-Zone Wall Mounted Air Handler with Enhanced WiFi
Feature	Spec
SKU	DIY-12-HP-WMAH-230C25
Weight (in lbs)	23.6
Brand/Manufacturer	MRCOOL
UPC	810063869540
Cooling BTU	12,000 BTU
Heating BTU	12,000 BTU
Refrigerant	R410A
Liquid Line	1/4"
Suction Line	1/2"
Electrical	208/230 V. 1 Phase 60 Hz
Max Breaker Size	15 Amps
Min. Breaker Size	3 Amps
BTU/Tonnage	12,000 BTU/1 Ton
Mini Split Type	Wall Mounted
Height	11.69"
Width	31.57"
Depth	7.44"
Warranty	5-year Parts / 7-year Compressor
Resources	Brochure Installation Manual and Owner's Guide Quick Start Guide You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
MRCOOL DIY 4th Gen 18,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi-R410A
Feature	Spec
SKU	DIY-18-HP-WMAH-230C25
Weight (in lbs)	34.61
Brand/Manufacturer	MRCOOL
UPC	810063868512
Cooling BTU	18,000 BTU
Heating BTU	18,000 BTU
Refrigerant	R410A
Liquid Line	1/4"
Suction Line	1/2"
Electrical	208/230 V. 1 Phase 60 Hz
BTU/Tonnage	18,000 BTU/1.5 Ton
Mini Split Type	Wall Mounted
Height	13.19"
Width	42.52"
Depth	8.90"
Warranty	5-year Parts / 7-year Compressor
Resources	Brochure Installation Manual and Owner's Guide Quick Start Guide You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
MRCOOL E Star DIY 4th Gen 24k BTU Ductless Mini-Split Air Handler 208-230V/60Hz
Feature	Spec
SKU	DIY-24-HP-WMAH-230C25
Weight (in lbs)	35.27
Brand/Manufacturer	MRCOOL
UPC	810063868536
Cooling BTU	24,000 BTU
Heating BTU	24,000 BTU
Decibel Level (dBA)	48.5
Refrigerant	R410A
Liquid Line	3/8"
Suction Line	5/8"
Electrical	230 V. 1 Phase 60 Hz
BTU/Tonnage	24,000 BTU/2 Ton
Mini Split Type	Wall Mounted
Zone Compatibility	Single Zone
Height	13.19
Width	42.52
Depth	8.9
Warranty	5-year Parts / 7-year Compressor
Resources	Brochure Installation Manual and Owner's Guide Quick Start Guide You will need Adobe Acrobat Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
MRCOOL DIY 4th Gen 9,000 BTU Multi-Zone Ceiling Cassette Air Handler-R410A
Feature	Spec
SKU	DIYCASSETTE09HP-230C25
Weight (in lbs)	23.8
Brand/Manufacturer	MRCOOL
UPC	840255522199
Cooling BTU	9000 BTU
Heating BTU	9000 BTU
Decibel Level (dBA)	42
Refrigerant	R410A
Liquid Line	1/4 in
Suction Line	1/2 in
Electrical	230 V. 1 Phase 60 Hz
Max Breaker Size	15
Min. Breaker Size	3
BTU/Tonnage	9,000 BTU/0.75 Ton
Mini Split Type	Ceiling Cassette
Height	8.98"
Width	50.31"
Depth	13.9"
Warranty	5-year Parts/7-year Compressor/1-year Remote
Resources	Ceiling Cassette Brochure Installation & Owner's Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
MRCOOL DIY 4th Gen 12,000 BTU Multi-Zone Ceiling Cassette Air Handler-R410A
Feature	Spec
SKU	DIYCASSETTE12HP-230C25
Weight (in lbs)	20.6
Brand/Manufacturer	MRCOOL
UPC	840255522205
Cooling BTU	12000 BTU
Heating BTU	12000 BTU
Refrigerant	R410A
Liquid Line	1/4 in
Suction Line	1/2 in
Electrical	230 V. 1 Phase 60 Hz
Max Breaker Size	15 amps
Min. Breaker Size	3 amps
BTU/Tonnage	12,000 BTU/1 Ton
Mini Split Type	Ceiling Cassette
Height	8.98"
Width	50.31"
Depth	13.9"
Warranty	5-year Parts/7-year Compressor/1-year Remote
Resources	Ceiling Cassette Brochure Installation & Owner's Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
MRCOOL DIY 4th Gen 18,000 BTU Multi-Zone Ceiling Cassette Air Handler-R410A
Feature	Spec
SKU	DIYCASSETTE18HP-230C25
Weight (in lbs)	20.6
Brand/Manufacturer	MRCOOL
UPC	840255522212
Cooling BTU	17000 BTU
Heating BTU	19000 BTU
Refrigerant	R410A
Liquid Line	1/4 in
Suction Line	1/2 in
Electrical	230 V. 1 Phase 60 Hz
Max Breaker Size	15 amps
Min. Breaker Size	3 amps
BTU/Tonnage	18,000 BTU/1.5 Ton
Mini Split Type	Ceiling Cassette
Height	8.98"
Width	50.31"
Depth	13.9"
Warranty	5-year Parts/7-year Compressor/1-year Remote
Resources	Ceiling Cassette Brochure Installation & Owner's Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
MRCOOL DIY 9,000 BTU R410A 4th Gen Multi-Zone Wall Mounted Air Handler with Enhanced WiFi
Feature	Spec
SKU	DIY-09-HP-WMAH-230C25
Weight (in lbs)	23.8
Brand/Manufacturer	MRCOOL
UPC	810063869533
Cooling BTU	9,000 BTU
Heating BTU	9,000 BTU
Decibel Level (dBA)	25-40 dBA
Refrigerant	R410A
SEER1 (Efficiency)	22
Liquid Line	1/4"
Suction Line	1/2"
Electrical	208/230V \| 1 Phase \| 60Hz
Max Breaker Size	15
Min. Breaker Size	3
BTU/Tonnage	9,000 BTU/0.75 Ton
Mini Split Type	Wall Mounted
Height	11.69"
Width	31.57"
Depth	7.44"
Warranty	5-year Parts / 7-year Compressor
Resources	Brochure Installation Manual and Owner's Guide Quick Start Guide You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
MRCOOL DIY 12,000 BTU R410A 4th Gen Multi-Zone Wall Mounted Air Handler with Enhanced WiFi
Feature	Spec
SKU	DIY-12-HP-WMAH-230C25
Weight (in lbs)	23.6
Brand/Manufacturer	MRCOOL
UPC	810063869540
Cooling BTU	12,000 BTU
Heating BTU	12,000 BTU
Refrigerant	R410A
Liquid Line	1/4"
Suction Line	1/2"
Electrical	208/230 V. 1 Phase 60 Hz
Max Breaker Size	15 Amps
Min. Breaker Size	3 Amps
BTU/Tonnage	12,000 BTU/1 Ton
Mini Split Type	Wall Mounted
Height	11.69"
Width	31.57"
Depth	7.44"
Warranty	5-year Parts / 7-year Compressor
Resources	Brochure Installation Manual and Owner's Guide Quick Start Guide You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
MRCOOL DIY 9,000 BTU R410A 4th Gen Multi-Zone Wall Mounted Air Handler with Enhanced WiFi
Feature	Spec
SKU	DIY-09-HP-WMAH-230C25
Weight (in lbs)	23.8
Brand/Manufacturer	MRCOOL
UPC	810063869533
Cooling BTU	9,000 BTU
Heating BTU	9,000 BTU
Decibel Level (dBA)	25-40 dBA
Refrigerant	R410A
SEER1 (Efficiency)	22
Liquid Line	1/4"
Suction Line	1/2"
Electrical	208/230V \| 1 Phase \| 60Hz
Max Breaker Size	15
Min. Breaker Size	3
BTU/Tonnage	9,000 BTU/0.75 Ton
Mini Split Type	Wall Mounted
Height	11.69"
Width	31.57"
Depth	7.44"
Warranty	5-year Parts / 7-year Compressor
Resources	Brochure Installation Manual and Owner's Guide Quick Start Guide You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
MRCOOL DIY 12,000 BTU R410A 4th Gen Multi-Zone Wall Mounted Air Handler with Enhanced WiFi
Feature	Spec
SKU	DIY-12-HP-WMAH-230C25
Weight (in lbs)	23.6
Brand/Manufacturer	MRCOOL
UPC	810063869540
Cooling BTU	12,000 BTU
Heating BTU	12,000 BTU
Refrigerant	R410A
Liquid Line	1/4"
Suction Line	1/2"
Electrical	208/230 V. 1 Phase 60 Hz
Max Breaker Size	15 Amps
Min. Breaker Size	3 Amps
BTU/Tonnage	12,000 BTU/1 Ton
Mini Split Type	Wall Mounted
Height	11.69"
Width	31.57"
Depth	7.44"
Warranty	5-year Parts / 7-year Compressor
Resources	Brochure Installation Manual and Owner's Guide Quick Start Guide You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
MRCOOL E Star DIY 4th Gen 24k BTU Ductless Mini-Split Air Handler 208-230V/60Hz
Feature	Spec
SKU	DIY-24-HP-WMAH-230C25
Weight (in lbs)	35.27
Brand/Manufacturer	MRCOOL
UPC	810063868536
Cooling BTU	24,000 BTU
Heating BTU	24,000 BTU
Decibel Level (dBA)	48.5
Refrigerant	R410A
Liquid Line	3/8"
Suction Line	5/8"
Electrical	230 V. 1 Phase 60 Hz
BTU/Tonnage	24,000 BTU/2 Ton
Mini Split Type	Wall Mounted
Zone Compatibility	Single Zone
Height	13.19
Width	42.52
Depth	8.9
Warranty	5-year Parts / 7-year Compressor
Resources	Brochure Installation Manual and Owner's Guide Quick Start Guide You will need Adobe Acrobat Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.

Reviews 5

Top reviews

Mr. cool mini split system is working great

Quality
100%

Service
100%

Price
60%

I purchased 36K mini split three head unit. Ordering was very simple and easy process shipping came fast. All parts were there no damage. The install was straightforward. Very happy with the system up and running working great. Thanks!
Review by Dan
Posted on 12/17/24
Very happy

Service
100%

Quality
100%

Price
100%

I was very happy with the service that I received from HVAC direct! The team at HVAC direct was very knowledgeable and helpful! All equipment was received and installed and is up and running. Thanks again for your help. Take care.
Review by James
Posted on 1/20/23
Don’t buy

Quality
60%

Price
100%

Service
20%

Bought from Ingrams,went into P3 error code,immediately after install.Takes a long time to get to person,and then they just guess at problem and send parts,and then you have to be the technician.
If you buy,just know,you will have to do repairs,because it’s DIY,no one wants to work on it,and company won’t back you!!!
Review by Don
Posted on 12/5/22
Top Notch

Price
100%

Service
100%

Quality
100%

I'm very pleased with Mr Cool DIY mini split, I would recommend a few things to have some additional detailed info regarding the install. if you're not technically savvy and have no common sense you're in for a treat. HVACDirects sales/customer service is TOP NOTCH! Customer service and product knowledge is a must in a service industry HVACDirect provided these key services without a BS sales pitch. From the initial sale to tracking down the delivery of the product.
Review by JC
Posted on 7/19/22
Great system

Quality
100%

Price
100%

Service
100%

Great system super easy install
Review by John
Posted on 12/5/20

Accessories

FAQ's

Customer Questions

Why Choose MRCOOL?

MRCOOL mini split systems combine innovative design with advanced manufacturing to deliver efficient, reliable comfort wherever you need it. Built with cutting-edge technology, these systems ensure optimal performance and flexibility for any space.
