2 Ton 20 SEER MRCOOL Universal Series Heat Pump System

Q: Where are they manufactured?

MRCOOL is based out of Kentucky however most of their min-splits are manufactured in China.

MRCOOL

Model

MDU18024

55922

Rating:

97 % of 100

(5) Write a Review

6 Questions Answered

Availability: In Stock - Ready to Ship

Authorized MRCOOL Dealer

AHRI Number:204117201

$3,445.00

System Tonnage

Free Shipping

Pre-Charged Line Set

Condenser Kit

Mounting

Electric Heat Kit

Qty

Accessories for this product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

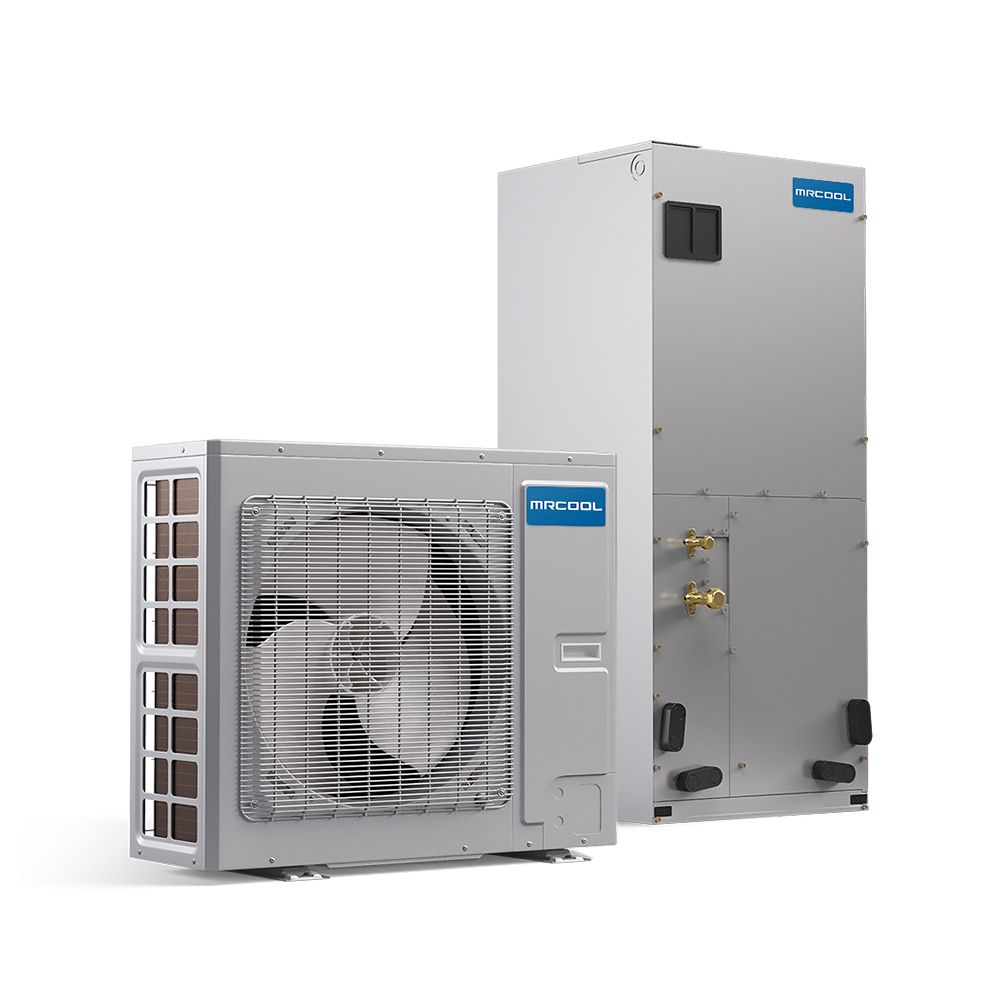

The MRCOOL Universal Unitary Heat Pump system is an easy to install, full size air handler with a slim condenser, suitable for most 2-3 ton applications. This system is incredibly flexible, combining the ultimate in ducted comfort and easy installation. The 3 ton condenser can be field converted to a 2 ton with a different dip switch setting. The quick connect fittings on the condenser and air handler allow for an easy installation processes with MRCOOL's pre-charged lines, available as an accessory up to 50 feet in length. Using the same inverter technology used by the MRCOOL mini splits, the system can run at different speeds to optimize comfort and efficiency.

Features

Comes with quick connect fittings for easy installations
2 ton or 3 ton setting
80% BTU output at -4°F outside temperature
Fireproof electrical box
Upflow and horizontal installation only

Advantages

No gas required; all electric system
Compatible with 3rd party thermostats; use your favorite or upgrade to a smart thermostat
No specialized tools required for installing the line sets
MRCOOL temperature compensation technology helps keep you comfortable in any weather condition

MDU18024036 System

MDUI18024 Indoor Unit
MDUO18024 Outdoor Unit

Product Specifications

More Information
2 Ton 20 SEER MRCOOL Universal Series Heat Pump System
SKU	MDU18024
Weight (in lbs)	410.000000
AHRI Certificate Number	204117201
Brand/Manufacturer	MRCOOL
Controller	Not Included
HSPF	10.0
Cooling BTU	24,000 BTU
Heating BTU	24,000 BTU
Maximum CFM	1000
Decibel Level (dBA)	Indoor Unit: 49 \| Outdoor Unit: 60
Electric Heat	Heat Pump
Electric Backup Heat Capabilities (Optional)	5 Kilowatts, 8 Kilowatts, 10 Kilowatts
Energy Star	No
Refrigerant	R410A
SEER1 (Efficiency)	18+
SEER1 (Efficiency)	18-20
SEER2 (Efficiency)	22.3
EER	10.91
Condenser Stages	Variable Speed
Compressor Type	Rotary
Liquid Line	3/8"
Suction Line	3/4"
Electrical	230 V. 1 Phase 60 Hz
Max Breaker Size	Indoor Unit: 15A \| Outdoor Unit: 20A
Tonnage	2 Ton
System Tonnage	2 Ton
BTU/Tonnage	24,000 BTU/2 Ton
Mini-Split Type	Multi-Positional
Min/Max Outdoor Temp for Heating	-22°F-75°F
Min/Max Outdoor Temp for Cooling	5°F-129°F
Zone Compatibility	Single Zone
Height	Indoor Unit: 48.2" \| Outdoor Unit: 32.3"
Width	Indoor Unit: 21.3" \| Outdoor Unit: 37"
Depth	Indoor Unit: 21.3" \| Outdoor Unit: 18.1"
Additional Info	Indoor Unit: 217 lbs \| Outdoor Unit: 156 lbs
Warranty	10 Years with Online Registration
Resources	Brochure Air Handler Installation Manual Condenser Installation Manual Operating Range AHRI Certificate Warranty Information You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.

Reviews 5

Questions and Answers

Customer Questions

is there capability in the indoor unit to monitor a float switch in an overflow pan and shut the unit off?

Yes it does. We recommend the Beckett Central Air Drain Pan Float Switch, model #SS-1502C.

Where are they manufactured?

MRCOOL is based out of Kentucky however most of their mini-splits are manufactured in China.

Recommended installer?

Hello, https://www.thumbtack.com is a great resource to find a contractor. Any other questions please feel free to give us a call! Thanks.

Are prices in USD? Do you ship to Canada?

Yes, all of our prices are USD. We do not ship to Canada directly, no. However, if you have easy access to the border you can make arrangements to pick up at a border store. Some border stores allow for products that don't ship to Canada to be dropped off for the customers to come pick them up from there and take the rest of the way. It is recommended to check with the border store prior to placing an order to ensure a smooth process. If you have any further questions please feel free to give us a call! Thanks.

What exactly comes with this?

This system includes both the outdoor condenser and the indoor air handler. For a complete installation, a few additional accessories will be required. You will need a pre-charged line set, control wire, a condensate drain line , a disconnect switch, an electrical whip and a surge protector. The last three can be purchased in a kit which is called a condenser kit. For installation, we would also recommend a wall sleeve to pass the line set through the wall and an electric heat kit. Depending on your installation you may require a Precision Duct Furnace/Coil to Plenum Transition Kit or a condensate pump if your drain line goes against gravity. We would also recommend a condenser slab, pad or wall bracket to keep your outdoor condenser off of the ground and line set cover guards to protect and camouflage your line set. All of these accessories can be found in the accessory section which is located beneath the "add to cart" button. The condenser kit, mounting option for the condenser, line...

Does this system cool in the summer as well as heat in the winter?

Thank you for your question. Yes, this system is capable of both heating and cooling. This system will efficiently heat with outdoor temperatures ranging from -22°F-75°F. It will efficiently cool with outdoor temperatures ranging from 5°F-129°F. For heating, we would recommend purchasing an electric heat kit for the MRCOOL Universal air handler. This electric heat kit can be found in the accessories section for this product, which is located under the "add to cart" button. It can also be added using the drop down selection bars next to the product image. For more assistance, please give us a call.
