MRCOOL Universal Series 3 Ton 18 SEER Ducted Central Air Inverter Heat Pump Split System

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MRCOOL

In stock

Model

MDU18036

56063

Rating:

1440% of 100

(15) Write a Review

15 Questions Answered

Availability: In Stock - Ready to Ship

Authorized MRCOOL Dealer

AHRI Number:204117201

$3,555.00

System Tonnage

Save up to $5,500 off Local HVAC Prices

Free Shipping

Pre-Charged Line Set

Condenser Kit

Electric Heat Kit

Mounting

Qty

Accessories for this product

People that viewed this product purchased this instead:

ACiQ 2 Ton 20 SEER High Efficiency Central Heat Pump System | Inverter | Extreme Heat

SAVE $722.00

ACiQ 2.5 Ton 16.2 SEER2 High Efficiency Central Heat Pump System | Inverter | Extreme Heat

SAVE $708.00

ACiQ 4 Ton 16 SEER High Efficiency Central Heat Pump System | Inverter | Extreme Heat

SAVE $1,025.00

ACiQ 3.5 to 4 Ton 16 SEER High Efficiency Central Heat Pump System | Inverter | Extreme Heat

SAVE $1,025.00

Description

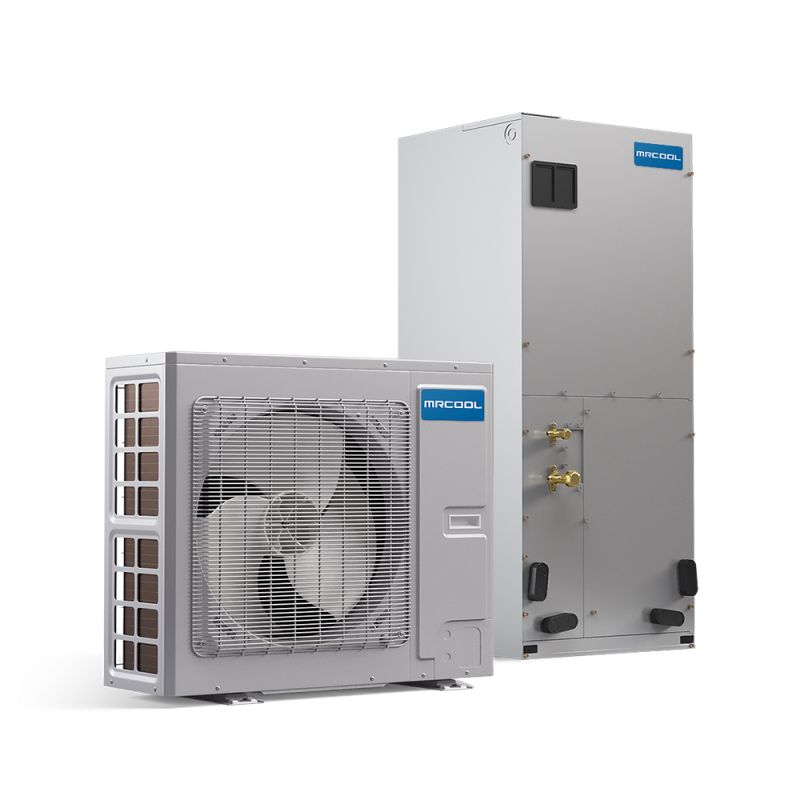

The MRCOOL Universal Unitary Heat Pump system is an easy to install, full size air handler with a slim condenser, suitable for most 2-3 ton applications. This system is incredibly flexible, combining the ultimate in ducted comfort and easy installation. The 3 ton condenser can be field converted to a 2 ton with a different dip switch setting. The quick connect fittings on the condenser and air handler allow for an easy installation processes with MRCOOL's pre-charged lines, available as an accessory up to 50 feet in length. Using the same inverter technology used by the MRCOOL mini splits, the system can run at different speeds to optimize comfort and efficiency.

Features

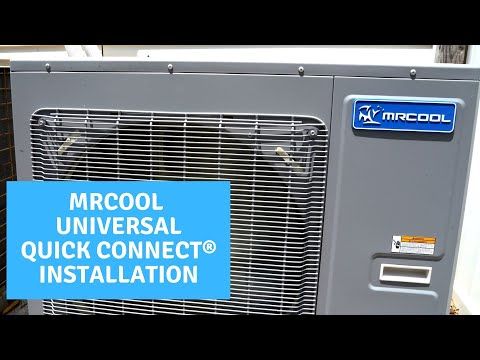

Comes with quick connect fittings for easy installations
2 ton or 3 ton setting
80% BTU output at -4°F oudside temperature
Fireproof electrical box
Upflow and horizontal installation only

Advantages

No gas required; all electric system
Compatible with 3rd party thermostats; use your favorite or upgrade to a smart thermostat
No specialized tools required for installing the line sets
MRCOOL temperature compensation technology helps keep you comfortable in any weather condition

MDU18024036 System

MDUI18036 Indoor Unit
MDUO18036 Outdoor Unit

Product Specifications

More Information
MRCOOL Universal Series 3 Ton 18 SEER Ducted Central Air Inverter Heat Pump Split System
SKU	MDU18036
Weight (in lbs)	410.000000
AHRI Certificate Number	204117201
Brand/Manufacturer	MRCOOL
Controller	Not Included
HSPF	10.0
Cooling BTU	36,000 BTU
Heating BTU	36,000 BTU
Maximum CFM	1000
Decibel Level (dBA)	Indoor Unit: 49 \| Outdoor Unit: 60
Electric Heat	Heat Pump
Electric Backup Heat Capabilities (Optional)	5 Kilowatts, 8 Kilowatts, 10 Kilowatts
Energy Star	No
Refrigerant	R410A
SEER1 (Efficiency)	18-20
EER	10.91
Condenser Stages	Variable Speed
Compressor Type	Rotary
Liquid Line	3/8"
Suction Line	3/4"
Electrical	230 V. 1 Phase 60 Hz
Max Breaker Size	Indoor Unit: 15A \| Outdoor Unit: 35A
Tonnage	3 Ton
System Tonnage	3 Ton
BTU/Tonnage	36,000 BTU/3 Ton
Mini Split Type	Multi-Positional
Min/Max Outdoor Temp for Heating	-22°F-75°F
Min/Max Outdoor Temp for Cooling	5°F-129°F
Zone Compatibility	Single Zone
Height	Indoor Unit: 48.2" \| Outdoor Unit: 32.3"
Width	Indoor Unit: 21.3" \| Outdoor Unit: 37"
Depth	Indoor Unit: 21.3" \| Outdoor Unit: 18.1"
Additional Info	Indoor Unit: 217 lbs \| Outdoor Unit: 156 lbs
Warranty	10 Years with Online Registration
Resources	Brochure Air Handler Installation Manual Condenser Installation Manual Operating Range AHRI Certificate Warranty Information You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.

Reviews 15

Questions and Answers

Customer Questions

How to I determine what size of split system I need?

Hi, please give us a call and we can help you determine exactly what system and parts you'll need. We can also answer any other questions you may have during the searching and purchase process! Thanks

I was quoted that I need a 16 seer conventional ac what size would I need for a mini split

The tonnage you were quoted for the traditional AC would be the same tonnage you need for a mini-split system.

Can this unit be installed in the attic of a ranch style house?

Thank you for your question. The indoor air handler unit could be installed in your attic, however, it can only be installed in the up-flow position. Also when considering an attic installation, the quality of insulation plays a factor in the efficiency of your system. For more assistance, please give us a call at 1-888-377-2850.

Do you sell a top and bottom plenum? Can you give me a size for 3 Ton 18 SEER MRCOOL Universal Series Heat?

Thank you for your question. You will need bottom plenum that will match the dimensions of the furnace which are the following: 21-1/4" x 21-1/4" x 48-1/4". For the top you will need 11-5/8" x 20". We do have plenum options available. For assistance in finding exactly what you need, please give us a call at 1-888-376-5487.

Are there mounting sizes available for the condenser unit?

For mounting the condenser on the wall, we recommend this Diversitech mounting bracket for condensers. For more assistance, please give us a call at 1-888-377-2850.

My unit is gas furnace, so if I purchased this, it can be converted using only electricity?

Yes, you would use the air handler as heat, with the back up heat kit if needed. If you have any further questions, please call us and we will be happy to assist you.

Downflow conversion?

Thank you for your question. This unit is specifically designed as an up flow system. However, you may want to check with the manufacturer or for assistance in finding a system that will work from a down flow installation, please give us a call at 1-888-376-7450.

Do you carry a DIY mini split that would work for my shop? 30x45 with 14’ walls and 16’ total height at center.

Thank you for your question. Yes, we have several options that would be great for your needed application. However, the size of mini split that you will need is dependent upon your climate zone and the quality of your shop's insulation. Please reference our Sizing Guide to help you determine what kind of unit you'll be needing. If you have any further questions please feel free to give us a call.

Three rooms required. How many units needed?

Please reference our Sizing Guide that will allow you to know exactly what kind of unit you'll be needing as there are many determining factors such as insulation quality, location, etc... If you have any further questions please feel free to give us a call! Thanks.

I need a 3 ton heat pump with oil furnace back up 95kbtu?

We recommend that you give us a call so that we can get the right unit for you efficiently and answer any further questions you may have. Thanks!

Do you have a 2-ton 18 SEER unit ?

We currently have the 2-ton 20 SEER Heat Pump system by MRCOOL. If you have any further questions please feel free to give us a call! Thanks.

Can I use my existing 3 ton evaporator coil and furnace?

You are able to do so as long as the tonnage stays the same and the same refrigerant is being used. However, you are not able to swap out a Goodman condenser with a MRCOOL condenser. MRCOOL cannot work with existing furnaces and coils; you would need to do a full system swap and get the MRCOOL air handler as well. Their air handler has an integrated coil inside as well as a blower motor, which requires a MRCOOL condenser to be matched with it. If you have any further questions, please call us and we will be happy to assist you.

What is the recommended wire size for power supply cord for the air handler unit?

The gauge of signal wire should not be less than AWG18. It’s recommended to use AWG18 power cords as the signal wire. If you have any further questions please feel free to give us a call! Thanks.

Is this heating and cooling?

Yes, this ducted heat pump system can operate in both heating and cooling. If you have any further questions please feel free to give us a call! Thanks.

What thermostat do I need for this unit?

Thank you for your question. This system is compatible with most 3rd party thermostats. You can even upgrade to a smart thermostat if that is something that interests you. The only thing to make sure of is that when installing the thermostat that the wiring diagram if followed correctly. Some of our best selling thermostats for this system are the Cielo Breez and the Ecobee. For more assistance, please give us a call.
