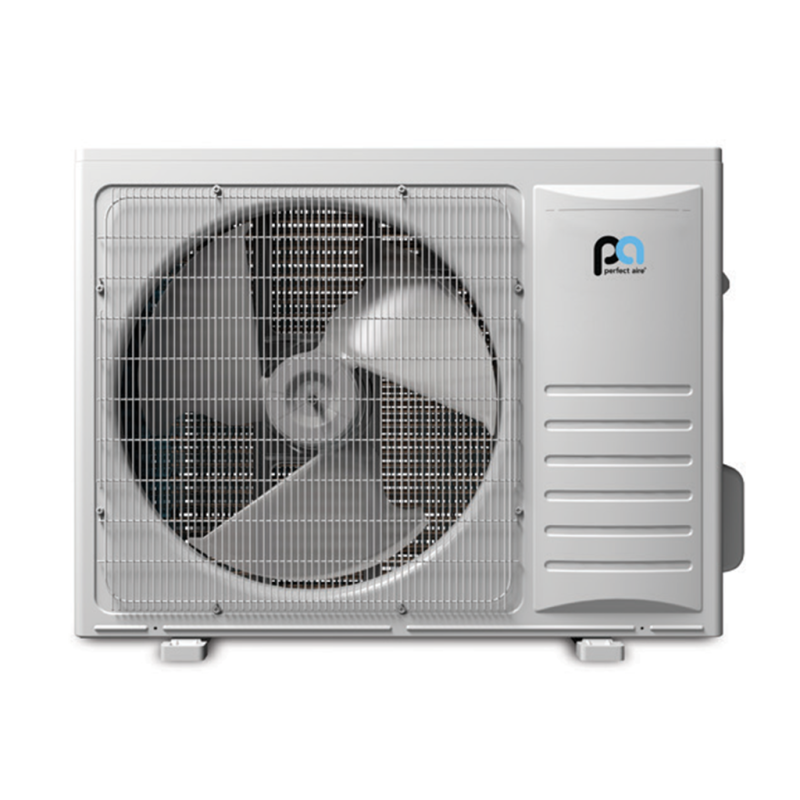

Perfect Aire DIY 24,000 BTU 22 SEER Multi-Zone Heat Pump Condenser

SAVE $3,897.47
Customer reviews
Rating:
5 out of 5
ONLY 4 LEFT!
Free Shipping
By

Perfect Aire

In stock
Model

UB1MSHHQC24-MZO3

ID

86893

Was $4,799.96 Your Low Price Special Price $902.49

Product Features
  • Included handheld remote for convenient zone-by-zone comfort control
  • Perfect for up to 1,500 sq ft Room/Zone
  • High-efficiency inverter performance for steady temperatures and lower energy use
  • Quiet operation designed for living rooms, bedrooms, and home offices
  • Heat pump system using R410A refrigerant for dependable heating and cooling
  • Built for flexible residential installation and everyday comfort

OVERVIEW

Perfect Aire offers the 3PAMSHHQC24-MZO3 outdoor condenser which provides the ability to easily install a Perfect Aire Multi-Zone DIY Mini-Split System.

Please note that in order to function you must purchase Perfect Aire precharged line sets for each indoor air handler, and other installation equipment, available at an additional cost.

FEATURES

  • 24,000 BTU multi zone DIY heat pump condenser
  • 22 SEER
  • 100% sealed and pre-charged system when installed with the right accessories
  • Provides efficient heating down to -13°F
  • Golden Fin corrosion coated coils withstand corrosive outdoor elements
  • Energy Star certified
More Information
Perfect Aire DIY 24,000 BTU 22 SEER Multi-Zone Heat Pump Condenser
FeatureSpec
SKUUB1MSHHQC24-MZO3
Weight (in lbs)159
Brand/ManufacturerPerfect Aire
Cooling BTU24,000 BTU
Heating BTU24,000 BTU
RefrigerantR410A
Amperage Requirement30A
Tonnage2 Ton
BTU/Tonnage24,000 BTU/2 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Height33
Width37.5
Depth13.5"
Warranty1 Year Unit Replacement / 7 Year Compressor / 7 Year Parts
Resources You will need Adobe® Acrobat® Reader to view PDF documents
Safety InformationPROPOSITION 65 WARNING
Top reviews
  1. Great Price Fast Delivery
    Quality
    100%
    Service
    100%
    Price
    100%
    First off, the price for the DIY kit was within our budget the instructions were easy to understand and strait forward. In the area I am in the install alone would have easily been over a thousand dollars so not only did it save money but time as well being able to have the units shipped to my house directly. I should not this was a replacement for another competitors unit that we had for about 3 to 3 ½ years. Once everything was installed and wired up the unit worked as described allowing us to start using 2 rooms in our house again.

    Review by

    Posted on

  2. Great experience
    Price
    100%
    Service
    100%
    Quality
    100%
    I had a great experience with ordering and followup from your company. Davis was great at helping me decide the best system for my needs and everything came as expected. It was the first time we'd done something like this but once we got into it, it was very easy to install. There were a couple things we didn't find out until later. Like on the template for the air handlers, the whole for the tubing is about a 1/4" too low and we can see a little bit of the whole underneath. Unfortunately we did not discover this until doing the 3 and last one. Once we knew we just move the hole up a little bit. The second was something we didn't even think about until we tried to heat one room and cool another. That all 3 have to be on the same mode or they will shut off. It makes sense when we think about it, but was not something we thought about. We did have some parts that we did not end up using as we found better ways, that I just sent off an email so we can return and get refunded for the unused products and am waiting for a response. I would recommend your company and products to others, thank you. Sure beats paying someone else 14k to install. We even did the electrical ourselves saving another 2k that we were quoted.

    Review by

    Posted on

Customer Questions
Compressor - What brand does this unit use?
This unit uses compressors from the brand GMCC. If you have any further questions, please call us and we will be happy to assist you.
Did you find what you were looking for?



Why Choose a Perfect Aire Product?

Why Choose Perfect Aire?

Perfect Aire ductless mini split air conditioners and heat pumps are the cutting edge of what modern, flexible fabrication can produce. These mini-split systems include revolutionary Quick Connect adaptors to enable easy DIY installation at an affordable price.
