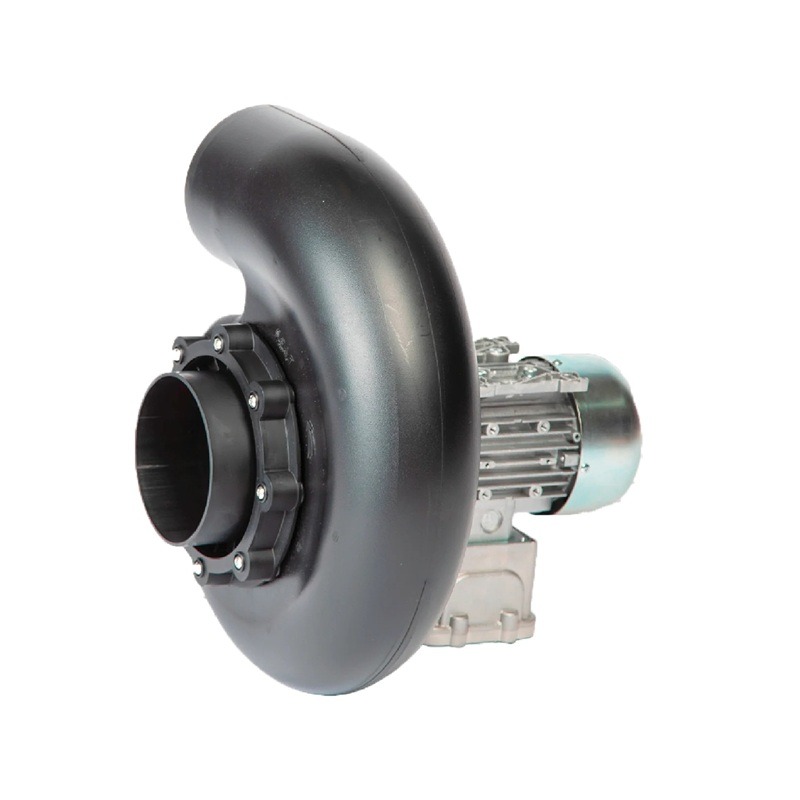

Today's Hours 8am - 11pm estPlastec 15 Series Direct Drive Forward Curve Blower Explosion Proof .33 HP 200 CFM Single Phase with Mount
Required Fields *
By
Plastec
In stock
Model
P15XS6P033 / MB15
ID
19598
Was $4,867.24
Your Low Price $4,271.70
Product Features
- Space-saving design allows for easy installation
- Forward Curve Impeller design for high airflow and quiet operation
- Constructed from high-quality thermoplastic materials
- Designed to vent fumes from highly corrosive environments like laboratories, chemical plants, hospitals, and universities.
OVERVIEW
Plastec centrifugal fans are offered in six sizes, ranging from 5" to 23.50" inlets. The Plastec 15 XP Series is specifically engineered with explosion-proof materials, making it ideal for use in hazardous environments. These fume-extracting exhaust and blower systems are designed to handle air contaminated with toxic fumes, dust, debris, chemicals, and various industrial pollutants. Constructed with carbon-impregnated polypropylene, one of the most durable synthetic materials, these fans ensure exceptional strength, chemical resistance, and long-term reliability.
Key Features
- CIP Carbon Impregnated Polypropylene: Standard polypropylene parts are available in a CIP version, where carbon powder is blended into PP to enhance electrical conductivity and minimize spark risks.
- AMCA Spark A Compliant: Achieves the highest spark resistance rating under AMCA International standards with no ferrous components in the airstream.
- Direct Drive Motor System: Removes the need for belts and pulleys, lowering maintenance requirements and boosting efficiency.
- Forward Curve Impeller Design: Delivers strong airflow at reduced noise levels for optimal performance.
- Lightweight yet Durable Construction: Built for easy handling and installation without sacrificing strength.
- Extended Service Life: Engineered for continuous use in tough industrial and laboratory environments.
- Explosion Proof Motors: Features certified explosion-proof motors with inverter duty, premium efficiency, and IEC dimension standards.
Blower Specifications
- Direct drive forward curve design
- Wheel diameter: 5.9"
- Maximum airflow: 200 CFM
- Noise level: 43 dBA at 5 feet
- Inlet diameter: 4.92"
- Outlet diameter: 4.47"
- Voltage: 115/230 V, single-phase, 50/60 Hz
- Motor horsepower: 0.33 HP
- Motor speed: 1140 RPM
- Motor type: Explosion-proof, single-phase, capacitor run
- Motor enclosure: Totally enclosed fan cooled (TEFC)
- Housing: Carbon impregnated polypropylene (CIP) assembly
Alternate Model Number: PLA15XS6P-CIP

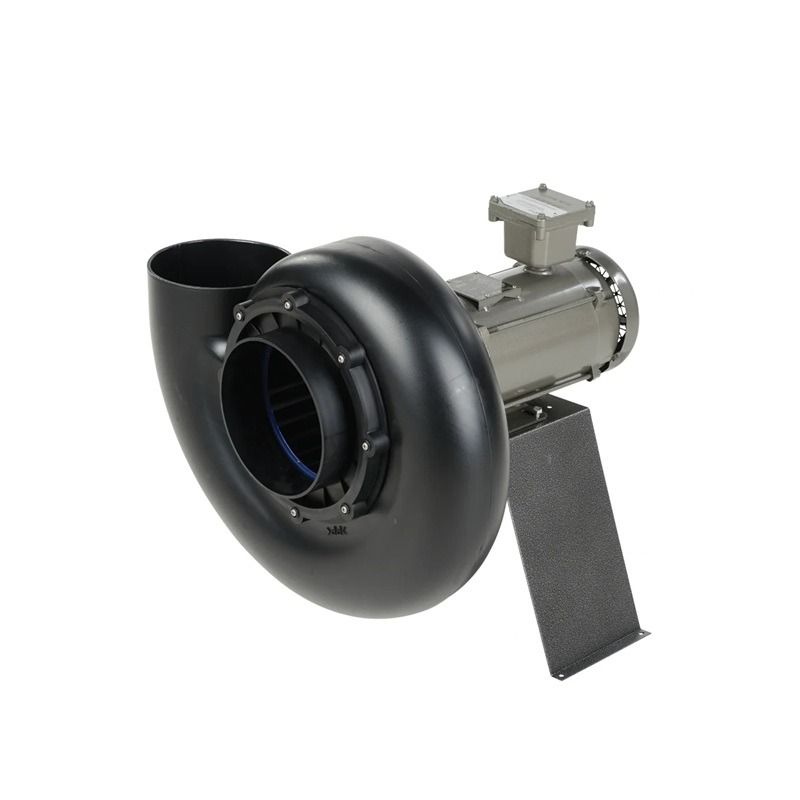

Plastec Enamel Coated Metal Motor Support Stand
Compatible Models: Storm 10 & 12, P15, P20
Features
- Durable enamel-coated metal construction
- Strong, rust-resistant design
- Easy to install
- Includes stainless steel motor mounting hardware
- Provides flange with pre-punched holes for secure mounting and reduced vibration.
Warranty Information
Motor WarrantyAll motors are covered by a one-year warranty from the date of shipment, provided by the motor manufacturer. If service is required during the warranty period, the motor must be taken to the nearest authorized motor service station. Failure to use an authorized service station may void the motor warranty. If you are unsure of an authorized service location, contact the factory for assistance. Installation, removal, re-installation costs, and any consequential damages are not covered.
Blower Housing Assembly WarrantyThe blower housing assembly is warranted to be free from defects in materials and workmanship for two (2) years from the date of original shipment. Defective units or parts reported within this period may be replaced at the manufacturer’s option when returned to the factory with transportation prepaid by the sender.
ExclusionsThe following items are not covered by this warranty:
- Normal wear from heat, abrasion, or chemical exposure
- Damage from improper installation, incorrect electrical connections, or unauthorized alterations
- Damage resulting from misuse, abuse, or abnormal operating conditions
- Lack of proper maintenance
- Transportation costs to and from the factory for warranty repairs
This warranty is limited to repair or replacement of defective parts as described above. The manufacturer is not responsible for installation, removal, or re-installation costs, nor for any consequential damages resulting from product failure or improper operation.
See full warranty on Installation, Operation & Maintenance ManualDurable Materials & Construction
The Plastec 15 Series Blower - XP is engineered with high-quality, corrosion-resistant polypropylene, a material specifically chosen for its exceptional durability, chemical resistance, and lightweight strength. Unlike traditional metal fans, polypropylene construction ensures the blower can withstand harsh environments where exposure to moisture, salt air, or corrosive fumes is common. Its robust design delivers long-lasting performance while reducing the risk of wear, rust, or material degradation, resulting in minimal maintenance and a reliable service life even under demanding conditions. The advanced forward curve impeller design maximizes airflow efficiency and pressure performance, while the direct drive system eliminates belt slippage and reduces maintenance needs.
Built for continuous operation, the 15 Series Blower - XP is a cost-effective solution for facilities seeking a dependable blower that performs consistently in challenging environments.
Suitable Applications for Plastec 15 Series Blower - XP
- Laboratory hoods: Designed to exhaust corrosive fumes from chemistry, biology, and research laboratory environments.
- Chemical facilities: Ideal for venting process areas or storage rooms in industrial plants and chemical manufacturing sites.
- Pharmaceutical and medical production: Used in facilities handling aggressive air contaminants during pharmaceutical or medical manufacturing.
- Water and wastewater treatment: Deployed in sewage and water treatment plants to manage harsh gases and corrosive emissions.
- Marine and coastal environments: Suited for installations in maritime or coastal areas exposed to saline air and corrosion stress.
- Educational and research institutions: Applied in universities, research institutes, and teaching labs where chemical resistance is critical.
- Industrial and petroleum storage: Effective for removing corrosive gases and acid vapors in industrial, chemical, or petroleum storage applications.
