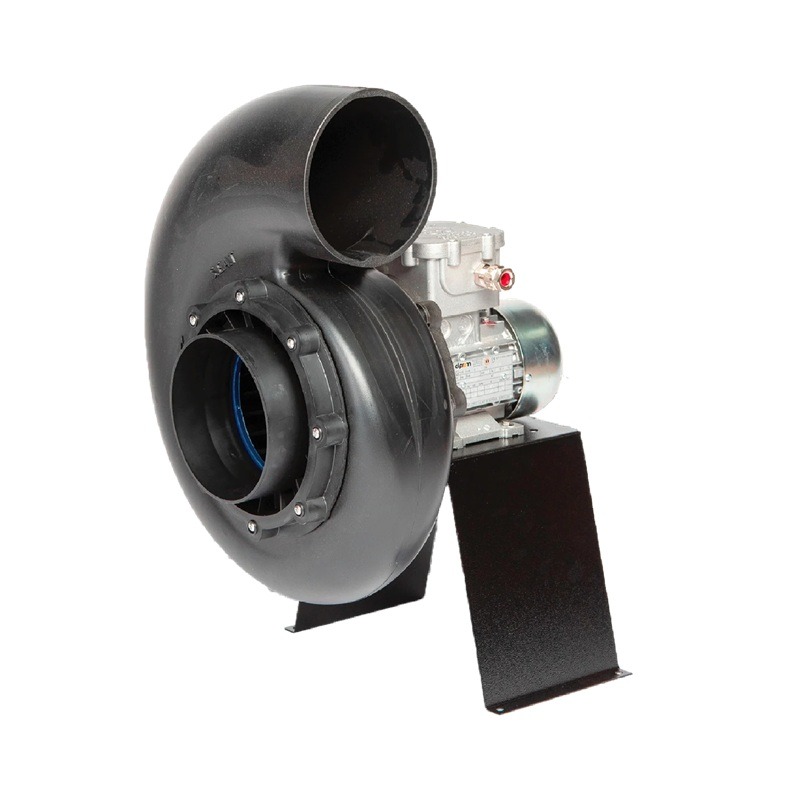

Today's Hours 8am - 11pm estPlastec 20 Series Direct Drive Forward Curve Blower XP Hazardous Location 1.5 HP 1200 CFM Single Phase with Mount
Required Fields *
By
Plastec
In stock
Model
P20XS2P150 / MB15
ID
19607
Was $5,050.72
Your Low Price $4,431.70
Product Features
- Space-saving design allows for easy installation
- Forward Curve Impeller design for high airflow and quiet operation
- Built with all-polypropylene construction for superior resistance to acids and corrosion
- Designed to vent fumes from highly corrosive environments like laboratories, chemical plants, hospitals, and universities.
OVERVIEW
Plastec centrifugal fans are available in 6 sizes from 5" up to 23.50" inlet. They are designed to exhaust fumes from highly corrosive environments such as laboratories, chemical plants, hospitals, universities, etc. The all-polypropylene construction and thick walls ensure maximum protection against acids and corrosion.
Key Features
- Explosion-Proof Motors: Equipped with certified explosion-proof motors designed with inverter duty, premium efficiency, and built to IEC dimension standards.
- CIP Carbon Impregnated Polypropylene: Available with polypropylene components blended with carbon powder to improve electrical conductivity and reduce spark risks.
- AMCA Spark A Compliant: Meets the highest spark resistance rating as defined by AMCA International standards.
- HALS-Stabilized Material: UV-resistant construction suitable for outdoor or sun-exposed installations.
- Forward-Curve Impeller: Ensures efficient airflow and strong static pressure capability for ducted systems.
- Direct Drive Motor: Eliminates belts, reduces maintenance, and improves long-term reliability.
- Corrosion & Acid Resistance: Built for exhausting acidic and corrosive air streams in laboratories, chemical plants, and related facilities.
Blower Specifications
- Direct drive forward curve design
- Wheel diameter: 7.9"
- Maximum airflow: 1200 CFM
- Noise level: 72 dBA @ 5 feet
- Inlet diameter: 6.3"
- Outlet diameter: 6.62"
- Power: 115/230 V, 1-Phase, 50/60 Hz
- Motor horsepower: 1.5 HP
- Motor speed: 3450 RPM
- Motor type: Explosion-proof, single phase, capacitor run
- Motor enclosure: Totally enclosed fan cooled (TEFC)
- Housing: Carbon impregnated polypropylene (CIP) assembly
Alternate Model Number: PLA20XS2P-CIP
Plastec Enamel Coated Metal Motor Support Stand
Compatible Models: Storm 10 & 12, P15, P20
Features
- Durable enamel-coated metal construction
- Strong, rust-resistant design
- Easy to install
- Includes stainless steel motor mounting hardware
- Provides flange with pre-punched holes for secure mounting and reduced vibration.
Warranty Information
Motor WarrantyAll motors are covered by a one-year warranty from the date of shipment, provided by the motor manufacturer. If service is required during the warranty period, the motor must be taken to the nearest authorized motor service station. Failure to use an authorized service station may void the motor warranty. If you are unsure of an authorized service location, contact the factory for assistance. Installation, removal, re-installation costs, and any consequential damages are not covered.
Blower Housing Assembly WarrantyThe blower housing assembly is warranted to be free from defects in materials and workmanship for two (2) years from the date of original shipment. Defective units or parts reported within this period may be replaced at the manufacturer’s option when returned to the factory with transportation prepaid by the sender.
ExclusionsThe following items are not covered by this warranty:
- Normal wear from heat, abrasion, or chemical exposure
- Damage from improper installation, incorrect electrical connections, or unauthorized alterations
- Damage resulting from misuse, abuse, or abnormal operating conditions
- Lack of proper maintenance
- Transportation costs to and from the factory for warranty repairs
This warranty is limited to repair or replacement of defective parts as described above. The manufacturer is not responsible for installation, removal, or re-installation costs, nor for any consequential damages resulting from product failure or improper operation.
See full warranty on Installation, Operation & Maintenance ManualDurable Materials & Construction
The Plastec 20 Series Blower - XP is engineered with high-quality, corrosion-resistant polypropylene, a material specifically chosen for its exceptional durability, chemical resistance, and lightweight strength. Unlike traditional metal fans, polypropylene construction ensures the blower can withstand harsh environments where exposure to moisture, salt air, or corrosive fumes is common. Its robust design delivers long-lasting performance while reducing the risk of wear, rust, or material degradation, resulting in minimal maintenance and a reliable service life even under demanding conditions. The advanced forward curve impeller design maximizes airflow efficiency and pressure performance, while the direct drive system eliminates belt slippage and reduces maintenance needs.
Built for continuous operation, the Plastec 20 Series Blower - XP is a cost-effective solution for facilities seeking a dependable blower that performs consistently in challenging environments.
Suitable Applications for Plastec 20 Series Blower - XP
- Laboratory hoods: Designed to exhaust corrosive fumes from chemistry, biology, and research laboratory environments.
- Chemical facilities: Ideal for venting process areas or storage rooms in industrial plants and chemical manufacturing sites.
- Pharmaceutical and medical production: Used in facilities handling aggressive air contaminants during pharmaceutical or medical manufacturing.
- Water and wastewater treatment: Deployed in sewage and water treatment plants to manage harsh gases and corrosive emissions.
- Marine and coastal environments: Suited for installations in maritime or coastal areas exposed to saline air and corrosion stress.
- Educational and research institutions: Applied in universities, research institutes, and teaching labs where chemical resistance is critical.
- Industrial and petroleum storage: Effective for removing corrosive gases and acid vapors in industrial, chemical, or petroleum storage applications.
