Plastec centrifugal fans are available in 6 sizes from 5" up to 23.50" inlet. They are designed to exhaust fumes from highly corrosive environments such as laboratories, chemical plants, hospitals, universities, etc. The all-polypropylene construction and thick walls ensure maximum protection against acids and corrosion.
Key Features
Explosion-Proof Motors: Equipped with certified explosion-proof motors designed with inverter duty, premium efficiency, and built to IEC dimension standards.
CIP Carbon Impregnated Polypropylene: Available with polypropylene components blended with carbon powder to improve electrical conductivity and reduce spark risks.
AMCA Spark A Compliant: Meets the highest spark resistance rating as defined by AMCA International standards.
HALS-Stabilized Material: UV-resistant construction suitable for outdoor or sun-exposed installations.
Forward-Curve Impeller: Ensures efficient airflow and strong static pressure capability for ducted systems.
Direct Drive Motor: Eliminates belts, reduces maintenance, and improves long-term reliability.
Corrosion & Acid Resistance: Built for exhausting acidic and corrosive air streams in laboratories, chemical plants, and related facilities.
Blower Specifications
Direct drive forward curve design
Wheel diameter: 7.9"
Maximum airflow: 610 CFM
Noise level: 43 dBA @ 5 feet
Inlet diameter: 6.3"
Outlet diameter: 6.62"
Power: 115/230 V, 1-Phase, 50/60 Hz
Motor horsepower: 0.33 HP
Motor speed: 1140 RPM
Motor type: Explosion-proof, single phase, capacitor run
Motor enclosure: Totally enclosed fan cooled (TEFC)
Provides flange with pre-punched holes for secure mounting and reduced vibration.
Warranty Information
Motor Warranty
All motors are covered by a one-year warranty from the date of shipment, provided by the motor manufacturer. If service is required during the warranty period, the motor must be taken to the nearest authorized motor service station. Failure to use an authorized service station may void the motor warranty. If you are unsure of an authorized service location, contact the factory for assistance. Installation, removal, re-installation costs, and any consequential damages are not covered.
Blower Housing Assembly Warranty
The blower housing assembly is warranted to be free from defects in materials and workmanship for two (2) years from the date of original shipment. Defective units or parts reported within this period may be replaced at the manufacturer’s option when returned to the factory with transportation prepaid by the sender.
Exclusions
The following items are not covered by this warranty:
Normal wear from heat, abrasion, or chemical exposure
Damage from improper installation, incorrect electrical connections, or unauthorized alterations
Damage resulting from misuse, abuse, or abnormal operating conditions
Lack of proper maintenance
Transportation costs to and from the factory for warranty repairs
Limitation of Warranty and Liability
This warranty is limited to repair or replacement of defective parts as described above. The manufacturer is not responsible for installation, removal, or re-installation costs, nor for any consequential damages resulting from product failure or improper operation.
See full warranty on Installation, Operation & Maintenance Manual
Durable Materials & Construction
The Plastec 20 Series Blower - XP is engineered with high-quality, corrosion-resistant polypropylene, a material specifically chosen for its exceptional durability, chemical resistance, and lightweight strength. Unlike traditional metal fans, polypropylene construction ensures the blower can withstand harsh environments where exposure to moisture, salt air, or corrosive fumes is common. Its robust design delivers long-lasting performance while reducing the risk of wear, rust, or material degradation, resulting in minimal maintenance and a reliable service life even under demanding conditions. The advanced forward curve impeller design maximizes airflow efficiency and pressure performance, while the direct drive system eliminates belt slippage and reduces maintenance needs.
Built for continuous operation, the Plastec 20 Series Blower - XP is a cost-effective solution for facilities seeking a dependable blower that performs consistently in challenging environments.
Suitable Applications for Plastec 20 Series Blower - XP
Laboratory hoods: Designed to exhaust corrosive fumes from chemistry, biology, and research laboratory environments.
Chemical facilities: Ideal for venting process areas or storage rooms in industrial plants and chemical manufacturing sites.
Pharmaceutical and medical production: Used in facilities handling aggressive air contaminants during pharmaceutical or medical manufacturing.
Water and wastewater treatment: Deployed in sewage and water treatment plants to manage harsh gases and corrosive emissions.
Marine and coastal environments: Suited for installations in maritime or coastal areas exposed to saline air and corrosion stress.
Educational and research institutions: Applied in universities, research institutes, and teaching labs where chemical resistance is critical.
Industrial and petroleum storage: Effective for removing corrosive gases and acid vapors in industrial, chemical, or petroleum storage applications.

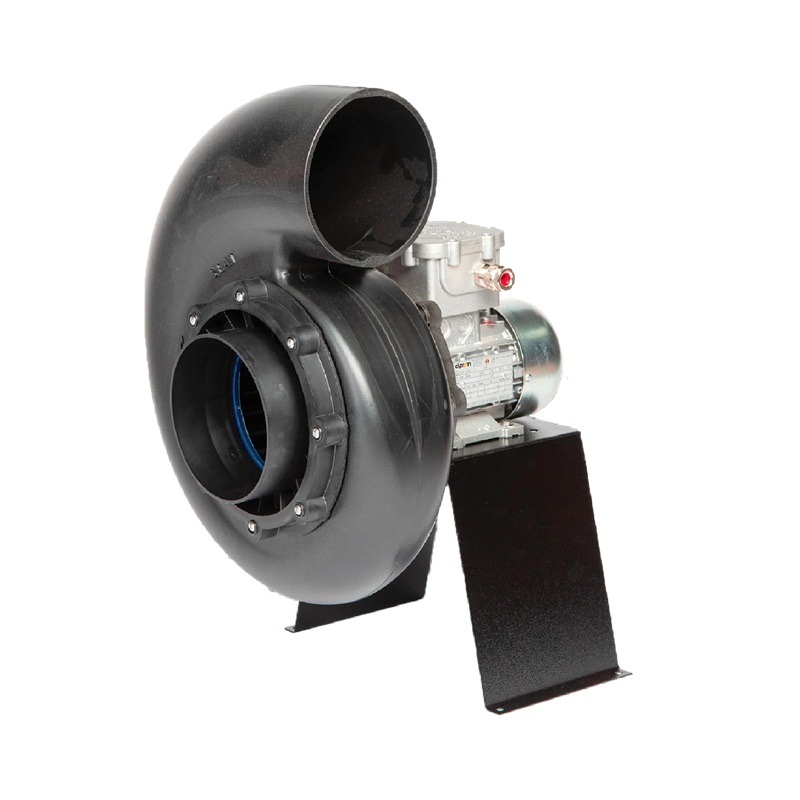

Plastec 20 Series Fan
OVERVIEW
Plastec centrifugal fans are available in 6 sizes from 5" up to 23.50" inlet. They are designed to exhaust fumes from highly corrosive environments such as laboratories, chemical plants, hospitals, universities, etc. The all-polypropylene construction and thick walls ensure maximum protection against acids and corrosion.
Plastec Series Carbon Impregnated Polypropylene (CIP) blowers are designed to work in highly corrosive air exhaust applications containing potentially explosive atmospheres.
Blower Specifications
Direct drive forward curve design
Wheel diameter: 7.9"
Maximum airflow: 610 CFM
Noise level: 43 dBA @ 5 feet
Inlet diameter: 6.3"
Outlet diameter: 6.62"
Power: 115/230 V, 1-Phase, 50/60 Hz
Motor horsepower: 0.33 HP
Motor speed: 1140 RPM
Motor type: Explosion-proof, single phase, capacitor run
Motor enclosure: Totally enclosed fan cooled (TEFC)
All motors are covered by a one-year warranty from the date of shipment, provided by the motor manufacturer. If service is required during the warranty period, the motor must be taken to the nearest authorized motor service station. Failure to use an authorized service station may void the motor warranty. If you are unsure of an authorized service location, contact the factory for assistance. Installation, removal, re-installation costs, and any consequential damages are not covered.
Blower Housing Assembly Warranty
The blower housing assembly is warranted to be free from defects in materials and workmanship for two (2) years from the date of original shipment. Defective units or parts reported within this period may be replaced at the manufacturer’s option when returned to the factory with transportation prepaid by the sender.
Exclusions
The following items are not covered by this warranty:
Normal wear from heat, abrasion, or chemical exposure
Damage from improper installation, incorrect electrical connections, or unauthorized alterations
Damage resulting from misuse, abuse, or abnormal operating conditions
Lack of proper maintenance
Transportation costs to and from the factory for warranty repairs
Limitation of Warranty and Liability
This warranty is limited to repair or replacement of defective parts as described above. The manufacturer is not responsible for installation, removal, or re-installation costs, nor for any consequential damages resulting from product failure or improper operation.
See full warranty on Installation, Operation & Maintenance Manual
Durable Materials & Construction
The Plastec 20 Series Blower - XP is engineered with high-quality, corrosion-resistant polypropylene, a material specifically chosen for its exceptional durability, chemical resistance, and lightweight strength. Unlike traditional metal fans, polypropylene construction ensures the blower can withstand harsh environments where exposure to moisture, salt air, or corrosive fumes is common. Its robust design delivers long-lasting performance while reducing the risk of wear, rust, or material degradation, resulting in minimal maintenance and a reliable service life even under demanding conditions. The advanced forward curve impeller design maximizes airflow efficiency and pressure performance, while the direct drive system eliminates belt slippage and reduces maintenance needs.
Built for continuous operation, the Plastec 20 Series Blower - XP is a cost-effective solution for facilities seeking a dependable blower that performs consistently in challenging environments.
Suitable Applications for Plastec 20 Series Blower - XP
Laboratory hoods: Designed to exhaust corrosive fumes from chemistry, biology, and research laboratory environments.
Chemical facilities: Ideal for venting process areas or storage rooms in industrial plants and chemical manufacturing sites.
Pharmaceutical and medical production: Used in facilities handling aggressive air contaminants during pharmaceutical or medical manufacturing.
Water and wastewater treatment: Deployed in sewage and water treatment plants to manage harsh gases and corrosive emissions.
Marine and coastal environments: Suited for installations in maritime or coastal areas exposed to saline air and corrosion stress.
Educational and research institutions: Applied in universities, research institutes, and teaching labs where chemical resistance is critical.
Industrial and petroleum storage: Effective for removing corrosive gases and acid vapors in industrial, chemical, or petroleum storage applications.
Mounting Stand
Plastec enamel coated metal motor support stand for models Storm 10 & 12, P15, P20.
Features
Attractive Design
Easy To Install
Motor Mounting Hardware Supplied Is Stainless Steel
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Plastec Enamel Coated Metal Motor Support Stand for Models Storm 10 & 12, P15, P20
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Plastec Stainless Steel Motor Support Stand for Models Storm 10 & 12, P15, P20, PSS20
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
No, the motor is permanently sealed and does not require lubrication.
What makes the Plastec 20 blower different from regular metal fans?
The Plastec 20 is made with heavy-duty polypropylene that won’t rust or corrode like metal. It’s designed to last longer in tough environments where chemicals or moisture would damage metal fans.
Can I use the blower outdoors or in damp areas?
Yes, it can be used outdoors if it’s protected with weather covers or drip shields. The polypropylene body resists moisture and sunlight, but avoid spraying water directly into the motor or electrical parts.
Is the Plastec 20 blower noisy when running?
Not at all. Its forward curve impeller and direct-drive motor keep noise levels low. Under normal use, sound levels can range from 40 dBA at 5 feet, which is fairly quiet for this type of blower. If you have any further questions, please don't hesitate to contact us. Thanks.
