Today's Hours 8am - 11pm estPlastec 25 Series Direct Drive Forward Curve Blower Hazardous Location .75 HP 1700 CFM Single Phase with Mount
Required Fields *
By
Plastec
In stock
Model
P25XS4P075 / MB251
ID
19617
Was $4,546.18
Your Low Price $3,951.90
Product Features
- Space-saving design allows for easy installation
- Forward Curve Impeller design for high airflow and quiet operation
- Built with all-polypropylene construction for superior resistance to acids and corrosion
- Designed to vent fumes from highly corrosive environments like laboratories, chemical plants, hospitals, and universities.
OVERVIEW

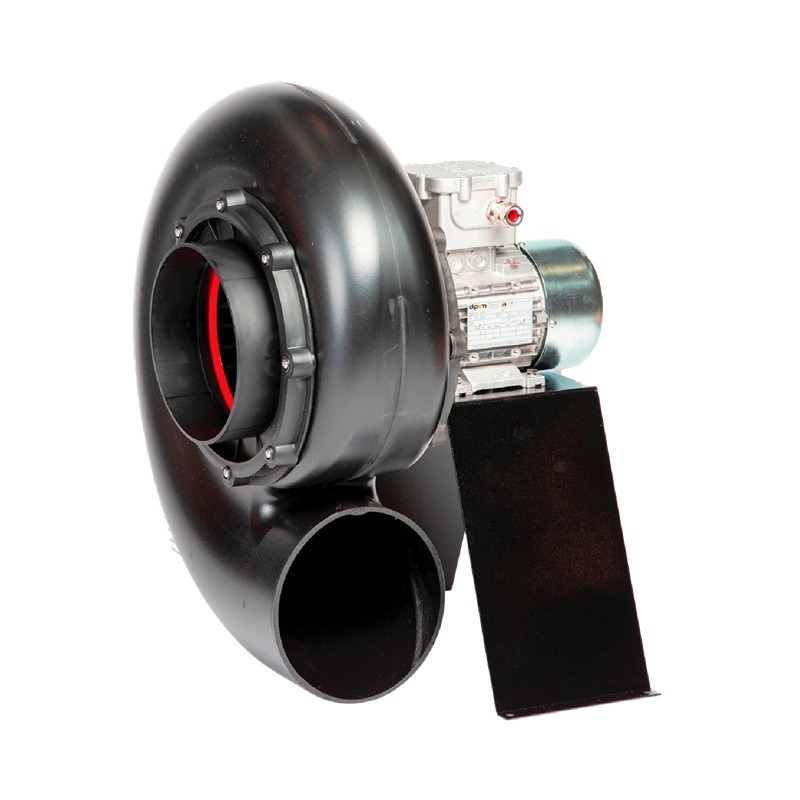

The Plastec 25 XP is built to handle fume exhaust in harsh, corrosive environments such as laboratories, chemical plants, hospitals, and universities. Constructed entirely from thick-walled polypropylene, it delivers outstanding resistance to acids and corrosion. With the addition of Hindered-Amine Light Stabilizers (HALS), it also provides enhanced UV protection for reliable performance in outdoor or exposed settings. Engineered with explosion-proof materials, the 25 XP is designed for safe operation in hazardous atmospheres. It effectively removes air contaminated with toxic fumes, dust, debris, chemicals, and a variety of industrial pollutants.
Each blower features motors and components made from carbon-impregnated polypropylene—one of the most durable synthetic materials available—ensuring long-lasting strength and dependability. Trusted across laboratories, natatoriums, water treatment plants, chemical facilities, and other demanding environments, Plastec’s explosion-proof, corrosion-resistant blowers deliver both safety and performance where it matters most.
Key Features
- Carbon-impregnated polypropylene construction provides anti-static properties and explosion resistance.
- All-polypropylene airflow path contains no metal in the airstream, ensuring maximum chemical and corrosion resistance.
- HALS-stabilized material improves UV resistance for outdoor or sun-exposed installations.
- Direct-drive forward-curve impeller delivers high airflow and static pressure performance without the need for belts.
- Explosion-proof motor compatibility makes it safe for hazardous atmospheres and flammable gas areas.
- Thick-wall design offers durability for continuous operation in corrosive environments.
- Flexible mounting options available with hoods, stands, or frames to fit various installation needs.
Blower Specifications
- Direct Drive Forward Curve
- Wheel Diameter: 9.84"
- Maximum Airflow: 1700 CFM
- Noise Level: 58 dBA @ 5 Feet
- Inlet Diameter: 7.87"
- Outlet Diameter: 8.62"
- Voltage: 115/230 V, Single-Phase, 50/60 Hz
- Motor Power: 0.75 HP
- Motor Speed: 1725 RPM
- Motor Type: Explosion Proof, Single-Phase, Capacitor Run
- Motor Enclosure: Totally Enclosed Fan Cooled (TEFC)
- Housing: Carbon Impregnated Polypropylene (CIP)
Alternate Model Number: PLA25XS4P-CIP
Plastec Enamel Coated Metal Motor Support Stand
Compatible Models: Storm 14 and Plastec 25 series.
Features
- Durable enamel-coated metal construction
- Strong, rust-resistant design
- Easy to install
- Includes stainless steel motor mounting hardware
- Provides flange with pre-punched holes for secure mounting and reduced vibration.
Warranty Information
Motor WarrantyAll motors are covered by a one-year warranty from the date of shipment, provided by the motor manufacturer. If service is required during the warranty period, the motor must be taken to the nearest authorized motor service station. Failure to use an authorized service station may void the motor warranty. If you are unsure of an authorized service location, contact the factory for assistance. Installation, removal, re-installation costs, and any consequential damages are not covered.
Blower Housing Assembly WarrantyThe blower housing assembly is warranted to be free from defects in materials and workmanship for two (2) years from the date of original shipment. Defective units or parts reported within this period may be replaced at the manufacturer’s option when returned to the factory with transportation prepaid by the sender.
ExclusionsThe following items are not covered by this warranty:
- Normal wear from heat, abrasion, or chemical exposure
- Damage from improper installation, incorrect electrical connections, or unauthorized alterations
- Damage resulting from misuse, abuse, or abnormal operating conditions
- Lack of proper maintenance
- Transportation costs to and from the factory for warranty repairs
This warranty is limited to repair or replacement of defective parts as described above. The manufacturer is not responsible for installation, removal, or re-installation costs, nor for any consequential damages resulting from product failure or improper operation.
See full warranty on Installation, Operation & Maintenance ManualDurable Materials & Construction
The Plastec 25 XP is engineered for the most aggressive and hazardous environments. It is constructed entirely from carbon-impregnated polypropylene, which allows it to function safely in explosion-rated applications. The blower’s thick, corrosion-resistant polypropylene body, combined with carbon impregnation, provides both chemical resilience and static dissipation suitable for volatile atmospheres. To further enhance longevity under UV exposure or outdoor conditions, the polypropylene includes HALS (Hindered-Amine Light Stabilizers), improving resistance to sunlight degradation. The explosion-proof (XP) version ensures that internal sparking or motor heat doesn’t ignite external flammable gases, making it ideal for chemical plants, laboratories, and fume exhaust systems in hazardous atmospheres.
The Plastec 25 XP is thus uniquely suited for places where both corrosion and explosion risk must be managed.
Suitable Applications for Plastec 25 XP Series Blower
- Laboratory hoods: Designed to exhaust corrosive fumes from chemistry, biology, and research laboratory environments.
- Chemical facilities: Ideal for venting process areas or storage rooms in industrial plants and chemical manufacturing sites.
- Educational and research institutions: Applied in universities, research institutes, and teaching labs where chemical resistance is critical.
- Industrial and petroleum storage: Effective for removing corrosive gases and acid vapors in industrial, chemical, or petroleum storage applications.
- Pharmaceutical and medical production: Used in facilities handling aggressive air contaminants during pharmaceutical or medical manufacturing.
- Water and wastewater treatment: Deployed in sewage and water treatment plants to manage harsh gases and corrosive emissions.
- Marine and coastal environments: Suited for installations in maritime or coastal areas exposed to saline air and corrosion stress.
