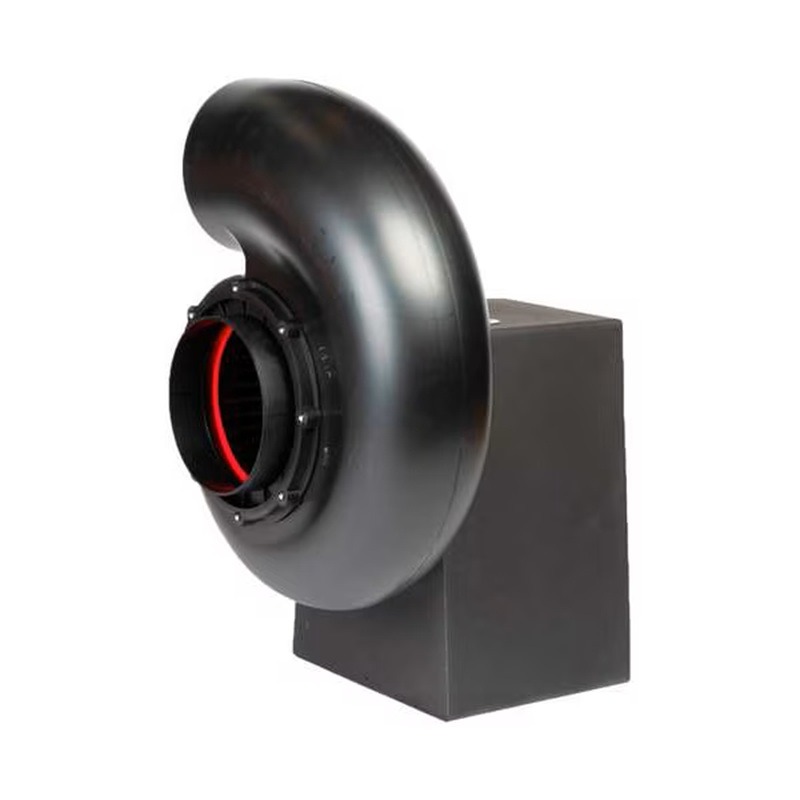

Today's Hours 8am - 11pm estPlastec 30 Series Direct Drive Forward Curve Blower XP Hazardous Location 1.5 HP 3400 CFM Single Phase with Mount
Required Fields *
By
Plastec
In stock
Model
P30XS4P150 / MB30
ID
19625
Was $8,101.56
Your Low Price $7,109.40
Product Features
- Space-saving design allows for easy installation
- Forward Curve Impeller design for high airflow and quiet operation
- Built with all-polypropylene construction for superior resistance to acids and corrosion
- Designed to vent fumes from highly corrosive environments like laboratories, chemical plants, hospitals, and universities.
OVERVIEW
The Plastec 30 is built for exhausting fumes in highly corrosive environments like labs, chemical plants, hospitals, and universities. Its all-polypropylene construction with thick walls provides excellent resistance to acids, chemicals, and corrosion, while HALS additives improve UV protection. Made with explosion-proof, carbon-impregnated polypropylene parts, these blowers safely handle toxic fumes, dust, chemicals, and industrial pollutants. They’re a reliable choice for facilities that demand corrosion-resistant and durable ventilation systems.
Key Features
- Carbon-Impregnated Polypropylene Construction: Ensures safe operation in hazardous areas by dissipating static charge and providing superior corrosion resistance.
- Forward-Curve Impeller (Direct Drive): Delivers efficient airflow and strong static pressure for ducted or resistive systems without the need for belts.
- Explosion-Proof Design (XP Rated): Engineered for flammable or volatile environments with CIP materials and compatible motors.
- HALS-Stabilized Material: Provides UV protection for durability in outdoor or sun-exposed applications.
- Single- & Three-Phase Options: Available in both configurations to support a variety of power requirements.
- Low Maintenance Design: Belt-free construction reduces downtime and maintenance needs.
- Optional Mounting & Hooding: Can be paired with stands, weather hoods, or bracket systems for flexible installation.
Blower Specifications
- Direct drive forward curve design
- Wheel diameter: 11.8"
- Maximum airflow: 3400 CFM
- Sound level: 54 dBA at 5 feet
- Inlet diameter: 9.84"
- Outlet diameter: 10.75"
- Voltage: 115/230 V, single-phase, 50/60 Hz
- Motor power: 2 HP
- Motor speed: 1725 RPM
- Motor type: Explosion proof, single-phase, capacitor run
- Motor enclosure: Totally enclosed fan cooled
- Housing assembly: Carbon impregnated polypropylene (CIP)
Alternate Model Number: PLA30XS4P-CIP

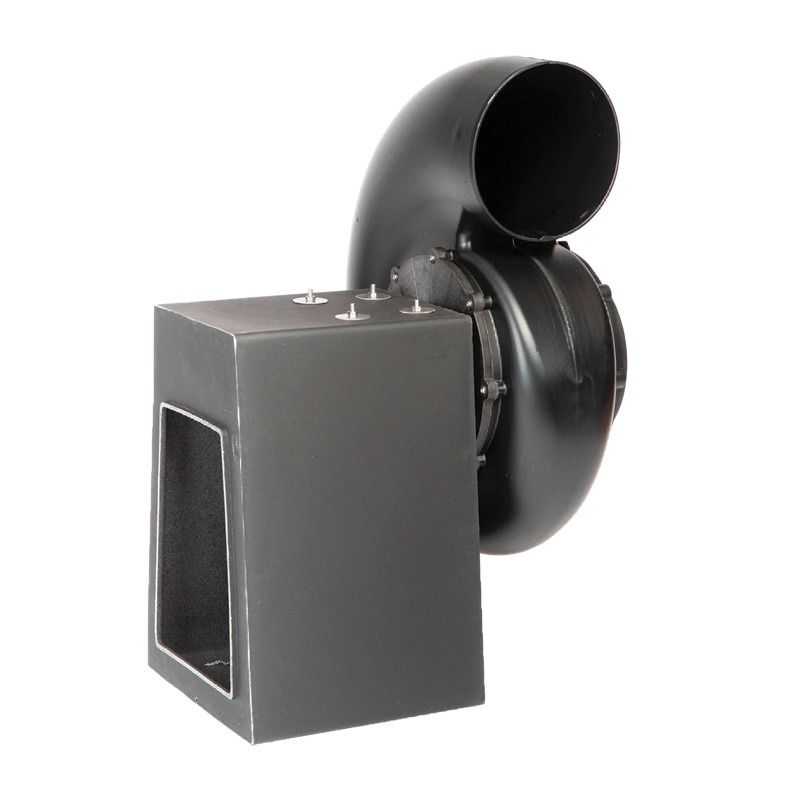

Plastec Enamel Coated Metal Motor Support Stand
Enamel-coated metal motor support stand for model P30.
Features
- Modern and Attractive Design
- Simple and Easy Installation
- Includes Stainless Steel Motor Mounting Hardware
- Durable, Strong, and Rust-Resistant Construction
- Provides flange with pre-punched holes for secure mounting and reduced vibration.
Warranty Information
Motor WarrantyAll motors are covered by a one-year warranty from the date of shipment, provided by the motor manufacturer. If service is required during the warranty period, the motor must be taken to the nearest authorized motor service station. Failure to use an authorized service station may void the motor warranty. If you are unsure of an authorized service location, contact the factory for assistance. Installation, removal, re-installation costs, and any consequential damages are not covered.
Blower Housing Assembly WarrantyThe blower housing assembly is warranted to be free from defects in materials and workmanship for two (2) years from the date of original shipment. Defective units or parts reported within this period may be replaced at the manufacturer’s option when returned to the factory with transportation prepaid by the sender.
ExclusionsThe following items are not covered by this warranty:
- Normal wear from heat, abrasion, or chemical exposure
- Damage from improper installation, incorrect electrical connections, or unauthorized alterations
- Damage resulting from misuse, abuse, or abnormal operating conditions
- Lack of proper maintenance
- Transportation costs to and from the factory for warranty repairs
This warranty is limited to repair or replacement of defective parts as described above. The manufacturer is not responsible for installation, removal, or re-installation costs, nor for any consequential damages resulting from product failure or improper operation.
See full warranty on Installation, Operation & Maintenance ManualDurable Materials & Construction
The Plastec 30 XP blower is engineered for the harshest operating environments where chemical, corrosive, and flammable atmospheres exist. Its entire airflow path, including the housing, impeller, and all wetted surfaces, is constructed from carbon-impregnated polypropylene (CIP). This material allows the unit to safely dissipate static and operate in explosion-rated settings. Because no metal is exposed to the airstream, it resists corrosion from acids, salts, solvents, and humid or aggressive vapors. To further extend service life in outdoor or UV-exposed installations, the polypropylene is stabilized with HALS (Hindered Amine Light Stabilizers), which guard against ultraviolet degradation and maintain material integrity.
Designed for fume exhaust in corrosive, flammable, or chemical environments such as laboratories, chemical plants, hospitals, and universities, its construction ensures durability and safe operation where standard metal blowers would quickly degrade or fail.
Suitable Applications for Plastec 30 XP Series Blower
- Laboratory hoods: Designed to exhaust corrosive fumes from chemistry, biology, and research laboratory environments.
- Chemical facilities: Ideal for venting process areas or storage rooms in industrial plants and chemical manufacturing sites.
- Educational and research institutions: Applied in universities, research institutes, and teaching labs where chemical resistance is critical.
- Industrial and petroleum storage: Effective for removing corrosive gases and acid vapors in industrial, chemical, or petroleum storage applications.
- Pharmaceutical and medical production: Used in facilities handling aggressive air contaminants during pharmaceutical or medical manufacturing.
- Water and wastewater treatment: Deployed in sewage and water treatment plants to manage harsh gases and corrosive emissions.
- Marine and coastal environments: Suited for installations in maritime or coastal areas exposed to saline air and corrosion stress.
