Today's Hours 8am - 11pm estPlastec R 20 XP Direct Drive Forward Curve Roof Mounted Polypropylene Blower, 610 CFM,1/3 HP, Single Phase, 115/230 V
Ships in 2-3 Business Days
By
Plastec
In stock
Model
R20XS6P033
ID
208824
Was $10,322.26 Your Low Price Special Price $10,072.26
Product Features
- Built with explosion-proof materials
- Made from 100% recyclable polypropylene
- Pre-Assembled & Tested
- Long-Lasting Performance
OVERVIEW
The R 20 XP Roof Mounted Blower is engineered for maximum durability and corrosion resistance in some of the most challenging environments. Whether you're working in coastal regions, chemical processing facilities, or indoor aquatic centers, this blower offers an ideal solution for safe and efficient fume exhaust. Constructed from heavy-duty polypropylene and enhanced with Hindered-Amine Light Stabilizers (HALS), the R 20 XP stands up to acids, harsh chemicals, and UV exposure, ensuring dependable long-term performance. Its forward curve, direct drive design provides powerful airflow in a compact and lightweight housing, while its plug-and-play installation reduces labor time. The R 20 XP is also pre-wired and factory pre-assembled, making it ready to install straight out of the box.
Key Features & Benefits:
- Constructed entirely of carbon-impregnated polypropylene for explosion-safe, corrosion-resistant performance.
- HALS-infused polypropylene protects against sun damage and prolongs service life even in exposed installations.
- Designed for optimal airflow in roof-mounted or wall-mounted applications.
- Built to fit a 21" x 21" roof curb, simplifying installation across commercial and industrial sites.
- Easy to handle during installation while maintaining strength and long-term structural integrity.
- Saves time on-site while meeting safety and code requirements.
- Protects against debris and animal intrusion without compromising airflow.
Warranty Information
Motor WarrantyAll motors are covered by a one-year warranty from the date of shipment, provided by the motor manufacturer. If service is required during the warranty period, the motor must be taken to the nearest authorized motor service station. Failure to use an authorized service station may void the motor warranty. If you are unsure of an authorized service location, contact the factory for assistance. Installation, removal, re-installation costs, and any consequential damages are not covered.
Blower Housing Assembly WarrantyThe blower housing assembly is warranted to be free from defects in materials and workmanship for two (2) years from the date of original shipment. Defective units or parts reported within this period may be replaced at the manufacturer’s option when returned to the factory with transportation prepaid by the sender.
ExclusionsThe following items are not covered by this warranty:
- Normal wear from heat, abrasion, or chemical exposure
- Damage from improper installation, incorrect electrical connections, or unauthorized alterations
- Damage resulting from misuse, abuse, or abnormal operating conditions
- Lack of proper maintenance
- Transportation costs to and from the factory for warranty repairs
This warranty is limited to repair or replacement of defective parts as described above. The manufacturer is not responsible for installation, removal, or re-installation costs, nor for any consequential damages resulting from product failure or improper operation.
See full warranty on Installation, Operation & Maintenance ManualDurable Materials & Construction
The R-20 XP blower is designed for demanding rooftop and outdoor environments exposed to chemical vapors, salt spray, and corrosive gases. Its entire airflow path, including the housing, impeller, and internal surfaces, is made from thick-wall polypropylene for exceptional resistance to acids, salts, solvents, and moisture. As the explosion-proof (XP) model, the polypropylene is carbon-impregnated to safely dissipate static charges in classified areas. The material is also stabilized with Hindered-Amine Light Stabilizers (HALS) to resist UV degradation and maintain long-term durability in sun-exposed installations. The R-20 XP blower is shipped fully assembled for quick roof curb installation with horizontal discharge. It includes a protective exhaust guard, a pre-wired disconnect switch, and lightweight polypropylene construction that simplifies rooftop handling while maintaining strength and reliability.
As a direct-drive unit, there are no belts or pulleys to adjust or replace, which significantly reduces maintenance needs and improves long-term reliability.

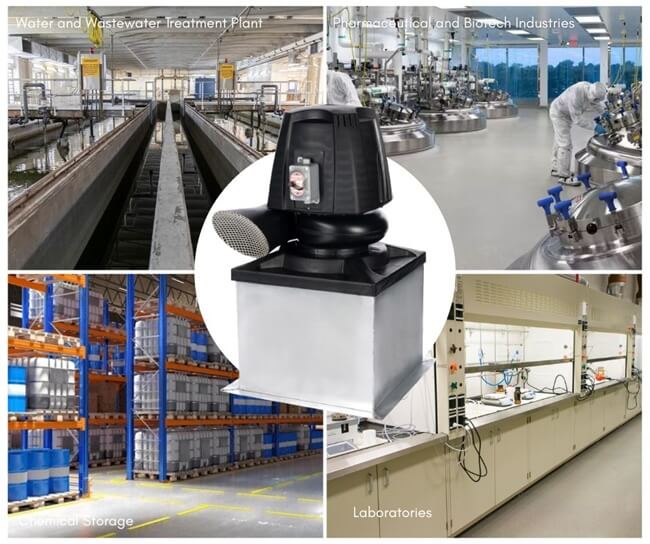

Suitable Applications for Plastec R20 XP Polypropylene Blower
- Coastal & Marine Environments: Resists salt, moisture, and corrosion in docks, shipyards, and seaside facilities.
- Chemical Processing Plants: Handles corrosive or toxic fumes from mixing, plating, and etching operations safely.
- Laboratories & Fume Hoods: Efficiently vents chemical vapors and contaminants to maintain safe air quality.
- Indoor Aquatic Centers: Operates reliably in chlorine-heavy, humid pool areas to prevent corrosion and ensure airflow.
- Wastewater & Treatment Plants: Manages harsh airflows with moisture and chemical residues found in treatment systems.
- Chemical & Acid Storage Areas: Safely ventilates rooms storing acids, solvents, or other corrosive materials.
- Industrial & Manufacturing Sites: Suited for tough exhaust demands and environments with chemical-laden air.
