Plastec Storm 10 Series Direct Drive Forward Curve Blower Hazardous Location .08 HP 150 CFM Single Phase with Mount - STORM10XS4P-CIP / MB15

By

Plastec

In stock

Model

S10XS4P033 / MB15

ID

19638

Availability: Ships in 2-3 Business Days

Authorized Plastec Dealer

Your Low Price $2,748.00

Free Shipping

Required Fields *

Customize Plastec Storm 10 Series Direct Drive Forward Curve Blower Hazardous Location .08 HP 150 CFM Single Phase with Mount - STORM10XS4P-CIP / MB15
Plastec Storm Fan
Plastec Storm Fan
Plastec Storm Fan   + $2,548.00
Mounting Stand
Mounting Stand   + $200.00
Plastec Storm 10 Series Direct Drive Forward Curve Blower Hazardous Location .12 HP 60 CFM Single Phase with Mount

$2,748.00

Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

Designed to exhaust fumes from highly corrosive environments with 4 sizes available from 3" to 6" inlet/outlet. It is an excellent system for Scrubber Applications and other systems requiring low airflow at higher static pressure. Suitable for many applications such as acid tank ventilation, hood exhaust, commercial washers wastewater, chemical cabinets/rooms, etc.

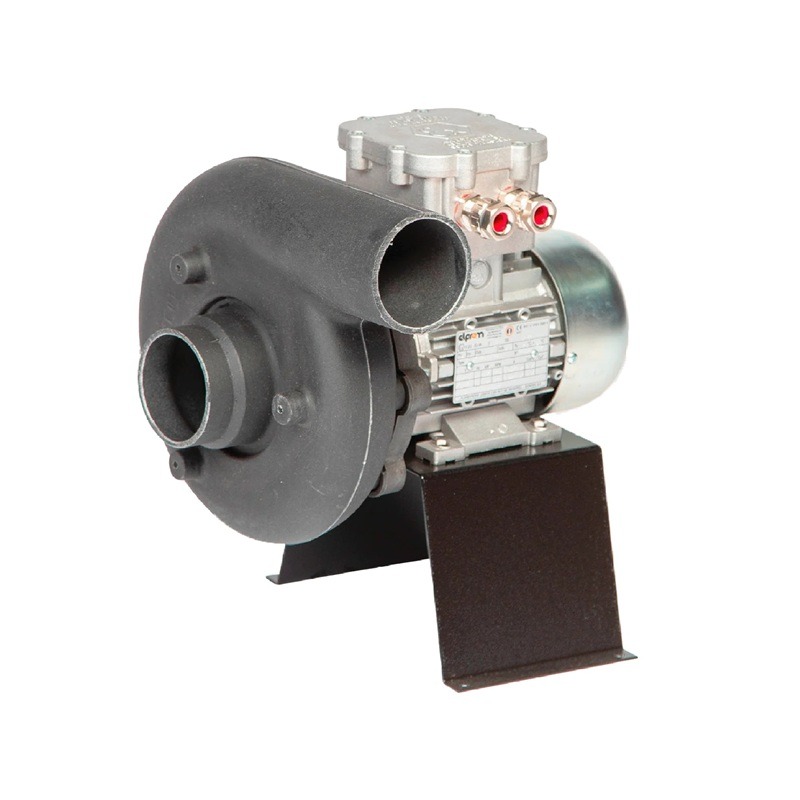

Plastec Storm 10 Series Direct Drive Forward Curve Blower Hazardous Location .08 HP 150 CFM Single Phase - STORM10XS4P-CIP

Features

  • Direct Drive Forward Curve Blower
  • Wheel Diameter 5.8"
  • Max CFM 60
  • Decibels 56.5 dBA @ 5 Feet
  • Inlet Diameter 2.95"
  • Outlet Diameter 2.95"
  • 115/230 V 1-Phase 50/60 Hz
  • Motor HP .12
  • Motor RPM 1720
  • Motor Type Single Phase Explosion Proof
  • Motor Enclosure Totally Enclosed Fan Cooled
  • Carbon Impregnated Polypropylene (CIP) Housing Assembly

Designed to exhaust fumes from highly corrosive environments with 4 sizes available from 3" to 6" inlet/outlet. It is an excellent system for Scrubber Applications and other systems requiring low airflow at higher static pressure. Suitable for many applications such as acid tank ventilation, hood exhaust, commercial washers wastewater, chemical cabinets/rooms, etc.

Storm Series Carbon Impregnated Polypropylene (CIP) blowers designed to work in highly corrosive air exhaust applications containing potentially explosive atmospheres.

Alternate Model Number: STORM10XS4P-CIP

Plastec Enamel Coated Metal Motor Support Stand for Models Storm 10 & 12, P15, P20

Plastec enamel coated metal motor support stand for models Storm 10 & 12, P15, P20.

Features

  • Attractive Design
  • Easy To Install
  • Motor Mounting Hardware Supplied Is Stainless Steel
  • Strong, Durable And Rust Resistant
  • Model MB35 Has Support Bracket

Product Specifications

More Information
Plastec Storm 10 Series Direct Drive Forward Curve Blower Hazardous Location .08 HP 150 CFM Single Phase - STORM10XS4P-CIP
SKUS10XS4P033
Weight (in lbs)42.000000
Brand/ManufacturerPlastec
Additional InformationUL Listed and CSA Certified
Additional InformationFor Hazardous Location
Additional InformationCarbon Impregnated Polypropylene (CIP) Housing Assembly
Blower MotorSingle Phase Explosion Proof
Drive TypeDirect
Static Pressure2.4 inWg
Maximum CFM150
Decibel Level (dBA)56.5
Wheel Size5.8"
Motor RPM1725
Horsepower0.08
Horsepower.08 HP
Electrical60 Hz
Amperage Requirement5.4
Height11.22
Width5.31
Depth14.9
Resources You will need Adobe® Acrobat® Reader to view PDF documents
Safety InformationPROPOSITION 65 WARNING
Plastec Stainless Steel Motor Support Stand for Models Storm 10 & 12, P15, P20, PSS20
SKUMB15SS
Weight (in lbs)4.000000
Brand/ManufacturerPlastec
Height9.5"
Width7.25"
Depth13.75"
Resources
Safety InformationPROPOSITION 65 WARNING
Plastec Enamel Coated Metal Motor Support Stand for Models Storm 10 & 12, P15, P20
SKUMB15
Weight (in lbs)4.000000
Brand/ManufacturerPlastec
Height
Width
Depth
Resources
Safety InformationPROPOSITION 65 WARNING
