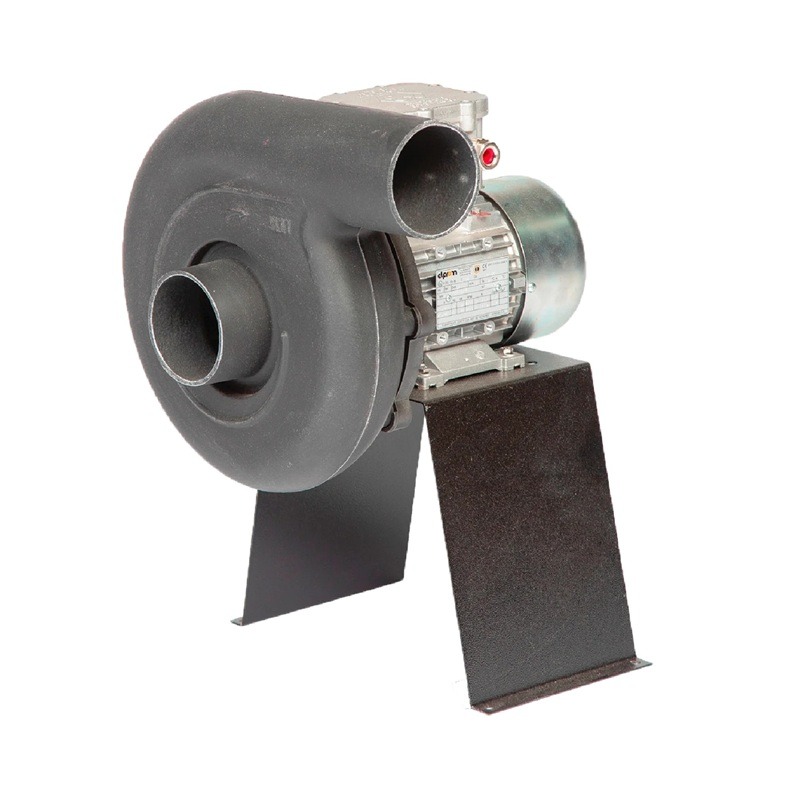

Today's Hours 8am - 11pm estPlastec Storm 12 Series Direct Drive Forward Curve Blower XP Hazardous Location .33 HP 200 CFM Single Phase with Mount
Required Fields *
By
Plastec
In stock
Model
S12XS4P033 / MB15
ID
19645
Was $3,762.72
Your Low Price $3,307.70
Product Feat
ures
- Forward Curve Impeller design for high airflow and quiet operation
- Designed to exhaust fumes from highly corrosive environments like laboratories and chemical industries
- Built with all-polypropylene construction for maximum resistance to acids and corrosion
- Direct drive - asynchronous motor
OVERVIEW
Designed to exhaust fumes from highly corrosive environments with 4 sizes available from 3" to 6" inlet/outlet. It is an excellent system for Scrubber Applications and other systems requiring low airflow at higher static pressure. Suitable for many applications such as acid tank ventilation, hood exhaust, commercial washers wastewater, chemical cabinets/rooms, etc.
Key Features
- CIP Carbon Impregnated Polypropylene - All standard polypropylene parts are available in a CIP version, where carbon powder is mixed with PP to improve electrical conductivity and prevent sparks.
- HALS-Enhanced UV Stability - Integrates UV stabilizers to guard against sunlight degradation; suitable for outdoor or exposed installations.
- Forward-Curve Impeller - Designed to push air against duct pressure, ideal for systems with resistance or long duct runs.
- Direct-Drive Motor (Single or 3-Phase) - Removes the need for belts, lowering maintenance and improving reliability.
- High Static Pressure Capability - Engineered to handle demanding exhaust and ducted ventilation conditions with higher backpressure.
- AMCA Spark A Compliant - Meets the highest degree of spark resistance according to AMCA International standards, with no ferrous components in the airstream.
- Explosion Proof Motors - Equipped with certified explosion-proof motors, featuring inverter duty and premium efficiency ratings with IEC dimensions.
Blower Specifications
- Direct drive forward curve blower
- Wheel diameter: 7.75"
- Maximum airflow: 200 CFM
- Noise level: 61.5 dBA @ 5 feet
- Inlet diameter: 3.54"
- Outlet diameter: 3.54"
- Voltage: 115/230 V, 1-Phase, 50/60 Hz
- Motor power: 0.33 HP
- Motor speed: 1725 RPM
- Motor type: Single phase explosion proof
- Motor enclosure: Totally enclosed fan cooled (TEFC)
- Carbon Impregnated Polypropylene (CIP) housing assembly
Alternate Model Number: STORM12XS4P-CIP
Plastec Enamel Coated Metal Motor Support Stand
Compatible Models: Storm 10 & 12, P15, P20
Features
- Durable enamel-coated metal construction
- Strong, rust-resistant design
- Easy to install
- Includes stainless steel motor mounting hardware
- Model MB35 includes support bracket
Warranty Information
Motor WarrantyAll motors are covered by a one-year warranty from the date of shipment, provided by the motor manufacturer. If service is required during the warranty period, the motor must be taken to the nearest authorized motor service station. Failure to use an authorized service station may void the motor warranty. If you are unsure of an authorized service location, contact the factory for assistance. Installation, removal, re-installation costs, and any consequential damages are not covered.
Blower Housing Assembly WarrantyThe blower housing assembly is warranted to be free from defects in materials and workmanship for two (2) years from the date of original shipment. Defective units or parts reported within this period may be replaced at the manufacturer’s option when returned to the factory with transportation prepaid by the sender.
ExclusionsThe following items are not covered by this warranty:
- Normal wear from heat, abrasion, or chemical exposure
- Damage from improper installation, incorrect electrical connections, or unauthorized alterations
- Damage resulting from misuse, abuse, or abnormal operating conditions
- Lack of proper maintenance
- Transportation costs to and from the factory for warranty repairs
This warranty is limited to repair or replacement of defective parts as described above. The manufacturer is not responsible for installation, removal, or re-installation costs, nor for any consequential damages resulting from product failure or improper operation.
See full warranty on Installation, Operation & Maintenance ManualDurable Materials & Construction
The Plastec Storm 12 blower - XP is crafted with all-polypropylene construction, meaning the housing, impeller, and airflow path are entirely made from corrosion-resistant plastic. This ensures excellent performance in chemically harsh or corrosive environments. To further enhance its durability in outdoor or UV-exposed settings, the polypropylene is stabilized with HALS (Hindered Amine Light Stabilizers), which mitigate UV degradation over time. The blower is offered in both single-phase and three-phase motor options to suit different power systems. Its forward-curved impeller design provides higher static pressure performance, making it suitable for ducted systems or exhaust lines with resistance.
Because of its direct-drive configuration, maintenance is simplified (no belts) and reliability is improved under continuous duty.
Suitable Applications for Plastec Storm 12 Blower - XP
- Chemical plants and labs – Designed to exhaust acidic fumes and gases in plants, labs, and processing areas with corrosion-resistant polypropylene build.
- Scrubber systems – Fits into scrubbers and ducted exhaust lines requiring higher static pressure performance.
- Lab Fume Extraction – Removes harmful gases from hoods, cabinets, and enclosures in research and cleanroom environments.
- Water Treatment – Handles chlorine, bleach, and other treatment chemicals in wastewater facilities.
- Marine & Coastal Use – UV-stabilized polypropylene resists salt, moisture, and harsh dockside conditions.
- Battery & Storage Areas – Safely manages hydrogen and chemical off-gassing in battery, EV, and fuel cell rooms.
- Industrial Processes – Supports plating, cleaning, and surface treatment lines where corrosive chemicals are present.
