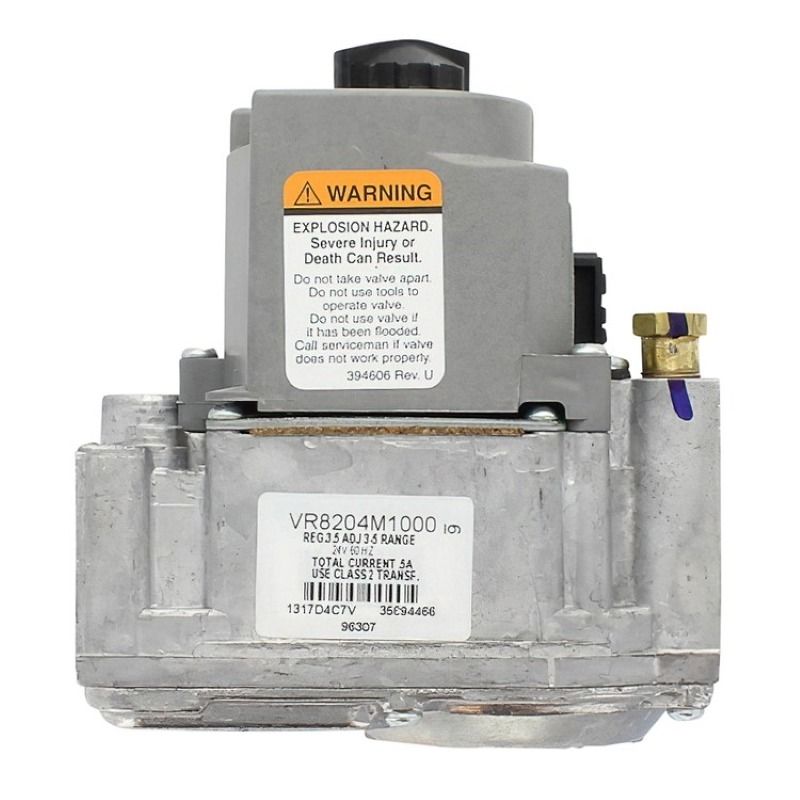

Reznor RZ096307 Single Stage Natural Gas Valve

Overview

Reznor RZ096307 Natural Gas Valve 24V for commercial and industrial HVAC equipment, including Reznor unit heaters. Operates on 24 volts and supports spark ignition systems for safe, reliable gas flow control and efficient system performance.

For installation information, refer to the Replacement Kit Installation Instruction.

Compatible Reznor Products:

• Reznor F Series – 75,000 to 150,000 BTU
• Reznor FE Series – 75,000 to 150,000 BTU
• Reznor B Series – 75,000 to 150,000 BTU
• Reznor BE Series – 75,000 to 150,000 BTU
• Reznor SC Series – 75,000 to 150,000 BTU
• Reznor SCA Series – 75,000 to 150,000 BTU
• Reznor SCB Series – 75,000 to 150,000 BTU
• Reznor SCE Series – 75,000 to 150,000 BTU
• Reznor RP Series – 75,000 to 150,000 BTU
• Reznor RPV Series – 75,000 to 150,000 BTU
• Reznor RG Series – 75,000 to 150,000 BTU
• Reznor RX Series – 75,000 to 150,000 BTU
• Reznor X Series – 30,000 to 105,000 BTU
• Reznor XL Series – 30,000 to 105,000 BTU
• Reznor XLB Series – 30,000 to 105,000 BTU
• Reznor EEDU Series – 75,000 to 150,000 BTU
