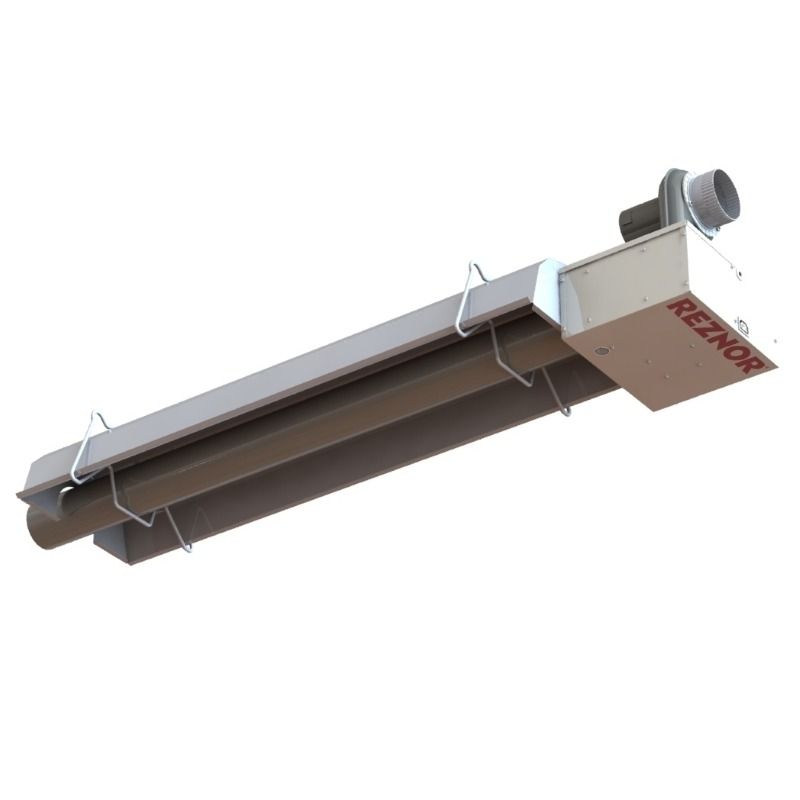

Reznor VZ-60 - 60,000 BTU Infrared Tube Heater - Single Stage - Propane - 20' Aluminized Tube Kit
Required Fields *
By
Reznor
In stock
Model
RZ1047371 / 1047139
ID
205588
Ships in 5-7 Business Days
Was $2,537.00
Your Low Price $1,695.00
Free Shipping
Product Features
- Single stage burner
- 60,000 BTU infrared heating capacity
- 20' tube and reflector kit with L-bend and U-bend options
- Aluminized Steel tube improves durability and emmissivity
- Available clearance shields, side reflectors, and protective grilles
- Parabolic reflector design for increased radiant output
Reznor VZ-60 Infrared Tube Heater – 60,000 BTU, 20-Foot Radiant Heating System
Energy-Efficient. Low Maintenance. Professional-Grade Heating.
The Reznor VZ-60 Infrared Tube Heater is a high-performance 60,000 BTU radiant heating system engineered for indoor commercial and industrial spaces that demand efficient, even, and reliable heat. This complete configuration pairs the Reznor VZ-60 Single-Stage burner with a 20-foot aluminized steel radiant tube assembly, delivering targeted infrared warmth that heats people, floors, and equipment directly—without wasted energy.
Designed for warehouses, service bays, loading docks, and manufacturing facilities, the VZ-60 offers quiet, draft-free operation and dependable performance backed by Reznor’s proven infrared heating technology.
Energy-Efficient Infrared Heating Performance
Unlike traditional forced-air heaters, infrared tube heaters radiate heat that is absorbed by solid objects rather than warming the air first. This results in more consistent temperatures, reduced heat loss, and improved comfort at lower thermostat settings, helping reduce overall energy consumption while maintaining effective zone heating.
Key Features & Benefits
- 60,000 BTU Input Capacity – Ideal for small to mid-size commercial and industrial heating zones
- 20-Foot Aluminized Steel Radiant Tube – 4-inch diameter, 16-gauge ALUMI-THERM® tubing for durability and corrosion resistance
- Single-Stage Infrared Burner (VZ Series) – Reliable, consistent heat output with simple operation
- Aluminum Parabolic Reflectors – Focus radiant heat downward for maximum efficiency and comfort
- Positive-Pressure Burner with External Blower – Ensures stable combustion and dependable ignition
- Direct-Spark Electronic Ignition – Fully automatic, three-try ignition with 100% gas shutoff for safety
Ideal Applications
Approved for indoor commercial and industrial use, including:
- Warehouses and distribution centers
- Loading docks and shipping areas
- Vehicle service and maintenance bays
- Assembly lines and manufacturing facilities
- Exhibition halls and transportation terminals
Built for Long-Term Reliability
The Reznor VZ-60 is constructed with a powder-coated galvanized steel burner cabinet and premium radiant components for long service life in demanding environments. Backed by an industry-leading warranty, it provides peace of mind alongside dependable heating performance.
- 5-Year Limited Warranty on Burner
- 10-Year Limited Warranty on Radiant Tubing

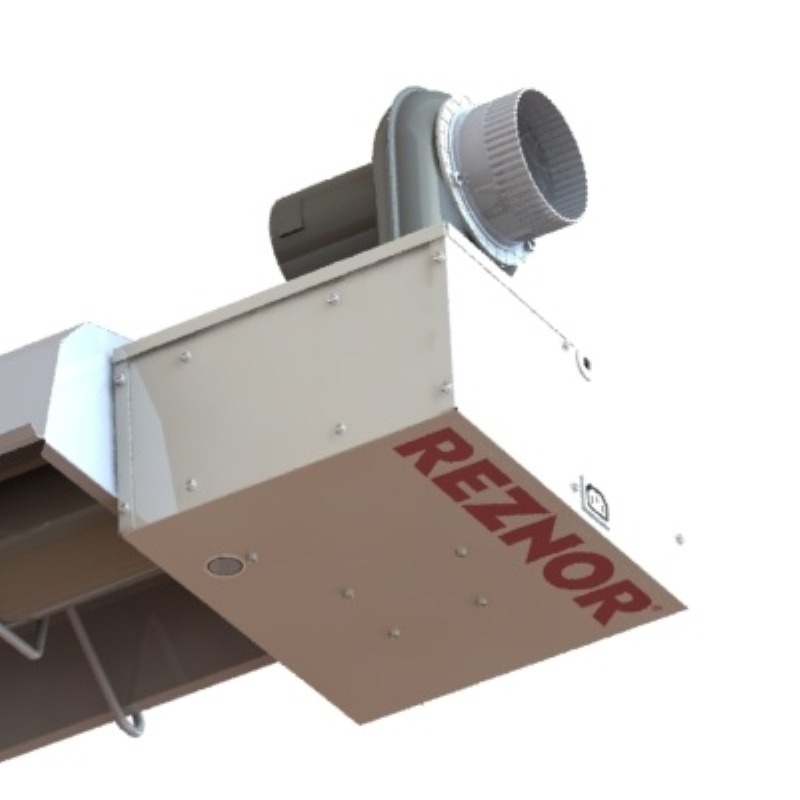

Reznor VZ-60 Propane 60,000 BTU Burner - Single Stage
Radiant Tube Heater – Model VZ
Model VZ radiant heaters bring comfort, reliability and versatility to indoor commercial and industrial buildings!
Model VZ Features:
- Powder-coated burner box for long-lasting performance
- Mill finish aluminum parabolic reflectors
- Hinged door design for easy access to electrical components
- Single-stage operation
- Available in natural gas or LPG propane
Reznor® Infrared Heater Features:
- Straight, U-tube or L-tube options
- Positive-pressure burner design
- Diagnostic capabilities onboard
- Fully-automatic, three-try, 100% shut-off, direct-spark electronic ignition control
- Flexible gas line included with burner
- Industry-leading 5-year warranty
- CSA design certified – ANSI Z83.20/CSA 2.34, 2.17, 2.20
Reznor® Infrared Heating Advantages:
- Even, comfortable temperatures - heated infrared rays are radiated until absorbed by objects. Rays do not warm the air; they warm the air surrounding the heated objects due to the increase in temperature of those objects.
- Energy efficient – reduce energy bills up to 50% and lower thermostats due to infrared heat absorption and radiation of objects
- Warm, dry floors - infrared rays are absorbed by the floor keeping them warm, dry and slip-free.
- Clean, quiet, draft-free operation - does not require fans or blowers
- Easy to install, operate and maintain – provides years of trouble-free operation
- Environmentally-friendly – improves overall energy performance and contributes to achieving compliance with the LEED green building rating system
20' Aluminized Tube Kit (VZ, VZT, VZH) - Reznor
Overview
This 20-foot Reznor Aluminized Tube Kit steel tube assembly designed for the Reznor VZ, VZT and VZH infrared heaters.
Features:
- 10-foot × 4-inch radiant tube sections of 16-gauge heat-treated aluminized-steel
- U-tube and L-tube sections available for multiple configurations
- Reflectors may be suspended level or angled at a 45-degree tilt
- Vertical or horizontal venting
