S&P Dryer Boosting Kit PV-100X Integrated Pressure Sensing Switch And Mounting Bracket - PV-100XPS

By

S&P

Out of stock
Model

PV-100XPS

ID

29724

Features
  • Exhaust air up to 942 CFM with static pressure capabilities to 1-1/2" w.g.
  • Galvanized steel casing with black baked enamel coating
  • Pre-wired junction box
  • Ideal for applications where space is limited
  • Non-overloading backward inclined wheel for efficiency at higher static pressures
  • AMCA Seal for Air Performance

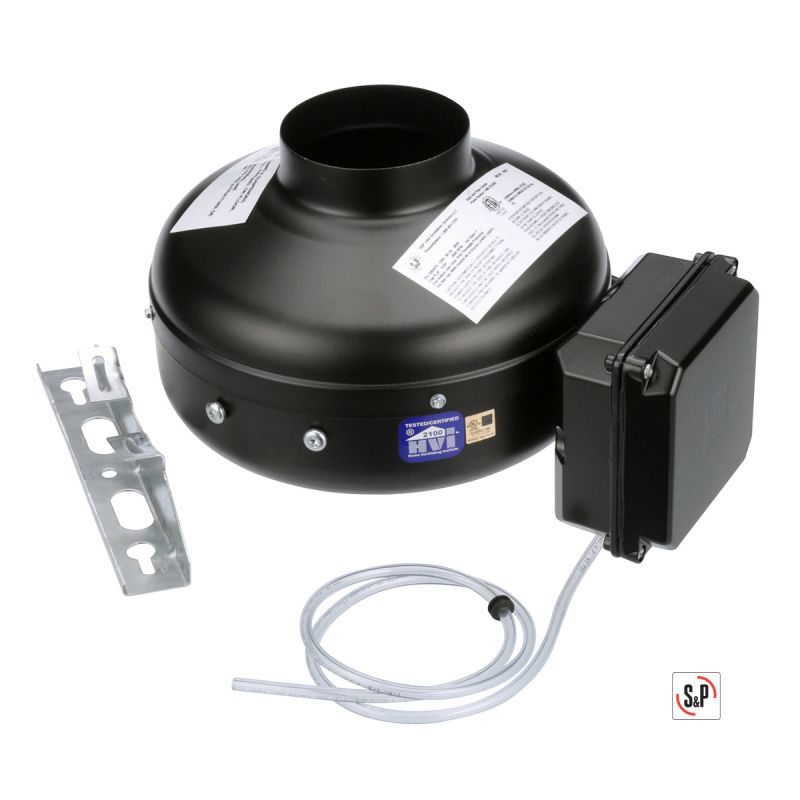

This Premium Dryer Booster Kit Includes the Following Components: 1. PV-100x Duct Boosting Fan (153 CFM) 2. Integrated Air Pressure Sensing Switch with electronic cycle timing board 3. Fan Mounting Bracket.

More Information
S&P Dryer Boosting Kit PV-100X Integrated Pressure Sensing Switch And Mounting Bracket - PV-100XPS
FeatureSpec
SKUPV-100XPS
Weight (in lbs)11
Brand/ManufacturerS&P
UPC0812482010206
Included ItemsPV-100X Duct Boosting Fan (153 CFM), Integrated air pressure sensing switch with electronic cycle timing board, Fan mounting bracket
Maximum CFM153
Motor RPM2880
Watt84
Duct Diameter4"
Length14"
Height9"
Width14"
Warranty5-year fan housing and motor warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents
Safety InformationPROPOSITION 65 WARNING
