AHRI Number:210838002
GET UP TO 70% BACK
of the Total Install Cost!

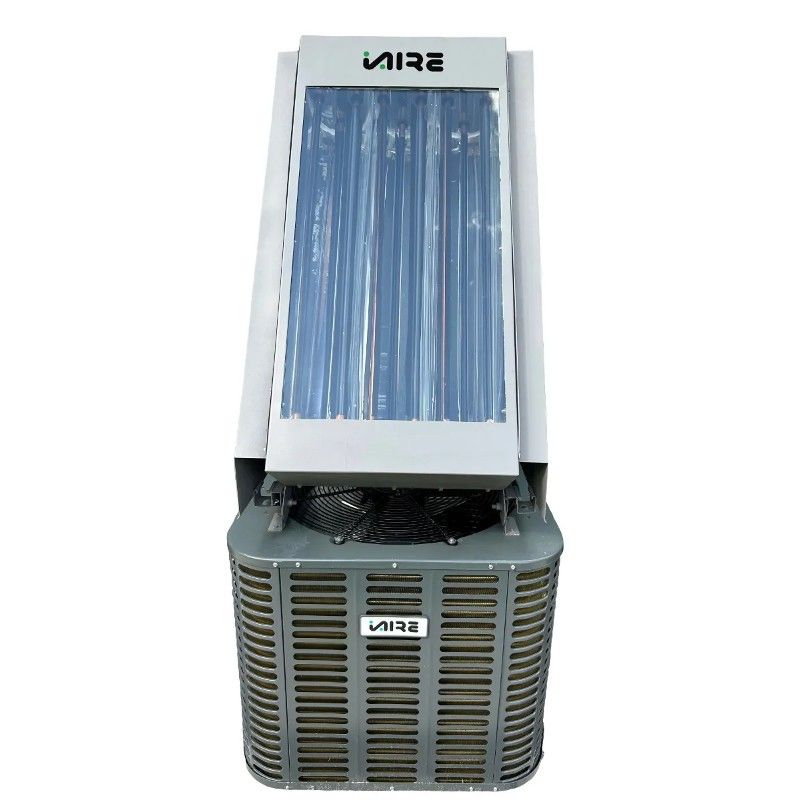

The iAIRE 2 Ton Solar Heat Pump condenser is twice as efficient as a standard residential split unit. A solar box equipped with chambers lined with specialty reflective film is mounted to the top of the condensing unit. Ambient light is converted to thermal energy which reduces the energy demand on the compressor.
iAIRE Solar Heat Pump Condensers are eligible for a 40% Federal Solar Tax Credit on normal jobs and 60% Tax Credit on low-income housing. Not only are you getting federal solar tax credits and heat pump rebates, but you are also saving the planet with Green Solar Technology. For more information on Solar Tax Credits, please see the Homeowner's Guide to the Federal Tax Credit for Solar Photovoltaics.
This Solar Heat Pump Condenser has an output of 2 tons to heat up a house with solar panels. iAIRE’s Solar HVAC technology utilizes the sun’s energy to put heat into the refrigerant. This process replaces a portion of the energy the compressor would normally put into the system from the electrical network in the building.
iAIRE offers a 10-year parts warranty and 10 year compressor warranty that will be limited to replacement parts only. Effective warranty period is 120 months from the date of shipment.
On iAIRE's Solar Heat Pump Condensers, a Variable Frequency Drive (VFD) is installed on the compressor that prevents it from cycling on and off as often as a typical standard unit. This VFD massively decreases in the inrush current when turning the condenser on and also slows the speed of the compressor to keep the system running at its normal operating pressure, causing overall compressor life expectancy to be longer.
The cabinet of iAIRE units are extremely durable and last longer than the average condenser. The solar box design uses rolled aluminum chambers with the solar film applied to the aluminum. These chambers are rolled to a dimension to concentrate the solar energy to a specific spot in the chambers.
Solar Air Conditioner Heat Pump 2 Ton 208/230 V Single Phase by iAIRE | |
---|---|
SKU | SHRPZ-240G00A000-0 |
Weight (in lbs) | 262.000000 |
AHRI Certificate Number | 210838002 |
Brand/Manufacturer | iAIRE |
HSPF | 9.5 |
Cooling BTU | 24,000 |
Heating BTU | 24,000 |
Decibel Level (dBA) | 78 |
Refrigerant | R410A |
SEER1 (Efficiency) | 18 |
EER | 12.5 |
Condenser Stages | Single Stage |
Compressor Type | Rotary |
Liquid Valve Size | 3/8" |
Suction Valve Size | 3/4" |
Electrical | 208 / 230 Volts Single Phase 60 Hz |
Phase | Single Phase |
Wattage | 1920 |
Max Breaker Size | 30 amps |
Min. Breaker Size | 17.7 amps |
Tonnage | 2 Ton |
Certification | OG-100 Certified to the Solar certification on ICC901/SRCC100 |
Height | 66.21" |
Width | 29.13" |
Depth | 29.13" |
Warranty | 10 Year Compressor Warranty and 10 Year Part Warranty |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
