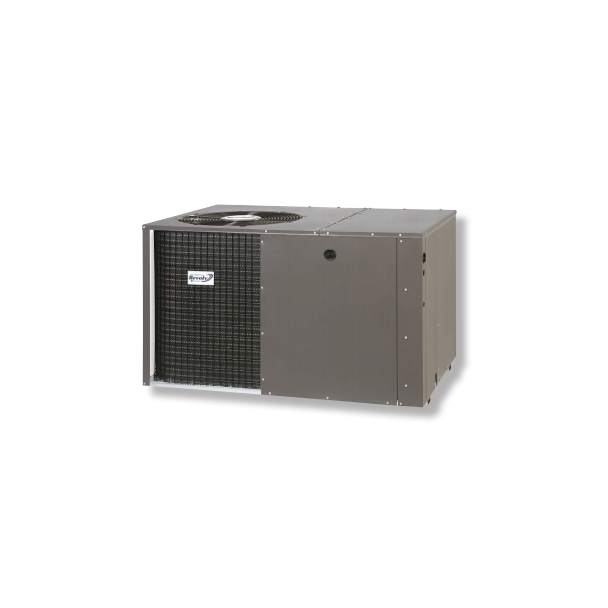

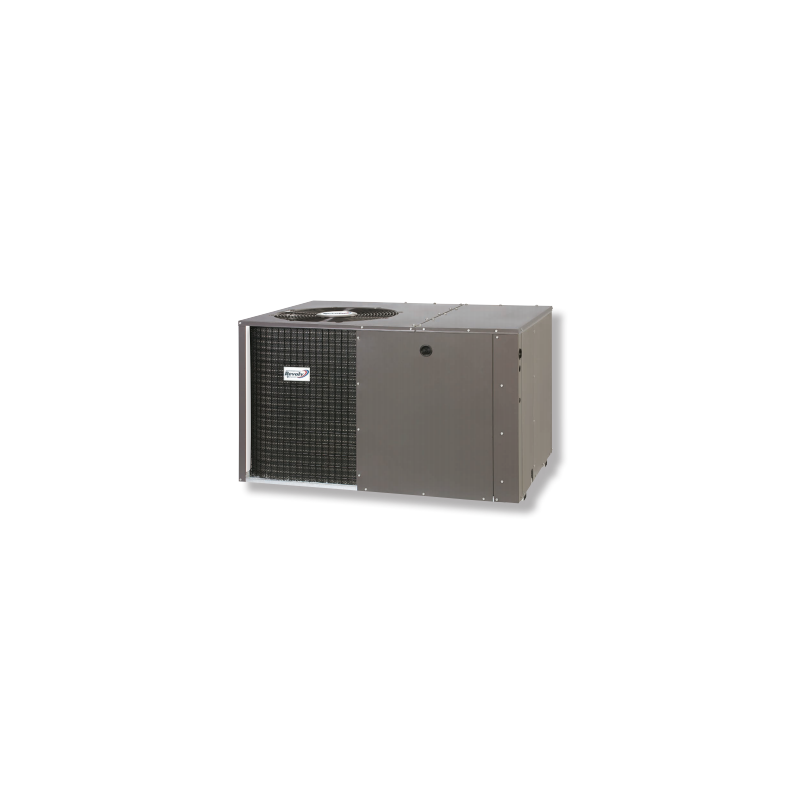

Style Crest-Revolv 2 Ton 13.4 SEER2 Horizontal Mobile Home Packaged Heat Pump Unit - R454B

By

Style Crest-Revolv

In stock
Model

Q95RD-024K

ID

201626

Ships In 1-2 Business Days
$3,575.00

Free Shipping
Product Features
  • Suitable for a small-sized mobile home
  • Single Stage Condenser
  • Certified for use with R454B Refrigerant
  • 10 Years with Warranty Online Registration

Additional 3% Off For Orders Over $2,000!

The Style Crest-Revolv P95RD-024K is an HP-only packaged unit that is designed primarily for use in mobile and manufactured homes. With its ready-to-install nature and 13.4 SEER2 efficiency, this horizontal-discharge packaged unit is a good and inexpensive option for many applications.

Features

  • 2 Ton HP-only packaged unit for Mobile Home
  • 13.4 SEER2
  • R454B Refrigerant
  • Scroll Compressor: Industry leading technology utilized in all models for reliable performance and increased efficiency
  • ECM Blower Motor: Fixed torque energy efficient brushless DC ECM motor, provides 5 speeds.
  • Easy Access: To the evaporator coil for cleaning, blower assembly removal and general maintenance.
  • Designed Using Galvanized Steel: With a polyester urethane coat finish, the 950 hour salt spray finish is 1.5 mil thick and resists corrosion.

Packaged Unit Buyers Guide

  • How packaged units work for residential and commercial use
  • The different types of packaged units
  • Figuring out the right size unit for your needs
  • The importance of a custom curb adapter
  • And much more!

Mobile Home Buying & Sizing Guide

  • Mobile home approved product types
  • Product differences
  • Figuring out the right size unit for your needs
  • Determining factors
  • Repair vs. replace
More Information
Style Crest-Revolv 2 Ton 13.4 SEER2 Horizontal Mobile Home Packaged Heat Pump Unit - R454B
SKUQ95RD-024K
Weight (in lbs)286.000000
AHRI Certificate Number209853116
Brand/ManufacturerStyle Crest-Revolv
ReplacesRPH1424
HSPF26.7
Cooling BTU23,000 BTU
Heating BTU22,800 BTU
Maximum CFM1425
Decibel Level (dBA)77 decibels
Electric Backup Heat Capabilities (Optional)5 Kilowatts, 10 Kilowatts, 15 Kilowatts
ConfigurationHorizontal
RefrigerantR454B
SEER2 (Efficiency)13.4
Compressor TypeScroll
Electrical208 / 230 V. 1 Phase 60 Hz
Max Breaker Size25 amps
Min. Breaker Size16.2 amps
Tonnage2 Ton
Height30.2"
Width49"
Depth35"
Warranty10 Years with Online Registration
