Trane 3 Ton 15.2 SEER2 / 11.7 EER2 Commercial Split Heat Pump System | 208/230V 3 Phase - R454B - Two Stage

Reliable Year-Round Comfort with the Trane 3-Ton Commercial Heat Pump Split System for Light Commercial Applications

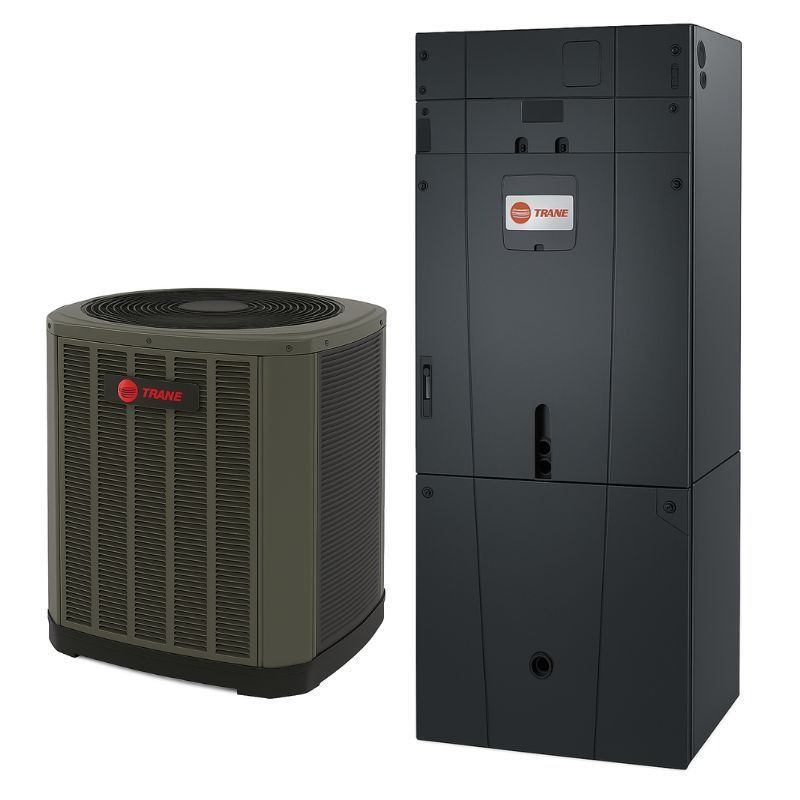

The Trane 5TWA4036A3 / 5TAM5C03AC21 is a nominal 3-ton commercial heat pump split system designed to provide year-round heating and cooling for light commercial spaces and other suitable applications. Combining the Trane 5TWA4036A3 outdoor heat pump condenser with the 5TAM5C03AC21 indoor air handler, this split system offers an integrated approach to indoor comfort with flexible equipment placement and compatibility with appropriately matched system components.

Key Benefits

• Heating and Cooling in One System – Heat pump operation provides both heating and cooling to support year-round indoor comfort.
• Nominal 3-Ton Capacity – Provides a 36,000 BTU/h nominal capacity class for appropriately sized commercial and light commercial applications.
• Heat Pump Heating – Transfers heat to the indoor space during heating operation, offering an alternative to systems that rely exclusively on electric resistance heating.
• Dedicated Outdoor Condenser – Separates the outdoor heat pump equipment from the indoor air handler for flexible equipment placement.
• Matched Split-System Configuration – Combines an outdoor heat pump condenser and an indoor air handler to provide a complete air-conditioning and heating solution when properly matched.
• Ducted Air Distribution – Supports distribution of conditioned air through a compatible duct system.
• Commercial-Grade Equipment Design – Provides a practical heating and cooling solution for suitable light commercial installations.
• Serviceable System Components – Separate indoor and outdoor equipment allows technicians to access the respective system components for inspection and maintenance.

Heat Pump Heating for Year-Round Comfort

The Trane 5TWA4036A3 outdoor heat pump condenser provides heating operation by transferring heat from the outdoor air into the indoor space. During cooling operation, the refrigeration cycle reverses to remove heat from the building. This dual-function design provides a single system for seasonal heating and cooling. Actual heating capacity, operating limits, and performance depend on outdoor conditions and the verified system specifications.

Reliable Cooling Performance

The Trane 5TWA4036A3 outdoor heat pump condenser is part of a nominal 3-ton split-system configuration. When paired with the compatible 5TAM5C03AC21 indoor air handler, the system provides cooling through a refrigeration cycle that transfers indoor heat to the outdoor environment. Actual cooling capacity and operating efficiency depend on the approved equipment match, installation conditions, and published performance data. A model-specific SEER2, EER2, or other efficiency rating should be confirmed using the applicable manufacturer documentation.

Heat Pump Technology and Operating Efficiency

Heat pump technology allows the system to provide both heating and cooling using a shared refrigeration circuit. In heating mode, the system transfers available outdoor heat indoors; in cooling mode, it removes indoor heat and rejects it outdoors. This approach can reduce reliance on electric resistance heating under suitable operating conditions. Exact efficiency ratings, compressor staging, and energy performance should be established from the official technical documentation for the specified equipment combination.

Split-System Design for Installation Flexibility

The Trane 5TWA4036A3 / 5TAM5C03AC21 configuration separates the outdoor heat pump condenser from the indoor air handler. This arrangement allows the outdoor unit to be installed outside the conditioned space while the air handler connects to the building's ductwork. Proper installation requires verification of equipment compatibility, electrical requirements, refrigerant piping sizes and lengths, condensate drainage, airflow, and applicable manufacturer installation instructions. The final installation should comply with local codes and the approved system design.

Controls and Indoor Comfort

The system requires compatible controls designed for heat pump operation. The selected thermostat and control arrangement must support the applicable heating and cooling functions and any supplemental heating equipment included in the installation. Correct control configuration helps coordinate heating and cooling calls and supports dependable system operation. Specific thermostat models, auxiliary heat control capabilities, and advanced comfort functions should be confirmed against the manufacturer's compatibility documentation.

Commercial and Light Commercial Applications

The Trane 5TWA4036A3 / 5TAM5C03AC21 split heat pump system is suitable for consideration in light commercial spaces, small offices, retail environments, and similar applications where a nominal 3-ton ducted heating and cooling system meets the calculated building load. Final suitability depends on the building's heating and cooling requirements, ventilation needs, electrical service, duct design, and local environmental conditions.

Service and Maintenance

Routine maintenance helps support reliable operation and maintain system performance. Recommended service includes inspecting and cleaning the indoor air filter, checking indoor and outdoor coils, inspecting electrical connections, verifying condensate drainage, and checking refrigerant-system operation as appropriate. Qualified HVAC technicians should perform refrigerant-system service and follow the applicable Trane installation, operation, and maintenance documentation.

Warranty

Trane publishes general warranty information for its small split-system product family that includes one year of parts coverage and five years of compressor coverage. Actual coverage for the 5TWA4036A3 / 5TAM5C03AC21 combination must be verified against the applicable model-specific warranty certificate, purchase date, installation requirements, registration conditions, and commercial-use provisions. The applicable written warranty governs all coverage and exclusions.

Recommended Accessories

• Compatible Heat Pump Thermostat – Select a control approved for the installed heat pump and any supplemental heating configuration.
• Outdoor Equipment Pad or Mounting Support – Select a suitable support that meets the installation requirements and site conditions.
• Electrical Disconnect – Provide a properly rated disconnect in accordance with the unit nameplate and applicable electrical codes.
• Refrigerant Line Set – Select the manufacturer-specified refrigerant piping sizes and configuration for the approved equipment combination and installation distance.
• Supplemental Electric Heat Kit – Where required, select a compatible heater kit approved for the indoor air handler and electrical service.

Year-Round Heating and Cooling with the Trane 5TWA4036A3 / 5TAM5C03AC21

Support indoor comfort with the Trane 5TWA4036A3 / 5TAM5C03AC21 nominal 3-ton split heat pump system. Combining heat pump heating and cooling with a separate indoor air handler, this configuration offers a ducted comfort solution for suitable light commercial applications when properly matched, installed, and maintained.
