Trane 4 Ton 14.3 SEER2 Commercial Air Conditioning Condenser | 460V 3 Phase - R454B - Single Stage

Reliable 4-Ton Single-Stage Split Air Conditioner for Commercial Applications with 460V Three-Phase Power

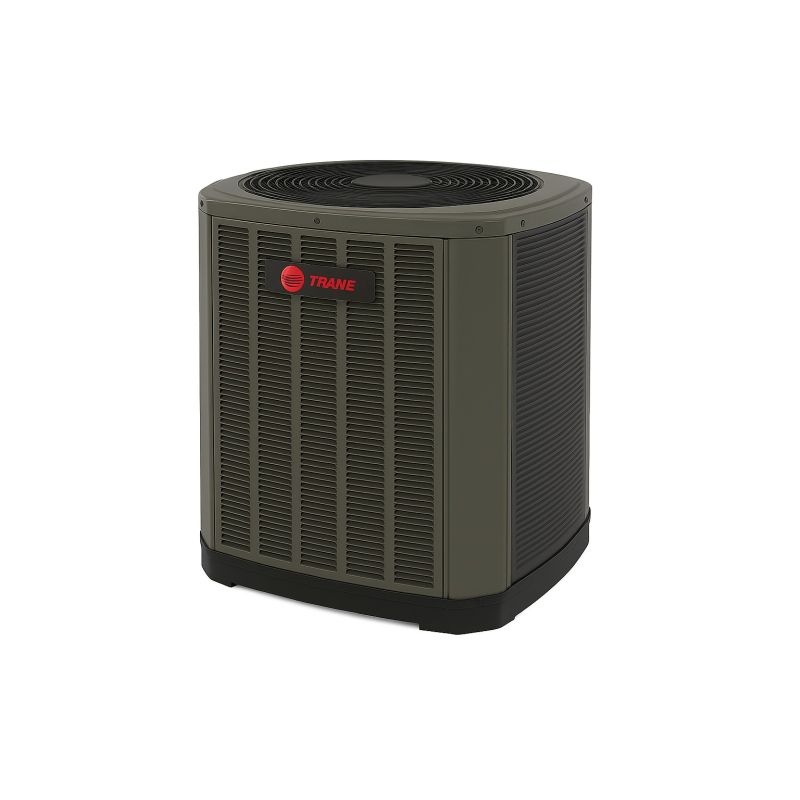

The Trane 5TTA4048A4 is a 4-ton commercial split air conditioner system designed to provide reliable cooling for commercial and light commercial applications. Combining a 4-ton outdoor condensing unit with a compatible indoor evaporator coil or air handler, this split system helps deliver dependable commercial cooling while providing flexible equipment placement and installation options. The 5TTA4048A4000A configuration operates on 460V, three-phase, 60 Hz power and uses a ClimaTuff® scroll compressor, Spine Fin™ outdoor coil, expansion valve refrigerant control, and R-454B refrigerant.

Key Benefits

• 14 Single-Stage Cooling – Provides dependable single-stage cooling operation for commercial and light commercial applications.
• 48,000 BTUH Cooling Capacity – Provides nominal 4-ton cooling capacity to help maintain comfortable indoor conditions during warm-weather operation.
• ClimaTuff® Scroll Compressor – Provides dependable compressor operation with internal over-temperature and pressure protection.
• R-454B Refrigerant – Uses R-454B refrigerant in Trane's current 14 Single-Stage air conditioner platform.
• Spine Fin™ Outdoor Coil – Provides low airflow resistance and efficient heat transfer for reliable outdoor heat rejection.
• Durable Outdoor Cabinet – Heavy-gauge galvanized-steel construction with a weather-resistant finish helps protect the unit in outdoor applications.
• Flexible Split-System Design – Separates the outdoor condensing unit from the indoor evaporator coil or air handler for flexible equipment placement.
• Service-Friendly Refrigeration Design – Factory-supplied liquid-line drier, accessible service components, and available service accessories support installation and maintenance.

4-Ton Single-Stage Cooling – Reliable Commercial Cooling

The Trane 5TTA4048A4 provides 48,000 BTUH of nominal cooling capacity to help maintain comfortable indoor temperatures during warm-weather operation. The outdoor condensing unit is designed for use with compatible matched indoor equipment and is part of Trane's 14 Single-Stage air conditioner platform. Depending on the matched indoor coil or air handler configuration, system efficiency ratings can vary.

ClimaTuff® Scroll Compressor – Dependable Cooling Performance

The ClimaTuff® scroll compressor provides the compression required for reliable cooling operation. The compressor incorporates internal over-temperature and pressure protection, a centrifugal oil pump, and a design intended to provide low vibration and noise. The 5TTA4048A4000A operates on 460V, three-phase, 60 Hz power, with a minimum branch circuit ampacity of 8.6 amps and a maximum branch circuit protection rating of 15 amps.

Spine Fin™ Coil – Efficient Outdoor Heat Transfer

The outdoor Spine Fin™ coil is designed to provide low airflow resistance and efficient heat transfer. The 4-ton model uses a 27.5-inch outdoor fan with a 1/5 HP motor. Louvered panels protect the outdoor coil on all four sides, helping provide durable construction for outdoor installation.

R-454B Refrigerant – Modern Refrigeration Platform

The Trane 5TTA4048A4 uses R-454B refrigerant and an expansion valve for refrigerant control. The outdoor unit is factory charged with the system charge required for the outdoor condensing unit, 10 feet of tested connecting line, and the smallest rated indoor evaporative coil match. The listed factory refrigerant charge for the 5TTA4048A4 is 6 pounds, 10 ounces. Proper system charge should always be verified according to the unit nameplate and applicable Trane charging procedures.

Split System Installation Design

The split system configuration separates the outdoor condensing unit from the indoor evaporator coil or air handler, providing flexibility for equipment placement and installation. The 5TTA4048A4 has 7/8-inch O.D. gas and 5/16-inch O.D. liquid service valve connections, with rated refrigerant line sizes of 7/8-inch O.D. gas and 5/16-inch O.D. liquid. Trane offers 25-, 30-, 35- and 50-foot refrigerant line sets. The installation literature specifies a maximum total refrigerant line length of 150 feet, including lift, and a maximum vertical change of 50 feet. For other line lengths, Trane recommends following the applicable Refrigerant Piping Application Guide or Refrigerant Piping Software Program.

Controls & Comfort

The system includes condenser fan and compressor controls along with low- and high-pressure switches. The 5TTA4048A4 is a single-stage cooling unit and can be matched with compatible indoor equipment and controls to provide the required cooling operation. As manufactured, the system supports cooling operation down to a 55°F outdoor ambient temperature. Optional low-ambient and evaporator defrost controls can be used for applications requiring cooling at lower outdoor temperatures, subject to the applicable matched-system requirements.

Commercial Applications

The Trane 5TTA4048A4 is designed for commercial and light commercial split-system cooling applications requiring a nominal 4-ton outdoor condensing unit and 460V three-phase electrical service. Its outdoor-rated construction, galvanized-steel cabinet, weather-resistant finish, and compatibility with approved matched indoor equipment make it suitable for a variety of commercial installations.

Service & Maintenance

The unit incorporates service-oriented refrigeration controls and accessible components to support installation and maintenance. A factory-supplied, field-installed liquid-line drier is standard. The compressor includes internal over-temperature and pressure protection, while the outdoor coil is protected on all four sides by louvered panels. Properly selected isolation is recommended when mounting the outdoor unit on a roof to help reduce sound or vibration transmission to the building structure. Available accessories include an anti-short-cycle timer, evaporator defrost control, rubber isolator kit, extreme-condition mounting kit, sound enclosure, seacoast kit, low-ambient kit, and service valve panel cover.

Warranty

The Trane 5TTA4048A4 is covered by Trane's applicable published product warranty terms. Warranty coverage is subject to the applicable warranty document, installation requirements, registration provisions, and other stated conditions. Consult the current Trane warranty documentation for the specific coverage associated with the installed product.

Recommended Accessories

• Anti-Short Cycle Timer
• Evaporator Defrost Control
• Rubber Isolator Kit
• Extreme Condition Mount Kit
• Low Ambient Kit

Reliable 4-Ton Cooling with the Trane 5TTA4048A4

Experience reliable commercial cooling with the Trane 5TTA4048A4. Combining a 4-ton ClimaTuff® scroll compressor outdoor condensing unit, Spine Fin™ outdoor coil, R-454B refrigerant, durable weather-resistant cabinet, and flexible split-system configuration with 460V three-phase power in one commercial air conditioning system.
