Trane 4 Ton 15 SEER2 / 11.7 EER2 Commercial Split Heat Pump System | 208/230V 3 Phase - R454B - Two Stage

Reliable Year-Round Comfort with the Trane 4-Ton Heat Pump Split System for Light Commercial Applications

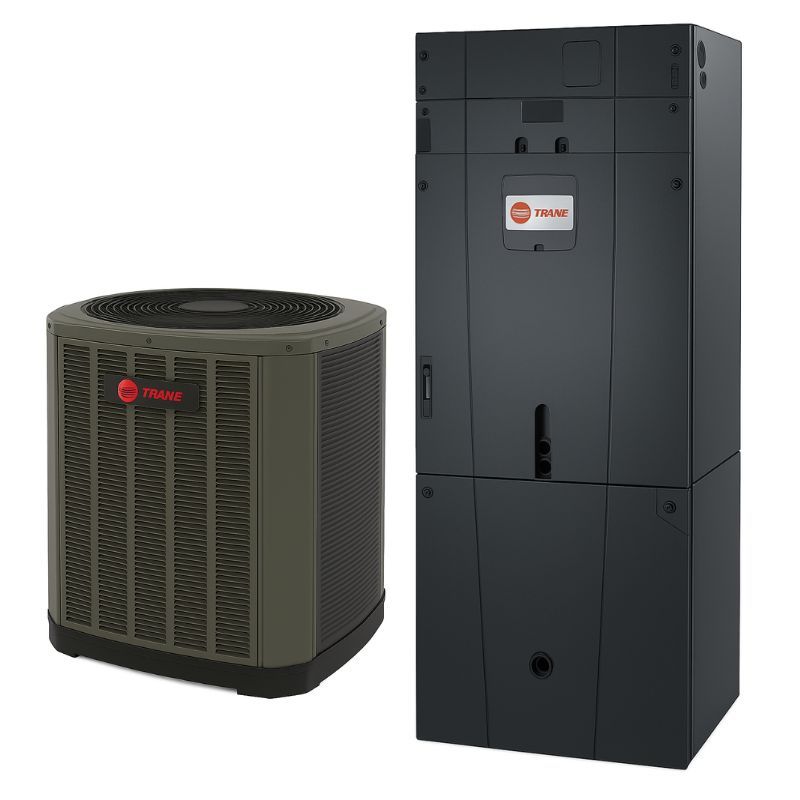

The Trane 5TWA4048A3 / 5TAM5D05AC31 is a nominal 4-ton heat pump split-system configuration designed to provide heating and cooling for suitable light commercial applications. Combining the 5TWA4048A3 outdoor heat pump condenser with the 5TAM5D05AC31 indoor air handler, this system offers a ducted comfort solution with separate indoor and outdoor equipment. The split-system design supports flexible equipment placement, while final system performance and compatibility depend on the approved equipment combination and installation requirements.

Key Benefits

• Year-Round Heating and Cooling – Heat pump technology provides both heating and cooling through a single system.
• Nominal 4-Ton Capacity – The 048 model designation identifies a nominal 48,000 BTU/h capacity class for appropriately sized applications.
• Heat Pump Heating – Transfers available heat from outdoor air into the building during heating operation.
• Dedicated Outdoor Condenser – Houses the outdoor refrigeration equipment separately from the conditioned space.
• Indoor Air Handler Integration – Supports conditioned-air distribution through a compatible duct system.
• Flexible Split-System Installation – Allows indoor and outdoor equipment to be positioned according to the approved installation design.
• Serviceable Equipment Configuration – Separates indoor air distribution components from outdoor refrigeration components for inspection and maintenance.
• Compatible Heat Pump Controls – Works with an appropriately selected thermostat and approved control configuration to coordinate heating and cooling operation.

Heat Pump Heating for Year-Round Comfort

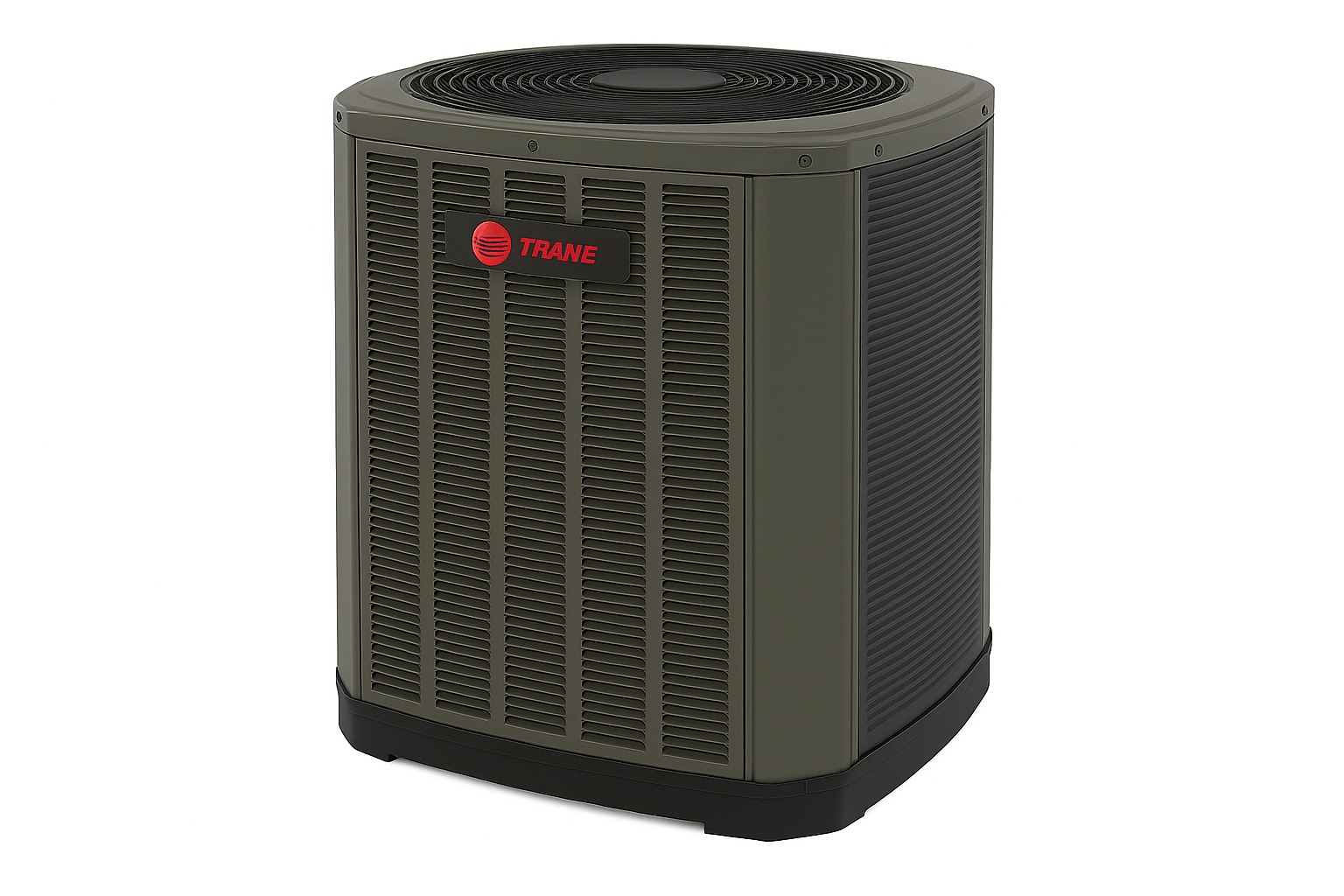

The Trane 5TWA4048A3 outdoor heat pump condenser provides heating by transferring heat from outdoor air into the conditioned space. During cooling operation, the refrigeration cycle reverses to remove heat from the building and reject it outdoors. This dual-function operation provides a single system for seasonal heating and cooling. Actual heating capacity, low-temperature operating performance, defrost operation, and supplemental heating requirements should be confirmed using the official manufacturer documentation for the specified equipment combination.

Cooling Performance for Commercial Comfort

The Trane 5TWA4048A3 is a nominal 4-ton model in the 48,000 BTU/h capacity class. When paired with a compatible indoor air handler, the system provides cooling by extracting heat from indoor air and rejecting it outdoors. Actual rated cooling capacity and operating efficiency depend on the approved equipment match and applicable rating conditions. Specific SEER2, EER2, and other efficiency ratings should be confirmed using the manufacturer's published performance data for this exact configuration.

Heat Pump Technology and Operating Efficiency

Heat pump technology enables the system to provide both heating and cooling through a shared refrigeration circuit. During heating operation, the system transfers available heat from outdoor air indoors; during cooling operation, it removes heat from the building. Under suitable operating conditions, heat pump operation can reduce reliance on electric resistance heating. Actual energy performance depends on outdoor temperatures, system matching, installation quality, and control configuration. Compressor staging, HSPF2, COP, and other model-specific efficiency specifications should be verified against the applicable Trane technical documentation.

Split-System Design for Installation Flexibility

The Trane 5TWA4048A3 / 5TAM5D05AC31 configuration consists of an outdoor heat pump condenser and a separate indoor air handler. This arrangement supports ducted air distribution while allowing the outdoor equipment to be installed outside the conditioned space. Installation requirements include verifying the approved equipment match, refrigerant piping sizes and allowable lengths, electrical supply, circuit protection, airflow, condensate drainage, and required service clearances. Installation must follow the manufacturer's instructions and applicable local codes.

Controls and Indoor Comfort

The system requires compatible heat pump controls designed to coordinate heating and cooling operation. Thermostat selection must account for the approved equipment configuration and any supplemental electric heat installed with the indoor air handler. Correct control setup supports coordinated operation and dependable indoor comfort. Specific thermostat models, heating-stage compatibility, auxiliary heat control functions, and advanced comfort features should be verified using the manufacturer's control compatibility documentation.

Commercial and Light Commercial Applications

The Trane 5TWA4048A3 / 5TAM5D05AC31 split heat pump system can be evaluated for suitable light commercial applications, including small offices, retail spaces, and similar buildings requiring ducted heating and cooling. Its nominal 4-ton capacity class makes it a candidate for applications where the calculated heating and cooling loads are appropriate. Final suitability depends on the building load calculation, ventilation requirements, electrical service, duct design, local climate, and verified equipment performance.

Service and Maintenance

Regular preventive maintenance helps support dependable operation and maintain system performance. Recommended service includes inspecting air filters, checking indoor and outdoor coils, inspecting electrical connections, verifying condensate drainage, and evaluating refrigeration-system operation as appropriate. Qualified HVAC technicians should perform refrigerant-system service and follow the installation, operation, and maintenance instructions applicable to the exact equipment models.

Warranty

Warranty coverage for the Trane 5TWA4048A3 / 5TAM5D05AC31 configuration must be confirmed using the applicable official Trane warranty certificate. Coverage periods, compressor and parts provisions, registration requirements, installation conditions, and commercial-use exclusions may depend on the specific equipment and applicable warranty terms. The written manufacturer warranty supplied for the equipment governs all coverage, requirements, and exclusions.

Recommended Accessories

• Compatible Heat Pump Thermostat – Select a thermostat approved for the equipment combination and required heating and cooling functions.
• Outdoor Equipment Pad or Mounting Support – Choose a suitable support that meets manufacturer installation requirements and site conditions.
• Electrical Disconnect – Provide a properly rated disconnect based on the equipment nameplate and applicable electrical codes.
• Refrigerant Line Set – Verify the required line diameters, allowable lengths, and installation limits using the outdoor unit installation documentation.
• Supplemental Electric Heat Kit – Where required, select only a heater kit approved for the 5TAM5D05AC31 air handler and available electrical service.

Year-Round Comfort with the Trane 5TWA4048A3 / 5TAM5D05AC31

Provide heating and cooling for suitable light commercial applications with the Trane 5TWA4048A3 / 5TAM5D05AC31 split-system configuration. Combining outdoor heat pump technology with a separate indoor air handler, this nominal 4-ton capacity-class system offers a ducted comfort solution when the equipment combination is manufacturer-approved, correctly installed, and maintained according to Trane specifications.
