Trane 5 Ton 14.3 SEER2 / 11.7 EER2 Commercial Split Heat Pump System | 460V 3 Phase - R454B - Two Stage

Reliable Year-Round Comfort with the Trane 5-Ton Heat Pump Split System for Light Commercial Applications

The Trane 5TWA4060A4 / 5TAM5D06AC41 is a heat pump split-system configuration designed to provide heating and cooling for suitable applications when the equipment combination is approved by the manufacturer. The 5TWA4060A4 outdoor heat pump condenser has a nominal cooling capacity of 60,000 BTU/h and is designed for 460V, three-phase, 60Hz electrical service. Combined with the 5TAM5D06AC41 indoor air handler, this configuration provides a ducted comfort solution with separate indoor and outdoor equipment. Confirm the approved equipment match and applicable performance specifications before installation.

Key Benefits

• Year-Round Heating and Cooling – Heat pump technology provides heating and cooling through one refrigeration system.
• Nominal 5-Ton Cooling Capacity – The 60,000 BTU/h nominal capacity class supports appropriately sized commercial and light commercial applications.
• Heat Pump Heating – Transfers available heat from outdoor air into the conditioned space during heating operation.
• Three-Phase Electrical Design – The 5TWA4060A4 outdoor unit is specified for 460V, three-phase, 60Hz electrical service.
• Separate Outdoor Condenser – Positions the outdoor refrigeration equipment outside the conditioned space.
• Ducted Indoor Air Distribution – The indoor air handler supports distribution of conditioned air through a compatible duct system.
• Flexible Split-System Installation – Allows the indoor and outdoor equipment to be positioned according to the approved installation design.
• Serviceable Equipment Configuration – Separates indoor air distribution components from outdoor refrigeration components for inspection and maintenance.

Heat Pump Heating for Year-Round Comfort

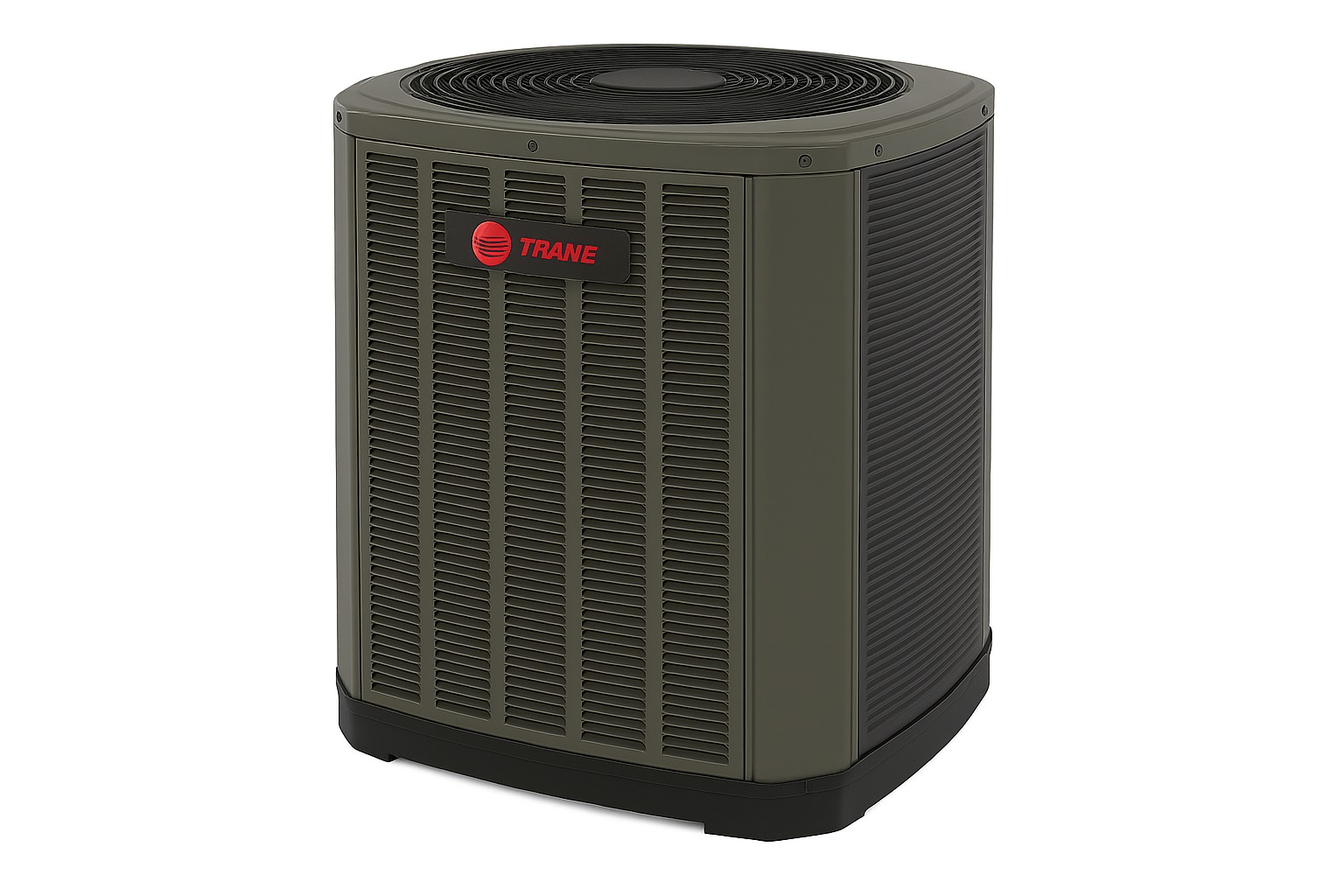

The Trane 5TWA4060A4 outdoor heat pump condenser provides heating by transferring heat from outdoor air into the conditioned space. During cooling operation, the refrigeration cycle reverses to remove heat from the building and reject it outdoors. Actual heating capacity, low-temperature operating performance, defrost operation, and supplemental heating requirements depend on the operating conditions and approved indoor equipment combination. Consult the applicable Trane product and installation documentation for verified heating performance and operating limits.

Cooling Performance for Commercial Comfort

The Trane 5TWA4060A4 has a nominal cooling capacity of 60,000 BTU/h. The outdoor unit works with a compatible indoor air handler to extract heat from indoor air and reject it outdoors. The manufacturer lists the 5TWA4060A4 in its single-stage, three-phase heat pump product family. Actual rated cooling capacity and system efficiency depend on the approved equipment match and applicable rating conditions. Confirm SEER2, EER2, and other efficiency ratings using the official performance data for the exact system combination.

Heat Pump Technology and Operating Efficiency

Heat pump technology allows the system to provide both heating and cooling through a shared refrigeration circuit. During heating operation, the system transfers available heat from outdoor air indoors; during cooling operation, it removes heat from the building. Under suitable conditions, this approach can reduce reliance on electric resistance heating. Actual energy performance depends on outdoor temperatures, system matching, installation quality, and control configuration. Specific HSPF2, COP, and other efficiency ratings should be verified in the applicable Trane technical documentation.

Split-System Design for Installation Flexibility

The Trane 5TWA4060A4 / 5TAM5D06AC41 configuration consists of an outdoor heat pump condenser and a separate indoor air handler. This arrangement supports ducted air distribution while allowing the outdoor equipment to be located outside the conditioned space. The published outdoor-unit dimensions for the 5TWA4060A4 are approximately 45 inches high, 34 inches wide, and 37 inches deep, with an estimated uncrated weight of 251 pounds. Verify the indoor air handler dimensions, approved equipment match, refrigerant piping requirements, electrical supply, airflow, condensate drainage, and service clearances using the applicable manufacturer documentation.

Controls and Indoor Comfort

The system requires compatible heat pump controls designed to coordinate heating and cooling operation. Thermostat selection must account for the approved equipment configuration and any supplemental electric heat installed with the indoor air handler. Correct control setup supports coordinated operation and dependable indoor comfort. Verify thermostat compatibility, heating-stage requirements, auxiliary heat controls, and other control functions using the applicable Trane documentation.

Commercial and Light Commercial Applications

The Trane 5TWA4060A4 / 5TAM5D06AC41 configuration can be evaluated for suitable commercial and light commercial applications requiring ducted heating and cooling. Potential applications include offices, retail spaces, and similar buildings where the calculated heating and cooling loads are appropriate for the selected equipment. The 460V three-phase electrical requirement should be considered during project planning. Final suitability depends on building load calculations, ventilation requirements, electrical service, duct design, local climate, and verified equipment performance.

Service and Maintenance

Regular preventive maintenance helps support dependable operation and maintain system performance. Recommended service includes inspecting air filters, checking indoor and outdoor coils, inspecting electrical connections, verifying condensate drainage, and evaluating refrigeration-system operation as appropriate. Qualified HVAC technicians should perform refrigerant-system service and follow the installation, operation, and maintenance instructions applicable to the exact equipment models.

Warranty

Warranty coverage for the Trane 5TWA4060A4 / 5TAM5D06AC41 configuration must be confirmed using the applicable official Trane warranty certificate. Coverage periods, compressor and parts provisions, registration requirements, installation conditions, and commercial-use exclusions depend on the specific equipment and applicable written warranty terms. The manufacturer's warranty supplied for the equipment governs all coverage, requirements, and exclusions.

Recommended Accessories

• Compatible Heat Pump Thermostat – Select a thermostat approved for the equipment combination and required heating and cooling functions.
• Outdoor Equipment Pad or Mounting Support – Choose a suitable support that meets manufacturer installation requirements and site conditions.
• Electrical Disconnect – Provide a disconnect correctly rated for the unit's 460V three-phase electrical supply and nameplate requirements.
• Refrigerant Line Set – Verify the required line diameters, allowable lengths, and installation limits using the outdoor unit installation documentation.
• Supplemental Electric Heat Kit – Where required, select only a heater kit approved for the 5TAM5D06AC41 air handler and the available electrical service.

Year-Round Comfort with the Trane 5TWA4060A4 / 5TAM5D06AC41

Provide heating and cooling for suitable commercial and light commercial applications with the Trane 5TWA4060A4 / 5TAM5D06AC41 split-system configuration. Combining a nominal 60,000 BTU/h outdoor heat pump condenser with a separate indoor air handler, this system offers a ducted comfort solution for installations with compatible equipment, appropriate 460V three-phase electrical service, and a verified manufacturer-approved system match.
