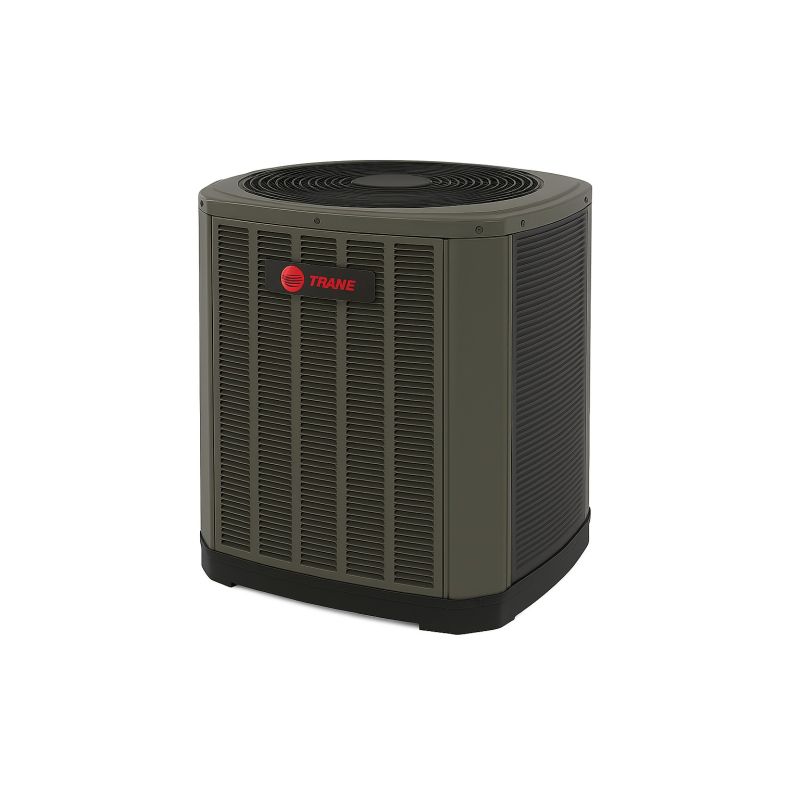

Trane 5 Ton 14.3 SEER2 Commercial Air Conditioning Condenser | 208/230V 3 Phase - R454B - Single Stage

Reliable 5-Ton Single-Stage Split Air Conditioner for Commercial Applications with R-454B Refrigerant

The Trane 5TTA4060A3 is a 5-ton commercial split air conditioner system designed to provide reliable cooling for commercial and light commercial applications. Combining a 5-ton outdoor condensing unit with a compatible indoor evaporator coil or air handler, this split system helps deliver dependable commercial cooling while providing flexible equipment placement and installation options. The 5TTA4060A3000A configuration is a three-phase outdoor unit designed for 208/230V, 60 Hz electrical service and uses a ClimaTuff® scroll compressor, Spine Fin™ condenser coil, and R-454B refrigerant.

Key Benefits

• 5-Ton Cooling Capacity – Provides 60,000 BTUH of nominal cooling capacity for commercial and light commercial split-system applications.
• Single-Stage Cooling – Provides dependable single-stage cooling operation for commercial comfort applications.
• ClimaTuff® Scroll Compressor – Provides reliable compressor operation with internal protection against excessive operating temperatures and pressures.
• R-454B Refrigerant – Uses R-454B refrigerant in Trane's current 14 Single-Stage air conditioner platform.
• Spine Fin™ Condenser Coil – Provides low airflow resistance and efficient heat transfer for dependable outdoor heat rejection.
• Durable Outdoor Cabinet – Galvanized-steel construction, full-sided louvered panels, and baked-on powder paint help protect the outdoor unit.
• Flexible Split-System Design – Separates the outdoor condensing unit from the compatible indoor coil or air handler for flexible equipment placement.
• Service-Friendly Construction – Quick-Sess cabinet design, full coil protection, and available service accessories support installation and maintenance.

5-Ton Single-Stage Cooling – Reliable Commercial Cooling

The Trane 5TTA4060A3 provides 60,000 BTUH of nominal cooling capacity to help maintain comfortable indoor temperatures during warm-weather operation. The 5TTA4060A3000A is a 5-ton, three-phase outdoor condensing unit within Trane's 14 Single-Stage air conditioner platform. The unit uses R-454B refrigerant and is designed for use with compatible split-system indoor equipment.

ClimaTuff® Scroll Compressor – Dependable Cooling Performance

The ClimaTuff® scroll compressor provides the compression required for reliable cooling operation. The compressor is designed with internal protection features to help safeguard operation under demanding conditions. The three-phase 5TTA4060A3000A configuration is designed for 208/230V, 60 Hz electrical service.

Spine Fin™ Condenser Coil – Efficient Outdoor Heat Transfer

The outdoor Spine Fin™ condenser coil is designed to provide efficient heat transfer with low airflow resistance. Full-sided galvanized-steel louvered panels protect the outdoor coil, while the baked-on powder-paint finish helps resist rust. The outdoor cabinet also incorporates a DuraTuff™ rust-resistant basepan for added durability in outdoor applications.

R-454B Refrigerant – Lower-GWP Refrigeration Platform

The Trane 5TTA4060A3 uses R-454B refrigerant as part of Trane's current 14 Single-Stage air conditioner platform. Trane identifies R-454B as a lower-global-warming-potential refrigerant. System charging should be performed and verified according to the unit nameplate, installation instructions, and applicable Trane charging procedures.

Split System Installation Design

The split system configuration separates the outdoor condensing unit from the indoor evaporator coil or air handler, providing flexibility for equipment placement and installation. Trane's small split-system platform offers multiple compatible split-system component choices, allowing contractors to select an appropriate indoor coil or air handler for the installation. Refrigerant piping, line sizes, maximum line lengths, elevation limits, and system charging requirements should be determined from the applicable Trane product literature for the selected matched system.

Controls & Comfort

The 5TTA4060A3 is a three-phase, single-stage air conditioner designed for compatibility with appropriate matched indoor equipment and control configurations. Trane's small split systems offer compatible air handlers with single- or variable-speed motors, while available control and low-ambient options can be selected according to application requirements. Properly matched system components should be selected using the applicable Trane product data and AHRI-certified combination information.

Commercial Applications

The Trane 5TTA4060A3 is designed for commercial and light commercial split-system cooling applications requiring a nominal 5-ton outdoor condensing unit and three-phase electrical service. Trane identifies its small split systems as suitable for applications including small retailers and low-rise buildings. The unit's galvanized-steel louvered cabinet, rust-resistant construction, and flexible matched-component configuration support a range of outdoor commercial installations.

Service & Maintenance

The unit's Quick-Sess cabinet provides service access while full-sided louvered panels protect the outdoor coil. Trane's 14 Single-Stage platform also incorporates a factory-installed liquid-line filter-drier and offers optional accessories for specialized installation and operating conditions. Available options include an evaporator defrost control kit, crankcase heater, rubber isolators, low-ambient kit, extreme-condition mounting kit, and WeatherGuard™ top.

Warranty

Trane's commercial small split-system product information specifies a 1-year parts warranty and a 5-year compressor warranty. Warranty coverage is subject to the applicable Trane warranty terms, installation requirements, registration provisions, and other stated conditions. Consult the current Trane warranty documentation for complete coverage details for the installed product.

Recommended Accessories

• Evaporator Defrost Control Kit – [Applicable Trane accessory]
• Crankcase Heater – [Applicable Trane accessory]
• Rubber Isolators – [Applicable Trane accessory]
• Low Ambient Kit – [Applicable Trane accessory]
• Extreme Conditions Mounting Kit – [Applicable Trane accessory]

Reliable 5-Ton Cooling with the Trane 5TTA4060A3

Experience reliable commercial cooling with the Trane 5TTA4060A3. Combining a 5-ton ClimaTuff® scroll compressor outdoor condensing unit, Spine Fin™ condenser coil, R-454B refrigerant, durable galvanized-steel construction, and flexible split-system configuration with three-phase power in one commercial air conditioning system.
