Trane 6 Ton Multi-Positional Commercial Air Handler | 208/230V 3 Phase - R454B

Flexible Commercial Air Handling for 6-Ton Applications with Trane Odyssey™ Split-System Design

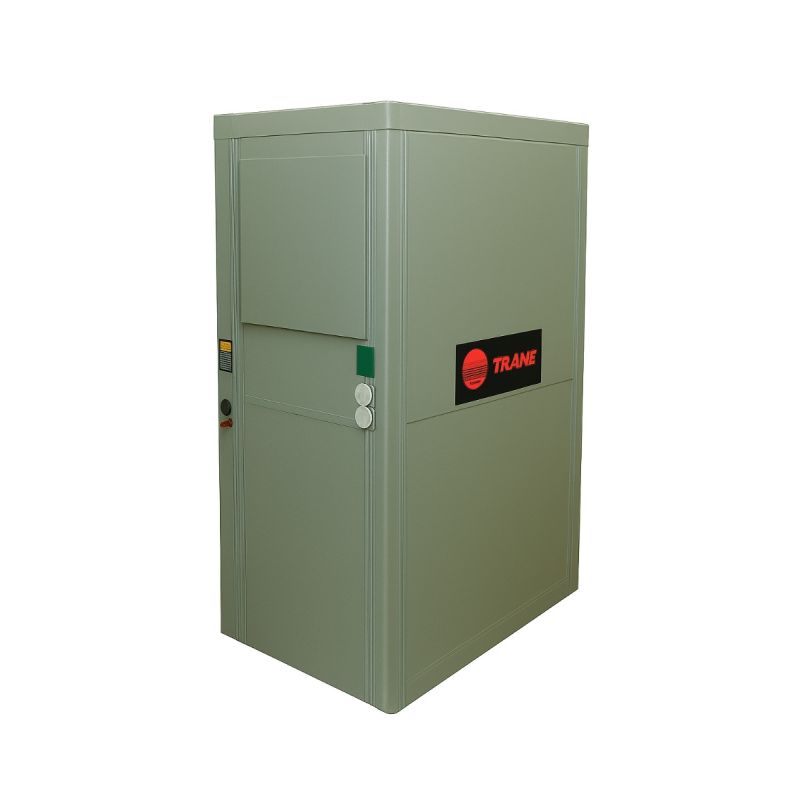

The Trane TWE072K3BAA**BC Odyssey™ air handler is a 6-ton commercial split air handler designed to provide conditioned-air distribution for commercial applications. Designed to work with compatible Odyssey™ outdoor cooling or heat-pump equipment, this indoor air handling system provides flexible system design where a rooftop unit may not be practical because of design, safety, or structural limitations.

Key Benefits

• 6-Ton Commercial Capacity – Provides air-handling capacity for commercial split-system applications.
• Flexible Airflow Options – Odyssey air handlers are available with constant-volume, two-speed, and single-zone VAV configurations depending on the selected model configuration.
• Cooling and Heat-Pump Compatibility – Designed as part of the Odyssey split-system platform for use with compatible cooling and heat-pump equipment.
• Commercial Air Handler Design – Provides indoor air handling as part of a separate indoor/outdoor split-system configuration.
• Flexible System Design – Split-system components can be configured to accommodate commercial applications where rooftop equipment is not suitable.
• Installation Flexibility – Available accessories and configuration options support different installation requirements.
• Commercial-Grade Platform – Part of the Trane Odyssey product family covering 6- to 25-ton split-system applications.
• Symbio™ Controls – Compatible Odyssey configurations use the Symbio® 700 controller platform for coordinated system operation.
• Service Access – Separate indoor and outdoor equipment can provide convenient access for installation and servicing.

6-Ton Commercial Air Handling Performance

The TWE072K3BAA**BC provides commercial air handling for a nominal 6-ton application. Trane performance data for the TWE072 platform includes airflow selections of 1,920, 2,400, and 2,880 CFM, with available fan performance dependent on the selected operating condition and external static pressure. This range provides flexibility for properly designed commercial duct systems.

Heating & Cooling Performance

The TWE072K3BAA**BC is designed as an indoor component of the Trane Odyssey split-system platform. Compatible Odyssey outdoor equipment includes cooling units and all-electric heat pumps, allowing the air handler to be configured as part of a complete commercial heating and cooling system. System capacity and efficiency depend on the specific matched outdoor equipment and complete system configuration.

Commercial Efficiency & System Compatibility

The Odyssey platform provides standard-efficiency commercial split-system configurations using compatible outdoor equipment and Symbio® 700 controls. Trane identifies Odyssey cooling units with efficiencies up to 11.5 EER and Odyssey heat pumps with efficiencies up to 11.3 EER. These ratings apply to the applicable complete outdoor equipment and system configuration rather than the air handler alone.

Air Handler & Installation Design

The split air handler configuration is designed for indoor installation as part of a separate indoor/outdoor system. Trane describes Odyssey split systems as providing mix-and-match and customizable design flexibility for applications where a rooftop unit may not be possible because of design, safety, or structural limitations. Available accessories for the TWE072 include a subbase, condensate drip kit, duct flange kit, and 2-inch MERV 13 filter options.

Controls & Comfort

Compatible Odyssey Symbio air-handler configurations use the Symbio® 700 control platform. Depending on the selected air-handler configuration and matched outdoor equipment, control options include constant-volume, two-speed airflow, and single-zone VAV operation. Compatible configurations can also support electric heat as a secondary heating source when the appropriate electric heat kit is installed.

Commercial Applications

The Trane TWE072K3BAA**BC is designed for commercial split-system applications requiring approximately 6 tons of air-handling capacity. Its separate indoor air-handler configuration makes it suitable for commercial buildings where rooftop equipment is not practical or where indoor equipment placement provides greater system-design flexibility.

Service & Maintenance

The Odyssey air-handler platform is designed for commercial installation and service, with accessories available to accommodate installation and condensate-management requirements. For applicable R-454B Odyssey systems, the air handler incorporates a refrigerant leak-detection sensor as part of the A2L safety system. Proper airflow, condensate drainage, and equipment leveling are important for reliable operation and condensate management.

Warranty

Warranty coverage varies by component and complete system configuration. Trane lists a 1-year limited parts warranty and a 5-year limited compressor warranty for applicable Odyssey cooling units and heat pumps. The air handler should be covered according to the applicable Trane commercial warranty terms for the installed equipment.

Recommended Accessories

• Base (Subbase)
• Condensate Drip Kit
• Duct Flange Kit
• 2-inch MERV 13 Filter – Compatible filter option for applicable TWE072 configurations.
• Electric Heat Kit – Compatible Odyssey electric heat kit for applicable applications.

Flexible Commercial Air Handling with the Trane TWE072K3BAA**BC

Experience flexible commercial air handling with the Trane TWE072K3BAA**BC Odyssey™ air handler. Combining commercial 6-ton air-handling capacity with flexible split-system configuration and compatibility with the Odyssey platform, this air handler is designed to support commercial heating and cooling applications where installation flexibility is important.
