Trane 6 Ton Multi-Positional Commercial Air Handler | 460V 3 Phase - R454B

Flexible 6-Ton Commercial Split Air Handler for Commercial Applications with Multi-Position Installation

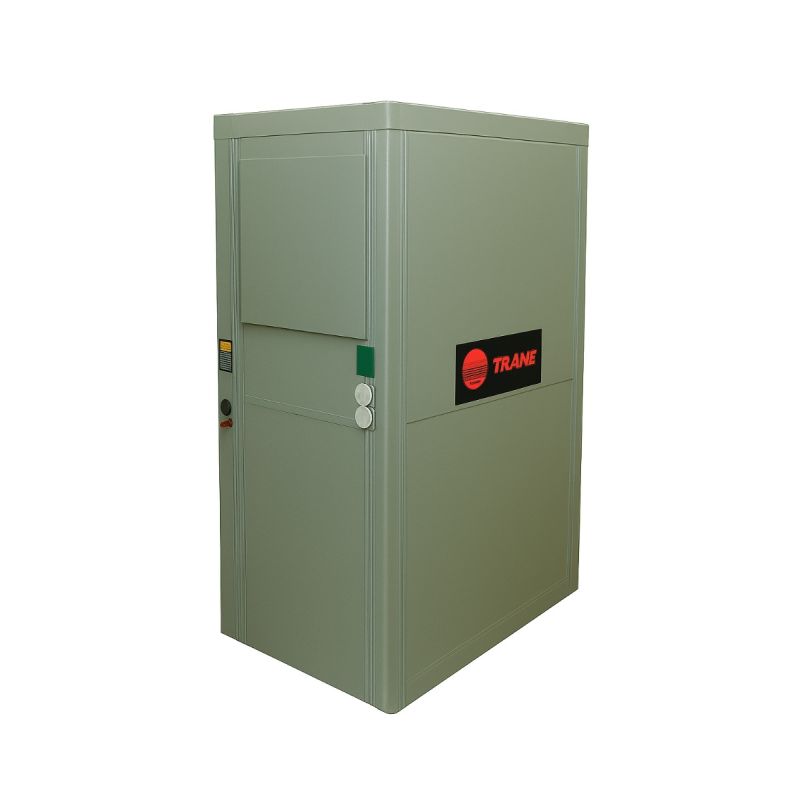

The Trane TWE072K4BAA**BC is a 6-ton commercial split air handler designed to provide conditioned-air distribution for commercial applications. Designed to work with a compatible Trane Odyssey™ outdoor condensing unit or heat pump condenser, this indoor air handling system provides flexible installation and airflow options while using R-454B refrigerant in the current Odyssey™ configuration.

Key Benefits

• 6-Ton Air Handling Capacity – Provides nominal air-handling capacity for commercial split-system applications.
• Flexible Airflow – Supports airflow configurations to accommodate different commercial duct-system requirements.
• Cooling and Heat Pump Compatibility – Designed for use with compatible Trane Odyssey™ outdoor cooling and heat pump equipment.
• Belt-Driven Blower – Provides adjustable airflow capability for commercial duct-system requirements.
• Multi-Position Installation – Provides flexibility for different equipment orientations and available installation spaces.
• R-454B Refrigerant Compatibility – Designed for use with current Odyssey™ split-system equipment using R-454B refrigerant.
• Commercial-Grade Construction – Designed as part of the Trane Odyssey™ commercial split-system platform.
• Symbio™ Controls Compatibility – Supports applicable Trane Symbio™ control configurations.
• Accessory Flexibility – Supports compatible accessories for filtration, duct connections, electric heat, and installation requirements.

Flexible Airflow – Primary Air Handling Benefit

The Trane TWE072K4BAA**BC provides air handling for 6-ton commercial split-system applications. The TWE072 platform offers airflow configurations that can be matched to the requirements of the connected commercial duct system and external static pressure conditions. The air handler uses a belt-driven blower arrangement to provide adjustable airflow for the application.

Heating & Cooling Performance

The TWE072K4BAA**BC is designed to operate with compatible Trane Odyssey™ outdoor cooling and heat pump equipment. The current Odyssey™ platform supports R-454B refrigerant, and compatible heat pump systems are available for all-electric heating and cooling. Complete system capacity and efficiency depend on the matched outdoor unit, indoor coil, controls, operating conditions, and selected system configuration.

Airflow Performance

The TWE072 platform uses a belt-driven blower to provide adjustable airflow for commercial system requirements. Trane performance documentation provides fan-performance data for the TWE072 platform across multiple airflow and external-static-pressure conditions. This flexibility helps contractors select an appropriate operating point for the connected duct system.

Air Handler & Installation Design

The split air handler configuration is designed for indoor installation and connection to compatible Trane Odyssey™ outdoor equipment. The TWE072 platform features a multi-position design that provides flexibility when equipment orientation and available installation space vary. Compatible accessories are available for duct connections, filtration, electric heat, and other installation requirements.

Controls & Comfort

The TWE072K4BAA**BC is part of the Trane Odyssey™ commercial split-system platform, which supports Symbio™ 700 controls. Available Symbio™ configurations can provide simplified thermostat control or expanded capabilities for applications requiring features such as single-zone VAV operation, fresh-air integration, or building automation system communication. Airflow operation is configured according to the requirements of the connected system.

Commercial Applications

The Trane TWE072K4BAA**BC is designed for commercial split-system applications requiring a 6-ton indoor air handler. Its multi-position design, belt-driven blower, and compatibility with Trane Odyssey™ outdoor equipment make it suitable for commercial buildings and other applications requiring ducted conditioned-air distribution.

Service & Maintenance

The TWE072 platform is designed as a commercial air-handling component with serviceable blower, motor, filtration, and air-distribution components. Trane provides dedicated technical documentation for the Odyssey™ TWE air-handler platform covering installation, operation, maintenance, airflow performance, and matched-system requirements. The Symbio™ 700 platform also supports a service and installation mobile application for applicable configurations.

Warranty

The Trane TWE072K4BAA**BC is covered by the applicable Trane commercial equipment warranty for the specific equipment and installation. Warranty coverage, duration, registration requirements, and applicable terms vary by product and installation. Refer to the applicable Trane warranty documentation for current coverage requirements.

Recommended Accessories

• Compatible Trane Odyssey™ Outdoor Condensing Unit – Selected according to the required cooling system configuration
• Compatible Trane Odyssey™ Heat Pump Condenser – Available for applicable all-electric heating and cooling configurations
• Electric Heat Kit – Available for applicable TWE072 configurations
• Compatible Filtration Accessories – Selected according to the air-handler configuration and installation requirements
• Compatible Duct and Air Distribution Accessories – Selected according to the application and installation requirements

Flexible Commercial Airflow with the Trane TWE072K4BAA**BC

Experience flexible commercial air distribution with the Trane TWE072K4BAA**BC. Combining a belt-driven blower, multi-position installation flexibility, and compatibility with the Trane Odyssey™ split-system platform in one 6-ton commercial split air handler.
