Trane 7.5 Ton Multi-Positional Commercial Air Handler | 208/230V 3 Phase - R454B

Reliable 7.5-Ton Commercial Split Air Handler for Commercial Applications with Flexible Airflow

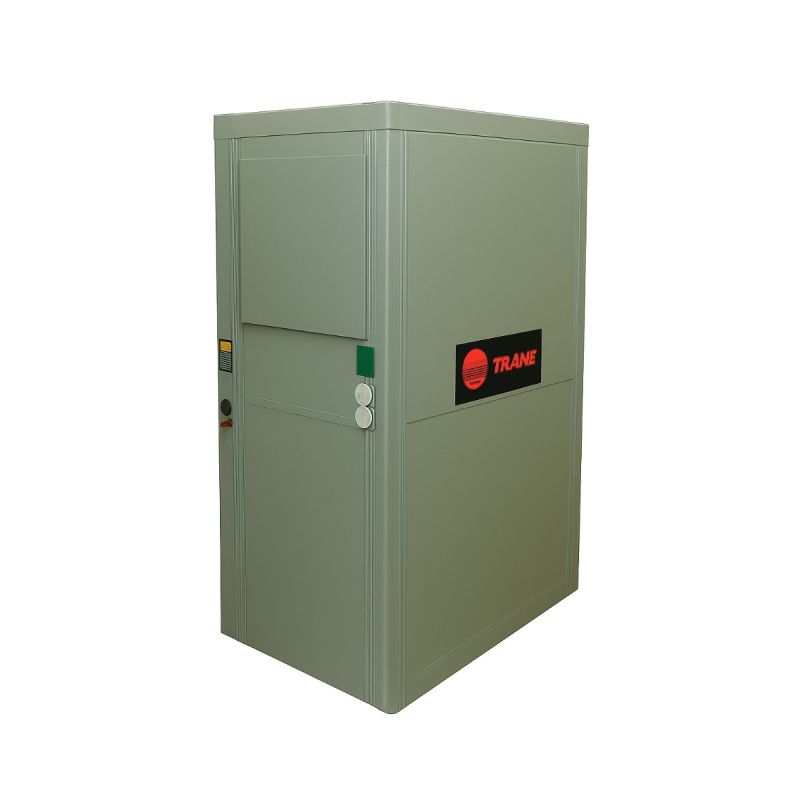

The Trane TWE090K3AAA**BC is a 7.5-ton commercial split air handler designed to provide conditioned-air distribution for commercial applications. Designed to work with a compatible Trane Odyssey™ outdoor condensing unit or heat pump condenser, this indoor air handling system provides flexible airflow and installation options for commercial system designs.

Key Benefits

• 7.5-Ton Capacity – Provides nominal air-handling capacity for commercial split-system applications.
• Flexible Airflow – Supports published airflow selections up to 4000 CFM for the TWE090 platform.
• Cooling and Heat Pump Compatibility – Designed for use with compatible Trane Odyssey™ outdoor equipment.
• Single Refrigerant Circuit – Provides a single-circuit configuration for compatible 7.5-ton system applications.
• Flexible Installation – Supports installation configurations suited to different commercial equipment layouts.
• Adjustable Airflow – Provides airflow options to accommodate different duct-system requirements and operating conditions.
• Commercial-Grade Design – Designed for commercial split-system applications and continuous equipment service.
• Symbio™ Controls Compatibility – Supports applicable Trane Symbio™ control configurations for Odyssey™ systems.
• Serviceable Components – Provides access to major air-handling components for installation, service, and maintenance.

Flexible Airflow – Primary Air Handling Benefit

The Trane TWE090K3AAA**BC provides airflow for 7.5-ton commercial split-system applications. Published Trane performance data for the TWE090 platform includes airflow selections of up to 4000 CFM. This range provides flexibility when matching the air handler to commercial duct-system requirements and desired airflow conditions.

Heating & Cooling Performance

The TWE090K3AAA**BC is designed to operate with compatible Trane Odyssey™ outdoor equipment. Trane documentation identifies the TWE090 as a 7.5-ton indoor unit, with compatible TTA090 outdoor equipment available for split-system applications. Actual cooling capacity and efficiency depend on the matched outdoor unit, indoor coil, controls, operating conditions, and complete system configuration.

Airflow Performance

The TWE090 platform provides multiple airflow selections to accommodate different commercial duct-system requirements. Published Trane data lists airflow selections of up to 4000 CFM for the 7.5-ton TWE090 platform. This flexibility helps support system designs requiring different airflow levels and external static-pressure conditions.

Air Handler & Installation Design

The split air handler configuration is designed for indoor installation and connection to compatible Trane Odyssey™ outdoor equipment. The TWE090 platform provides installation flexibility for commercial applications, while the single-circuit configuration is designed for compatible 7.5-ton system applications. Trane documentation also provides matched-system and refrigerant-line requirements for TWE090 applications to support proper system design and installation.

Controls & Comfort

The TWE090K3AAA**BC is part of the Trane Odyssey™ commercial split-system platform, which is available with Symbio™ controls for applicable configurations. The available airflow selections allow the air handler to be matched to the requirements of the connected duct system, while the matched outdoor unit and control configuration determine the complete system's cooling and comfort operation.

Commercial Applications

The Trane TWE090K3AAA**BC is designed for commercial split-system applications requiring a 7.5-ton indoor air handler. Its flexible airflow options and compatibility with Trane Odyssey™ outdoor equipment make it suitable for commercial buildings and other applications requiring ducted conditioned-air distribution.

Service & Maintenance

The TWE090 platform is designed as a commercial air-handling component with access to major operating components for installation, startup, service, and maintenance. Trane provides dedicated technical documentation for the Odyssey™ TWE090 platform, including airflow, electrical, matched-system, and service information.

Warranty

The Trane TWE090K3AAA**BC is covered by the applicable Trane commercial equipment warranty for the specific equipment and installation. Warranty coverage, duration, registration requirements, and applicable terms vary by product and installation. Trane recommends using its warranty resources or contacting a Trane representative to verify coverage for a specific unit.

Recommended Accessories

• Compatible Trane Odyssey™ Outdoor Condensing Unit – Selected to match the TWE090K3AAA**BC and required system configuration
• Compatible Trane Odyssey™ Heat Pump Condenser – Available for applicable heat-pump system configurations
• Electric Heat Kit – Available for applicable TWE090 configurations
• Compatible Filtration Accessories – Selected according to the air-handler configuration and installation requirements
• Compatible Duct and Air Distribution Accessories – Selected according to the application and installation requirements

Reliable Commercial Airflow with the Trane TWE090K3AAA**BC

Experience flexible commercial air distribution with the Trane TWE090K3AAA**BC. Combining multiple airflow selections and compatibility with the Trane Odyssey™ split-system platform in one 7.5-ton commercial split air handler.
