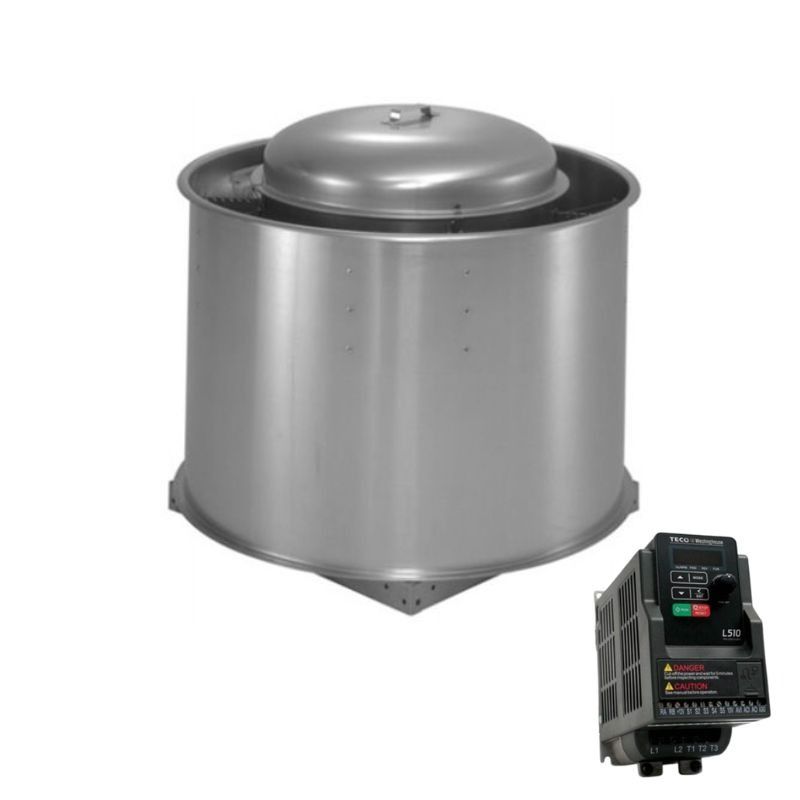

ACME 10" Upblast Restaurant Grease Roof Exhaust Wall Fan Belt Drive with VFD Controller, 642 CFM 1/4 HP, 208 Volts, 3 Phase

OVERVIEW

This restaurant exhauster is a belt drive upblast centrifugal fan that can be used on roofs or set horizontally to be used on walls. This has a max CFM of 642 CFM and ideally suited for removal of grease laden exhaust found in restaurant and commercial kitchen applications. Other applications include a wide range of commercial, industrial, and institutional facilities such as schools, hospitals, prisons, and assembly areas

Key Features:

• Heavy-Duty Aluminum Housing: Windband is constructed from heavy gauge aluminum with a rolled bead for added strength, while a sealed perimeter helps prevent air leakage.
• Reinforced Structural Support: The wheel and drive assembly are supported by a rugged galvanized steel frame for enhanced durability and stability.
• Tool-Free Maintenance Access: Quick-release latches allow easy removal of the motor compartment cover without the need for special tools.
• Durable Curb Cap Design: Includes an aluminum curb cap for added protection, except on smoke exhaust fan models.
• High-Performance Centrifugal Wheel: Features an aluminum backward-curved blade design for efficient airflow, with steel construction used for smoke exhaust applications.
• Optimized and Balanced Operation: Non-overloading wheel design is precisely matched with a die-formed orifice and balanced for smooth, vibration-free performance.
• Heavy-Duty Drive Assembly: Cast iron drives are sized for 150% of motor horsepower and use static-free, oil- and heat-resistant belts for reliable operation.
• Externally Mounted Motor Design: Continuous-duty motors are located outside the airstream and cooled by a breather tube and impeller-mounted fins to extend motor life.

TECO Westinghouse L510 Advanced Micro Drive Controller

The Teco Westinghouse L510 Variable Frequency Drive (VFD) is a compact and cost-effective solution that provides precise motor control for light to medium-duty applications. Ideal for OEM equipment, small machinery, and HVAC systems, it offers reliable performance with simple, user-friendly programming.

Controller Features:

• Sensorless Vector & V/Hz Control: Provides smooth motor operation, stable torque, and precise speed control.
• Built-In PID Control: Enables accurate control of pressure, flow, or temperature without external controllers.
• 8 Preset Speeds: Allows quick selection of predefined operating speeds for different process needs.
• Integrated Modbus & BACnet Communication: Easily connects to building automation and control systems via RJ45 interface.
• Advanced Diagnostics & Monitoring: Provides real-time system feedback for easier troubleshooting and maintenance.

Warranty information

ACME Fans are backed by a 2-year comprehensive warranty covering overall product quality and performance. In addition, these units include a 5-year warranty on bearings and shafts, ensuring long-term durability and reliable operation in demanding commercial kitchen environments.
