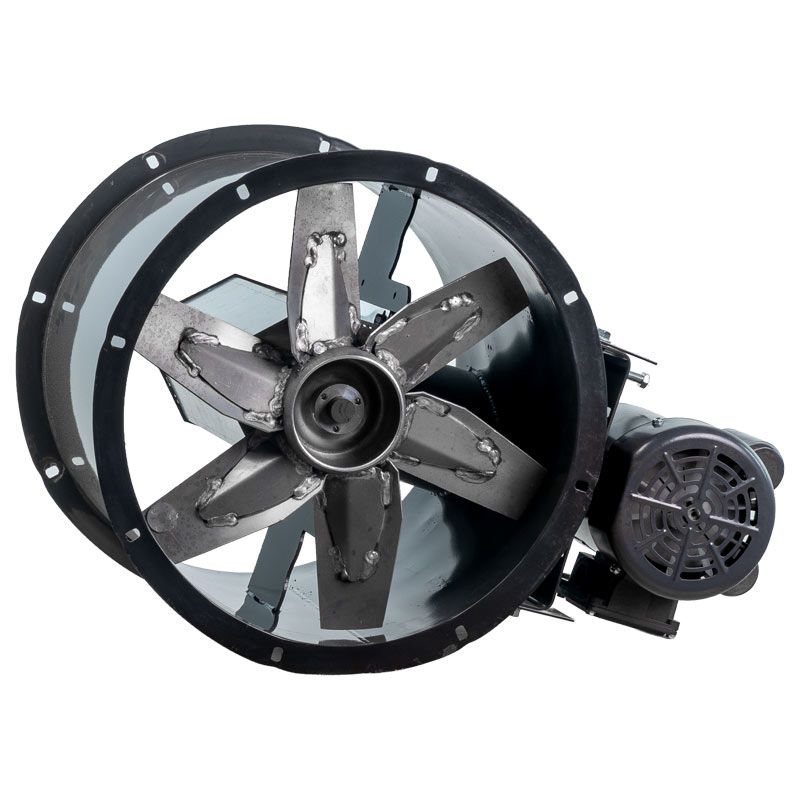

Model HA fan is a belt drive, tubeaxial exhauster with the motor, drives and bearings located outside the airstream. This model has a max CFM of 9,100. The HA is designed to operate in any position and is furnished with mounting flanges on both ends for easy installation.
Constructed of heavy gauge rolled steel
Rolled flange at each end for ease of mounting
Standard charcoal baked enamel finish provides a tough durable surface
Gasketed access door for servicing on model sizes 42" - 60"
Streamlined belt and bearing enclosure eliminates turbulence and air drag
Heavy duty, all welded aluminum construction standard on all sizes (except 54" and all sizes of the smoke exhaust construction which use a high grade steel)
Circular-arc blades for high airflow capacity
Precision balanced for smooth vibration free operation
Permanently lubricated in an Acme D.S. pillow block housing
Bearings are resiliently mounted in neoprene rings
Rated at L50 life of 200,000 hours
5 year limited warranty on Acme D.S. pillow block bearings
Pillow block bearings are standard on HA60 and smoke exhaust construction
Cast iron drives sized for 150% of drive horsepower
Static free, oil and heat resistant belts
Continuous duty motors located outside the airstream
Motors shipped mounted to the fan
This product is comparable to Acme Fans, same great quality, better price.
US Fan Belt Drive Tubeaxial Fan 30" Wheel 856 RPM .75 HP 120/230 Volts, 1 Phase
U HA30H-856 RPM-.75HP-120/230-1PH
Weight (in lbs)
Comparable to Acme Fan.
120/240 V, Single Phase
2 Year Comprehensive Warranty, 5 Year Bearing & Shaft Warranty
