US Fan Belt Drive Upblast Restaurant Grease Roof Exhaust or Wall Fan 10", .75 HP, 120/230 Volts, 1 Phase


US Fan

In stock

U PNURG100H-2798 RPM-.75HP-120/230-1PH



Availability: Ships In 1-2 Business Days

Authorized US Fan Dealer

Free Shipping
Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

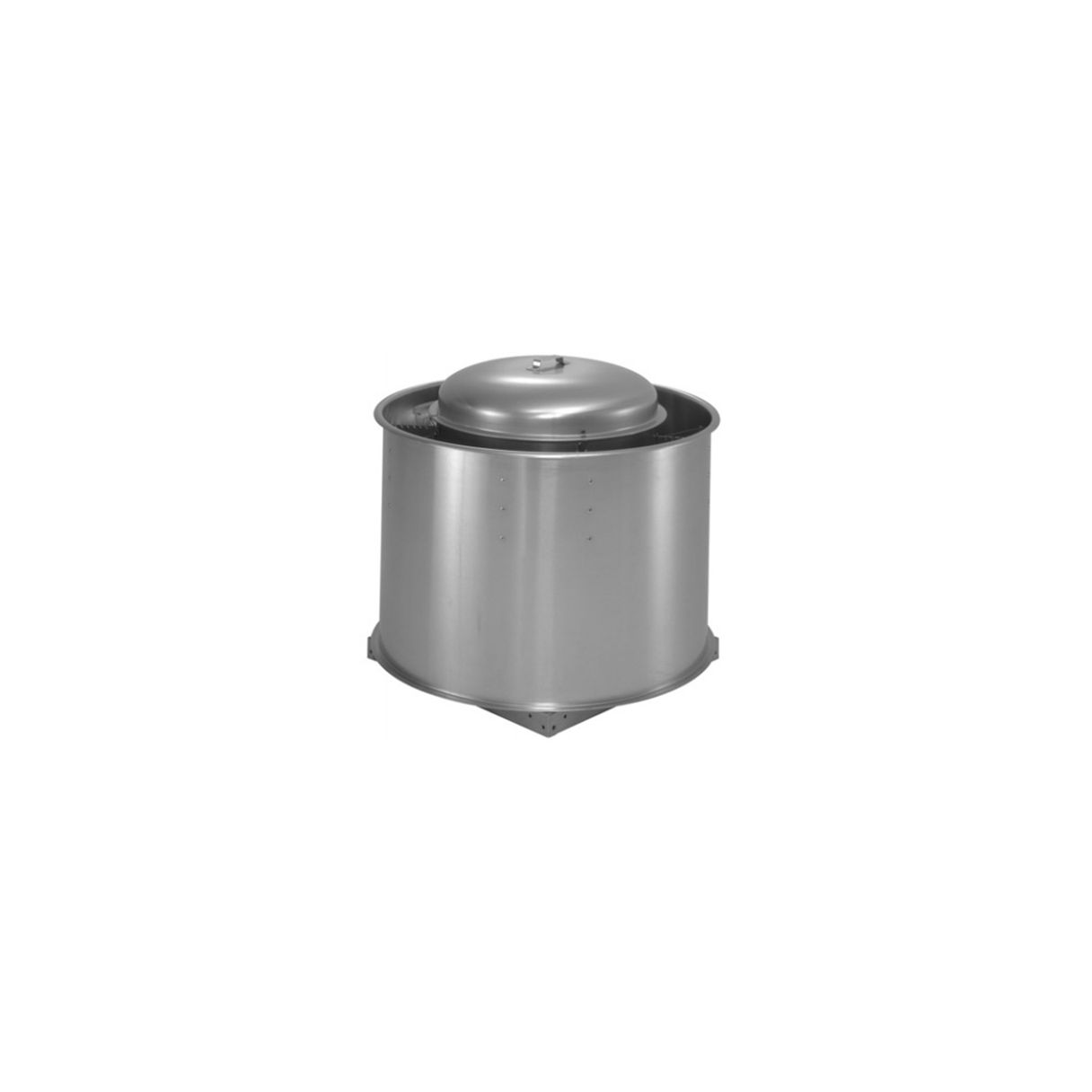

This restaurant exhauster is a belt drive upblast centrifugal fan that can be used on roofs or set horizontally to be used on walls. This has a max CFM of 1,484 and ideally suited for removal of grease laden exhaust found in restaurant and commercial kitchen applications. Other applications include a wide range of commercial, industrial, and institutional facilities such as schools, hospitals, prisons, and assembly areas.


  • Windband constructed of heavy gauge aluminum with rolled bead for strength
  • Sealed windband perimeter to prevent leakage
  • Wheel and drive assembly supported by rugged galvanized steel frame
  • Quick release latches allow easy removal of motor compartment cover without special tools
  • Aluminum curb cap (except smoke exhaust fans)

Centrifugal Wheel

  • Aluminum construction backward curved blade (steel wheel for smoke exhaust fans)
  • Non-overloading design for safe operation
  • Wheel optimally matched with die-formed orifice
  • Precision balanced for smooth vibration free operation


  • Permanently lubricated in an Acme D.S. pillow block housing
  • Bearings are resiliently mounted in neoprene rings
  • Rated at L50 life of 200,000 hours
  • 5 year limited warranty on Acme D.S. pillow block bearings

Drive Assembly

  • Cast iron drives sized for 150% of drive horsepower
  • Static free, oil and heat resistant belts


  • Continuous duty motors located outside the airstream
  • Large breather tube directs outside air into the motor compartment resulting in maximum life
  • Motor compartment cooled by fins located on top of impeller

This product is comparable to Acme Fans, same great quality, better price.

Product Specifications

More Information
US Fan Belt Drive Upblast Restaurant Grease Roof Exhaust or Wall Fan 10", .75 HP, 120/230 Volts, 1 Phase
SKUU PNURG100H-2798 RPM-.75HP-120/230-1PH
Weight (in lbs)137.000000
Brand/ManufacturerUS Fan
Additional InformationComparable to Acme Fan.
Drive TypeBelt
Maximum CFM1484
Wheel Size10"
Motor RPM2798
Horsepower.75 HP
Electrical120/240 V
PhaseSingle Phase
Curb Cap Size24 x 24"
Warranty5 Years on Bearings, 2 Years on Fan
