Today's Hours 8am - 11pm estACME 11" Upblast Restaurant Grease Roof Exhaust Wall Fan Direct Drive, 1017 CFM, 1/10 HP, 120 Volts, 1 Phase
Ships in 8 Weeks
By
ACME
In stock
Model
PDURG110-.1-1P
ID
122774
Was $1,323.68 Your Low Price Special Price $829.00
Product Features
- Airflow: 1017 CFM
- Electrical: 120V 1 Phase
- Wheel Size: 11-inch
- Material: Heavy-gauge Aluminum
- Type: Upblast Exhaust Fan
- Application: Restaurants, Commercial Kitchens, Industrial Facilities, Food Processing Plants
OVERVIEW

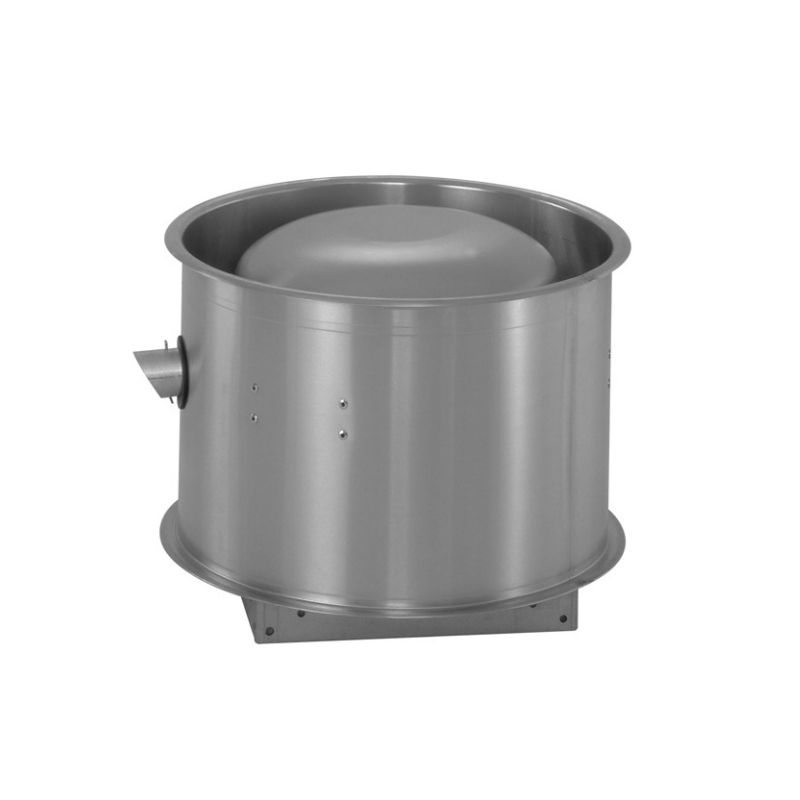

This restaurant exhaust is a direct drive upblast centrifugal fan that can be used on roofs or set horizontally to be used on walls. This has a maximum CFM of 1,017 and is ideally suited for the removal of grease-laden exhaust found in restaurant and commercial kitchen applications. Other applications include a wide range of commercial, industrial, and institutional facilities such as schools, hospitals, prisons, and assembly areas.
Key Features:
- Heavy-gauge aluminum windband with rolled bead for added strength and durability
- Sealed windband perimeter designed to prevent air leakage during operation
- Quick-release latches provide easy access to the motor compartment without special tools
- Precision-balanced, backward-curved aluminum centrifugal wheel ensures smooth, vibration-free performance
- Non-overloading wheel design enhances safety and reliability in continuous use
- Continuous-duty motor with sealed ball bearings positioned outside the airstream for maximum protection
- Cooling fins and breather tube system extend motor life by directing outside air into the motor compartment
Warranty Information
ACME is committed to delivering high-quality, reliable equipment, and we stand firmly behind every product we manufacture. To demonstrate this commitment, we provide a 2-Year Comprehensive Warranty on all products, along with a 5-Year Bearing and Shaft Warranty on our exclusive duplex split pillow block bearings and shafts. This limited warranty is extended to the original purchaser and guarantees that products supplied by ACME will be free from defects in materials and workmanship for a period of two (2) years from the date of shipment, provided that the equipment has been properly handled, stored, installed, serviced, maintained, and operated in accordance with the company’s guidelines.
This warranty does not cover products that have been altered, repaired, or modified without ACME's written approval, or those improperly installed, misused, neglected, damaged, or used with incompatible equipment. The purchaser assumes all risks from improper use. This warranty replaces all other express or implied warranties, including merchantability and fitness for a particular purpose, and serves as the sole and exclusive remedy for defective products.
Durable Materials & Construction
The ACME Upblast Exhauster is built with a heavy-gauge aluminum housing that resists corrosion, making it perfect for outdoor, weather-exposed installations. The centrifugal backward-curved wheel is crafted from precision-balanced aluminum for smooth operation and extended motor life. A weather-resistant motor cover and rain protection system safeguard the motor and electrical components, ensuring durability in harsh environments. With its direct drive system, fewer moving parts mean less wear, longer life, and lower overall cost of ownership. Unlike standard roof ventilators, the ACME combines the efficiency of a centrifugal fan with the convenience of a direct drive motor, eliminating the need for belts and pulleys. This design reduces energy loss, minimizes maintenance, and ensures consistent, high-performance airflow. Its upblast discharge system expels air vertically, keeping grease, fumes, and contaminants away from the roof surface and preventing damage to building materials.
Suitable Applications for ACME Upblast Exhaust Fan
The ACME Upblast Roof Exhaust Fan is ideal for a wide variety of demanding applications, including
- Commercial kitchens and restaurants – Eliminates grease, smoke, and odors while meeting safety standards
- Industrial facilities – Vents heat, fumes, and dust to protect workers and equipment
- Laboratories – Safely removes chemical fumes and airborne contaminants for compliance
- Food processing plants – Controls steam, odors, and particles to ensure sanitation
- Institutional kitchens – Provides dependable ventilation for high-volume cooking
- Commercial laundries – Exhausts hot, humid air to protect fabrics and equipment
- Smokestack replacement – Offers direct rooftop exhaust as a compact alternative
