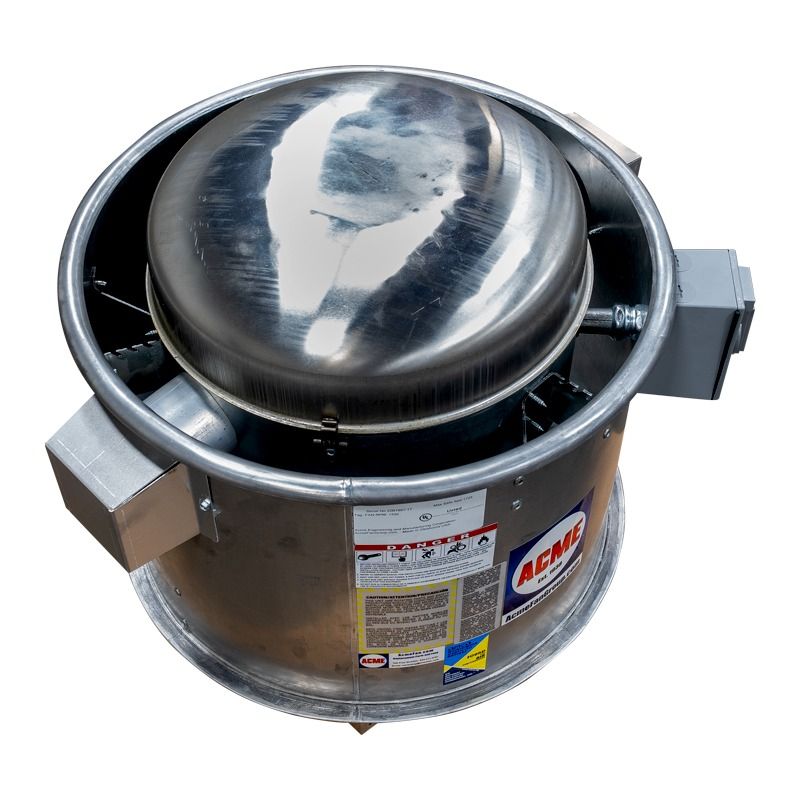

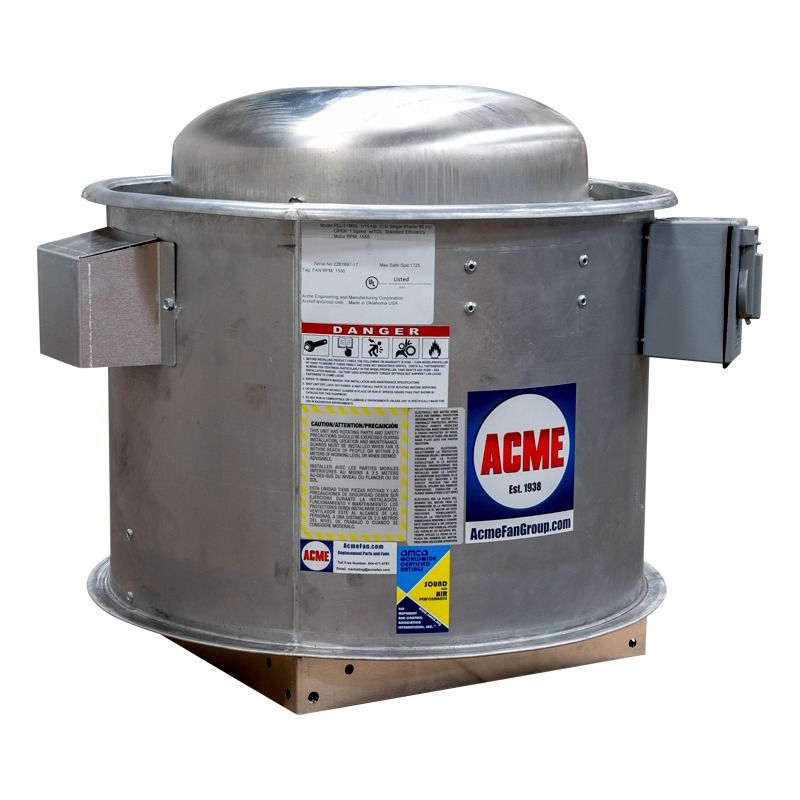

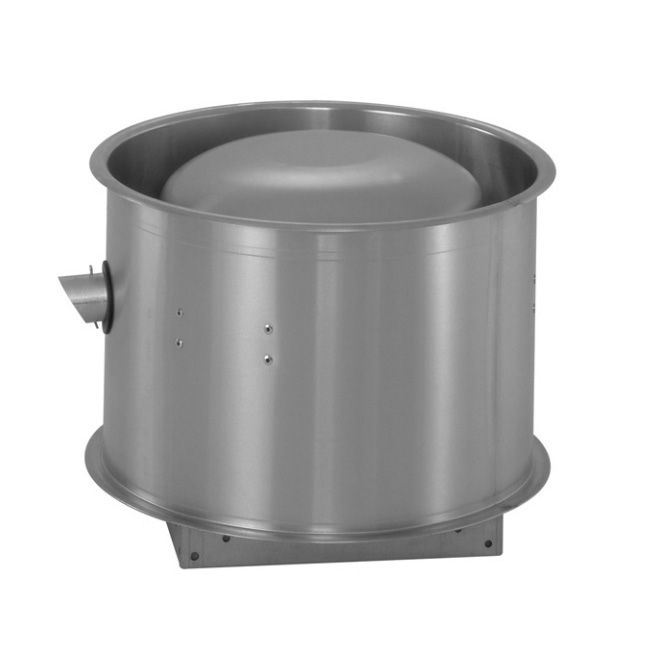

US Fan 12" Upblast Restaurant Grease Roof Exhaust Wall Fan Direct Drive, 1680 RPM, 1/4 HP, 120 Volts, 1 Phase

US Fan 12" Upblast Restaurant Grease Roof Exhaust Wall Fan Direct Drive, 1680 RPM, 1/10 HP, 120 Volts, 1 Phase - PDURG120-.1-1P

US Fan

In stock

Model

PDURG120-.1-1P

19857

Be the first to review this product

5 Questions Answered

In Stock - Ready to Ship

Was $1,264.40 Your Low Price Special Price $872.00

Free Shipping

Product Features

Built for reliable performance in demanding kitchen environments.
Precision balanced for smooth vibration free operation
Direct-drive, optimized for grease exhaust.
Direct-drive, grease-focused design simplifies cleaning.

Description

OVERVIEW

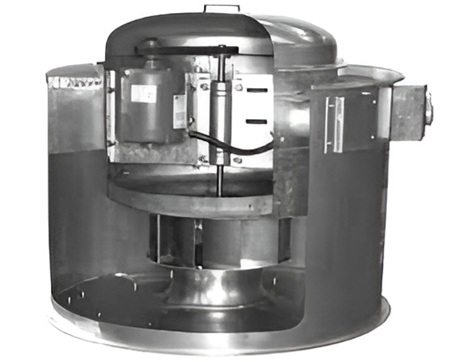

This restaurant exhaust is a direct drive upblast centrifugal fan that can be used on roofs or set horizontally to be used on walls. This has a maximum CFM of 1753 and is ideally suited for the removal of grease-laden exhaust found in restaurant and commercial kitchen applications. Other applications include a wide range of commercial, industrial, and institutional facilities such as schools, hospitals, prisons, and assembly areas.

Key Features:

Heavy-gauge aluminum windband with rolled bead for added strength and durability
Sealed windband perimeter designed to prevent air leakage during operation
Quick-release latches provide easy access to the motor compartment without special tools
Precision-balanced, backward-curved aluminum centrifugal wheel ensures smooth, vibration-free performance
Non-overloading wheel design enhances safety and reliability in continuous use
Continuous-duty motor with sealed ball bearings positioned outside the airstream for maximum protection
Cooling fins and breather tube system extend motor life by directing outside air into the motor compartment

Warranty Information

US Fan is committed to delivering high-quality, reliable equipment, and we stand firmly behind every product we manufacture. To demonstrate this commitment, we provide a 2-Year Comprehensive Warranty on all products, along with a 5-Year Bearing and Shaft Warranty on our exclusive duplex split pillow block bearings and shafts. This limited warranty is extended to the original purchaser and guarantees that products supplied by US Fan will be free from defects in materials and workmanship for a period of two (2) years from the date of shipment, provided that the equipment has been properly handled, stored, installed, serviced, maintained, and operated in accordance with the company’s guidelines.

This warranty does not cover products that have been altered, repaired, or modified without US Fan's written approval, or those improperly installed, misused, neglected, damaged, or used with incompatible equipment. The purchaser assumes all risks from improper use. This warranty replaces all other express or implied warranties, including merchantability and fitness for a particular purpose, and serves as the sole and exclusive remedy for defective products.

Durable Materials & Construction

The US Fan Upblast Exhauster is built with a heavy-gauge aluminum housing that resists corrosion, making it perfect for outdoor, weather-exposed installations. The centrifugal backward-curved wheel is crafted from precision-balanced aluminum for smooth operation and extended motor life. A weather-resistant motor cover and rain protection system safeguard the motor and electrical components, ensuring durability in harsh environments. With its direct drive system, fewer moving parts mean less wear, longer life, and lower overall cost of ownership. Unlike standard roof ventilators, the US Fan combines the efficiency of a centrifugal fan with the convenience of a direct drive motor, eliminating the need for belts and pulleys. This design reduces energy loss, minimizes maintenance, and ensures consistent, high-performance airflow. Its upblast discharge system expels air vertically, keeping grease, fumes, and contaminants away from the roof surface and preventing damage to building materials.

Suitable Applications for US Fan Upblast Exhaust Fan

The US Fan Upblast Roof Exhaust Fan is ideal for a wide variety of demanding applications, including

Commercial kitchens and restaurants – Eliminates grease, smoke, and odors while meeting safety standards
Industrial facilities – Vents heat, fumes, and dust to protect workers and equipment
Laboratories – Safely removes chemical fumes and airborne contaminants for compliance
Food processing plants – Controls steam, odors, and particles to ensure sanitation
Institutional kitchens – Provides dependable ventilation for high-volume cooking
Commercial laundries – Exhausts hot, humid air to protect fabrics and equipment
Smokestack replacement – Offers direct rooftop exhaust as a compact alternative

Product Specifications

More Information
US Fan 12" Upblast Restaurant Grease Roof Exhaust Wall Fan Direct Drive, 1680 RPM, 1/4 HP, 120 Volts, 1 Phase
SKU	PDURG120-.1-1P
Weight (in lbs)	72.000000
Brand/Manufacturer	US Fan
Additional Information	Comparable to Acme Fan.
Drive Type	Direct

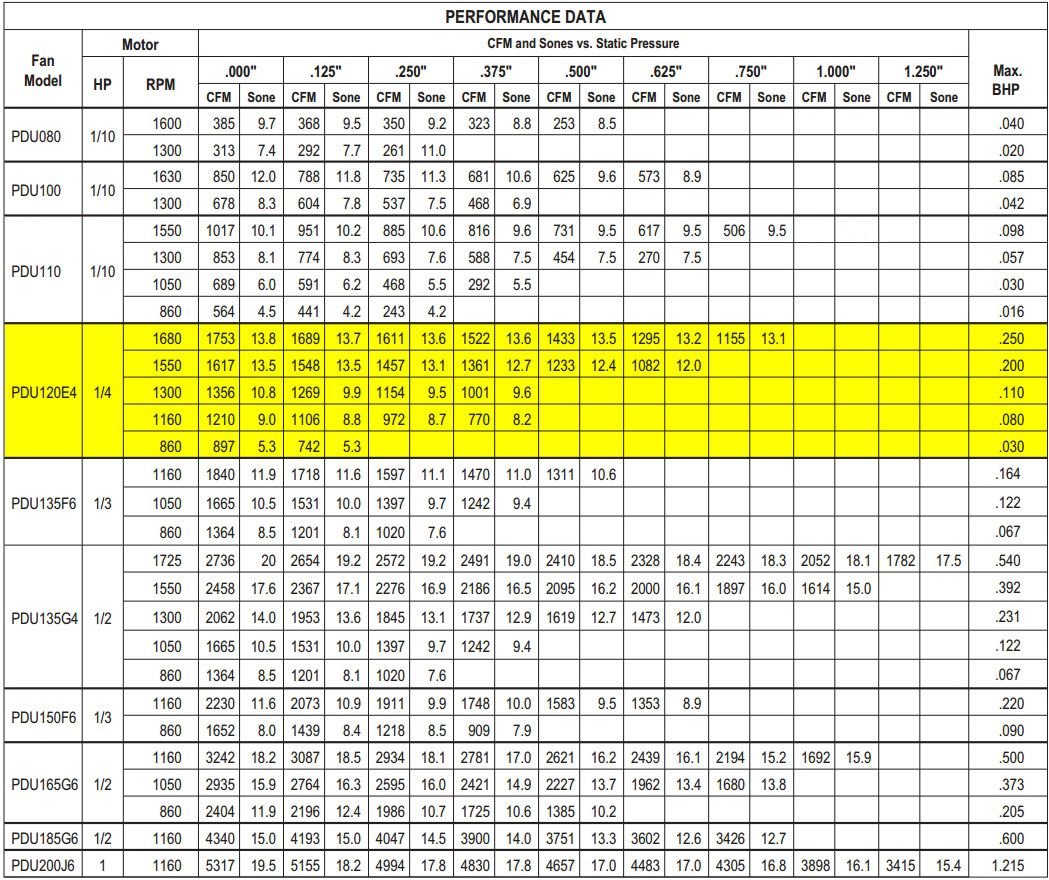

Maximum CFM	1753
Sone	14
Wheel Size	12"
Motor RPM	1680
Electrical	120/240 V
Phase	Single Phase

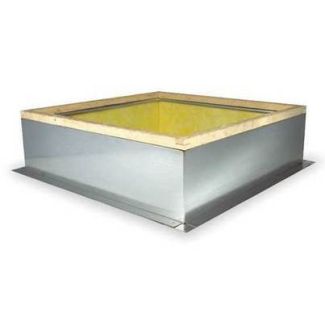

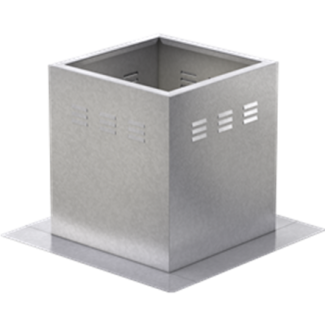

Curb Cap Size	19 x 19"
Length	26.41"
Height	19.48"
Depth	26.41"
Warranty	5 Years on Bearings, 2 Years on Fan
Resources	ACME / US Fan Catalog You will need Adobe® Acrobat® Reader to view PDF documents.

Reviews

Questions and Answers

Customer Questions

How energy efficient are these restaurant exhaust fans?

The fan is built with direct-drive motors and balanced aluminum wheels, so it delivers strong airflow without unnecessary energy waste. The non-overloading impeller design helps, too.

What temperature rating is supported by this fans?

This roof exhaust fan is rated for temperatures up to 300°F. If you have any further questions, please don't hesitate to contact us. Thanks.

Can I also install this on walls?

Yes, you can. You’ll just need a wall mounting adapter and the correct opening size. For step-by-step guidance, you can check the installation manual or reach out to our team. We’ll be happy to help.

Is this applicable on school kitchens?

Yes, it is! You’ll just need to select the right size and airflow (CFM) to match your kitchen space. If you’d like help choosing the best option, our team is always available to assist you.

Are there speed or controller options?

Some units operate at a single speed. However, you can add compatible controllers to adjust the fan speed for your needs. If you’re not sure which controller is right for you, our team will be glad to help.
