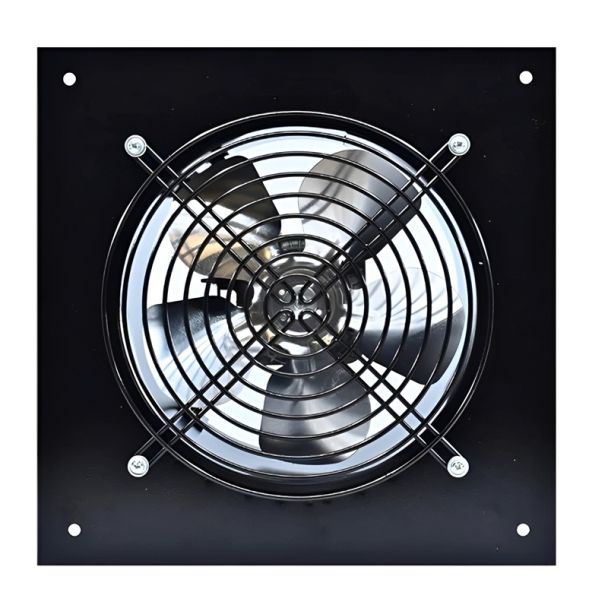

VENTS-US 8" OV1 Extract Axial Square Metal Fan, Direct Drive, 262 CFM, 1680 RPM, 115V

By

VENTS-US

In stock
Model

OV1200

ID

26942

$167.00
Product Features
  • Steel housing and aluminum impeller ensure durability in demanding environments.
  • Operates at 2.5 sones for minimal noise.
  • Consumes 43W for cost-effective ventilation.
  • Removable housing for quick access to motor and wiring.

OVERVIEW

The Vents OV1200 Axial Fan from HVACDirect.com is the perfect solution for facilities that demand powerful, energy-efficient, and low-maintenance wall-mounted ventilation. Tailored for direct air exhaust through walls, this compact yet robust fan is ideal for parking garages, agricultural buildings, retail spaces, workshops, greenhouses, and more. Each unit comes fully assembled and ready for immediate installation, saving you time and labor costs. The removable housing provides quick and convenient access to the motor and wiring connections, making cleaning and servicing simple.

Why Choose the Vents OV1200 Axial Fan?

  • Tailored for Wall Exhaust – Perfect for direct wall installations, eliminating the need for complex ductwork.
  • High Airflow Performance – 262 CFM capacity efficiently removes stale air, fumes, and humidity.
  • Quiet Operation – Operates at only 2.5 sones, ensuring a comfortable noise level even in occupied spaces.
  • Energy Efficient – Consumes just 43 watts, reducing operating costs without sacrificing power.
  • Continuous Duty Rated – Built to run 24/7 for demanding applications.
  • Maintenance-Free Motor – Sealed for protection and reliability in tough environments.
  • Easy Access for Cleaning – Casing can be removed in minutes for blade and housing maintenance.

Warranty

The VENTS OV1200 like all models in the OV1 series, comes with a two-year limited warranty directly from the manufacturer. This warranty covers defects in materials and workmanship under normal use. Any parts found to be defective during the warranty period will be repaired or replaced at no charge to you (excluding labor) by the manufacturer. This guarantees you maintain optimal performance without additional expense. While defective parts are covered under warranty, labor and shipping costs for removal or installation are not included. HVACDirect.com or your chosen contractor can assist with installation.


Built to Perform in Demanding Environments

The VENTS OV1200 is engineered for environments where reliability is non-negotiable. Its heavy-duty galvanized steel housing is coated with a corrosion-resistant polymeric finish, protecting the unit from moisture, dust, and other harsh elements commonly found in industrial, commercial, and agricultural settings. The precision-balanced aluminum impeller ensures smooth, vibration-free operation while delivering powerful, consistent airflow, helping maintain optimal ventilation even during extended, continuous use. Despite its rugged construction, the fan remains lightweight for easy wall mounting, reducing installation time and labor costs. Whether it’s moving air through a warehouse, workshop, greenhouse, or livestock facility, the OV1200 combines strength, efficiency, and long-term durability to meet the toughest ventilation demands

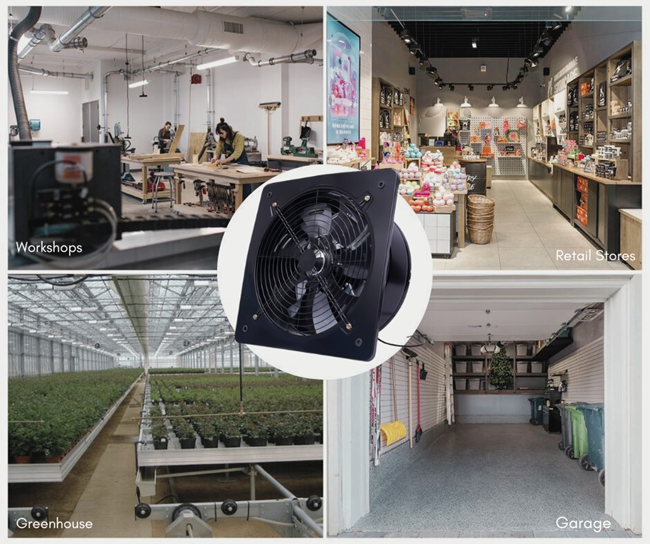

Perfect for Multiple Applications

The VENTS OV1200 is a versatile, high-performance ventilation solution designed to meet the needs of a wide range of spaces. Its rugged build, high airflow capacity, and weather-resistant construction make it the go-to choice for businesses and facilities that require consistent, reliable fresh air intake or exhaust.

  • Parking Garages: Efficiently removes vehicle exhaust, fumes, and odors while improving overall air quality to meet safety standards and enhance comfort for drivers and pedestrians.
  • Agricultural Facilities: Helps control odors, regulate humidity, and reduce airborne particles, creating a healthier environment for livestock and workers.
  • Retail Stores: Keeps customers comfortable by improving indoor air circulation, balancing temperature, and maintaining a pleasant shopping atmosphere.
  • Workshops & Equipment Rooms: Prevents overheating of machinery, reduces dust buildup, and creates a safer, more productive workspace.
  • Greenhouses: Supports healthy plant growth by regulating temperature, replenishing COâ‚‚ levels, and preventing mold or mildew caused by excess humidity.
  • Warehouses & Distribution Centers: Maintains consistent airflow to protect stored goods, reduce heat buildup, and create a more comfortable environment for employees.
More Information
VENTS-US 8" OV1 Extract Axial Square Metal Fan, Direct Drive, 262 CFM, 1680 RPM, 115V
SKUOV1200
Weight (in lbs)7.000000
Brand/ManufacturerVENTS-US
Maximum CFM262
Noise (sones)2.5 sones
Motor RPM1680 RPM
Electrical115 V, 1 Phase
PhaseSingle Phase
Wattage43 watts
Amperage Requirement0.63 Amp
CertificationHVI & ETL
Duct Diameter8"
Height7"
Width13"
Depth13"
Warranty2 Year Limited Warranty
Resources
Safety InformationPROPOSITION 65 WARNING
Write Your Own Review
You're reviewing:VENTS-US 8" OV1 Extract Axial Square Metal Fan, Direct Drive, 262 CFM, 1680 RPM, 115V
Your Rating
Customer Questions
Does this have a thermostat? If not, how can one be added?
The VENTS US OV1‑200 axial fan does not include a built‑in thermostat, but an external thermostat can be added. Please give us a call and we’ll be happy to help you choose a compatible option!
What is the VENTS US OV1 Fan Series?
The OV1 series comprises axial wall-mounted fans engineered for direct air exhaust through exterior walls, ideal for environments like parking garages, agricultural facilities, retail stores, and other commercial, educational, government, or industrial buildings.
How is installation performed?
Mounting: OV1 models use a square mounting plate; fastened through pre-drilled wall holes using screws and dowels—differ depending on model size. The electrical is powered via 115–120 V AC, 50/60 Hz. A QF automatic circuit breaker with magnetic trip is required for safe shutdown. Connect per internal wiring diagram.
What environmental conditions are suitable?
The unit is designed for air temperature ranges from –25 °C to +40/60 °C, handling only dust-free, non-abrasive, non-sticky, non-fibrous media.
Is this unit durable and low-maintenance?
Yes, the steel coated casing, easily removable housing, and thermal-protected motor reduce upkeep.
How loud is the fan?
Noise ranges from 2.5 to 5.1 sones; consider size and space for quieter operation.
