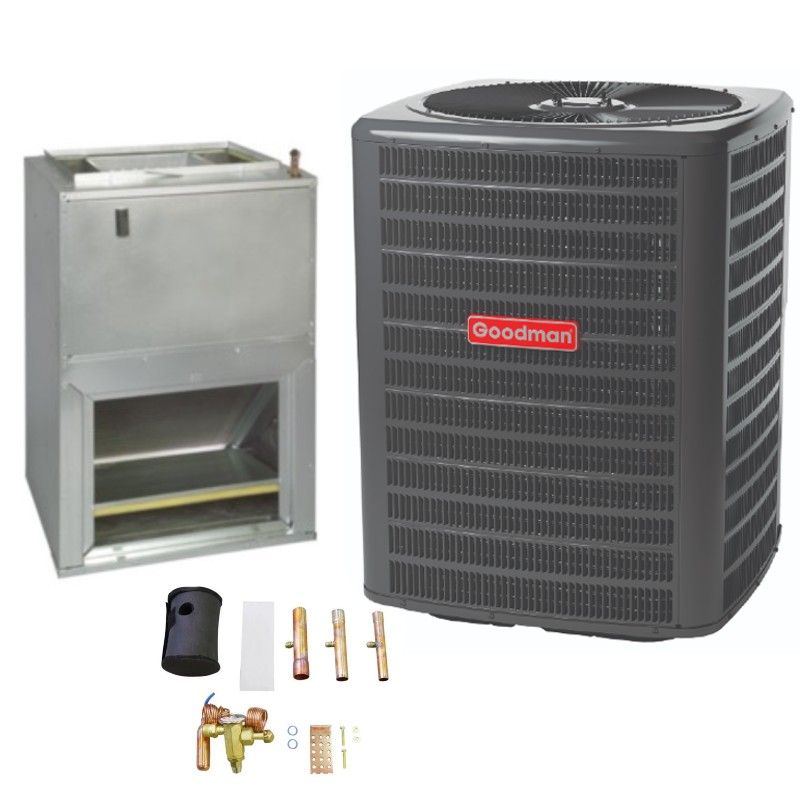

1.5 Ton 13.4 SEER2 Goodman Wall-Mount Air Conditioner Split System with 10kW Heat

By

Goodman

Model

GSXN3N1810 / AWUF251016 / TX2N4A

ID

153088

Rating:
100% of 100
Availability: Ships in 5-7 Business Days
Goodman

Authorized Goodman Dealer

AHRI Certified

AHRI Number:210566254

Your Low Price $2,157.00


Add to Cart for Best Price
Free Shipping

Required Fields *

Customize 1.5 Ton 13.4 SEER2 Goodman Wall-Mount Air Conditioner Split System with 10kW Heat
Goodman 1.5 Ton 13.4 SEER2 Air Conditioner Condenser
Goodman 1.5 Ton 13.4 SEER2 Air Conditioner Condenser   + $1,343.00
2 Ton Wall Mounted Goodman Air Handler w/ 10kW Heat
2 Ton Wall Mounted Goodman Air Handler w/ 10kW Heat   + $726.00
Goodman 1.5 to 2 Ton TXV Kit - R-410A
Goodman 1.5 to 2 Ton TXV Kit - R-410A   + $88.00
1.5 Ton 13.4 SEER2 Goodman Wall-Mount Air Conditioner Split System with 10kW Heat

$2,157.00

Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

A Goodman combination system is a great choice to keep your home cool all summer long. With tons of extra features and a great price, a Goodman air conditioning system is the perfect choice for all of your cooling needs.

2 Ton Wall Mounted Goodman Air Handler w/ 10kW Heat

The Goodman AWUF Air Conditioner Air Handler is designed to be vertically wall or stud mounted. This Air Conditioner Air Handler is housed in a fully insulated, galvanized-steel cabinet. The Goodman Air Conditioning and Heating company have become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.

  • Suitable for use with refrigerants R-410A and R-22
  • Equipped with a check flowrater for cooling-only and heat pump operation
  • Direct-drive, multi-speed motor allows air volume variation for heating and cooling
  • Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
  • Factory-installed pull-type disconnect
  • Aluminum tube coils on all models
  • AHRI Certified
  • ETL Listed
  • Thermoplastic drain pan with bottom primary and secondary drain connections
  • Built-in filter rack (filter included)
  • Large chassis (2½- and 3-ton units) – front return only
  • Small chassis (1½- and 2-ton units) – front or bottom return
  • Wall-hanging bracket provided
Goodman 1.5 to 2 Ton TXV Kit - R-410A

Goodman's TXV valves are designed to improve the reliability and efficiency of your central split system. With the TX2N4A, you can be assured that your one-and-a-half or two ton system is getting the proper refrigerant flow, even through changing conditions. Since this valve is installed externally, it is easy to service and maintain. If you're looking to improve the efficiency and performance of your system, the TX2N4A is a good start.

Compatibility

Please note that this is not an exhaustive list. Use Ctrl+F to simplify your search. This part is compatible with the following models:

GSX130181 GSX130241 DSXC160241 GSZ130181 GSZ130241 SSZ140181 SSZ140241 SSZ160241 DSZC160241 CAPF1824*6 CAUF1824*6 CHPF1824A6 CSCF1824N6

Goodman 1.5 Ton 13.4 SEER2 Air Conditioner Condenser

OVERVIEW

The Goodman GSXN3N1810 is a cooling-only condenser unit. Providing a 13.4 SEER2 efficiency with a single stage, reciprocating compressor, the GSXN3N1810 is an inexpensive condenser to cool your home when paired with an AC coil.

QUICK FACTS

  • Ideal size to cover a medium-sized house
  • 1.5 ton, 13.4 SEER2 AC-only condenser
  • Low sound output
  • Fully charged for up to 15' of line set
  • Factory-installed filter drier

1.5 ton

The GSXN3N1810 condenser is a 1.5 ton AC only unit. In an ideal climate situation, the GSXN3N1810 can usually cover a medium-sized house. For this unit to function, an indoor air handler or coil is required, and this unit is cooling only with no heating capacity on its own.

13.4 SEER2

The Goodman GSXN3N1810 AC condenser is designed to be 13.4 SEER2. This is the lowest efficiency on the market today, making it an inexpensive option for northern states. Please note that this product is regulated by DOE Efficiency Standards.

Due to new efficiency requirements, this unit cannot be installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia.

Warranty

The GSXN3N1810 condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

Durability and Reliability

With an enhanced copper tube and aluminum fin coil, the GSXN3N1810 is designed to prevent coil degradation. With the baked-on powder-paint finish, the condenser's heavy-gauge galvanized-steel cabinet is approved for up to 500 hours of salt-spray. The factory-installed filter dryer lowers general wear-and-tear on the unit. All of these features provide you with a durable, reliable condenser to be used whenever you need to cool your home.

Installation and Maintenance

The Goodman GSXN3N1810 AC condenser comes standard with service valves that have sweat connections and easy-access gauge ports, both providing a lower installation difficulty and time to lower installation costs. The outer casing has both a top and a side access to allow for easier maintenance and warranty access when necessary.

Comfort in Mind

The Goodman brand always has its customer's comfort in mind. The GSXN3N1810 is no exception, with not only using high-quality components but also providing enhanced sound-dampening features that allows the brand to manufacture some of the lowest sound output levels in the industry.

Product Specifications

More Information
2 Ton Wall Mounted Goodman Air Handler w/ 10kW Heat
SKUAWUF251016
Weight (in lbs)84.000000
Brand/ManufacturerGoodman
Cooling BTU24,000 BTU
Blower MotorMulti Speed - PSC
Maximum CFM900
Electric Heat10 Kilowatts
Electric Backup Heat Capabilities (Optional)10 Kilowatts
RefrigerantR410A or R22
Filter Size14" x 18"
Liquid Line3/8"
Suction Line5/8"
Electrical208-240 1 Phase
Max Breaker Size50 amps
Tonnage2 Ton
Fuel TypeElectric
Height36"
Width20.25"
Depth17"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Goodman 1.5 to 2 Ton TXV Kit - R-410A
SKUTX2N4A
Weight (in lbs)2.500000
Brand/ManufacturerGoodman
RefrigerantR410A
Safety InformationPROPOSITION 65 WARNING
Goodman 1.5 Ton 13.4 SEER2 Air Conditioner Condenser
SKUGSXN3N1810
Weight (in lbs)130.000000
Brand/ManufacturerGoodman
ReplacesGSX130181
Cooling BTU18,000
Decibel Level (dBA)73
RefrigerantR410A
SEER2 (Efficiency)13.4
Condenser StagesSingle Stage
Compressor TypeRotary
Liquid Line3/8"
Suction Line3/4"
Liquid Valve Size3/8"
Suction Valve Size3/4"
Electrical208 / 230 V. 1 Phase 60 Hz
PhaseSingle Phase
Max Breaker Size15 amps
Min. Breaker Size8.3 amps
Tonnage1.5 Ton
Valve TypeSweat
Height27"
Width26"
Depth26"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
