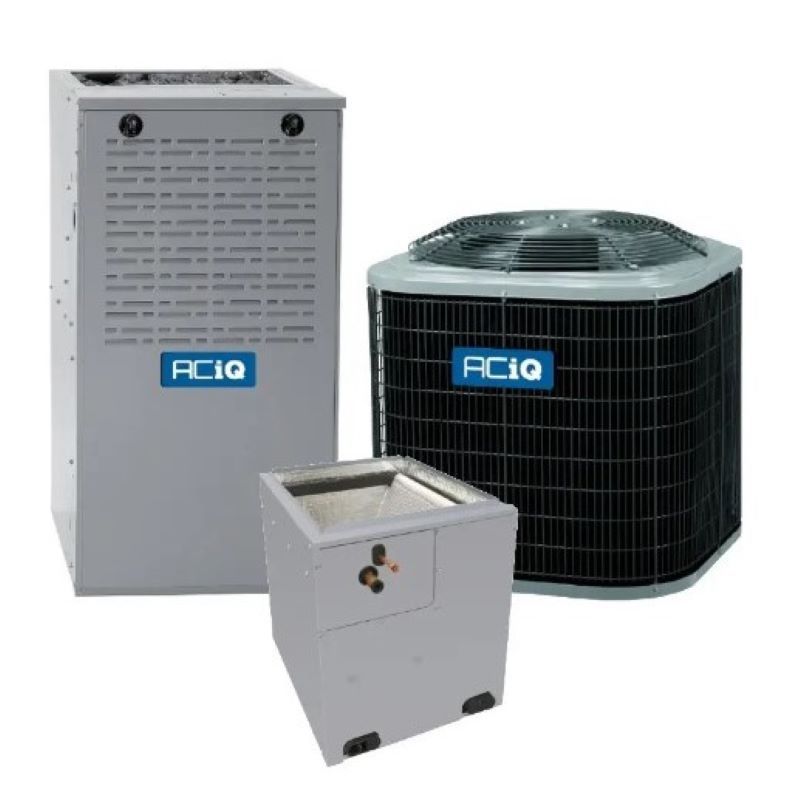

1.5 Ton 15.5 SEER2 80% AFUE 66,000 BTU ACiQ Gas Furnace and Heat Pump System - Multi-Positional

OVERVIEW

The ACiQ R4H5S18AKAAA is a standard heat pump condenser. Designed with comfort in mind and an inexpensive option for nearly any application, this condenser is considered a good all-around option for almost any application.

QUICK FACTS

• Factory pre-charged with enough refrigerant for a 15-foot line set, ensuring proper performance and efficiency right out of the box.
• 1.5 ton, 14.3 SEER2 heat pump condenser
• Can cool up to a small house in average conditions
• Single stage compressor
• Pre-charged with R-410A refrigerant
• Filter drier included to be field-installed

1.5 Tons

The ACiQ R4H5S18AKAAA heat pump condenser has an output of 1.5 tons, generally enough to heat and cool up to a small house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function on its own, and it needs an indoor coil or air handler to work. This unit will also only heat down to around 35°F, and if you need heat any lower than this, a backup heat strip will be needed to act as straight electric heating in a compatible air handler.

14.3 SEER2

The ACiQ R4H5S18AKAAA air conditioner condenser is rated at 14.3 SEER2, making it between 5-7% more efficient than standard 13.4 SEER2 units, saving you money in electric bills over the entire lifetime of your unit. In general, heat pumps will heat more efficiently than straight electric furnaces.

All ACiQ condensers come pre-charged with enough refrigerant for a 15-foot line set, making installation faster and more convenient. This pre-charged design saves installers time and reduces labor costs by eliminating the need for manual refrigerant charging. It also helps ensure the system starts with the correct amount of refrigerant, minimizing the risk of improper charging that could impact performance and efficiency. If a longer line set is required, your installer will need to add additional refrigerant to maintain optimal operation.

---

Quiet Comfort

Leave fossil fuels behind with an ACiQ heat pump system. Every ACiQ heat pump condenser uses a scroll compressor to give exceptional cooling
performance and highly efficient, all-electric heat. WiFi-capable communicating condensers are also available.

---

High Efficiency

ACiQ heat pumps come in a range of efficiency options to fit your budget's needs and your local weather conditions. Save up to 63% on energy costs with a newer model.

---

Longer life, longer warranty

ACiQ heat pump condensers are 100% run-tested at the factory. Protective coatings on the fins and baked-on galvanized finishes mean long life even in harsh conditions. ACiQ’s extended warranty with online registration provides 10 year protection.

OVERVIEW

ACiQ takes pride in its ability to provide a high-quality system, including all system components. Leaving no exception, the EVD4X19M17A vertical coil is a superior option for any heat pump application while maintaining the entire unit's efficiency with a factory-integrated TXV kit for enhanced energy optimization.

QUICK FACTS

• 1.5 ton vertical coil
• Works in both upflow and downflow applications
• Fully insulated, cased V-coil design for efficient heat transfer in a compact size
• Factory-installed TXV kit for enhanced energy optimization
• Corrosion-resistant drain pan designed with a Polybutylene Terephthalate (PBT) material for unsurpassed strength

1.5 Tons

The ACiQ EVD4X19M17A is rated for up to 1.5 tons of cooling. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser. Please note that this item cannot operate independently from a compatible condenser and blower or furnace, each available at an additional cost.

Warranty

ACiQ offers a 10 year parts warranty on their coils when they are installed following your state and local codes, as well as the system is paired with a certified system matchup. Please note that in order to obtain the entire length of this warranty, the entire unit must be registered through the manufacturer.

OVERVIEW

The ACiQ N80MSN0701712A is an inexpensive model of furnace to provide reasonable comfort to your home. At a basic efficiency, this furnace will heat your home adequately with the right output, providing comfort to your home even in the coldest parts of the year.

QUICK FACTS

• 66,000 BTU, 80% AFUE natural gas furnace
• Generally suitable for up to a small to medium house in ideal applications
• Multi-positional design - can be installed in the upflow, downflow, or horizontal orientations
• Single stage burner with a multi-speed blower
• Field-convertible to propane with an optional LP kit
• On board self-diagnostics

66,000 BTU, 80% AFUE

The ACiQ N80MSN0701712A has an input of 66,000 BTU. With an efficiency of 80%, this means that the furnace has an output of 52,800 BTU. The 80% AFUE also means that for the gas going into the furnace, 80% of it is used to heat your home while the remaining 20% is lost out the flue piping and lost to normal furnace operations. All 80% furnaces require metal flue venting, and if you need it to be plastic/PVC venting a furnace with an efficiency of 90% or above is required. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost. Please note that this furnace is not Low NOx or Ultra Low NOx compliant and if shipped to California may be subject to a mitigation fee.

Warranty

ACiQ offers 10 year parts and 20 year heat exchanger limited warranties. Please note that in order for the heat exchanger and parts warranties to be upheld, the unit must be registered through the manufacturer within 90 days of installation. The installation must also follow your state and local codes.

Installation and Durability

With its ability to be installed in any configuration (upflow, downflow, or horizontal) the ACiQ N80MSN0701712A is very versatile in application potential. The unit has a durable outer casing that can withstand wear-and-tear through its entire lifetime, providing the peace of mind that your home will stay comfortable year-round. Please note that this furnace is not intended for mobile home installation on its own.

---

Quiet Comfort

Every ACiQ furnace is designed to keep your family warm and comfortable year after year. Whisper-quiet ECM blower fans, solid construction with thicker sheet metal and
more cabinet insulation give you near-silent operation. From entry level to top-of-the-line, your comfort is the priority.

---

High Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Multi-speed or Variable Speed ECM blowers come in every furnace. Adding options such as high-efficiency secondary heat exchangers, two stage heating, modulating burners and variable blowers all can further reduce your energy bills while increasing comfort.

---

Longer life, longer warranty

Thicker sheet metal, more cabinet insulation and aluminized steel heat exchangers reflect the highest build quality you can get. Every furnace is backed by ACiQ’s 10 year, 20 year or lifetime (depending on model) heat exchanger extended warranty with online registration.

The Santa Fe Ultra70 is a high-efficiency, ventilating dehumidifier designed to control excess humidity throughout your entire home. Capable of integrating directly with your HVAC system, this unit removes up to 70 pints of moisture per day and is ideal for spaces up to 1,800 square feet.

High Efficiency

The Ultra70 is the perfect dehumidifier for residential use, including low-clearance crawl spaces, basements, and whole-house applications. Drawing just 4.1 amps, this unit offers powerful moisture control with low energy consumption. It utilizes a MERV-13 filter—one of the most efficient in its class—and uses R454B refrigerant for a more environmentally responsible performance.

Versatile Applications

• Compact Design: Weighs just 55 lbs and measures only 12” wide, making it easy to place in tight spaces.
• Flexible Installation: Can be used as a free-standing unit or ducted into your home's HVAC system.
• Plug-in Ready: Includes a 9-foot power cord and plug-in wiring style for easy setup.

Industry Usage: Perfect for homes, apartments, and condominiums.

Operating Temperature Range: Effective in environments from 49°F to 95°F.

Bonus Features

• Auto Restart: Automatically resumes operation after a power outage.
• Advanced Control Panel: Includes a built-in dehumidistat for precise manual humidity control.
• Automatic Defrost: Prevents frost buildup in colder environments for uninterrupted performance.

Warranty

Santa Fe offers an industry-leading warranty to ensure long-term performance and peace of mind:

• 5-Year Warranty: Covers operational failures.
• 6-Year Warranty: Covers faulty components.

In the event of a malfunction, Santa Fe will repair or replace the unit. Please refer to the Owner’s Manual for full warranty details and terms.
