With tons of extra features and a great price, an ACiQ air conditioning system is the perfect choice for all of your cooling needs. All ACiQ models come with a 10 year parts warranty.
1.5 Ton 14.3 SEER2 ACiQ Air Conditioner Condenser - R454B
OVERVIEW
The ACiQ R5A5S18AKAWA is a standard AC-only condenser. Designed with comfort in mind and an inexpensive but higher-than-standard efficiency option for nearly any application, this condenser is considered a good all-around option for almost any application.
QUICK FACTS
Factory pre-charged with enough refrigerant for a 15-foot line set, ensuring proper performance and efficiency right out of the box.
1.5 ton, 14.3 SEER2 AC-only condenser
Can cool up to a small house in average conditions
Single stage compressor
Pre-charged with R454B refrigerant
Filter drier included to be field-installed
1.5 Tons
The ACiQ R5A5S18AKAWA air conditioner condenser has an output of 1.5 tons, generally enough to cool up to a small house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function or provide any sort of heating on its own, and it needs an indoor coil or air handler to work. If you have any questions, please contact us.
14.3 SEER2
The ACiQ R5A5S18AKAWAair conditioner condenser is rated at 14.3 SEER2, making it between 5-7% more efficient than standard 13.4 SEER2 units, saving you money in electric bills over the entire lifetime of your unit.
Warranty
ACiQ offers a 10 year parts warranty on this condenser. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer.
Durability
The cabinet of ACiQ units are extremely durable. On the R5A5S18AKAWA, there are reinforced corner posts and the internals of the unit are protected by an additional inlet grille, all to provide enhanced protection to the unit.
Disclaimer: This condenser contains R454B refrigerant, which is classified as an A2L refrigerant. To comply with safety standards, this unit must be paired with an R454B air handler or evaporator coil equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-557-9206 if you have any questions.
All ACiQ condensers come pre-charged with enough refrigerant for a 15-foot line set, making installation faster and more convenient. This pre-charged design saves installers time and reduces labor costs by eliminating the need for manual refrigerant charging. It also helps ensure the system starts with the correct amount of refrigerant, minimizing the risk of improper charging that could impact performance and efficiency. If a longer line set is required, your installer will need to add additional refrigerant to maintain optimal operation.
Quiet Comfort
ACiQ has the power to keep things cool when temperatures rise. Every ACiQ condenser uses a scroll compressor for long life and efficiency operation. From entry level to high efficient, single stage, two stage and communicating models, every ACiQ Condenser keeps you cool year after year.
High Efficiency
ACIQ saves you money up front, but also over time by reducing energy bills. Models ranging from standard efficiency to high efficient models can provide you savings from 21% to 63% over older, 10 SEER condensers. Coil construction is either all aluminum or copper/aluminum (depending on model) for max efficiency.
Longer life, longer warranty
ACiQ condensers are 100% run-tested at the factory. Protective coatings on the fins mean long life even in harsh conditions. A filter drier is included to keep the system healthy. ACiQ’s extended warranty with online registration provides 10 year protection.
1.5 Ton 14" Width ACiQ Multi-Positional Air Handler - R454B
OVERVIEW
Get the most out of your indoor comfort by choosing ACiQ FHMA5X18L0AA air handler that fits your needs. This air handler include comfort enhancing and durability features to deliver lasting performance. If you want superior quality and enhanced comfort, look no further than this model.
QUICK FACTS
1.5 ton air handler
R454B Refrigerant
Multi 5-Speed high-efficiency ECM blower motor
Multi-positional - can be installed in the upflow, downflow, and horizontal configurations
Factory-installed TXV kit for enhanced energy optimization
Compatible with both AC-only and heat pump condensers
Sturdy, fully insulated cabinet
1.5 Tons
The ACiQ FHMA5X18L0AA air handler is rated for an output of 1.5 tons. In many cases, this air handler will be larger in tonnage than the condenser it is paired with to maintain the unit's overall efficiency. Please note that for this unit to provide cooling, an outdoor condenser is required for it to function. The unit can support electric heating as a straight electric furnace or as a backup for a heat pump, offered at an additional cost to be field installed.
R454B Refrigerant
With R454B refrigerant, ACiQ proudly displays our commitment to environmental stewardship. It is a refrigerant that delivers a 75% decrease in global warming potential while maintaining original R-410A's non-ozone depleting properties. All new ACiQ fan coils with R454B include factory-installed leak dissipation systems to meet new UL requirements and to show our commitment to safety.
Warranty
ACiQ offers a 5 year no hassle replacement warranty, as well as a 10 year parts warranty on this unit. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer. After your purchase, a representative will reach out to you to retrieve installation information so we can register the product for you.
Installation and Durability
To make a more versatile unit, ACiQ designed the FHMA5X18L0AA to easily be installed in an upflow, downflow, or horizontal position. A TXV kit is already installed on the unit so your installer does not have to install one, decreasing installation costs. For durability, the FHMA5X18L0AA air handler is designed with an extremely strong, one-piece outer casing to protect the unit, and the coil is designed with corrosion-resistant aluminum.
Intelligent Comfort
The FHMA5X18L0AA air handler has an efficient 5-speed ECM blower motor, providing a more stable temperature in your home, making you more comfortable. The control board will automatically communicate with your thermostat to adjust the output of the blower to suit your needs. With this intelligent comfort and efficiency, the FHMA5X18L0AA meets ACiQ's superior standards.
30 Feet of 3/8" LL x 5/8" SL x 3/8" Insulated Line Set
Ensure efficient refrigerant flow and system performance with this 30-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set provides durability, flexibility, and thermal protection for reliable HVAC operation.
Key Features: ✔ Premium Copper Tubing: 3/8" liquid line (LL) and 5/8" suction line (SL) for efficient refrigerant transfer. ✔ Pre-Insulated for Efficiency: 3/8" thick insulation helps minimize energy loss and condensation buildup. ✔ Versatile Application: Compatible with heat pumps and conventional split systems. ✔ Easy Installation: Flexible and durable copper tubing simplifies routing and connection. ✔ Standard 30-Foot Length: Ideal for a wide range of residential and light commercial HVAC installations.
50 Feet of 3/8" LL x 5/8" SL x 3/8" Insulated Line Set
Ensure efficient refrigerant flow and system performance with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set provides durability, flexibility, and thermal protection for reliable HVAC operation.
Key Features: ✔ Premium Copper Tubing: 3/8" liquid line (LL) and 5/8" suction line (SL) for efficient refrigerant transfer. ✔ Pre-Insulated for Efficiency: 3/8" thick insulation helps minimize energy loss and condensation buildup. ✔ Versatile Application: Compatible with mini-splits, heat pumps, and conventional split systems. ✔ Easy Installation: Flexible and durable copper tubing simplifies routing and connection. ✔ Extended 50-Foot Length: Ideal for a wide range of residential and light commercial HVAC installations.

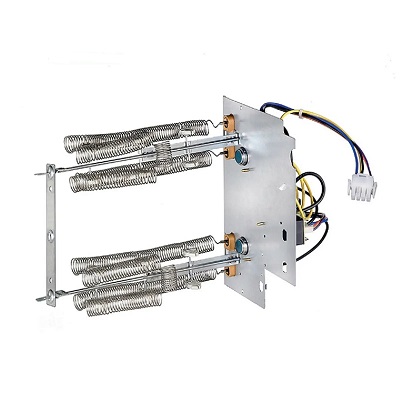

10 Kilowatt 31,400 BTU ACiQ Electric Heater Coil
This 230 volt heater coil can be added to a ACiQ air handlers to provide winter-time heating capabilities. Produces 31,400 BTUs of heat. Circuit breakers are included with this heater coil.
5 Kilowatt 15,700 BTU ACiQ Electric Heater Coil
This 230 volt heater coil can be added to a ACiQ air handlers to provide winter-time heating capabilities. Produces 15,700 BTUs of heat. Circuit breakers are included with this heater coil.
Ecobee Smart WiFi Thermostat with Alexa
The Ecobee is more than a smart thermostat. Most thermostats only read the temperature in one place (usually the hallway) which can make other rooms uncomfortable. Ecobee5 comes with a room sensor to help manage hot or cold spots. When you place sensors in your favorite rooms, ecobee5 can read the temperature and detect occupancy. That's how it ensures comfort in the rooms that matter.
With Amazon Alexa Voice Service built inside, ecobee5 can perform the many 'skills' that come with Alexa. All you have to do is ask, and watch the blue light pipe on top of the thermostat blink in response. For total hands-free control, it can even hear you from across the room. Imagine you’re throwing a last-minute dinner party. Simply ask your ecobee5 to walk you through each step out loud – from finding the right recipes to the ideal music playlist. ecobee5 has embedded microphones with far-field voice recognition and a speaker engineered for clear voice and full sound. It’s the smart thermostat that looks at home on your wall – that you can hear and speak to from across the room.
Features
Not at your thermostat? No problem.
Adjust temperature and comfort settings easily from the ecobee mobile app on your Android and iOS devices, including Apple Watch.
Connects to your existing home network
Convenient Wi-Fi capabilities offer a secure and reliable connection.
Knows you have a life
Vacationing and forgot to let your ecobee know? Make a vacation event using the ecobee mobile app. If something’s wrong with your equipment, we can send you service alerts and reminders.
Control the volume
If it's getting a little loud for your taste, you can use the app to adjust the volume.
Built to last
ecobee thermostats are hardwired, which means your thermostat isn’t relying on a battery or your HVAC equipment to charge itself.
The ACiQ STN701 Single-Stage Dual Powered Non-Programmable Thermostat is a cost effective solution to temperature control! Designed with a bright blue backlight and large easy to read characters, ACiQ thermostats are easy to operate for all consumers.
1 Heat / 1 Cool Non-Programmable Thermostat
Operable with AAA batteries or 24v power
Large, easy to ready clear LCD display with different backlight color options
Configurable with Electric or Gas Systems
Separate B & O terminals
Handles heating and cooling temperature swing adjustments separately
Toggleable 5 minute compressor delay protection
Temperature Range: 32°F-99°F (1°C-40°C)
Temperature Accuracy: ±1.8°F (±1°C)
ACiQ 7-Day Programmable Thermostat with WiFi
The STN855W is a versatile WiFi thermostat offering 7-day, 5/1/1 programmable, or non-programmable options. It features a temperature range of 32°F-99°F (1°C-40°C) and precise control from 44°F-90°F (7°C-32°C) with an accuracy of ±1°C. Powered by 24V, it comes in a compact design with dimensions of 120 x 98 x 28 mm, making it ideal for efficient and customizable temperature management.
The ACiQ TL04-1 Smart Thermostat is engineered to bring precise, intelligent control to your home’s HVAC system. Compatible with both standard 24V wiring and HA & HB communication protocols, it delivers flexibility for new builds or system upgrades.
QUICK FACTS
Dual Compatibility: Supports 24V systems and HA/HB non-polarity communication systems
Control Options: Works with single and two-stage heating, cooling, and heat pump systems with auxiliary/emergency heat
Modern Touchscreen: Auto-wake screen with responsive touch interface
Clean Installation: Includes M-base, trim plate, wire labels, screws, and anchors
Smart Safety: Built-in installation tips, safety reminders, and FCC/IC compliance
Perfect for homeowners looking to upgrade their comfort with modern, intelligent technology
Installation Kit for Condensers - Accessory Set
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation. ✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety. ✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply. ✔ Secure Wall Penetration:Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines. ✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
1/2" x 6' Electrical Whip – SKU: 84136
60A Non-Fused Disconnect – SKU: 83335
Surge Protector – SKU: ICM517
CPS Charging Adapter – SKU: 87-AD87
Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
E Lite Equipment Pad 32" x 32" x 3"
E Lite is a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
High recycled plastic content
Subtle texture resists unit slide
Unaffected by UV or weather
Uniform ribbing transfers load evenly
Drillable for securing unit
Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
Wall Mount Bracket for Condensers 48"
This wall mount bracket is perfect for outdoor condensers. The length of the the wall bracket arms are 48" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).
Features:
Steel: 10 GA
Powder-coated grey Finish
Load rating: 600 lbs per pair
Holes will accommodate anchors for installation
Warranty: 1 year
ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)
No Return Policy
All sales of this product are final and are non-refundable.
ACiQ Air Handler Downflow Kit - 1.5 to 3 Ton
Downflow Kit for ACiQ 1800B, 2400C, 300B, 3600B air handlers. Kit includes a downflow bracket kit, and dowflow gasket kit.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
1.5 Ton 14" Width ACiQ Multi-Positional Air Handler - R454B
SKU
FHMA5X18L0AA
Weight
120.000000
Manufacturer
ACiQ
Cooling BTU
18,000
Blower Motor
Multi-tap 5-Speed ECM
Maximum CFM
525
Horsepower
1/3 HP
Electric Backup Heat Capabilities (Optional)
5 Kilowatts, 8 Kilowatts, 10 Kilowatts
Configuration
Multi-Positional
Refrigerant
R454B
Filter Size
13" x 20"
Liquid Line
3/8"
Suction Line
5/8"
Electrical
208/230v 1 Phase 60 Hz
Max Breaker Size
15 Amps
Min. Breaker Size
3.6 Amps
Tonnage
1.5 Ton
Connection
Sweat
Height
42 11/16"
Width
14 5/16"
Depth
22 1/16"
Warranty
10 Years Parts and 5 Years No Hassle Replacement with Online Registration
