1.5 Ton 16 SEER2 ACIQ Variable Speed Air Conditioner Split System - Multi-Positional - R454B

OVERVIEW

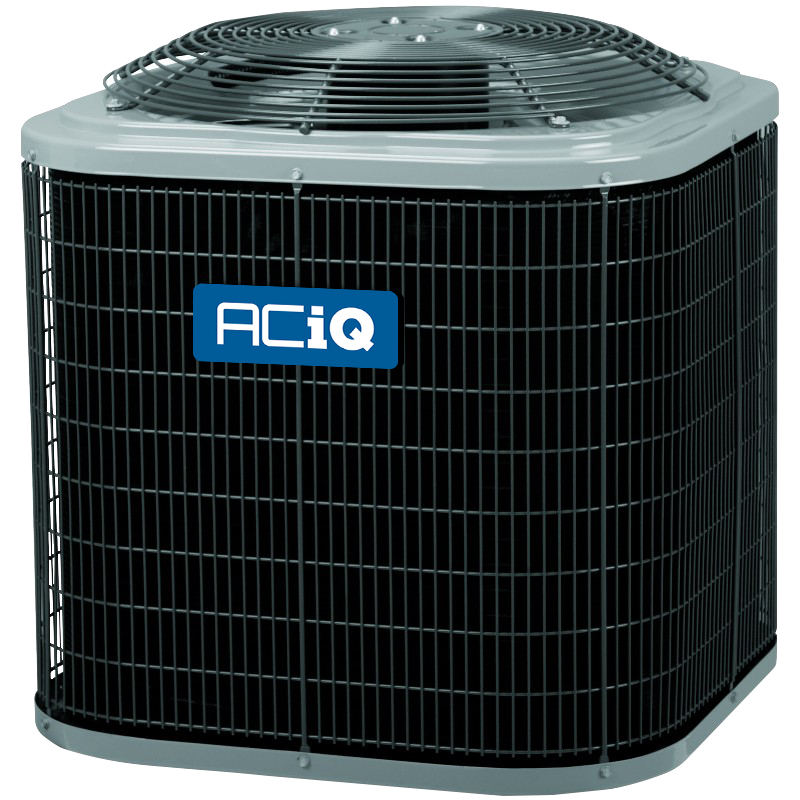

The ACIQ R5A5S18AKAWA is a standard AC-only condenser. Designed with comfort in mind and an inexpensive but higher-than-standard efficiency option for nearly any application, this condenser is considered a good all-around option for almost any application.

QUICK FACTS

• Factory pre-charged with enough refrigerant for a 15-foot line set, ensuring proper performance and efficiency right out of the box.
• 1.5 ton, 14.3 SEER2 AC-only condenser
• Can cool up to a small house in average conditions
• Single stage compressor
• Pre-charged with R454B refrigerant
• Filter drier included to be field-installed

1.5 Tons

The ACIQ R5A5S18AKAWA air conditioner condenser has an output of 1.5 tons, generally enough to cool up to a small house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function or provide any sort of heating on its own, and it needs an indoor coil or air handler to work. If you have any questions, please contact us.

14.3 SEER2

The ACIQ R5A5S18AKAWAair conditioner condenser is rated at 14.3 SEER2, making it between 5-7% more efficient than standard 13.4 SEER2 units, saving you money in electric bills over the entire lifetime of your unit.

Warranty

ACIQ offers a 10 year parts warranty on this condenser. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer.

Durability

The cabinet of ACIQ units are extremely durable. On the R5A5S18AKAWA, there are reinforced corner posts and the internals of the unit are protected by an additional inlet grille, all to provide enhanced protection to the unit.

Disclaimer: This condenser contains R454B refrigerant, which is classified as an A2L refrigerant. To comply with safety standards, this unit must be paired with an R454B air handler or evaporator coil equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-557-9206 if you have any questions.

All ACIQ condensers come pre-charged with enough refrigerant for a 15-foot line set, making installation faster and more convenient. This pre-charged design saves installers time and reduces labor costs by eliminating the need for manual refrigerant charging. It also helps ensure the system starts with the correct amount of refrigerant, minimizing the risk of improper charging that could impact performance and efficiency. If a longer line set is required, your installer will need to add additional refrigerant to maintain optimal operation.

---

Quiet Comfort

ACiQ has the power to keep things cool when temperatures rise. Every ACiQ condenser uses a scroll compressor for long life and efficiency operation. From entry level to high efficient, single stage, two stage and communicating models, every ACiQ Condenser keeps you cool year after year.

---

High Efficiency

ACIQ saves you money up front, but also over time by reducing energy bills. Models ranging from standard efficiency to high efficient models can provide you savings from 21% to 63% over older, 10 SEER condensers. Coil construction is either all aluminum or copper/aluminum (depending on model) for max efficiency.

---

Longer life, longer warranty

ACiQ condensers are 100% run-tested at the factory. Protective coatings on the fins mean long life even in harsh conditions. A filter drier is included to keep the system healthy. ACiQ’s extended warranty with online registration provides 10 year protection.

OVERVIEW

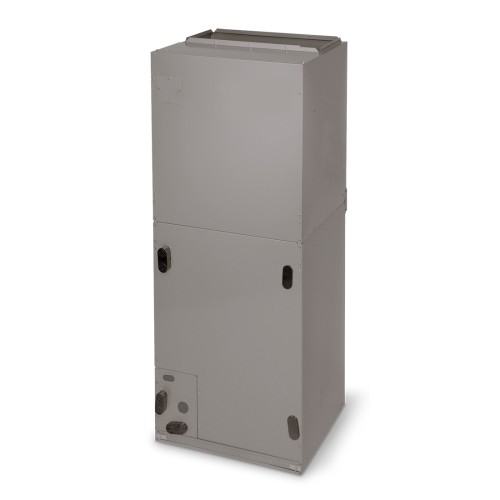

This air handler includes factory-installed refrigerant leak dissipation, a quiet variable-speed blower, and an efficiency-optimizing TXV. It features a corrosion-resistant aluminum coil, washable filter, and compatibility with standard size filters, air purifiers, and dehumidifiers. The fully insulated cabinet and corrosion-free sloped drain pan enhance durability and hygiene.

QUICK FACTS

• Factory-installed refrigerant leak dissipation systems to meet new UL requirements, demonstrating our commitment to safety.
• Variable-speed blower for quiet operation, delivering more even temperature levels and enhanced humidity control.
• Efficiency-optimizing Thermostatic Expansion Valve (TXV).
• Compatible with two-stage outdoor units.
• Corrosion-resistant all-aluminum coil.
• Convenient washable filter.
• Standard size filter compatibility.
• Compatible with air purifiers and dehumidifiers.
• Fully insulated cabinet.
• Corrosion-free sloped drain pan design to help reduce mold and bacteria buildup.
• 10-year parts limited warranty.

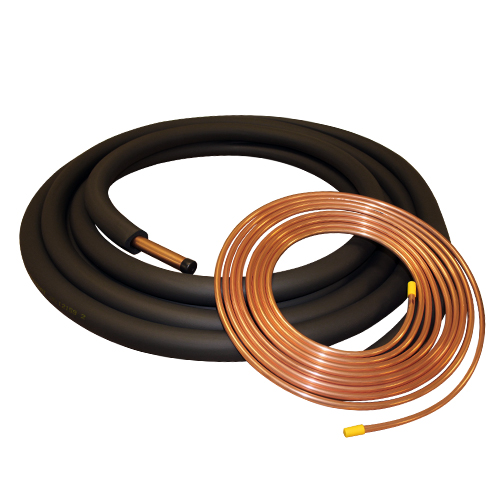

Ensure efficient refrigerant flow and system performance with this 30-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set provides durability, flexibility, and thermal protection for reliable HVAC operation.

Key Features:
✔ Premium Copper Tubing: 3/8" liquid line (LL) and 5/8" suction line (SL) for efficient refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation helps minimize energy loss and condensation buildup.
✔ Versatile Application: Compatible with heat pumps and conventional split systems.
✔ Easy Installation: Flexible and durable copper tubing simplifies routing and connection.
✔ Standard 30-Foot Length: Ideal for a wide range of residential and light commercial HVAC installations.

Ensure efficient refrigerant flow and system performance with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set provides durability, flexibility, and thermal protection for reliable HVAC operation.

Key Features:
✔ Premium Copper Tubing: 3/8" liquid line (LL) and 5/8" suction line (SL) for efficient refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation helps minimize energy loss and condensation buildup.
✔ Versatile Application: Compatible with mini-splits, heat pumps, and conventional split systems.
✔ Easy Installation: Flexible and durable copper tubing simplifies routing and connection.
✔ Extended 50-Foot Length: Ideal for a wide range of residential and light commercial HVAC installations.

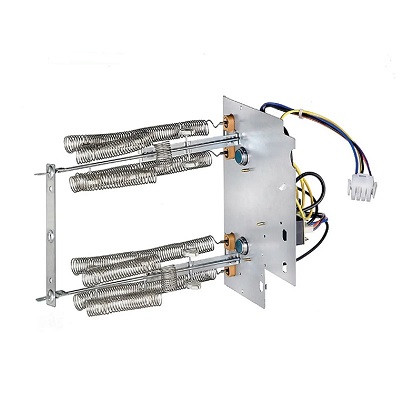

This 230 volt heater coil can be added to a ACiQ air handlers to provide winter-time heating capabilities. Produces 34,121 BTUs of heat. Circuit breakers are included with this heater coil.

EHC10BKB is only used with 2-5 ton FJMA4X air handlers.

The Ecobee is more than a smart thermostat. Most thermostats only read the temperature in one place (usually the hallway) which can make other rooms uncomfortable. Ecobee5 comes with a room sensor to help manage hot or cold spots. When you place sensors in your favorite rooms, ecobee5 can read the temperature and detect occupancy. That's how it ensures comfort in the rooms that matter.

With Amazon Alexa Voice Service built inside, ecobee5 can perform the many 'skills' that come with Alexa. All you have to do is ask, and watch the blue light pipe on top of the thermostat blink in response. For total hands-free control, it can even hear you from across the room. Imagine you’re throwing a last-minute dinner party. Simply ask your ecobee5 to walk you through each step out loud – from finding the right recipes to the ideal music playlist. ecobee5 has embedded microphones with far-field voice recognition and a speaker engineered for clear voice and full sound. It’s the smart thermostat that looks at home on your wall – that you can hear and speak to from across the room.

Features

Smarter Comfort. Sleek Control.

The ACiQ TL04-1 Smart Thermostat is engineered to bring precise, intelligent control to your home’s HVAC system. Compatible with both standard 24V wiring and HA & HB communication protocols, it delivers flexibility for new builds or system upgrades.

QUICK FACTS

• Dual Compatibility: Supports 24V systems and HA/HB non-polarity communication systems

• Control Options: Works with single and two-stage heating, cooling, and heat pump systems with auxiliary/emergency heat
• Modern Touchscreen: Auto-wake screen with responsive touch interface
• Clean Installation: Includes M-base, trim plate, wire labels, screws, and anchors
• Smart Safety: Built-in installation tips, safety reminders, and FCC/IC compliance
• Perfect for homeowners looking to upgrade their comfort with modern, intelligent technology

4Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.

Key Features:

✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.

What’s Included:

• 3/4" x 6' Electrical Whip – SKU: 84138
• 60A Non-Fused Disconnect – SKU: 83335
• Surge Protector – SKU: ICM517
• CPS Charging Adapter – SKU: 87-AD87
• Telescoping Wall Sleeve – SKU: NFP-75

Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!

The E Lite is a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.

• High recycled plastic content
• Subtle texture resists unit slide
• Unaffected by UV or weather
• Uniform ribbing transfers load evenly
• Drillable for securing unit
• Lightweight, yet rugged

No Return Policy

All sales of this product are final and are non-refundable.

This wall mount bracket is perfect for outdoor condensers. The length of the the wall bracket arms are 48" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).

Features:

• Steel: 10 GA
• Powder-coated grey Finish
• Load rating: 600 lbs per pair
• Holes will accommodate anchors for installation
• Warranty: 1 year
• ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)

No Return Policy

All sales of this product are final and are non-refundable.

The Santa Fe Ultra70 is a high-efficiency, ventilating dehumidifier designed to control excess humidity throughout your entire home. Capable of integrating directly with your HVAC system, this unit removes up to 70 pints of moisture per day and is ideal for spaces up to 1,800 square feet.

High Efficiency

The Ultra70 is the perfect dehumidifier for residential use, including low-clearance crawl spaces, basements, and whole-house applications. Drawing just 4.1 amps, this unit offers powerful moisture control with low energy consumption. It utilizes a MERV-13 filter—one of the most efficient in its class—and uses R454B refrigerant for a more environmentally responsible performance.

Versatile Applications

• Compact Design: Weighs just 55 lbs and measures only 12” wide, making it easy to place in tight spaces.
• Flexible Installation: Can be used as a free-standing unit or ducted into your home's HVAC system.
• Plug-in Ready: Includes a 9-foot power cord and plug-in wiring style for easy setup.

Industry Usage: Perfect for homes, apartments, and condominiums.

Operating Temperature Range: Effective in environments from 49°F to 95°F.

Bonus Features

• Auto Restart: Automatically resumes operation after a power outage.
• Advanced Control Panel: Includes a built-in dehumidistat for precise manual humidity control.
• Automatic Defrost: Prevents frost buildup in colder environments for uninterrupted performance.

Warranty

Santa Fe offers an industry-leading warranty to ensure long-term performance and peace of mind:

• 5-Year Warranty: Covers operational failures.
• 6-Year Warranty: Covers faulty components.

In the event of a malfunction, Santa Fe will repair or replace the unit. Please refer to the Owner’s Manual for full warranty details and terms.
