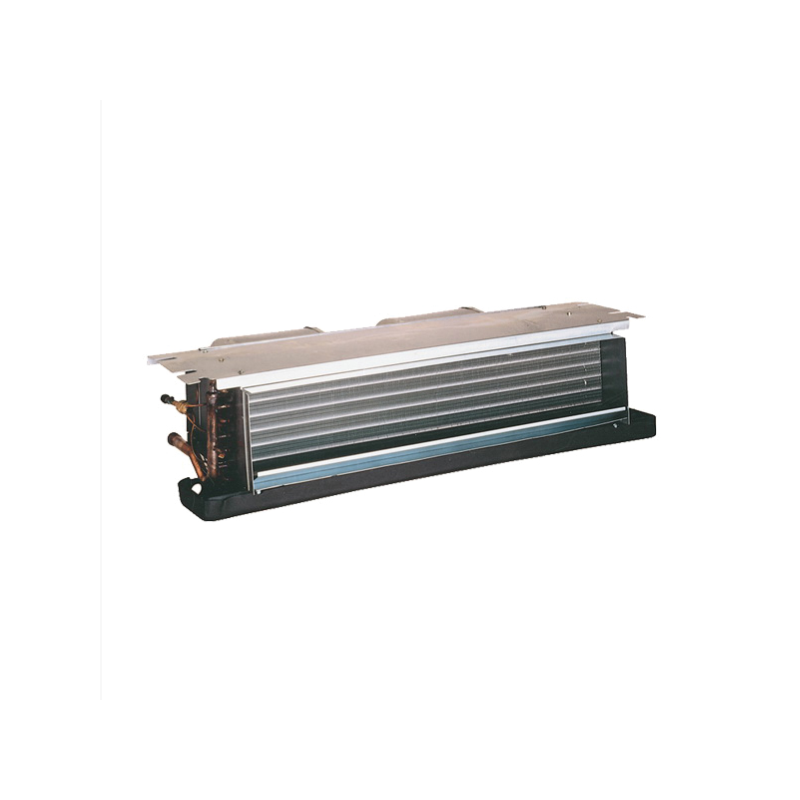

1.5 Ton 18,000 BTU Goodman Ceiling Mount Air Handler

1.5 Ton 18,000 BTU Goodman Ceiling Mount Air Handler
By

Goodman

Out of stock
Model

ACNF180816

ID

27360

Goodman is one of the biggest names in home heating, cooling and energy-efficient home comfort. The Goodman ACNF180816 Ceiling Mounted Air Handler is designed for use with R-410A refrigerant and may be installed in a variety of locations.

Features

  • Check flowrater for heat pump and cooling-only applications
  • All-Aluminum tube/aluminum fin coil
  • Direct-drive, resilient-mount, multi-speed motor
  • Sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 and 10 kW
  • High-efficiency evaporator coil
  • Quiet operation
  • PSC Motor
  • Available with and without heat
  • AHRI Certified; ETL Listed
  • Primary/secondary drain connection in a high-temperature plastic drain pan
  • Suitable for free-return installation (non-ducted return air)
  • Galvanized-steel construction
  • Factory-installed pull-type disconnect
  • Easy service access
  • 10 Year Parts Warranty with timely online registration
More Information
1.5 Ton 18,000 BTU Goodman Ceiling Mount Air Handler
FeatureSpec
SKUACNF180816
Weight (in lbs)59
Brand/ManufacturerGoodman
UPC663051523234
Cooling BTU18,000
Blower MotorPSC Multi-Speed Motor
Maximum CFM710
Electric Heat8 Kilowatts
ConfigurationCeiling Mounted
RefrigerantR410A
Liquid Line3/8"
Suction Line3/4"
Electrical208/230v 1 Phase 60 Hz
Max Breaker Size40 amps / 45 amps
Tonnage1.5 Ton
Height6 1/2"
Width37 1/4"
Depth21"
Warranty10 Years with Online Registration
