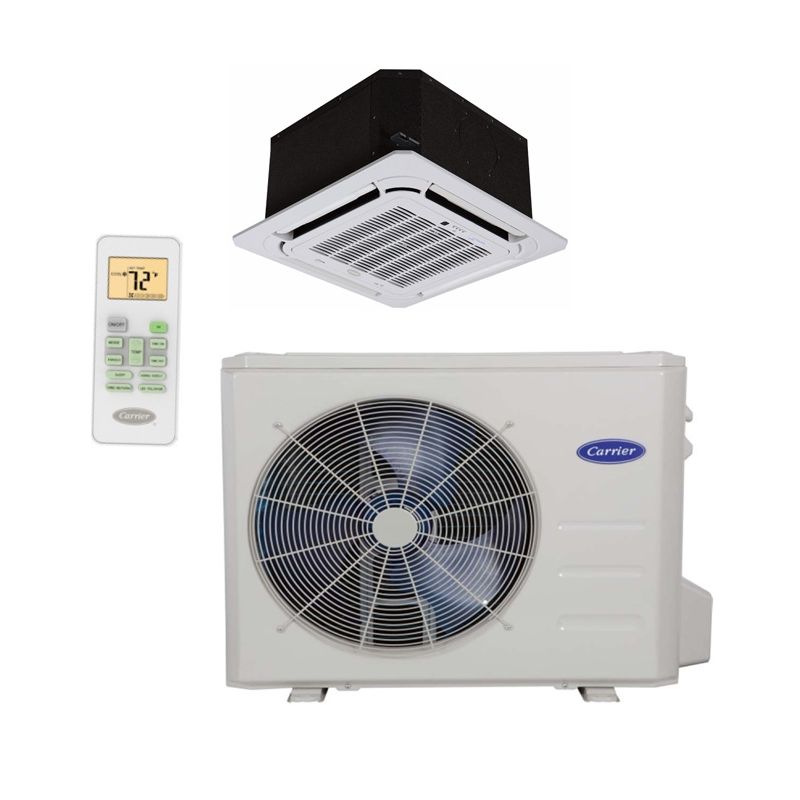

12,000 BTU 19.5 SEER Ceiling Cassette Carrier Mini-Split Performance Series Single Zone Heat Pump

By

Carrier

Out of stock
Model

40MBCQ12-3 / 38MARBQ12AA3 / 40MBCQ01XXX3

ID

9772

Availability: Call for Availability

Authorized Carrier Dealer

AHRI Certified

AHRI Number:200059155

Description

OVERVIEW

The 40MBCQ12-3 / 38MARBQ12AA3 Performance series single zone mini split is a heat pump solution with a ceiling cassette air handler for almost any space. The flexible installation style means it can be recessed into an attic or a 2' x 2' drop ceiling tile. With its wide heating and cooling range and quiet operation, the 40MBCQ12-3 / 38MARBQ12AA3 is a reasonably priced solution for almost any application.

QUICK FACTS

  • Can generally heat and cool up to a small room in mild climates
  • 12,000 BTU, 19.5 SEER heat pump ceiling cassette mini split with remote control
  • Cooling from -13°F - 122°F outside temperatures
  • Integrated base pan heater allows heating from -22°F - 86°F outside temperatures
  • Built-in safety monitoring, including refrigerant leakage detection
  • Improved serviceability
  • Quiet and efficient operation
12,000 BTU, 19.5 SEER

With an output of 12,000 BTU, the 40MBCQ12-3 / 38MAQB12R-3 has the capability to heat and cool up to a small room in average climates. With an efficiency rating of 19.5 SEER, bringing comfort to that space is possible while maintaining a high efficiency over many other solutions, allowing you to keep more of your hard-earned money over time by not spending it on your electric bill. For installation in tighter spaces, the 40MBCQ12-3 / 38MAQB12R-3 is designed to be installed in your ceiling between supports.

Warranty

With an installation that follows your state and local installation codes and registration through the manufacturer within 90 days of installation, the 40MBCQ12-3 / 38MAQB12R-3 is backed by Carrier's 10 year parts and compressor warranty for the original registrant.

Quality of Comfort

With its many settings selectable from the unit's included remote, the 40MBCQ12-3 / 38MAQB12R-3 can match almost any comfort-based need, from its Follow Me setting that senses the temperature at the remote instead of at the unit to your standard, unchanged output setting. These settings along with others and its quiet operation allow the 40MBCQ12-3 / 38MAQB12R-3 to bring a high quality of comfort to almost any space.

Reliable Heating and Cooling

For a much more reliable operation, safety monitors all over the 40MBCQ12-3 / 38MAQB12R-3 are constantly taking readings to prevent any possible problems that may arise from general wear-and-tear on the unit. Moreover, the unit has an integrated base pan heater, allowing it to heat all the way down to -22°F.

Product Specifications

More Information
12,000 BTU 19.5 SEER Ceiling Cassette Carrier Mini-Split Performance Series Single Zone Heat Pump
SKU40MBCQ12-3 / 38MARBQ12AA3 / 40MBCQ01XXX3
Refrigerant ChargePre-charged for: 26'
Weight (in lbs)100.000000
AHRI Certificate Number200059155
Brand/ManufacturerCarrier
ControllerWireless Included
Additional InformationHeat Pump
Additional InformationMinimum Line Set Length: 10'
Additional InformationMaximum Line Set Length: 82'
Additional InformationDrain: 1"
HSPF10.6
Cooling BTU12,000 BTU
Heating BTU12,000 BTU
Maximum CFM280-400 CFM
Energy StarYes
RefrigerantR410A
CapacityDehumidification Rate: 0.36 gal/hr
EER12.5
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60Hz
PhaseSingle Phase
Max Breaker Size16 Amps
Min. Breaker Size10 Amps
Amperage Requirement15A
System Tonnage1 Ton
Mini-Split TypeCeiling Cassette
Min/Max Outdoor Temp for Heating-22°F-86°F
Min/Max Outdoor Temp for Cooling-13°F-122°F
Zone CompatibilitySingle Zone
HeightIndoor Unit: 10.24" | Grille: 1.97" | Outdoor Unit: 21.81"
WidthIndoor Unit: 22.44" | Grille: 25.47" | Outdoor Unit: 32.09"
DepthIndoor Unit: 22.44" | Grille: 25.47" | Outdoor Unit: 13.11"
Warranty10 years with online registration, 5 years without
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING

Reviews

Write Your Own Review
You're reviewing:12,000 BTU 19.5 SEER Ceiling Cassette Carrier Mini-Split Performance Series Single Zone Heat Pump
Your Rating

Questions and Answers

Customer Questions
If I buy a system with enough tonnage, can I add ceiling registers to other rooms?
Please check out our ceiling cassette multi zone mini split systems as they may be a better choice for your home if you would like to install in more rooms. We also offer a Sizing Guide to help you find the right size unit for your home for your reference! If you have any further questions, please call us and we will be happy to assist you.
