12,000 BTU ACiQ Platinum Single Zone Ceiling Cassette Mini Split Air Handler - R454B | 230V

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler - ACIQ-12CC-HH-MB / ACIQ-CC-GRILLE
12,000 BTU ACiQ Platinum Single Zone Ceiling Cassette Mini Split Air Handler - R454B | 230V
SAVE $77.50
By

ACiQ

In stock
Model

ACIQ-12CC-HH-MC

ID

198471

Be the first to review this product
In Stock - 134 Ready to Ship
Was $852.50 Your Low Price Special Price $775.00

  • Ductless Heating & Cooling Solution
  • Perfect for a Room/Zone 400-600 sq ft
  • Single or Multi-Zone Compatible Air Handler with Remote
  • Ceiling Cassette Sleek Design
  • Wi-Fi and Smartphone Capabilities
  • 12-Year Compressor & 7-Year Parts with Online Warranty Registration

Mini Split systems are great, but what if you don't want the air handler on your wall? ACiQ offers the ACIQ-12CC-HH-MC ceiling cassette air handler for customers who want a more hidden appearance and more centralized air distribution. Ceiling Cassette air handlers provide the same high-efficiency heating and cooling of a regular wall-mounted unit, and come with an included hand-held remote control. Once the ceiling cassette is mounted in the ceiling, only the grille is visible for the most understated appearance.

Installation Considerations

Ceiling Cassettes are flush-mounted, which requires removal of enough ceiling material to create a cavity for the unit. These units will fit between 24 on-center joists, but are too large to fit between 16 on-center joists without modifying the structure of your framing. Additionally, Ceiling Cassettes have factory-installed, onboard pumps to lift the condensation produced by the unit during cooling. The pump can lift the condensation up to 14. From there, it will be necessary to construct a PVC drain system to route the condensation to a safe wastewater location. Refrigerant and wiring connections are the same as the wall mounted units.

FEATURES

  • 12,000 btu of Heating or Cooling
  • Dry and Fan modes also available
  • Good for a small room in most climates
  • 4 Way Air Supply for consistent room coverage
  • Handheld remote included
  • Decorative Grille included
ACIQ Ceiling Cassette Mini-Split SystemACIQ Ceiling Cassette Mini-Split System

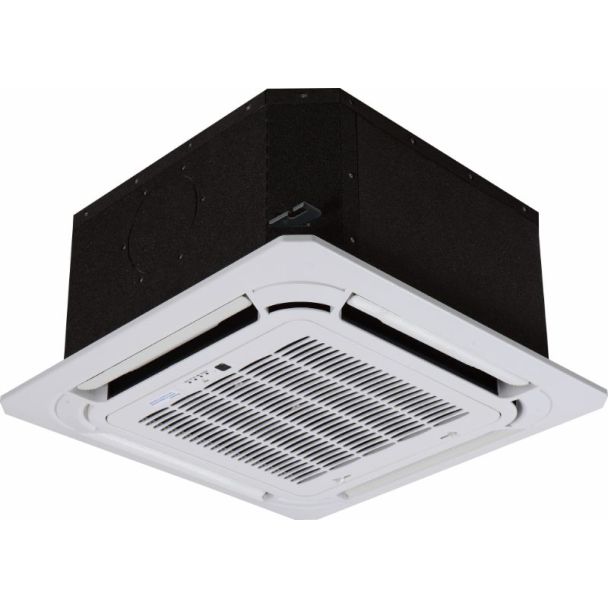

Ceiling Cassette

Flush-mounted Ceiling Cassettes offer the most understated appearance of any ductless air handler type.  They can be centrally located in the room, and deliver conditioned air in all four directions, with return air being brought in through the center.  Ceiling Cassettes include a factory installed condensation pump.

ACIQ Quiet Comfort Ceiling CassetteACIQ Quiet Comfort Ceiling Cassette

Quiet Comfort

Every ACiQ system is precision engineered to quickly achieve set temperature and hold it there, no matter what the weather is outside. With whisper quiet indoor and outdoor units, ACiQ never intrudes on your peace and quiet.

More Information
12,000 BTU ACiQ Platinum Single Zone Ceiling Cassette Mini Split Air Handler - R454B | 230V
SKUACIQ-12CC-HH-MC
Weight (in lbs)41.890000
Brand/ManufacturerACiQ
ControllerWireless Included
Product FeaturesWiFi
Cooling BTU12,000 BTU
Heating BTU12,000 BTU
Maximum CFMUp to 417.9 CFM
Decibel Level (dBA)As low as 26.0 Decibels
Electric HeatHeat Pump
RefrigerantR454B
Liquid Line1/4"
Suction Line3/8"
Electrical208/230V, 1 Phase, 60Hz
PhaseSingle Phase
BTU/Tonnage12,000 BTU/1 Ton
Mini Split TypeCeiling Cassette
Zone CompatibilityMulti Zone, Single Zone
Height9.65"
Width22.44"
Depth22.44"
Warranty12 year compressor, 7 year parts with online registration
