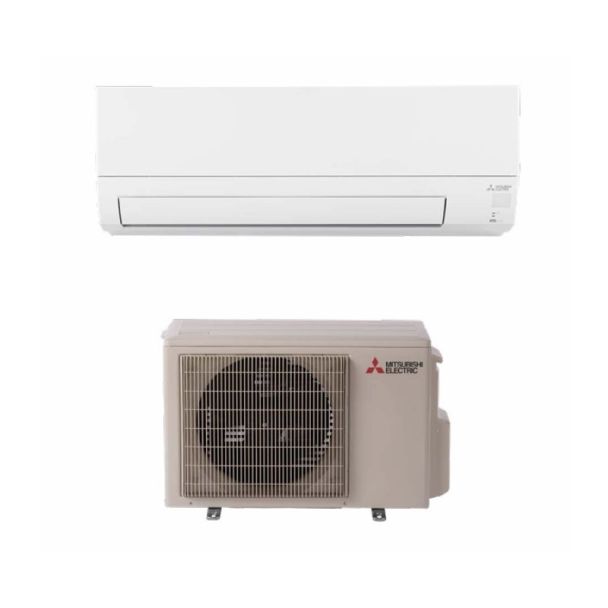

12,000 BTU Mitsubishi P-Series 21.1 SEER2 Single Wall Mounted Mini Split Cooling Only System - R454B | PUY-AK12NL / PKA-AL12NL

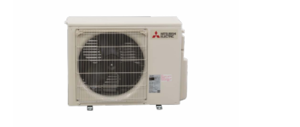

PUY-AK12NL - Outdoor Unit for Wall-Mounted Air Conditioning System

The PUY-AK12NL is a high-efficiency outdoor unit designed for use with wall-mounted air conditioning systems. It delivers reliable cooling performance for commercial and residential applications. Below are the key features and specifications of this outdoor unit:

Key Features:

• Blue Fin Coating: An anti-corrosion treatment applied to the heat exchanger's aluminum fins, protecting against corrosion from salt, sulfur, and other airborne contaminants, especially in coastal and industrial areas.
• Continuous Operation: Capable of 24-hour continuous operation in cooling mode, providing consistent comfort around the clock.
• Fast Restart: Quickly resumes operation after power interruptions, minimizing downtime and maintaining comfort.
• High Pressure Protection: Equipped with safeguards to protect the system from high-pressure anomalies, ensuring reliable performance and safe operation.
• INVERTER-Driven Compressor: Adjusts compressor speed according to cooling demands, enhancing energy efficiency and maintaining stable temperatures across a wide range of conditions.
• Low Ambient Cooling: Provides full cooling capacity down to 0°F with the addition of wind baffles, making it suitable for various climates.
• Pre-Charged Refrigerant: The unit is pre-charged with refrigerant for specific line lengths, simplifying installation and reducing setup time. For capacities between 12,000 and 18,000 BTU/h, the unit is pre-charged for up to 165 feet; for capacities between 24,000 and 30,000 BTU/h, up to 225 feet.
• Seacoast Protection: Features a robust anti-corrosion system, including treated external panels and a coated heat exchanger coil, rated for 2,000 hours under ASTM B117 testing standards, ensuring durability in coastal environments.
• Superior Energy Efficiency: Designed to deliver high performance while minimizing energy consumption, contributing to lower operational costs and environmental impact.

Specifications:

• Cooling Capacity at 95°F:
  • Maximum Capacity: 12,200 BTU/h
  • Rated Capacity: 12,000 BTU/h
  • Minimum Capacity: 4,300 BTU/h
• Power Consumption:
  • Maximum Power Input: 830 W
  • Rated Power Input: 810 W
• Moisture Removal: 3 pints/h
• Energy Efficiency Ratings:
  • SEER2: 21.1
  • EER21: 14.8
• Electrical Requirements:
  • Voltage: 208/230 V AC, Single-phase, 60 Hz
  • Guaranteed Voltage Range: 198 - 264 V AC
  • Indoor-Outdoor Voltage (S1-S2): 208/230 V AC
  • Short-circuit Current Rating (SCCR): 5 kA
  • Recommended Outdoor Fuse/Breaker Size: 20 A
  • Recommended Wire Size (Indoor to Outdoor): 14 AWG
• Outdoor Unit Dimensions (W x D x H): 34-19/64 x 11-13/16 x 24-13/16 inches (871 x 300 x 630 mm)
• Outdoor Unit Weight: 99 lbs (45 kg)

The PUY-AK12NL outdoor unit is engineered to provide efficient and reliable cooling, making it an excellent choice for maintaining comfortable indoor environments in various commercial and residential settings.

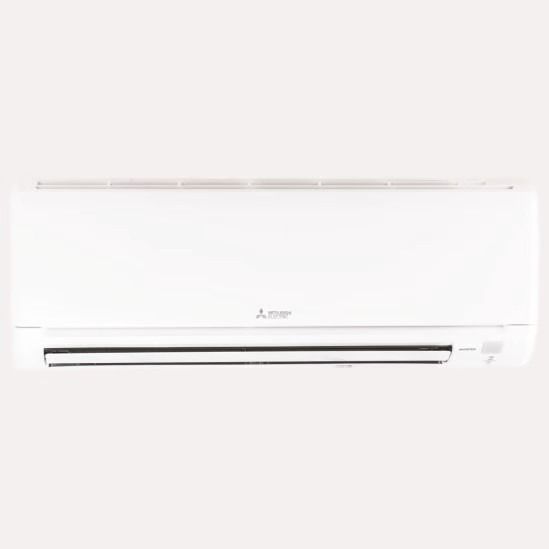

PKA-AL12NL Air Handler Overview

The PKA-AL12NL is an advanced air handler that offers superior performance and energy efficiency. Designed for both residential and light commercial applications, this air handler is paired with the PUY-AK12NL outdoor unit to deliver effective heating and cooling solutions. It incorporates modern technology to enhance energy savings while ensuring quiet and reliable operation. The PKA-AL12NL is perfect for those looking for a space-saving, environmentally responsible solution for their climate control needs.

Key Features

• Energy Efficient: The PKA-AL12NL features an energy-efficient design, utilizing advanced inverter technology to adjust the compressor speed and minimize power consumption. This helps save energy and lower utility costs.
• Quiet Operation: The air handler operates quietly, making it ideal for environments where noise levels are a concern, such as residential spaces or quiet offices.
• Compact Design: With its compact form factor, the PKA-AL12NL can be easily integrated into tight spaces, offering optimal performance without taking up much room.
• Durable Construction: Built with high-quality materials, this air handler is designed for long-lasting durability, even in challenging environmental conditions.
• Environmentally Friendly: The PKA-AL12NL uses R410A refrigerant, a more environmentally friendly option that reduces ozone depletion potential while maintaining high cooling and heating performance.

Specifications

• Cooling Capacity: 12,000 BTU/h
• Heating Capacity: 12,000 BTU/h
• Power Supply: 208-230V, 60Hz, 1-phase
• Dimensions (W x H x D): 32-1/2" x 11-1/2" x 24-1/8”
• Weight: 37 lbs
• Refrigerant: R410A
• Airflow: 700 CFM

Benefits

• Energy Savings: The inverter technology in the PKA-AL12NL adjusts the compressor speed to match the specific demand, resulting in energy savings and a reduction in overall operating costs.
• Enhanced Comfort: The air handler ensures precise control over both temperature and humidity, maintaining a comfortable indoor environment throughout the year.
• Quiet Comfort: With a design focused on minimizing noise levels, the PKA-AL12NL ensures that you enjoy a quiet, peaceful atmosphere without sacrificing performance.
• Long-Lasting Reliability: With its durable construction and high-quality components, the PKA-AL12NL is built to last, providing years of reliable service with minimal maintenance.
• Environmentally Conscious: The use of R410A refrigerant helps reduce the impact on the environment while maintaining the system's efficiency and performance.

Applications

• Residential: Ideal for use in homes, apartments, and townhouses, providing efficient heating and cooling in both summer and winter months.
• Light Commercial: Suitable for small commercial spaces such as offices, retail stores, and cafes where reliable climate control is needed.

Maintenance

• Low Maintenance: The PKA-AL12NL is designed for easy maintenance, with components that are simple to access, reducing downtime and service costs.
• Long-Term Durability: With minimal wear and tear over time, the PKA-AL12NL offers long-lasting reliability and requires fewer repairs or replacements compared to traditional systems.

The PKA-AL12NL is a perfect solution for those seeking a combination of efficiency, performance, and quiet operation. Paired with the PUY-AK12NL outdoor unit, it delivers exceptional comfort and energy savings while ensuring that you can rely on the system for years to come.

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends
