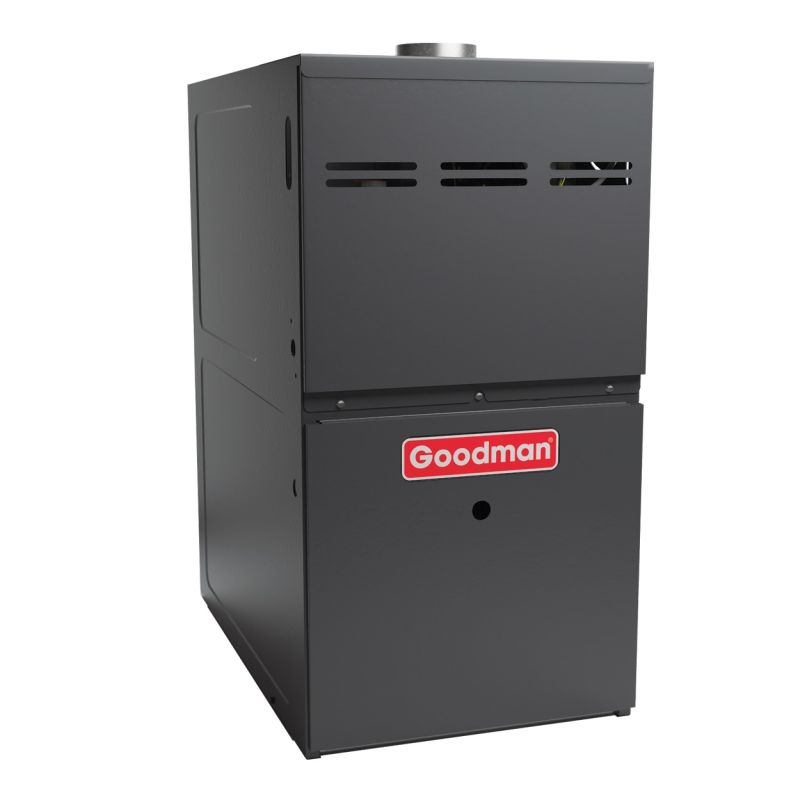

100,000 BTU 80% AFUE 9-Speed Single Stage Goodman Gas Furnace - Upflow/Horizontal

By

Goodman

Model

GM9S801005CN

ID

103557

Rating:
98% of 100
Availability: In Stock - Ready to Ship
Goodman

Authorized Goodman Dealer

AHRI Certified

AHRI Number:207254791

$1,214.00


Save more with an ACiQ furnace!

Click HERE for more info.

Free Shipping

Requires: Metal Flue Vent Piping

Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing
People that viewed this product purchased this instead:
110,000 BTU 80% AFUE Single Stage Multi-Positional ACiQ Gas Furnace
110,000 BTU 80% AFUE Single Stage Multi-Positional ACiQ Gas Furnace
Rating:
97%
Suggested Retail $1,455.00 Your Low Price Special Price $1,164.00
110,000 BTU 80% AFUE Single Stage Multi-Positional ACiQ Gas Furnace
110,000 BTU 80% AFUE Single Stage Multi-Positional ACiQ Gas Furnace
Rating:
100%
Suggested Retail $1,684.00 Your Low Price Special Price $1,347.00
110,000 BTU 80% AFUE Single Stage Multi-Positional ACiQ Gas Furnace
110,000 BTU 80% AFUE Single Stage Multi-Positional ACiQ Gas Furnace
SAVE $291.00
SAVE $337.00

Buy together and save

Description

OVERVIEW

The GM9S801005CN Goodman gas furnace features high-quality construction and efficient operation at a great value. The GGM9S801005CN single-stage, 9-speed furnace utilizes Goodman's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the Goodman GM9S801005CN.

QUICK FACTS

  • This furnace is ideal to heat a larger house (depending on climate)
  • 100,000 BTU 80% efficient natural gas furnace
  • Requires metal flue venting
  • Can be used in the upflow or horizontal orientation
  • Can be converted to an LP furnace with a conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output
100,000 BTU

The GM9S801005CN Goodman gas furnace is 100,000 BTU’s. This BTU count is a measure of the input of the furnace per hour, while the output of this furnace is 80,000 BTU’s (100,000 X 80% AFUE) per hour. In ideal climate conditions, this 100,000 BTU furnace is usually used to heat a larger house.

80% Efficiency Rating

The GM9S801005CN Goodman gas furnace is 80% efficient, and the standard furnace efficiency on the market today. This means that 80% of the gas going into the furnace is used to heat your home and the remaining 20% is lost out of the flue venting. Please note that all 80% furnaces must be vented using metal flue venting, while anything higher than 90% efficient must be vented using plastic/pvc venting.

Please note that this furnace does not comply with California Low NOx or Ultra-Low NOx regulations. If you have any questions, please contact us.

Single Stage Furnace

The GM9S801005CN Goodman gas furnace is a single stage furnace has only one heat output. Regardless of the indoor temperature, this furnace will burn at 100% output whenever the thermostat calls for it. Like a light switch, this furnace’s burner will either be on or off and nothing in between. A single stage furnace is the standard efficient furnace since every time your furnace turns on the furnace uses the same amount of energy.

Natural Gas or LP Furnace

From the factory, the GM9S801005CN runs on natural gas. However all Goodman gas furnaces can be converted to propane using the furnace’s corresponding LP conversion kit, an optional accessory at an additional cost that consists of a replacement set of orifices and springs.

Multi-Speed ECM Blower Motor

Instead of the last generation PSC blower motor, the GM9S801005CN utilizes a 9-speed ECM motor, which uses less power and provides smarter air circulation. All of this causes an overall increase in the electrical efficiency of your furnace, which saves you money.

Warranty

With installation that follows your state and local codes and with online registration, all Goodman furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.

Durable Hot Surface Igniter

The hot surface igniter on modern Goodman furnaces are more durable than previous designs, decreasing related issues and lowering maintenance costs. These hot surface ignitors are also more efficient than standing pilot and older HSI designs, saving you even more money.

Self-Diagnostic Control Board

The Goodman brand has improved technology from years of production experience, allowing for a long-lasting product that rarely has any issues. However, if something does go wrong on the furnace, the control board has a set of sensors that allow it to diagnose basic issues, allowing for easy troubleshooting and to notify the owner if basic maintenance or warranty work is recommended. This increases the overall safety of the unit, for the furnace itself and the occupants of the home where it is installed.

Heavy Gauge Steel Cabinet

The heavy-gauge steel cabinet on new Goodman furnaces provide adequate protection to the internal mechanisms of the unit. The cabinet is also more air-tight than previous models, allowing for a quiet, more economical unit due to losing less heat and preventing more sound from exiting the unit.

Ease of Installation

The value of modern Goodman furnaces doesn't end at efficiency. Today’s Goodman furnaces feature many different connection options to reduce installation. The GM9S801005CN model has a more universal design, which consists of its ability to be installed in both an upflow or horizontal configuration. This allows for an easier installation in more locations, from your attic to your basement. The furnace also comes with color-coded low-voltage terminals that allow for a shorter and easier installation time, which decreases installation costs.

Product Specifications

More Information
100,000 BTU 80% AFUE 9-Speed Single Stage Goodman Gas Furnace - Upflow/Horizontal
SKUGM9S801005CN
Weight (in lbs)132.000000
AHRI Certificate Number207254791
Airflow DirectionUpflow/Horizontal
Exhaust Flue RequirementMetal
Brand/ManufacturerGoodman
Furnace Efficiency / AFUE 80%
Heating BTU100,000
Blower Motor9 Speed
Maximum CFM2000
ConfigurationUpflow/Horizontal
Exhaust PipeMetal
Electrical115 V. 1 Phase 60 Hz
PhaseSingle Phase
Burner StagesSingle
Fuel TypePropane, Natural Gas
Height33 3/8"
Width21"
Depth28"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.

PROPOSITION 65 WARNING

Reviews 6

Write Your Own Review
You're reviewing:100,000 BTU 80% AFUE 9-Speed Single Stage Goodman Gas Furnace - Upflow/Horizontal
Your Rating

Questions and Answers

Customer Questions
What is the difference between models GM9S80100SCN and GC9S80100SCN?
The only thing different between those two models is their configuration. Any Goodman furnace with an 'M' as its second character in the model number can be oriented in an upflow position. A Goodman furnace with a 'C' in that same spot can instead be setup in a downflow position. Both the 'M' and the 'C' models can also be installed as a horizontal position. For more information on this, you can look up the furnace's specifications sheet for a more detailed breakdown on model numbers and configurations. If you have any further questions, please call us and we will be happy to assist you.
Is the Goodman GM9S801005CN Energy Star certified?
The Goodman GM9S801005CN is not Energy Star certified. This certification is typically seen more often on furnaces with an efficiency of 90% or higher. If you have any further questions, please call us and we will be happy to assist you.
Did you find what you were looking for?
Why Choose a Goodman Product?
Why Choose Goodman?

For over three decades Goodman has concentrated on something more important than simple brand recognition consumer advertising. They focus on the design, engineering, and manufacturing of dependable products that have helped millions and millions of homeowners achieve reliable, high-quality, and affordable indoor comfort. In addition, Goodman has earned the loyalty and respect from thousands of local independent heating and cooling professionals across North America.
