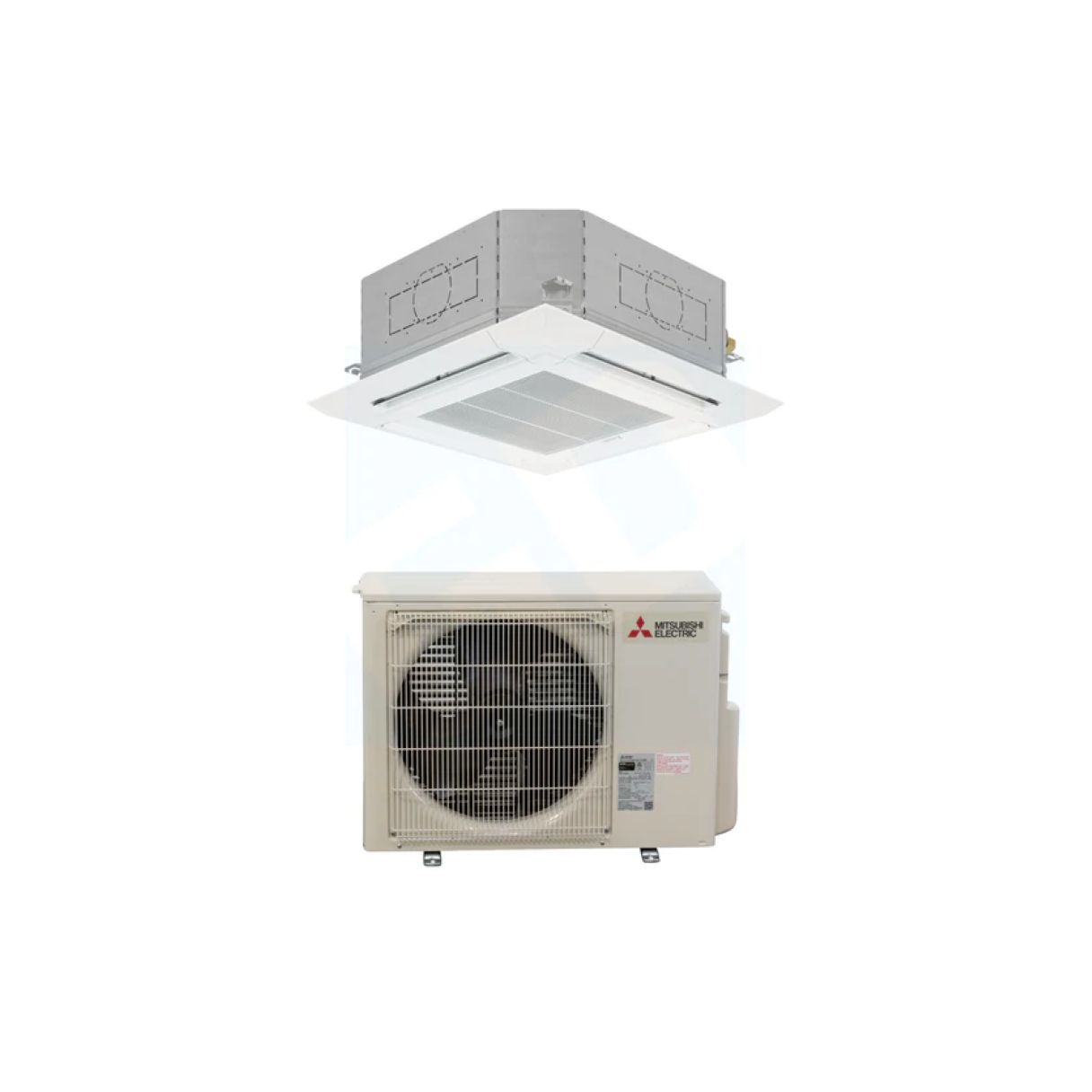

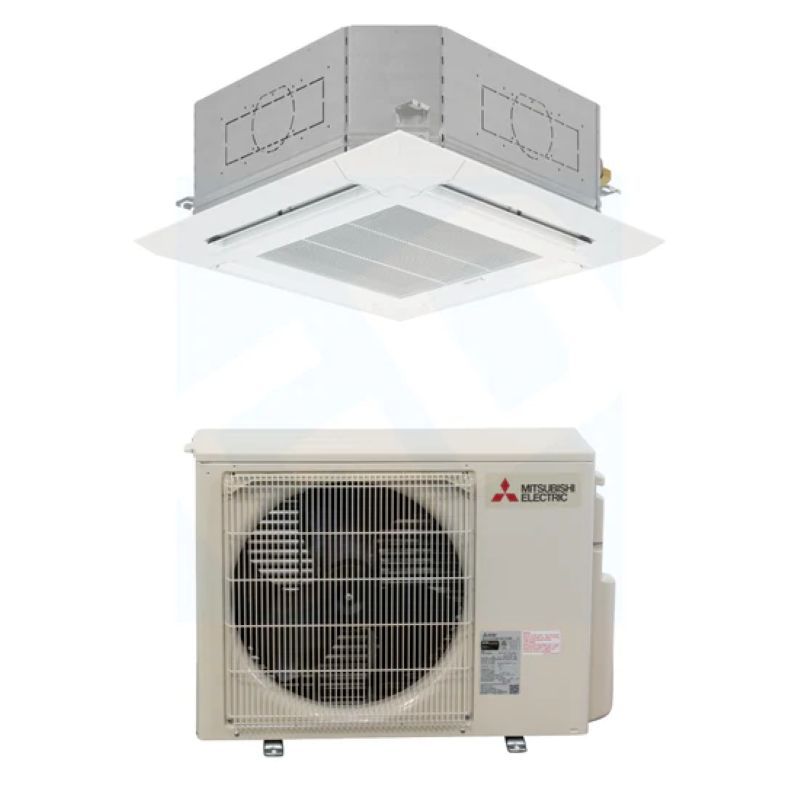

12,000 BTU Mitsubishi P-Series 20.3 SEER2 Single Ceiling Cassette Mini Split Heat Pump System - R454B | SUZ-AA12NL / SLZ-AF12NL

SUZ-AA12NL - 12,000 BTU/H Heat Pump Outdoor Unit

The SUZ-AA12NL is a highly efficient 12,000 BTU outdoor heat pump unit designed to provide both heating and cooling for residential and commercial spaces. It features advanced technology and robust performance for a variety of environmental conditions, ensuring comfort year-round.

Outdoor Unit Features (SUZ-AA12NL):

• Blue Fin Coating: Anti-corrosion treatment applied to the aluminum fins of the heat exchanger, preventing damage from salt, sulfur, and other airborne contaminants.
• High-Performance Grooved Piping: Optimizes heat exchange efficiency for better energy performance and more reliable operation.
• Hot-Start Technology: Ensures that the fan only operates once the heat exchanger is sufficiently warm, preventing cold air bursts during startup.
• INVERTER-Driven Compressor: Offers precise capacity control to maintain a stable temperature while reducing energy consumption.
• Joint Lap DC Motor: An advanced motor design providing high efficiency and long-term reliability.
• Pulse Amplitude Modulation Technology: Optimizes the compressor's energy efficiency by adjusting power supply, leading to lower energy use.
• Quiet Operation: Designed for quiet operation, both the outdoor unit and the indoor units are significantly quieter than traditional systems.
• Single-Zone Setup: Connects one outdoor unit to one indoor unit for simplified and efficient operation in a single zone.

Specifications:

• Cooling Capacity: Rated at 12,000 BTU/h, with a minimum capacity of 2,500 BTU/h.
• Heating Capacity: 15,000 BTU/h at 47°F, with a reduced capacity at lower temperatures (e.g., 9,700 BTU/h at 17°F).
• SEER2 Rating: 19.6, delivering superior energy efficiency for long-term savings.
• Power Input: Rated at 950 W for cooling and 1,240 W for heating.
• Sound Levels: As low as 49 dB(A) in cooling mode and 51 dB(A) in heating mode, ensuring minimal noise disruption.
• Unit Dimensions: 31-1/2 x 11-1/4 x 21-5/8 inches with a weight of 93 lbs.
• Refrigerant: Uses R410A refrigerant for efficient heat transfer and environmental friendliness.

The SUZ-AA12NL is a compact and powerful heat pump outdoor unit that ensures year-round comfort and reliable performance for both cooling and heating needs.

SLZ-AF12NL Air Handler Overview

The SLZ-AF12NL air handler, paired with the SUZ-AA12NL outdoor unit, is a high-efficiency solution designed for both residential and light commercial applications. With its compact design and reliable performance, this air handler provides optimal comfort and air quality. It offers flexible installation options, making it ideal for spaces with limited ceiling clearance or restricted installation areas.

Key Features

• Compact and Low-Profile Design: The SLZ-AF12NL features a slim, low-profile construction that allows for installation in tight spaces such as ceilings and narrow ducts. This makes it perfect for applications where space is at a premium.
• High Energy Efficiency: Designed with energy-saving technology, the SLZ-AF12NL ensures optimal performance while keeping operating costs low. It provides both heating and cooling functions to enhance year-round comfort.
• Quiet Operation: Equipped with sound-reducing components, the air handler ensures quiet operation, which is ideal for bedrooms, offices, and other noise-sensitive environments.
• Advanced Filtration System: The SLZ-AF12NL includes an efficient air filter that helps capture dust, allergens, and other airborne particles, improving indoor air quality and ensuring a healthier living or working environment.
• Flexible Drainage Options: With versatile installation options for horizontal or vertical drainage, this unit accommodates various building configurations and installation preferences.

Specifications

• Cooling Capacity: 12,000 BTU/h
• Heating Capacity: 12,000 BTU/h
• Power Supply: 208-230V, 60Hz, 1-phase
• Dimensions (W x H x D): 29-5/8" x 10-1/8" x 28-1/4”
• Weight: 46.3 lbs
• Refrigerant: R410A
• Airflow: 635 CFM

Benefits

• Space-Saving Design: The compact size of the SLZ-AF12NL is ideal for installations in tight spaces where conventional air handlers may not fit. It is suitable for both residential and light commercial use.
• Energy Efficiency: By optimizing energy consumption, the SLZ-AF12NL offers a cost-effective solution for heating and cooling. It helps reduce overall electricity bills while maintaining high performance.
• Quiet and Comfortable: The air handler is designed to minimize noise levels, making it ideal for use in areas that require minimal disruption, such as living rooms, bedrooms, and offices.
• Improved Air Quality: The advanced filtration system captures dust, allergens, and other particles, promoting a cleaner and healthier indoor environment for occupants.

Applications

• Residential Applications: The SLZ-AF12NL is perfect for residential properties, offering efficient and reliable climate control in apartments, homes, and condominiums, where space is limited.
• Light Commercial Applications: Ideal for small businesses, offices, and retail spaces, the SLZ-AF12NL provides efficient comfort while saving on energy consumption.

Maintenance

• Low Maintenance: The SLZ-AF12NL is designed for easy maintenance. Regular filter cleaning and occasional servicing ensure long-term reliability and optimal performance.
• Durable and Long-Lasting: Built with high-quality materials, the SLZ-AF12NL is designed for durability and longevity, making it a dependable choice for both residential and commercial environments.

The SLZ-AF12NL air handler, paired with the SUZ-AA12NL outdoor unit, offers a high-performance and energy-efficient solution for both residential and light commercial spaces. Its compact design, quiet operation, and advanced features make it an excellent choice for those seeking comfort and efficiency in smaller or more confined areas. With its reliable performance and flexible installation options, the SLZ-AF12NL provides year-round comfort while helping to reduce energy consumption and improve indoor air quality.

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends
