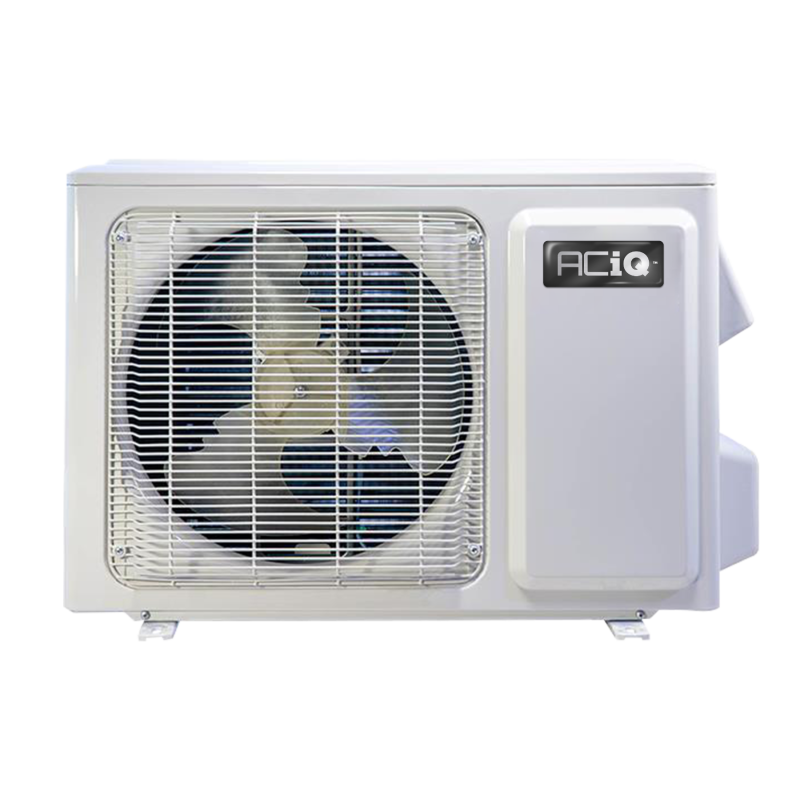

ACIQ 18,000 BTU R410A 20 SEER2 Single Zone Condenser

ACIQ 18,000 BTU R410A 20 SEER2 Single Zone Condenser
ACIQ 18,000 BTU R410A 20 SEER2 Single Zone Condenser
SAVE $1,404.96
Customer reviews
Rating:
5 out of 5
In Stock - 33 Ready to Ship
Free Shipping
By

ACiQ

In stock
Model

SC-18ZGLD-HP230

ID

106558

Was $1,999.96 Your Low Price Special Price $595.00

Product Features
  • Included handheld remote for simple comfort control
  • Perfect for up to 900 sq ft Room/Zone
  • High-efficiency inverter performance
  • Quiet operation for even, consistent temperatures
  • R410 refrigerant; built-in Wi-Fi for convenient control
  • Reliable heating and cooling for year-round comfort

ACIQ 18,000 BTU R410A 20 SEER2 Single Zone Condenser

Provides quiet, efficient heating and cooling for rooms up to 700 sq ft, the ACIQ SC-18ZGLD-HP230 heat pump uses R410A refrigerant for consistent, year-round comfort.

Key Features

  • 18,000 BTU capacity perfect for single-zone applications.
  • 20 SEER2 efficiency rating for reduced energy consumption and lower utility bills.
  • Designed for use with R410A refrigerant systems.
  • Quiet operation suitable for residential and light commercial installations.
  • Durable outdoor condenser construction for long-term reliability.
  • Compatible with a wide range of indoor air handlers including wall-mounted, floor/ceiling, and ducted units.

Feature Highlights

High-Efficiency Operation

With a 20 SEER2 rating, the ACIQ condenser optimizes energy use while providing powerful cooling and heating. Its inverter-driven technology adjusts output based on demand, ensuring steady comfort without unnecessary energy waste.

Reliable Single-Zone Climate Control

Designed for single-zone systems, this condenser pairs with one indoor air handler to deliver precise temperature control. Ideal for bedrooms, offices, or other dedicated spaces, it ensures consistent comfort with minimal noise.

Durable Outdoor Design

Built to withstand the elements, this condenser features robust materials and a protective finish. Combined with R410A refrigerant, it ensures long-term performance and efficient operation across all seasons.

What’s Included

  • 1 × 18,000 BTU Single Zone Outdoor Condenser
  • Installation Components and Mounting Hardware

Recommended Accessories

  • Compatible Indoor Air Handler (wall-mounted, floor/ceiling, or ducted)
  • Pre-Charged Refrigerant Line Set
  • Condenser Pad or Wall Mount Bracket
  • Surge Protector for inverter electronics

Warranty

The ACIQ single-zone condenser is backed by a manufacturer warranty to ensure reliable operation and long-term peace of mind. Warranty coverage follows manufacturer guidelines and product registration requirements.

More Information
ACIQ 18,000 BTU R410A 20 SEER2 Single Zone Condenser
FeatureSpec
SKUSC-18ZGLD-HP230
Weight (in lbs)124.6
AHRI Certificate Number208650743
Brand/ManufacturerACiQ
UPC795934831300
Additional InformationHeat Pump
Additional InformationMaximum Line Set Length: 82'
Additional InformationMinimum Line Set Length: 10'
Additional InformationDrain: 5/8"
Cooling BTU18,000
Heating BTU19,800
Maximum CFM335-559 CFM
Decibel Level (dBA)55 dB(A)
Electric HeatHeat Pump
Energy StarYes
RefrigerantR410A
HSPF10.5
SEER1 (Efficiency)18-20
SEER2 (Efficiency)20
EER12.5
Liquid Line1/4"
Suction Line5/8"
Electrical208/230V 1 Phase 60 Hz
PhaseSingle Phase
Max Breaker Size25 Amps
Min. Breaker Size16 Amps
Tonnage1.5 Ton
BTU/Tonnage18,000 BTU/1.5 Ton
Mini Split TypeWall Mounted
Min/Max Outdoor Temp for Heating-4- 75F
Min/Max Outdoor Temp for Cooling0F - 115F
Zone CompatibilitySingle Zone
Height27.6"
Width37.6"
Depth14.3"
Warranty12 year compressor, 7 year parts with online registration
Resources
Safety InformationPROPOSITION 65 WARNING
Top reviews
  1. Very solid unit
    Price
    100%
    Service
    100%
    Quality
    100%
    Everything went pretty well. Having a template for the wall mount would have helped locate the hole needed for the drain line
    Good Quality

    Review by

    Posted on

  2. praying summer and winter heat also
    Price
    100%
    Service
    100%
    Quality
    100%
    let you know. Kevin very patient.

    Review by

    Posted on

  3. Great Buy
    Service
    100%
    Quality
    100%
    Price
    100%
    Couldn't be happier with this thing. Cost just a portion of the other brands and works like a champ

    Review by

    Posted on

  4. Very Satisfied
    Quality
    100%
    Price
    100%
    Service
    100%
    I’m very satisfied with my purchase. It was delivered promptly and without any damage at all. Nice job on packing and transport. The unit is now installed and is working as expected. HVACDirect had the equipment specs I needed for the the best price I could find.

    Review by

    Posted on

Customer Questions
No Questions
Did you find what you were looking for?
Why Choose ACiQ?
Why Choose ACiQ?

ACiQ designs AC systems that are based on principles learned from nature: clean, energy-efficient, and quiet. ACiQ systems are built in a such a way that they are easily adapted to fit multiple variations a homeowner needs. ACiQ offers technology in mini-split and full split inverter system offerings that provide the smartest way to buy and save on your home’s comfort solution, so that it meets the needs of your family. ACiQ specializes in home comfort, regardless of your needs.
