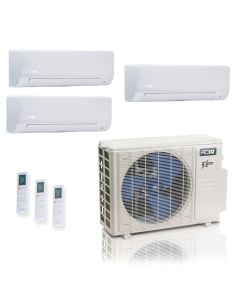

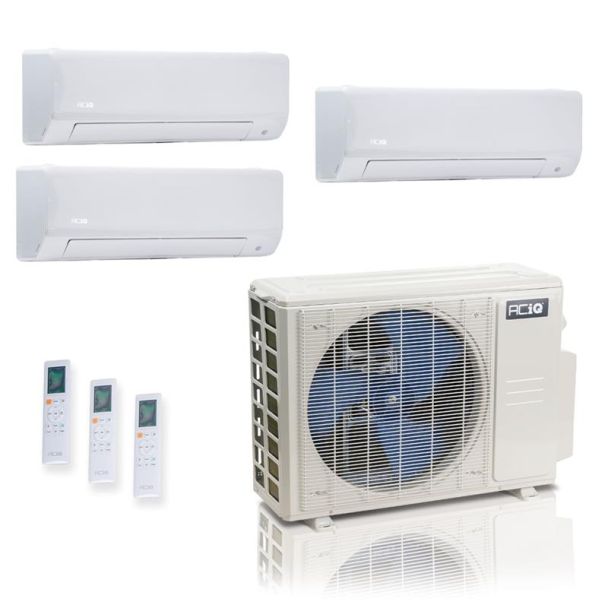

This ACiQ 3-Zone Standard Series System combines high efficiency with advanced climate control. ES-18Z-M3C / ACIQ-06W-HH-MD-3 is the perfect solution for year-round heating and cooling in up to 3 spaces.

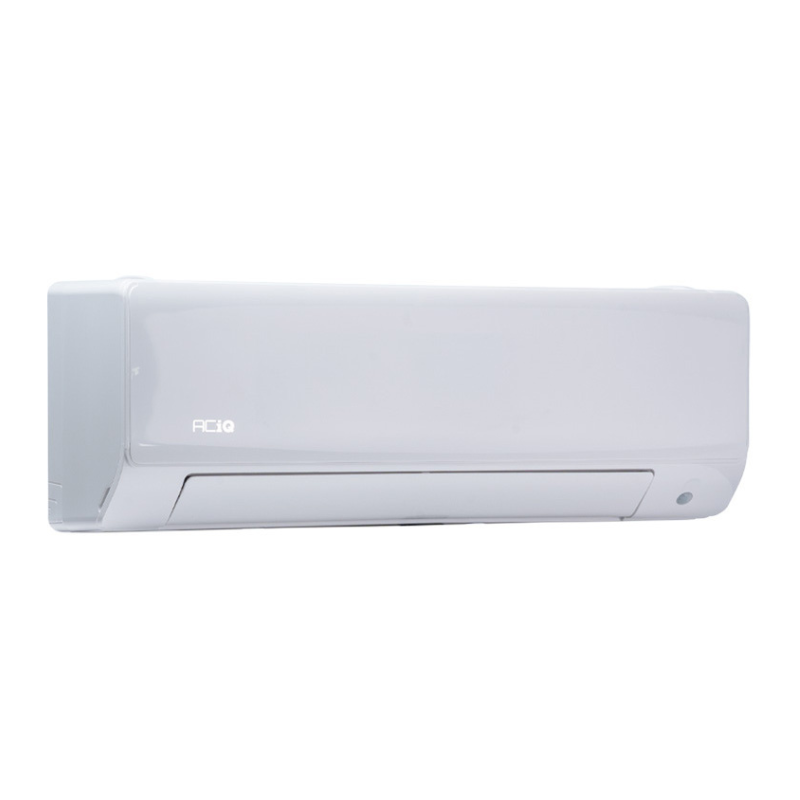

6,000 BTU ACiQ Platinum Multi-Zone Wall Mount Mini Split Air Handler - R454B | 230V
Platinum Performance
ACiQ Platinum air handlers can be used with any ACiQ Multizone condenser or the Platinum Single Zone condenser to create a highly efficient Hyper Heat system. This air handler can handle small to medium sized rooms using adaptive technology to constantly monitor and maintain your ideal temperature no matter what the weather outside.
Features
6,000 BTU wall mounted air handler with included remote control
WiFi capable using free Net Home Plus app, Google Home, or Alexa
Easy Maintenance and Installation
Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
Includes an Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode
Intelligent Heating and Cooling
The ACiQ-06W-HH-MD air handler includes a soft LED display on the front of the unit, giving you information at a glance. The display shows the room's temperature by default, but it can also show temperature setpoint changes and mode changes. To ensure your unit runs properly throughout its lifetime, the display will also show any error codes from its self-diagnosing control board, which can be switched off if desired. The included smart remote can show these notifications on its built-in LCD display as well.
WiFi Options
ACiQ is WiFi ready! The wall mounted air handlers come with everything you need to control your home's heating and cooling via smart device (iOS or Android) from anywhere in the world. ACiQ is also compatible with Amazon Alexa and Google Assistant.
Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle.
Wall Mounted
Traditional wall-mounted air handlers are the most popular ductless choice due to low cost and ease of installation. Wall mounted units are located high on an outside wall, with refrigerant lines and condensation drain hose exiting the back through a 3" wall penetration. Return air is brought in through vents in the top of the unit, and cooled or heated air exits the lower front through a sweepable louver. Wall mounted air handlers are WiFi compatible and can be controlled by the free NetHome Plus app or by voice assistants such as Alexa or Google Home.
Smartphone App
In addition to the handheld or wired remote that is already included, wall mounted units are WiFi ready, and can be controlled from anywhere with a free app on your tablet or smartphone.
Quiet Comfort
Every ACiQ system is precision engineered to quickly achieve set temperature and hold it there, no matter what the weather is outside. With whisper quiet indoor and outdoor units, ACiQ never intrudes on your peace and quiet.

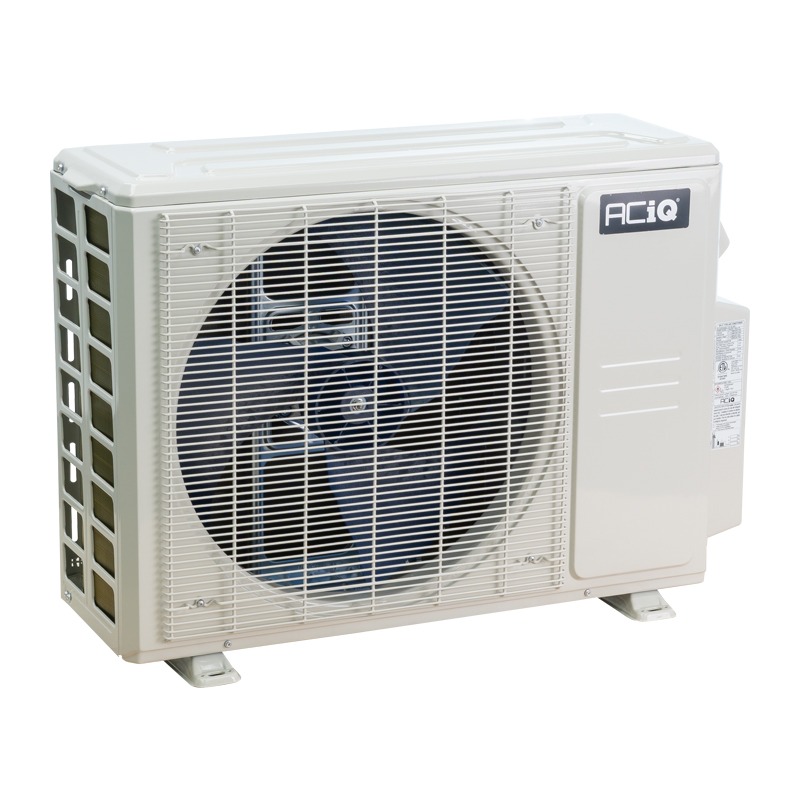

18,000 BTU ACiQ Standard Multi-Zone Mini Split Heat Pump Condenser - R454B | 230V
OVERVIEW
ACiQ is the smart solution to adaptive heating and cooling in almost any space and climate -all at an affordable cost. With the ES-18Z-M3C, you can have up to 3 air handlers run off a single condenser, saving space outside and keeping you perfectly comfortable in your home.
QUICK FACTS
18,000 BTU, 25.1 SEER2 multi zone heat pump condenser
Designed to function with up to 3 attached air handlers
Efficient cooling from -13°F to 122°F outdoor temperatures
Efficient heating from -13°F to 75°F outdoor temperatures
Gold Fin full-protection coating on condenser coil
Quiet operation at even the highest workloads
18,000 BTU, 25.1 SEER
The 18,000 BTU, ES-18Z-M3C is designed to easily support up to 3 air handlers at up to 1.25 times the condenser BTU rating, or 22,500 BTU across all air handlers. This adaptive, inverter condenser is constantly self-adjusting to provide the precise amount of heating or cooling needed to maintain your desired temperature in each room or zone. You can set different temperatures room by room, even turn off heating and cooling in unused areas. This, combined with a high efficiency rating of 25.1 SEER2, means you are buying a system designed to intelligently save you money both up front and over the lifetime of the unit.
Although the condenser is pre-charged, please note that this model of equipment does not have quick connect line set connectors and is not a self-install unit. You will need a professional to add more refrigerant and vacuum the lines as needed. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section to the right of this text. For all multi zone ACiQ condensers, a minimum of two air handlers is needed for the unit to function.
Self Cleaning Condenser
ACiQ condensers stay clean and efficient with self-cleaning technology built right in. At the end of each cycle, the fan reverses direction and blows air out the back of the unit — helping remove leaves, dirt, and debris before buildup can begin.
Quality Construction
State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.
Highest Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
Longer life, longer warranty
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.
Installation and Maintenance
ACiQ multi zone condensers are pre-charged with R410-A refrigerant for 25' per air handler connection. In many cases, no additional refrigerant is needed. All units are run-tested at the factory for years of trouble-free performance. Troubleshooting is easy thanks to unit's self diagnosing control board with alerts that are sent to each connected air handler.
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 50 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends,
length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line
and the suction line.
Features:
One pair, heavy duty refrigerant lines
Flared line ends
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 35 feet
This insulated refrigerant line set for mini split systems comes as a pair, including both the liquid line and suction line. It is used to connect the indoor air handler to the outdoor condenser. The line set is 35’ feet long. The liquid line has 1/4 inch outside diameter flared ends. The suction line has 3/8 inch outside diameter flared ends.
Features:
Insulated
Flared Line Ends
Heavy Duty Refrigerant Lines
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 25 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
One pair, heavy duty refrigerant lines
Flared line ends
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 30 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends,
length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line
and the suction line.
Features:
One pair, heavy duty refrigerant lines
Flared line ends
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 15 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends,
length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line
and the suction line.
Features:
One pair, heavy duty refrigerant lines
Flared line ends
Cielo Breez Max Mini Split Thermostat with WiFi
Introducing Cielo Breez Max, the ultimate smart thermostat for your mini-splits, designed to elevate your comfort with intelligent climate control. Transform your air conditioner into a smart powerhouse and manage your cooling or heating from anywhere using your phone. This award-winning device, available in black and white, prevents overheating or overcooling with AI-powered Comfy Max, while seamlessly detecting any mini-split brand for hassle-free setup.
Features:
Energy Savings
WiFi Connectivity
Weekly Schedule
Geofencing
Temperature Range Lock
Real-Time Notifications
HVAC Zoning
Weekly Schedule lets you set on and off periods throughout the week based on your needs.
Geofencing uses your smartphone's location to trigger actions in your system, such as turning the air conditioner on or off based on your proximity to home.
Temperature Range Lock ensures your air conditioner operates within a set temperature range for optimal comfort and efficiency.
Real-Time Notifications keep you informed with important updates, helping you manage your air conditioner better.
HVAC Zoning allows you to create customized temperature control zones by grouping multiple mini-split units.
The Cielo Breez Max offers innovative features and extraordinary performance, making it a perfect fit for any room air conditioner. Enjoy maximum energy savings and simplified home comfort with this advanced smart thermostat.
Installation Kit for Condensers - Accessory Set
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation. ✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety. ✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply. ✔ Secure Wall Penetration:Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines. ✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
1/2" x 6' Electrical Whip – SKU: 84136
60A Non-Fused Disconnect – SKU: 83335
Surge Protector – SKU: ICM517
CPS Charging Adapter – SKU: 87-AD87
Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
Reliable Support: Abundance of ridges for stable ground support.
Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
Simple Appearance: Gray color with size labels.
Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
Weather Resistance: Made from tough PVC for long-lasting performance.
Secure Setup: The track securely holds bolts in place.
Bolts Included: Each set comes with two bolts.
Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
Wall Mount Bracket for Mini Split Systems
This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.
Features:
17” Arm Length
Weight capacity of 220 lbs per arm
Bolts and anti-vibration washers included
No Return Policy
All sales of this product are final and are non-refundable.
Condenser Risers - 4" x 18" - 2 Pack
Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
Features
Ideal for piping, duct runs, cable trays and condensers
Weather resistant PVC
Linear track holds 3/8" hex head bolts
Two 7/8" long bolts included
Weighs up to 397 Ib
E Lite Equipment Pad 18" x 38" x 3"
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
High recycled plastic content
Subtle texture resists unit slide
Unaffected by UV or weather
Uniform ribbing transfers load evenly
Drillable for securing unit
Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
ACiQ 1.5 Ton 25.1 SEER2 High Efficiency Multi-Zone Condenser | Inverter - R454B
SKU
ES-18Z-M3C
Refrigerant Charge
73.8'
Weight (in lbs)
109.350000
AHRI Certificate Number
216032376
Brand/Manufacturer
ACiQ
Replaces
ES-18Z-M2B
HSPF2
9.8
Cooling BTU
18000 BTU
Heating BTU
19000 BTU
Maximum CFM
1766
Decibel Level (dBA)
59.5
Electric Heat
Heat Pump
Energy Star
Yes
Refrigerant
R454B
SEER2 (Efficiency)
25
Compressor Type
Twin Rotary
Liquid Line
1/4" (3)
Suction Line
3/8" (3)
Electrical
208/230V 1 Phase 60 Hz
Max Breaker Size
20 A
Min. Breaker Size
16 A
Tonnage
1.5 Ton
BTU/Tonnage
18,000 BTU/1.5 Ton
Zone Compatibility
Multi Zone
Ambient Temperature Range
-13 ~ 122
Height
26.50"
Width
35.04"
Depth
13.46"
Warranty
12 year compressor, 7 year parts with online registration
