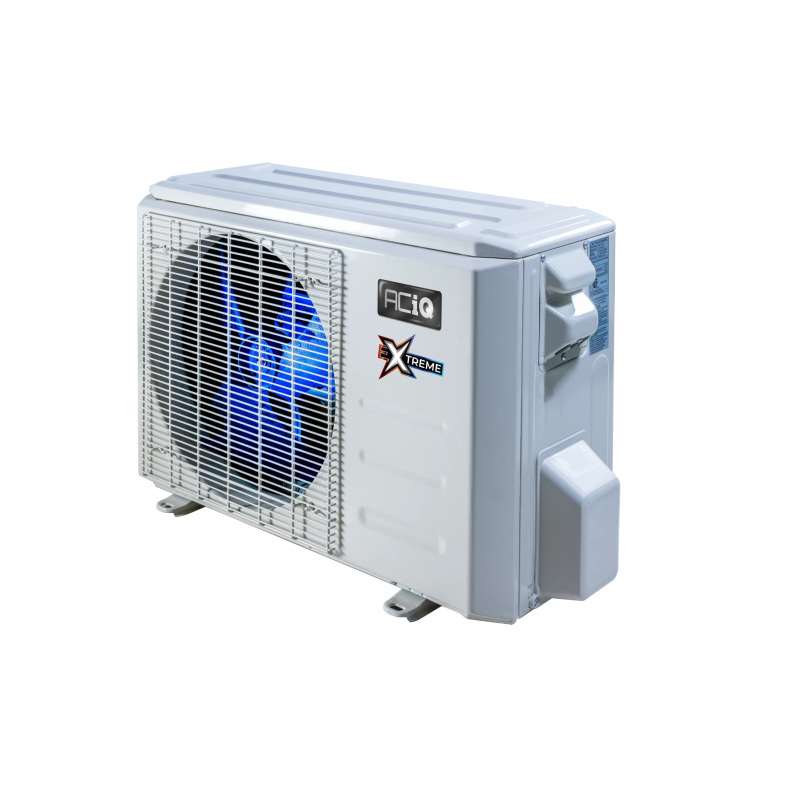

18,000 BTU ACiQ Extreme Series Single Zone Condenser -R410A

18,000 BTU ACiQ Extreme Series Single Zone Condenser -R410A
18,000 BTU ACiQ Extreme Series Single Zone Condenser -R410A
Customer reviews
Rating:
4.7 out of 5
Out of stock
By

ACiQ

Out of stock
Model

ACIQ-18ZPL-HP230B

ID

104336

Overview

No Return Policy: All sales of this product are final and are non-refundable. The ACiQ Platinum series is equipped with Extreme Heat technology, allowing continuous heating even in frigid temperatures as low as -22 degrees outside. Enjoy optimal efficiency with high SEER and high HSPF ratings, whether you need cooling or heating for your space.

Quick Facts

  • Delivers maximum performance at an affordable price
  • Perfect for spaces ranging from approximately 600-900 sq/ft (varies by climate)
  • Efficient cooling from -22°F to 122°F outdoor temperatures
  • Efficient heating from -22°F to 75°F outdoor temperatures
  • Gold fin condenser with full-protection coating
  • Includes Base Pan Heater
  • Operates quietly even under heavy workloads

Please note that this model of equipment does not have quick connect line set connectors and is not a DIY unit. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section on this page. You will need a professional to add more refrigerant and vacuum the lines as needed. The automated cleaning function will clean your system, but it is recommended to periodically clean the unit's filters manually.


Extreme Heat Base Pan Heater Technology

Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22°F. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation.

ACIQ IntelliHeat Base Pan Heater TechnologyACIQ IntelliHeat Base Pan Heater Technology

ACiQ Quality Construction

Quality Construction

State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.


Highest Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.

ACiQ Highest Efficiency

ACiQ Longer Warranty

Longer life, longer warranty

Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.

More Information
18,000 BTU ACiQ Extreme Series Single Zone Condenser -R410A
FeatureSpec
SKUACIQ-18ZPL-HP230B
Weight (in lbs)108.03
AHRI Certificate Number210857317
Brand/ManufacturerACiQ
UPC850038750671
Cooling BTU18,000 BTU
Heating BTU18,000 BTU
Decibel Level (dBA)59
Electric HeatHeat Pump
Energy StarYes
RefrigerantR410A
HSPF8.3
HSPF211.3
SEER1 (Efficiency)20
SEER2 (Efficiency)20
EER12.5
EER212.5
Electrical208/230V | 1 Phase | 60 Hz
Max Breaker Size25
Min. Breaker Size20
Tonnage1.5 Ton
BTU/Tonnage18,000 BTU/1.5 Ton
Min/Max Outdoor Temp for Heating-22~75 F / -30~24 C
Min/Max Outdoor Temp for Cooling-22~122 F / -30~50 C
Zone CompatibilitySingle Zone
CertificationEnergy Star, NEEP, UL AHRI
Height26.5"
Width35.04"
Depth13.46"
Warranty12 year compressor, 7 year parts with online registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Top reviews
  1. Impressed with mini-split
    Quality
    100%
    Service
    40%
    Price
    100%
    I love the ACiQ mini-split. I tried to get in contact with ACiQ to ask some questions and no one followed up with initial reply. Not very encouraging! I wonder what will happen if I need help or service.
    Dan/ Minnesota

    Review by

    Posted on

  2. Very nice unit
    Quality
    100%
    Service
    100%
    Price
    100%
    Had a unique scenario where I needed to ceiling mount but a cassette would not fit. Used the floor/ceiling mount mini split heat pump which allowed me future access as well via the attic eves. Unit went together easy and when we topped off the extra refrigerant due to longer line set length we had heat in seconds.

    Review by

    Posted on

  3. Great equipment, great people
    Price
    100%
    Service
    100%
    Quality
    100%
    I work with Mark on my equipment and he is a great individual and he goes above and beyond to make sure his customers are happy. The equipment, regardless of type or brand is quality stuff.

    Review by

    Posted on

  4. Very happy
    Quality
    100%
    Price
    100%
    Service
    100%
    I’ve been very happy with everything I’ve purchased from HVACDirect.

    Review by

    Posted on

Customer Questions
Who makes ACiQ?
ACiQ is made by one of the largest HVAC manufacturers in the world. With 150,000 employees in over 195 countries, their products improve the lives of millions of people around the globe. Their manufacturing is state of the art, with robotic assembly and computer assisted quality control. ACiQ has an extremely low rate of warranty return. With the features, performance and price it's the best value you can get on a mini split.
Is ACiQ better than Mitsubishi?
Mitsubishi makes great equipment, certainly. They were first to sell mini splits in the US, and they have a solid reputation. Yet ACiQ has higher SEER ratings, longer warranty, and extreme weather performance all the way down to -22! You can spend more on a mini split, but you can't get better value.
Who owns ACiQ?
1HVAC Energy is part of a family of companies with 80 years in the industry and a long reputation of putting customers first. They own ACiQ as well as a number of other quality brands.
Who will service it if something goes wrong?
You get lifetime phone support with every ACiQ mini split. Many problems can be handled by our experts without having to call in a serviceperson. If you need a serviceperson, ACiQ shares a manufacturer with Carrier mini splits. This means that highly trained technicians across the country are very familiar with these units.
Did you find what you were looking for?
Why Choose ACiQ?
Why Choose ACiQ?

ACiQ designs AC systems that are based on principles learned from nature: clean, energy-efficient, and quiet. ACiQ systems are built in a such a way that they are easily adapted to fit multiple variations a homeowner needs. ACiQ offers technology in mini-split and full split inverter system offerings that provide the smartest way to buy and save on your home’s comfort solution, so that it meets the needs of your family. ACiQ specializes in home comfort, regardless of your needs.
