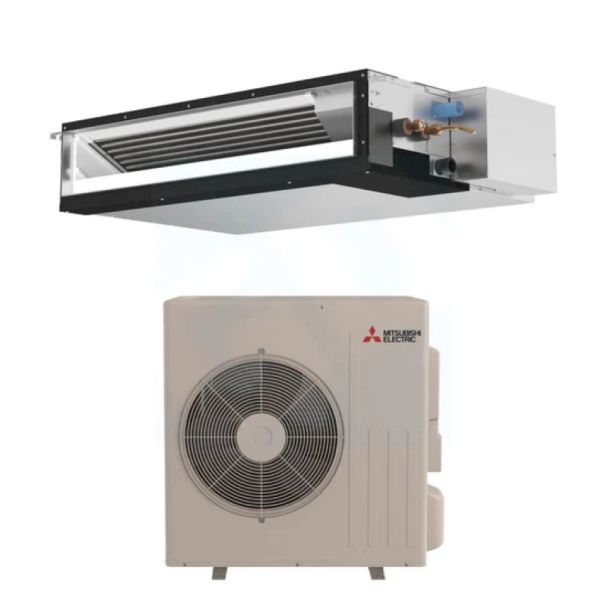

18,000 BTU Mitsubishi P-Series 20.1 SEER2 Single Horizontal-Ducted Mini Split Heat Pump System - R454B | PUZ-AK18NL / PEAD-AA18NL

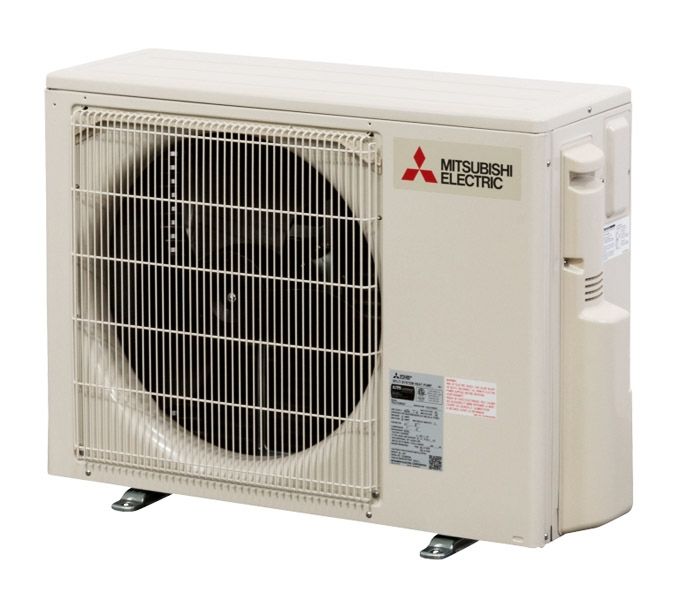

PUZ-AK18NL - Outdoor Unit for Heat Pump System

The PUZ-AK18NL is a high-efficiency outdoor unit designed to pair with Mitsubishi Electric's PKA-AL18NL wall-mounted indoor unit, providing reliable heating and cooling for commercial applications. Below are the key features and specifications of this outdoor unit:

Key Features:

• Hyper-Heating INVERTER®: Features a variable speed INVERTER-driven compressor that enhances heating performance, delivering efficient heating even in colder temperatures.
• Wide Heating Range: Maintains heating performance down to -13°F, ensuring consistent comfort in colder climates.
• High-Speed Start-up: Reduces heating start-up time by approximately half compared to standard models, providing prompt warmth when needed.
• Built-in Base Pan Heater: Equipped with a built-in base pan heater to prevent ice buildup, ensuring reliable operation during heating cycles.
• Pre-Charged Refrigerant: Comes pre-charged with refrigerant suitable for piping lengths up to 100 feet, simplifying installation and reducing setup time.
• Pressure/Temperature Protection: Incorporates safeguards to monitor and protect against pressure and temperature anomalies, ensuring safe and efficient operation.

Specifications:

• Cooling at 95°F:
  • Maximum Capacity: 18,000 BTU/h
  • Rated Capacity: 18,000 BTU/h
  • Minimum Capacity: 4,300 BTU/h
  • Maximum Power Input: 1,630 W
  • Rated Power Input: 1,630 W
• Heating at 47°F:
  • Maximum Capacity: 23,600 BTU/h
  • Rated Capacity: 22,000 BTU/h
  • Minimum Capacity: 4,200 BTU/h
  • Maximum Power Input: 2,300 W
  • Rated Power Input: 2,079 W
• Heating at 17°F:
  • Rated Capacity: 11,700 BTU/h
  • Maximum Power Input: 1,410 W
  • Rated Power Input: 1,410 W
• Heating at 5°F:
  • Maximum Capacity: 9,200 BTU/h
  • Maximum Power Input: 1,340 W
• Heating at -4°F:
  • Maximum Capacity: 8,900 BTU/h
• Efficiency Ratings:
  • SEER2: 19.5
  • EER21: 11
  • HSPF2: 8.9
• Electrical Requirements:
  • Voltage: 208/230 V AC, Single-phase, 60 Hz
  • Guaranteed Voltage Range: 198 - 264 V AC
  • Indoor-Outdoor Voltage (S1-S2): 208/230 V AC
  • Indoor-Outdoor Voltage (S2-S3): 12-24 V DC
  • Short-Circuit Current Rating (SCCR): 5 kA
  • Recommended Fuse/Breaker Size (Outdoor): 20 A
  • Recommended Wire Size (Indoor to Outdoor): 14 AWG
• Outdoor Unit Dimensions (W x D x H): 35-7/16 x 13-3/4 x 31-5/8 inches (900 x 350 x 803 mm)
• Outdoor Unit Weight: 115 lbs (52.2 kg)

The PUZ-AK18NL outdoor unit, when paired with the PKA-AL18NL indoor unit, offers a comprehensive heating and cooling solution suitable for various commercial settings. For detailed installation guidelines and comprehensive information, please refer to the official Mitsubishi Electric documentation.

PEAD-AA18NL Air Handler Overview

The PEAD-AA18NL is a highly efficient air handler designed to provide superior cooling and heating performance in residential and light commercial environments. Paired with the PUY-AK18NL outdoor unit, this air handler offers exceptional energy savings, reliable operation, and a quiet, comfortable indoor environment. The PEAD-AA18NL is ideal for spaces that require a compact, efficient, and flexible air handling solution.

Key Features

• Inverter Technology: The PEAD-AA18NL uses advanced inverter-driven technology to regulate the compressor speed based on cooling or heating demands. This results in energy-efficient operation, less wear on components, and superior comfort by maintaining consistent indoor temperatures.
• Quiet Operation: Designed to operate with minimal noise, the PEAD-AA18NL ensures a peaceful and quiet environment. It is an excellent choice for bedrooms, offices, and any area where quiet performance is important.
• Energy Efficiency: The use of inverter technology helps reduce energy consumption, allowing the PEAD-AA18NL to operate at lower energy costs while providing maximum comfort throughout the year.
• Flexible Installation: With its compact size, the PEAD-AA18NL can be installed horizontally or vertically, offering flexibility in installation, especially in tight or constrained spaces.
• Durability: Built with high-quality materials, the PEAD-AA18NL is designed to last for years with minimal maintenance, making it a reliable long-term solution for residential and commercial applications.

Specifications

• Cooling Capacity: 18,000 BTU/h
• Heating Capacity: 20,000 BTU/h
• Power Supply: 208-230V, 60Hz, 1-phase
• Dimensions (W x H x D): 31-1/2" x 11-3/4" x 24-1/8”
• Weight: 32 lbs
• Refrigerant: R410A
• Airflow: 900 CFM

Benefits

• Enhanced Comfort: The PEAD-AA18NL provides precise temperature control, ensuring consistent comfort in any room. Whether heating or cooling, it delivers optimal air comfort throughout the year.
• Energy Savings: With inverter-driven technology, the PEAD-AA18NL adjusts power usage according to the system's demand, optimizing energy efficiency and reducing electricity bills.
• Quiet Performance: The unit operates at low sound levels, ensuring that it does not interfere with everyday activities or rest, making it ideal for any living or working space.
• Environmentally Friendly: The PEAD-AA18NL uses R410A refrigerant, which is more environmentally friendly than traditional refrigerants, helping to reduce the overall carbon footprint of your cooling and heating system.
• Reliable and Durable: Built to last, the PEAD-AA18NL is designed for long-term, dependable performance. With proper maintenance, this system will continue to perform efficiently for years to come.

Maintenance

• Easy Access for Maintenance: The PEAD-AA18NL is designed for easy access to internal components, simplifying maintenance tasks such as cleaning and servicing, helping to maintain long-term efficiency and reliability.
• Filter Maintenance: The unit comes with washable filters that require periodic cleaning to maintain optimal air quality and system performance. Regular filter maintenance ensures better airflow and energy efficiency.
• Long Lifespan: The PEAD-AA18NL is engineered to require minimal maintenance, with robust and durable components that extend the lifespan of the system, reducing the need for frequent repairs.

Applications

• Residential Use: The PEAD-AA18NL is perfect for homes that require reliable, energy-efficient heating and cooling. It ensures that your home stays comfortable year-round without high energy costs.
• Light Commercial Use: Ideal for small offices, retail stores, and cafes, the PEAD-AA18NL can efficiently heat and cool commercial spaces while keeping operating costs low.

In conclusion, the PEAD-AA18NL air handler offers a combination of energy efficiency, quiet operation, and flexibility. With its inverter technology, it reduces energy consumption while maintaining precise temperature control for consistent comfort. Its compact design allows for flexible installation, and its durable construction ensures reliable long-term performance. Whether you're looking for a solution for your home or light commercial space, the PEAD-AA18NL is a versatile and dependable choice for heating and cooling needs.
