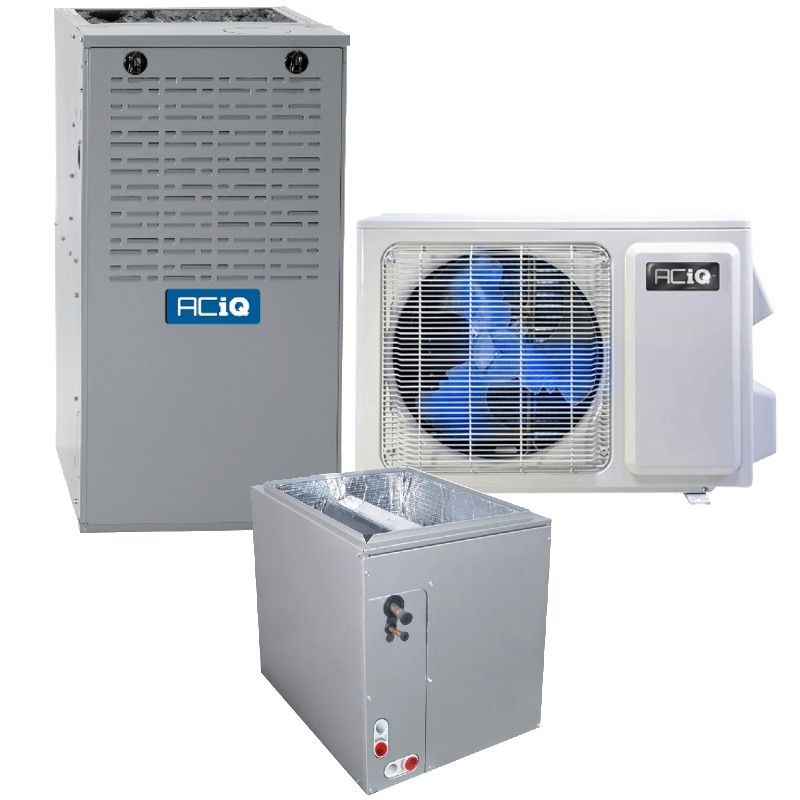

2.5 Ton 15.2 SEER2 80% AFUE 66,000 ACiQ High Efficiency Gas Furnace and Air Conditioner System | Inverter

OVERVIEW

The ACiQ N80MSN0701712A is an inexpensive model of furnace to provide reasonable comfort to your home. At a basic efficiency, this furnace will heat your home adequately with the right output, providing comfort to your home even in the coldest parts of the year.

QUICK FACTS

• 66,000 BTU, 80% AFUE natural gas furnace
• Generally suitable for up to a small house in ideal applications
• Multi-positional design - can be installed in the upflow, downflow, or horizontal orientations
• Single stage burner with a multi-speed blower
• Field-convertible to propane with an optional LP kit
• On board self-diagnostics

66,000 BTU, 80% AFUE

The ACiQ N80MSN0701712A has an input of 66,000 BTU. With an efficiency of 80%, this means that the furnace has an output of 52,800 BTU. The 80% AFUE also means that for the gas going into the furnace, 80% of it is used to heat your home while the remaining 20% is lost out the flue piping and lost to normal furnace operations. All 80% furnaces require metal flue venting, and if you need it to be plastic/PVC venting a furnace with an efficiency of 90% or above is required. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost. Please note that this furnace is not Low NOx or Ultra Low NOx compliant and if shipped to California may be subject to a mitigation fee.

Warranty

ACiQ offers 10 year parts and 20 year heat exchanger limited warranties. Please note that in order for the heat exchanger and parts warranties to be upheld, the unit must be registered through the manufacturer within 90 days of installation. The installation must also follow your state and local codes.

Installation and Durability

With its ability to be installed in any configuration (upflow, downflow, or horizontal) the ACiQ N80MSN0701712A is very versatile in application potential. The unit has a durable outer casing that can withstand wear-and-tear through its entire lifetime, providing the peace of mind that your home will stay comfortable year-round. Please note that this furnace is not intended for mobile home installation on its own.

---

Quiet Comfort

Every ACiQ furnace is designed to keep your family warm and comfortable year after year. Whisper-quiet ECM blower fans, solid construction with thicker sheet metal and
more cabinet insulation give you near-silent operation. From entry level to top-of-the-line, your comfort is the priority.

---

High Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Multi-speed or Variable Speed ECM blowers come in every furnace. Adding options such as high-efficiency secondary heat exchangers, two stage heating, modulating burners and variable blowers all can further reduce your energy bills while increasing comfort.

---

Longer life, longer warranty

Thicker sheet metal, more cabinet insulation and aluminized steel heat exchangers reflect the highest build quality you can get. Every furnace is backed by ACiQ’s 10 year, 20 year or lifetime (depending on model) heat exchanger extended warranty with online registration.

OVERVIEW

Inverter Condenser - Inverter technology changes AC power to DC, allowing the compressor inside your condenser to speed up and slow down. This allows the system to self-adjust BTU output based on demand. As the weather changes, so will your system output.

Learning System - This system is packed with sensors and controls air temperature inside and outside, system performance, duct pressure, refrigerant temperature. The first time you start your system it enters a learning mode keeping air moving across the sensors and storing information so future startups and run cycles will be at max efficiency.

Size for Cooling - The self-adjusting inverter design allows you to size your system based on cooling demand. The ACiQ Next Gen 2.5-ton air conditioner system automatically adjusts to run like a 2 ton or a 1 ton to keep you cool and dry.

QUICK FACTS

• 12,000 BTU to 30,000 BTU variable output based on demand
• Efficient cooling from 5°F to 122°F outdoor temperatures
• Durable Gold Fin condenser coil coating
• Quiet operation at even the highest workloads

30,000 BTU, 15.2 SEER

With an efficiency rating of 15.2 SEER, the variable output ACiQ-30-AC will keep you comfortable across a wide range of conditions. Use our handy size calculator Here to determine the demand for your home. This system can operate anywhere from 12,000 BTU to 30,000 BTU without short cycling.

---

Quality Construction

State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.

---

Highest Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.

---

Longer life, longer warranty

Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.

OVERVIEW

ACiQ takes pride in its ability to provide a high-quality system, including all system components.The ACiQ-36-ACL multi-positional A-coil stands out as a superior choice for various applications, ensuring optimal unit efficiency through its factory-integrated TXV kit, maximizing energy optimization. With its outstanding performance features and versatile orientation options, this coil becomes the ultimate solution for achieving unmatched comfort in your home.

QUICK FACTS

• 3 ton multi-positional evaporator coil
• Works in almost any upflow, downflow, or horizontal system setup
• Compatible with both AC-only and heat pump condensers
• Factory-installed TXV kit for enhanced energy optimization
• Sturdy and compact design

3 Tons

The ACiQ-36-ACL is rated for up to 3 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser. Please note that this item cannot operate independently from a compatible condenser and blower or furnace, each available at an additional cost.

Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Linesets are available in different lengths and diameters to fit most applications.

The Ecobee is more than a smart thermostat. Most thermostats only read the temperature in one place (usually the hallway) which can make other rooms uncomfortable. Ecobee5 comes with a room sensor to help manage hot or cold spots. When you place sensors in your favorite rooms, ecobee5 can read the temperature and detect occupancy. That's how it ensures comfort in the rooms that matter.

With Amazon Alexa Voice Service built inside, ecobee5 can perform the many 'skills' that come with Alexa. All you have to do is ask, and watch the blue light pipe on top of the thermostat blink in response. For total hands-free control, it can even hear you from across the room. Imagine you’re throwing a last-minute dinner party. Simply ask your ecobee5 to walk you through each step out loud – from finding the right recipes to the ideal music playlist. ecobee5 has embedded microphones with far-field voice recognition and a speaker engineered for clear voice and full sound. It’s the smart thermostat that looks at home on your wall – that you can hear and speak to from across the room.

Features

Designed for residential, commercial, and industrial applications, the Cielo Smart Thermostat is the perfect blend of cutting-edge technology and user convenience, allowing home and business owners to create comfortable and energy-efficient living and working environments.

Features

• Supports conventional systems (2H/2C), heat pumps (4H/2C), and unit heaters
• Smart thermostat with programmable temperature schedules
• WiFi connectivity for easy control through your phone
• Capable of automatic temperature adjustments with location-based triggers
• Sleek touchscreen color interface
• Compatible with Alexa, Google Assistant, Siri, SmartThings, and IFTTT
• Hassle-free installation with the included C-Wire Adapter
• Install location flexibility - Can be installed in areas that prevent unwanted usage from others

This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).

Features:

• Steel: 10 GA
• Powder-coated grey Finish
• Load rating: 600 lbs per pair
• Holes will accommodate anchors for installation
• Warranty: 1 year
• ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)

No Return Policy

All sales of this product are final and are non-refundable.

Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.

Features

• Ideal for piping, duct runs, cable trays and condensers
• Weather resistant PVC
• Linear track holds 3/8" hex head bolts
• Two 7/8" long bolts included
• Weighs up to 397 Ib

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

• Reliable Support: Abundance of ridges for stable ground support.
• Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
• Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
• Simple Appearance: Gray color with size labels.
• Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

• Weather Resistance: Made from tough PVC for long-lasting performance.
• Secure Setup: The track securely holds bolts in place.
• Bolts Included: Each set comes with two bolts.
• Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

No Return Policy

All sales of this product are final and are non-refundable.
