2.5 Ton 17.5" Height Goodman Horizontal Cased Evaporator Coil - TXV - R32

By

Goodman

In stock
Model

CHPTA3026B3

ID

175529

Availability: In Stock - Ready to Ship
Goodman

Authorized Goodman Dealer

$740.00

Accessories for this product
Customer Reviews
BBB Rating
Best Pricing

Description

OVERVIEW

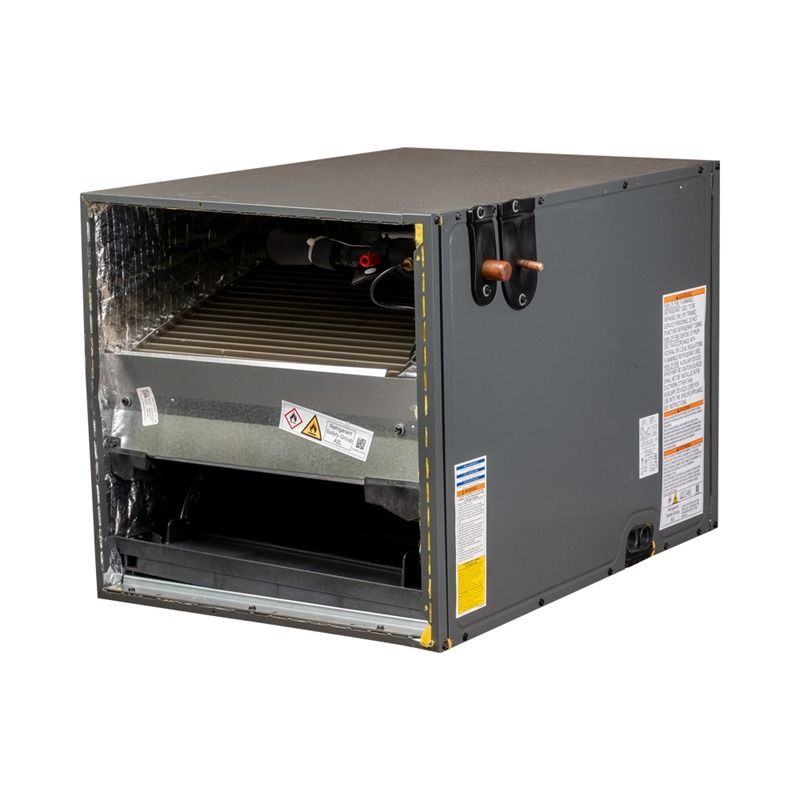

The Goodman CHPTA3026B3 evaporator coil is ready for any horizontal installation that you need it for. With a built-in TXV kit for efficiency, the CHPTA3026B3 lives up to Goodman's expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.

Quick Facts

  • 2.5 ton horizontal evaporator coil
  • Can be used with heat pump and AC-only condensers
  • R32: Complies with Clean Air Act New Refrigerant Requirements
  • Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
  • Factory-installed TXV kit

2.5 Tons

At an output of 2.5 tons, the Goodman CHPTA3026B3 evaporator coil is ready for almost any horizontal application that matches that output need. In entire system configurations, the coil will be either larger or the same size as the condenser's tonnage. As such, the tonnages of the coil and the condenser may be different in order to maintain the unit's efficiency. Please note that for this coil to function, a furnace or blower and a condenser is required, all sold separately. This coil is not designed to replace a coil in a single-piece air handler.

Warranty

The CHPTA3026B3 coil is covered under Goodman's standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible R32 condenser, and the entire system is registered online through the manufacturer.

Installation and Durability

The Goodman CHPTA3026B3 horizontal evaporator coil is designed with aluminum tubing and fin coils, lowering wear and tear on the unit. The coil also comes with a TXV kit factory-installed, making it one less thing for your installer to have to install, lowering installation costs. For easier maintenance access, the front of the coil's durable cabinet has a split-seam.

Enhanced Comfort and Efficiency

The Goodman CHPTA3026B3 horizontal evaporator coil's built-in TXV kit provides a significant increase in refrigerant control, increasing the overall efficiency of the entire system and providing a more precise temperature output to make you more comfortable in your home. On top of that, the coil has a mold-resistant, thermoplastic drain pan set that lowers potentially dangerous particle buildup. All of these features allow the CHPTA3026B3 to live up to the Goodman quality name.

Product Specifications

More Information
2.5 Ton 17.5" Height Goodman Horizontal Cased Evaporator Coil - TXV - R32
SKUCHPTA3026B3
Weight (in lbs)59.000000
Brand/ManufacturerGoodman
Product FeaturesNew Refrigerant Compliant
ConfigurationHorizontal
RefrigerantR32
Liquid Line3/8"
Suction Line7/8"
Tonnage2.5 Ton
StyleA-Coil
CertificationETL Listed | AHRI Certified
Height17.5"
Width26"
Depth21"
Warranty10 Years Parts with Online Registration
