Out of stock
AHRI Number:210545455

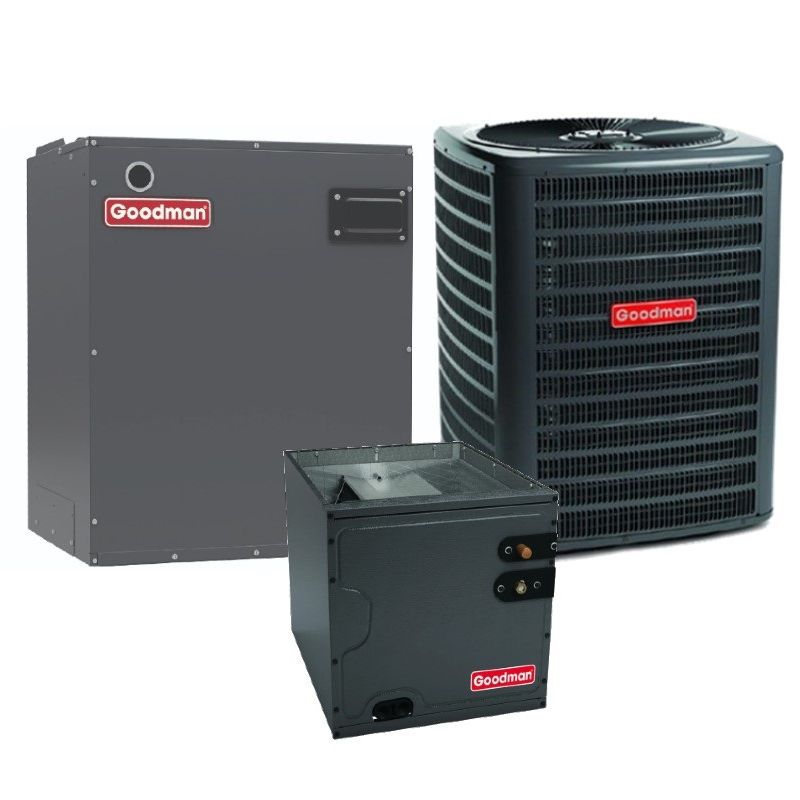

A Goodman split system is a great choice to keep your home cool all summer long. With tons of extra features and a great price, a Goodman air conditioning system is the perfect choice for all of your cooling needs.
With the CAPFA2422B6 evaporator coil, Goodman provides an enhanced comfort to your home. With its ability to work with AC-only systems or with heat pumps and its ability to be installed in both the upflow or downflow orientations, the CAPFA2422B6 is designed to be versatile in design and to provide an efficient comfort at a low cost.
The Goodman CAPFA2422B6 evaporator coil is rated for a 2 ton output. In many system configurations, this coil may be larger in tonnage than its paired condenser. This is intentional, to maintain the overall efficiency of the entire system.Please note that in order for this coil to function, a furnace or blower and a condenser is required, all sold separately.
The CAPFA2422B6 coil is covered under Goodman’s standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible condenser, and the entire system is registered online through the manufacturer.
The Goodman CAPFA2422B6 evaporator coil is able to be installed in upflow and downflow applications. With its rust-resistant, thermoplastic drain plan, water retention rate is significantly lower than previous models. For even more enhanced durability, the cabinet is made of a strong galvanized-steel with a leather-grain finish. If you ever need to perform maintenance on your coil, there is a split-seam on the front of the casing for easy internal access. Please note that this coil will not work as a replacement for any single-piece air handler coils.
The CAPFA2422B6 evaporator coil’s foil-faced insulation lowers air leakage, increasing the amount of air flow going into your ductwork, keeping you more comfortable while decreasing the unit’s run time. With compatible equipment, the CAPFA2422B6 evaporator coil lives up to Goodman’s enhanced comfort and efficiency standards at a reasonable price.
The Goodman MBVC1201AA-1 is a variable speed modular blower designed for heating in more compact spaces. Designed to work alone as a straight electric furnace or to work with an AC or heat pump system, the MBVC1201AA-1 is an energy efficient choice that is compatible with ComfortNet communicating technology, all providing an enhanced comfort to your home.
The Goodman MBVC1201AA-1 modular blower has an output that is rated to match up to a 1.5 to 3 ton system. Although not always the case, in order for a paired air conditioning or heat pump system to function at peak heating and cooling efficiency, ideal system configurations will have the coil within the range of this modular blower. Please note that in order for the modular blower to provide straight electric heating, a compatible electric heat kit is required, available to be field-installed at an additional cost.
Goodman offers a 12 year parts warranty on their variable speed modular blowers when your installation that follows your state and local codes. Please note that in order for the warranty to be upheld, you must register the unit online through the manufacturer.
The Goodman MMBVC1201AA-1 modular blower is designed to be flexible in installation application. With its small form factor and ability to work with a separate AC or heat pump coil, the unit is easily installable. For durability, there is foil-faced insulation inside the cabinet, and the outer casing is constructed from strong galvanized steel.
The Goodman MBVC1201AA-1 uses a variable speed ECM blower motor, providing precise adjustments to keep your home’s temperature as stable as possible. The unit is also compatible with ComfortNet communicating equipment, and with paired with it, temperature control, efficiency, and overall comfort are enhanced even further. Either way, the MBVC1201AA-1 lives up to the Goodman name.
| 2 Ton 13.4 SEER2 Goodman Air Conditioner Condenser | |
|---|---|
| SKU | GSXN3N2410 |
| Weight | 138.000000 |
| Manufacturer | Goodman |
| Replaces | GSX130241 |
| Cooling BTU | 24,000 |
| Decibel Level (dBA) | 73 |
| Refrigerant | R410A |
| SEER2 | 13.4 |
| Condenser Stages | Single Stage |
| Compressor Type | Rotary |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Liquid Valve Size | 3/8" |
| Suction Valve Size | 3/4" |
| Electrical | 208 / 230 V. 1 Phase 60 Hz |
| Electric Phase Filter | Single Phase |
| Max Breaker Size | 15 amps |
| Min. Breaker Size | 11.2 amps |
| Tonnage | 2 Ton |
| Valve Type | Sweat |
| Height | 32.5" |
| Width | 26" |
| Depth | 26" |
| Warranty | 10 Years with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING |
| 2 Ton 17.5" Width Goodman Vertical Evaporator Coil - Cased | |
| SKU | CAPFA2422B6 |
| Weight | 45.000000 |
| Manufacturer | Goodman |
| Configuration | Upflow / Downflow |
| Refrigerant | R410A or R22 |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Tonnage | 2 Ton |
| Style | A-Coil |
| Height | 22" |
| Width | 17 1/2" |
| Depth | 21" |
| Warranty | 10 Years with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING |
| 1.5 to 3 Ton 17.5" Wide Variable Speed Goodman Modular Blower with Optional Electric Heater | |
| SKU | MBVC1201AA-1 |
| Weight | 67.000000 |
| Manufacturer | Goodman |
| Blower Motor | Variable Speed - ECM |
| Maximum CFM | 1,200 |
| Electric Backup Heat Capabilities (Optional) | 3 Kilowatts, 5 Kilowatts, 6 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts |
| Refrigerant | R410A |
| Max Breaker Size | 15 amps |
| Tonnage | 3 Ton |
| Height | 26" |
| Width | 17.5" |
| Depth | 21" |
| Warranty | 10 Years with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING |
For over three decades Goodman has concentrated on something more important than simple brand recognition consumer advertising. They focus on the design, engineering, and manufacturing of dependable products that have helped millions and millions of homeowners achieve reliable, high-quality, and affordable indoor comfort. In addition, Goodman has earned the loyalty and respect from thousands of local independent heating and cooling professionals across North America.
