AHRI Number:210545849

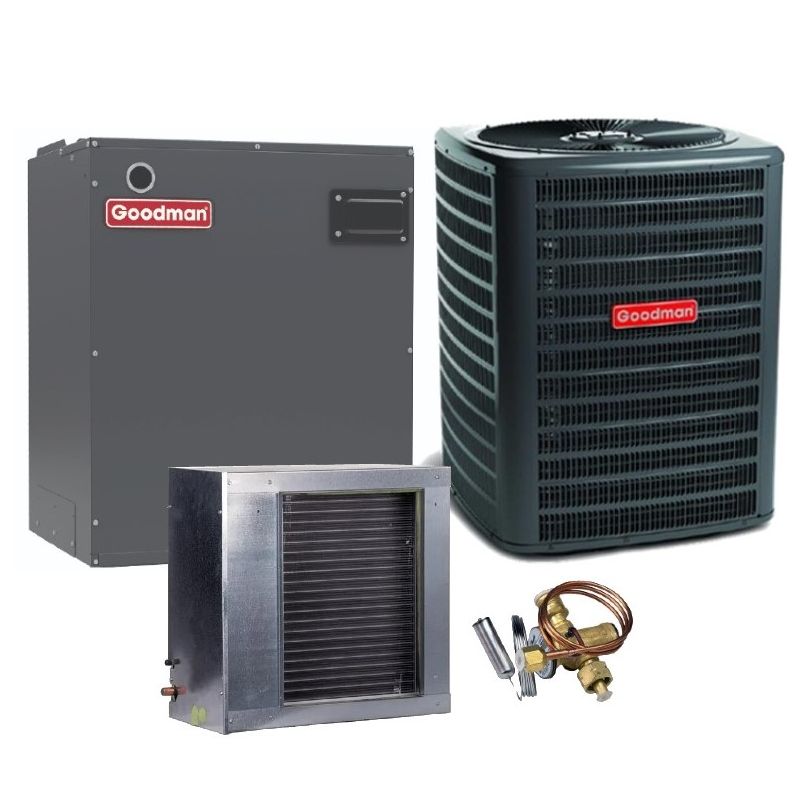

A Goodman split system is a great choice to keep your home cool all summer long. With tons of extra features and a great price, a Goodman air conditioning system is the perfect choice for all of your cooling needs.
Designed for use in primarily low-airflow resistance installations, the Goodman CSCF3036N6 slab coil has a low profile, allowing it to fit in tight spaces while maintaining an inexpensive cost.
At an output of 2.5 to 3 tons, the Goodman CSCF3036N6 evaporator coil is ready for almost any horizontal application that matches your output needs. In entire system configurations, the coil will be either larger or the same size as the condenser’s tonnage. As such, the tonnages of the coil and the condenser may be different in order to maintain the unit’s efficiency. Please note that for this coil to function, a furnace or blower and a condenser is required, all sold separately. This coil is not designed to replace the coil in a single-piece air handler.
Goodman offers a 10 year parts warranty on the CSCF3036N6 when it is installed following your state and local codes, when a compatible R410A condenser is used, and when the entire system is registered online through the manufacturer.
With its small form factor, the Goodman CSCF3036N6 horizontal slab evaporator coil is designed for tight installation spaces. The copper sweat connections allow for faster installation, saving you money. There is a factory-implemented rust-resistant, high-temperature thermoplastic drain pan with multiple drain connections, making it reliable even with a high amount of water coming off the unit due to humidity. The copper tube and aluminum fin coil is designed to be durable for constant use, giving you the peace of mind that your unit will run when you need it most.
The Goodman MBVC1201AA-1 is a variable speed modular blower designed for heating in more compact spaces. Designed to work alone as a straight electric furnace or to work with an AC or heat pump system, the MBVC1201AA-1 is an energy efficient choice that is compatible with ComfortNet communicating technology, all providing an enhanced comfort to your home.
The Goodman MBVC1201AA-1 modular blower has an output that is rated to match up to a 1.5 to 3 ton system. Although not always the case, in order for a paired air conditioning or heat pump system to function at peak heating and cooling efficiency, ideal system configurations will have the coil within the range of this modular blower. Please note that in order for the modular blower to provide straight electric heating, a compatible electric heat kit is required, available to be field-installed at an additional cost.
Goodman offers a 12 year parts warranty on their variable speed modular blowers when your installation that follows your state and local codes. Please note that in order for the warranty to be upheld, you must register the unit online through the manufacturer.
The Goodman MMBVC1201AA-1 modular blower is designed to be flexible in installation application. With its small form factor and ability to work with a separate AC or heat pump coil, the unit is easily installable. For durability, there is foil-faced insulation inside the cabinet, and the outer casing is constructed from strong galvanized steel.
The Goodman MBVC1201AA-1 uses a variable speed ECM blower motor, providing precise adjustments to keep your home’s temperature as stable as possible. The unit is also compatible with ComfortNet communicating equipment, and with paired with it, temperature control, efficiency, and overall comfort are enhanced even further. Either way, the MBVC1201AA-1 lives up to the Goodman name.
Goodman's TXV valves are designed to improve the reliability and efficiency of your central split system. With the TX2N4A, you can be assured that your one-and-a-half or two ton system is getting the proper refrigerant flow, even through changing conditions. Since this valve is installed externally, it is easy to service and maintain. If you're looking to improve the efficiency and performance of your system, the TX2N4A is a good start.
Please note that this is not an exhaustive list. Use Ctrl+F to simplify your search. This part is compatible with the following models:
GSX130181 GSX130241 DSXC160241 GSZ130181 GSZ130241 SSZ140181 SSZ140241 SSZ160241 DSZC160241 CAPF1824*6 CAUF1824*6 CHPF1824A6 CSCF1824N6
| 2 Ton 13.4 SEER2 Goodman Air Conditioner Condenser | |
|---|---|
| SKU | GSXN3N2410 |
| Weight (in lbs) | 138.000000 |
| Brand/Manufacturer | Goodman |
| Replaces | GSX130241 |
| Cooling BTU | 24,000 |
| Decibel Level (dBA) | 73 |
| Refrigerant | R410A |
| SEER2 (Efficiency) | 13.4 |
| Condenser Stages | Single Stage |
| Compressor Type | Rotary |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Liquid Valve Size | 3/8" |
| Suction Valve Size | 3/4" |
| Electrical | 208 / 230 V. 1 Phase 60 Hz |
| Phase | Single Phase |
| Max Breaker Size | 15 amps |
| Min. Breaker Size | 11.2 amps |
| Tonnage | 2 Ton |
| Valve Type | Sweat |
| Height | 32.5" |
| Width | 26" |
| Depth | 26" |
| Warranty | 10 Years with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING |
| 2.5 to 3 Ton Horizontal Slab Goodman Evaporator Coil | |
| SKU | CSCF3036N6 |
| Weight (in lbs) | 53.000000 |
| Brand/Manufacturer | Goodman |
| Configuration | Horizontal |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Tonnage | 2.5 Ton |
| Style | Slab |
| Height | 25" |
| Width | 33.5" |
| Depth | 12" |
| Warranty | 10 Years with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING |
| 1.5 to 3 Ton 17.5" Wide Variable Speed Goodman Modular Blower with Optional Electric Heater | |
| SKU | MBVC1201AA-1 |
| Weight (in lbs) | 67.000000 |
| Brand/Manufacturer | Goodman |
| Blower Motor | Variable Speed - ECM |
| Maximum CFM | 1,200 |
| Electric Backup Heat Capabilities (Optional) | 3 Kilowatts, 5 Kilowatts, 6 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts |
| Refrigerant | R410A |
| Max Breaker Size | 15 amps |
| Tonnage | 3 Ton |
| Height | 26" |
| Width | 17.5" |
| Depth | 21" |
| Warranty | 10 Years with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING |
| Goodman 1.5 to 2 Ton TXV Kit - R-410A | |
| SKU | TX2N4A |
| Weight (in lbs) | 2.500000 |
| Brand/Manufacturer | Goodman |
| Refrigerant | R410A |
| Safety Information | PROPOSITION 65 WARNING |
For over three decades Goodman has concentrated on something more important than simple brand recognition consumer advertising. They focus on the design, engineering, and manufacturing of dependable products that have helped millions and millions of homeowners achieve reliable, high-quality, and affordable indoor comfort. In addition, Goodman has earned the loyalty and respect from thousands of local independent heating and cooling professionals across North America.
