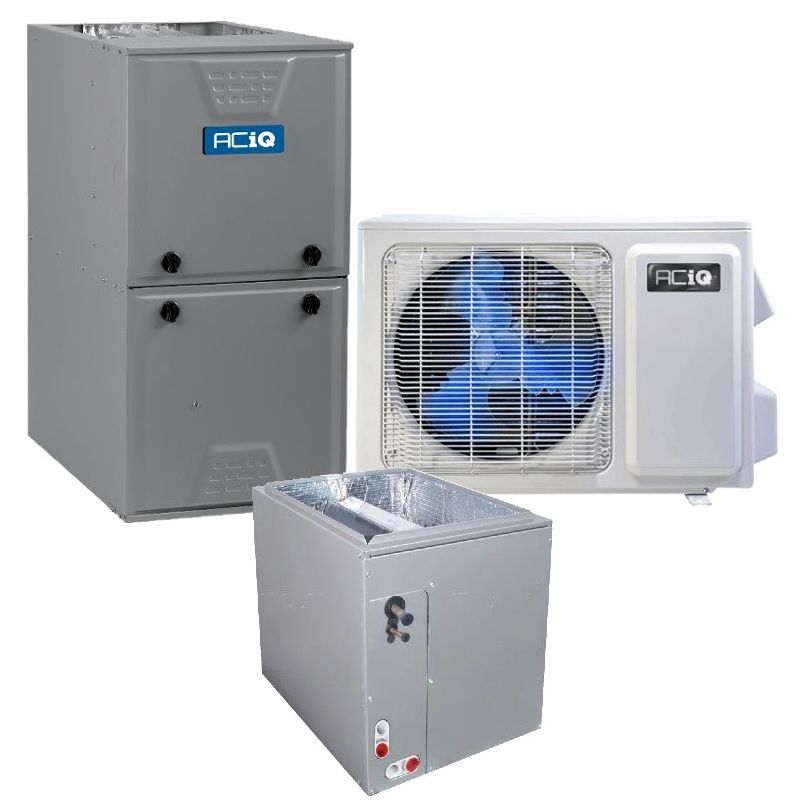

Hybrid 2 Ton 16 SEER2 96% AFUE 60,000 BTU ACiQ High Efficiency Heat Pump and Gas Furnace System | Inverter

SAVE $1,275.00

Required Fields *

By

ACiQ

In stock

Model

ACiQ-24-EHPB / ACiQ-24-ACL / N95ESN0601714A

ID

147167

Rating:
98% of 100
Was $5,879.00
Your Low Price $4,604.00

Free Shipping


Save up to 70% off Local HVAC Prices

Product Specs:
Customize Hybrid 2 Ton 16 SEER2 96% AFUE 60,000 BTU ACiQ High Efficiency Heat Pump and Gas Furnace System | Inverter
60,000 BTU 96% AFUE Single Stage Multi-Positional ACiQ Gas Furnace
60,000 BTU 96% AFUE Single Stage Multi-Positional ACiQ Gas Furnace   + $1,797.00
ACiQ 2 Ton 19.4 SEER High Efficiency Central Heat Pump | Inverter
ACiQ 2 Ton 19.4 SEER High Efficiency Central Heat Pump | Inverter   + $2,382.00
ACiQ 2 Ton 17.5" Width Multi-Positional Evaporator Cased Coil
ACiQ 2 Ton 17.5" Width Multi-Positional Evaporator Cased Coil   + $425.00
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 15 feet
Ecobee Smart WiFi Thermostat with Alexa
Hybrid 2 Ton 16 SEER2 96% AFUE 60,000 BTU ACiQ High Efficiency Heat Pump and Gas Furnace System | Inverter

$4,604.00

Requires: Plastic / PVC Flue Vent Piping

ACiQ Dual Fuel Heat and Air Inverter System

Elevate Your Comfort with an ACiQ Dual Fuel Heat and Air Inverter System

Experience year-round comfort and savings with our Dual Fuel System, seamlessly blending a high-efficiency furnace with advanced inverter evaporator coil technology. You'll enjoy:

  • Efficiency: Achieve optimal performance as all-electric heat is generated by the heat pump condenser until low temperatures are reached, prompting the high-efficiency furnace to activate.
  • All-Season Comfort: Stay cozy in winter and cool in summer with this versatile solution.
  • Smart Savings: Automatically switch between energy sources for maximum cost savings.
  • Green Choice: Reduce your carbon footprint while enjoying top-tier comfort.
  • Reliability: Supported by advanced inverter technology and a comprehensive warranty.
  • Easy Integration: Smoothly fits into your existing setup for a hassle-free upgrade.

Upgrade today to a more efficient, eco-friendly, and comfortable home. Contact us to learn how the Dual Fuel Inverter System can revolutionize your central air system.

60,000 BTU 96% AFUE Single Stage Multi-Positional ACiQ Gas Furnace

Designed to be a high-efficiency furnace, the ACiQ N96MSN0601716A is a money saving unit to provide heating throughout even the coldest months of the year. With its multi-positional design, this unit is a good all-around choice for nearly any application.

Furnace Features

  • 60,000 BTU, 96% AFUE Natural Gas Furnace
  • Multi-positional design can be installed in the upflow, downflow, or horizontal orientations
  • Single stage burner with a multi-speed blower
  • Field-convertible to propane with an optional LP kit
  • On board self-diagnostics
  • Energy Star certified

The ACiQ N96MSN0601716A has an input of 60,000 BTU. With an efficiency of 96%, this means that the furnace has an output of 57,600 BTU. The 96% AFUE also means that for the gas going into the furnace, 96% of it is used to heat your home while only 4% is lost out of the flue piping and lost to normal furnace operations. All furnaces at this efficiency (90% and above) requires plastic/PVC flue venting, and if metal flue venting is required for your installation, an 80% efficient furnace would be needed instead. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost.

Please note that this furnace is not Ultra Low NOx compliant and if shipped to California may be subject to a mitigation fee.

Warranty

ACiQ offers 10 year parts warranty and lifetime (20 year) heat exchanger limited warranty. Please note that in order for these warranties to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.

Installation and Durability

With its ability to be installed in any configuration upflow, downflow, or horizontal the ACiQ N96MSN0601716A is very versatile in application potential. The unit has a durable outer casing that can withstand wear-and-tear through its entire lifetime, providing the peace of mind that your home will stay comfortable year-round. Please note that this furnace is not intended for use in a mobile home on its own.


Quality FurnaceQuality Furnace

Quiet Comfort

Every ACiQ furnace is designed to keep your family warm and comfortable year after year. Whisper-quiet ECM blower fans, solid construction with thicker sheet metal and
more cabinet insulation give you near-silent operation. From entry level to top-of-the-line, your comfort is the priority.


High Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Multi-speed or Variable Speed ECM blowers come in every furnace. Adding options such as high-efficiency secondary heat exchangers, two stage heating, modulating burners and variable blowers all can further reduce your energy bills while increasing comfort.

High Efficient FurnaceHigh Efficient Furnace

Quality ConstructionQuality Construction

Longer life, longer warranty

Thicker sheet metal, more cabinet insulation and aluminized steel heat exchangers reflect the highest build quality you can get. Every furnace is backed by ACiQ’s 10 year, 20 year or lifetime (depending on model) heat exchanger extended warranty with online registration.

ACiQ 2 Ton 19.4 SEER High Efficiency Central Heat Pump | Inverter

OVERVIEW

Inverter Heat Pump - The ACiQ-24-EHPB 2-ton central inverter heat pump utilizes inverter technology to convert AC power to DC, allowing the compressor to adjust its speed. This enables the system to modify its BTU output based on the current demand, providing efficient and adaptable performance throughout varying weather conditions.

Intelligent System - Equipped with advanced sensors, this system monitors indoor and outdoor air temperature, duct pressure, refrigerant temperature, and overall system performance. During the initial startup, it enters a learning mode, optimizing future operations for maximum efficiency by collecting and storing data.

Adaptive Sizing - With its self-adjusting inverter design, the ACiQ-24-EHPB can be sized based on your heating needs. Standard heat pumps may cause discomfort during summer when sized for heat, but this unit automatically adjusts to function like a smaller unit, ensuring ideal cooling performance without excess humidity.

QUICK FACTS

  • Variable output based on demand
  • Inverter heat pump system for ducted applications
  • Efficient cooling from 5°F to 122°F outdoor temperatures
  • Reliable heating from 5°F to 75°F outdoor temperatures
  • Durable Gold Fin condenser coil coating for longevity
  • Quiet operation, even under high workloads

24,000 BTU, 17 SEER2

Boasting an efficiency rating of 17 SEER2, the ACiQ-24-EHPB provides versatile comfort across a range of climates. Reliable comfort with variable output that eliminates short cycling for lasting efficiency. Use our size calculator Here to determine the demand for your home.


ACiQ Quality Construction

Quality Construction

State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.


Highest Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.

ACiQ Highest Efficiency

ACiQ Longer Warranty

Longer life, longer warranty

Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.

ACiQ 2 Ton 17.5" Width Multi-Positional Evaporator Cased Coil

OVERVIEW

ACiQ takes pride in its ability to provide a high-quality system, including all system components.The ACiQ-24-ACL multi-positional A-coil stands out as a superior choice for various applications, ensuring optimal unit efficiency through its factory-integrated TXV kit, maximizing energy optimization. With its outstanding performance features and versatile orientation options, this coil becomes the ultimate solution for achieving unmatched comfort in your home.

QUICK FACTS

  • 2 ton multi-positional evaporator coil
  • Works in almost any upflow, downflow, or horizontal system setup
  • Compatible with both AC-only and heat pump condensers
  • Factory-installed TXV kit for enhanced energy optimization
  • Sturdy and compact design

2 Tons

The ACiQ-24-ACL is rated for up to 2 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser. Please note that this item cannot operate independently from a compatible condenser and blower or furnace, each available at an additional cost.

Refrigerant Line Set with 3/8" and 5/8" Line Ends - 15 feet

Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 25 feet

Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 30 feet

Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 35 feet

Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 50 feet

Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Ecobee Smart WiFi Thermostat with Alexa

The Ecobee is more than a smart thermostat. Most thermostats only read the temperature in one place (usually the hallway) which can make other rooms uncomfortable. Ecobee5 comes with a room sensor to help manage hot or cold spots. When you place sensors in your favorite rooms, ecobee5 can read the temperature and detect occupancy. That's how it ensures comfort in the rooms that matter.

With Amazon Alexa Voice Service built inside, ecobee5 can perform the many 'skills' that come with Alexa. All you have to do is ask, and watch the blue light pipe on top of the thermostat blink in response. For total hands-free control, it can even hear you from across the room. Imagine you’re throwing a last-minute dinner party. Simply ask your ecobee5 to walk you through each step out loud – from finding the right recipes to the ideal music playlist. ecobee5 has embedded microphones with far-field voice recognition and a speaker engineered for clear voice and full sound. It’s the smart thermostat that looks at home on your wall – that you can hear and speak to from across the room.

Features

Not at your thermostat? No problem.

Adjust temperature and comfort settings easily from the ecobee mobile app on your Android and iOS devices, including Apple Watch.

Connects to your existing home network

Convenient Wi-Fi capabilities offer a secure and reliable connection.

Knows you have a life

Vacationing and forgot to let your ecobee know? Make a vacation event using the ecobee mobile app. If something’s wrong with your equipment, we can send you service alerts and reminders.

Control the volume

If it's getting a little loud for your taste, you can use the app to adjust the volume.

Built to last

ecobee thermostats are hardwired, which means your thermostat isn’t relying on a battery or your HVAC equipment to charge itself.

Nest 3rd Generation Learning Thermostat - Black

Take control of your home's heating and cooling without lifting a finger with this thermostat, which learns your habits and adjusts to automatically regulate your home's temperature based on your schedule. The Nest Leaf feature alerts you when you choose a temperature that's energy efficient.

Features

Customized compatibility

System Match activates features that work with your specific heating and cooling systems, and connects to most 24-volt forced-air, heat pump with AUX, dual fuel and radiant systems.

Connects to your existing home network

Convenient Wi-Fi capabilities offer a secure and reliable connection.

Control the temperature from anywhere

Download the free app from iTunes or GooglePlay and adjust your thermostat from your smartphone, tablet or laptop, even when you're miles away.

Stay apprised of the temperature or the time

Farsight illuminates the thermostat's display when it spots you across the room.

Alerts and reminders provide peace of mind

Monitors your equipment, sends service reminders and tells you if anything is not working correctly. You can also be alerted if your home's temperature gets dangerously hot or cold.

Accommodates your schedule and temperature preferences

Within a week the Nest thermostat starts programming itself to the temperatures you like. Auto-Away mode automatically switches to an energy-efficient temperature when you're not home.

Dynamic sensor capabilities

Different features follow your activity, manage humidity, and keep an eye on the weather to provide a custom climate for your home.

Review your energy history and report

Track how much energy you've used and follow tips that will help you conserve. Make an energy-saving temperature adjustment and the Nest Leaf will notify you immediately.

Extra protection in an emergency

Your Nest Thermostat links with Nest Protect (sold separately), to automatically turn off your gas furnace if carbon monoxide is present.

Fastens easily to the wall

Screwdriver and screws are included for quick installation.

Makes a stylish addition to your home

The thin, sleek design features stainless steel ring.

Compatibility

Works with most 24V heating and cooling systems, including 1-, 2- and 3-stage heating, 1- and 2-stage cooling, humidifiers, dehumidifiers, fans, power and heat pumps with auxiliary and emergency heat

Cielo Smart Thermostat

Designed for residential, commercial, and industrial applications, the Cielo Smart Thermostat is the perfect blend of cutting-edge technology and user convenience, allowing home and business owners to create comfortable and energy-efficient living and working environments.

Features

  • Supports conventional systems (2H/2C), heat pumps (4H/2C), and unit heaters
  • Smart thermostat with programmable temperature schedules
  • WiFi connectivity for easy control through your phone
  • Capable of automatic temperature adjustments with location-based triggers
  • Sleek touchscreen color interface
  • Compatible with Alexa, Google Assistant, Siri, SmartThings, and IFTTT
  • Hassle-free installation with the included C-Wire Adapter
  • Install location flexibility - Can be installed in areas that prevent unwanted usage from others
More Information
60,000 BTU 96% AFUE Single Stage Multi-Positional ACiQ Gas Furnace
SKUN96MSN0601716A
Weight (in lbs)138.000000
AHRI Certificate Number213148506
Brand/ManufacturerACiQ
Equivalent

Carrier Equivalent: 59SC5B060E17--14

Tempstar Equivalent: TN95ESN0601714A

Bryant Equivalent: 915SB42060E17

Product FeaturesRebate Available
Furnace Efficiency / AFUE 96%
Heating BTU60,000
Blower MotorECM
Maximum CFM1330
ConfigurationUpflow/Downflow/Horizontal
Energy StarYes
Burner StagesSingle
Fuel TypePropane, Natural Gas
Height35"
Width17.5"
Depth29 1/2"
Warranty20 Year Heat Exchanger / 10 Year Parts with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.

PROPOSITION 65 WARNING
ACiQ 2 Ton 19.4 SEER High Efficiency Central Heat Pump | Inverter
SKUACiQ-24-EHPB
Refrigerant Charge25'
Weight (in lbs)109.130000
AHRI Certificate Number212394317
Brand/ManufacturerACiQ
Product FeaturesInverter, Rebate Available, Two Stage Condenser, Variable Speed Condenser
HSPF29.2
Cooling BTU24000 BTU
Heating BTU24000 BTU
Maximum CFM1765
Decibel Level (dBA)60
Electric HeatHeat Pump
RefrigerantR410A
SEER1 (Efficiency)20
SEER2 (Efficiency)17
Compressor TypeRotary
Liquid Line3/8"
Suction Line5/8"
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size30 Amps
Min. Breaker Size19 Amps
Tonnage2 Ton
BTU/Tonnage24,000 BTU/2 Ton
Min/Max Outdoor Temp for Heating5~75
Min/Max Outdoor Temp for Cooling 5~122
Zone CompatibilitySingle Zone
Length35.04"
Height26.50"
Depth13.46"
Warranty12 year compressor, 7 year parts with online registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
ACiQ 2 Ton 17.5" Width Multi-Positional Evaporator Cased Coil
SKUACiQ-24-ACL
Weight (in lbs)56.500000
Brand/ManufacturerACiQ
ConfigurationMulti-Positional
RefrigerantR410A
Liquid Line3/8"
Suction Line3/4"
Tonnage2 Ton
StyleA-Coil
Height18"
Width17 1/2"
Depth21"
Warranty10 years parts w/ online registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 15 feet
SKU221885
Weight (in lbs)45.000000
Brand/ManufacturerOnline Supply
Length25'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 25 feet
SKU366426
Weight (in lbs)45.000000
Brand/ManufacturerOnline Supply
Length25'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 30 feet
SKU216748
Weight (in lbs)45.000000
Brand/ManufacturerOnline Supply
Length30'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 35 feet
SKU366427
Weight (in lbs)45.000000
Brand/ManufacturerOnline Supply
Length35'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 50 feet
SKU366428
Weight (in lbs)45.000000
Brand/ManufacturerOnline Supply
Length50'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Honeywell 2H/2C FocusPro Programmable Standard Display Thermostat
SKUTH6220D1002
Weight (in lbs)1.000000
Brand/ManufacturerHoneywell
Safety InformationPROPOSITION 65 WARNING
Ecobee Smart WiFi Thermostat with Alexa
SKUEB-STATE6P-01
Weight (in lbs)0.500000
Brand/Manufacturerecobee
Product FeaturesHeat Pump Capable, Programmable, WiFi, 3 Heat, 2 Cool
Energy StarYes
Warranty3 years
Resources
Safety InformationPROPOSITION 65 WARNING
Nest 3rd Generation Learning Thermostat - Black
SKUT3016US
Weight (in lbs)0.500000
Brand/ManufacturerNest
Product FeaturesHeat Pump Capable, Programmable, WiFi, 3 Heat, 2 Cool
Additional InformationCompatible with most 24V heating and cooling systems, including 1-, 2- and 3-stage heating, 1- and 2-stage cooling, humidifiers, dehumidifiers, fans, power and heat pumps with auxiliary and emergency heat
Height1.21 inches
Width3.3 inches
Depth3.3 inches
Warranty2 years
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Cielo Smart Thermostat
SKUCT101WA
Weight (in lbs)0.500000
Brand/ManufacturerCielo
Included ItemsThermostat, Thermostat Back Plate, Thermostat Wall Plate, C-Wire Adapter, Install Guide, Wire Labels, Screws, and Anchors
Product FeaturesHeat Pump Capable, Programmable, WiFi, 2 Heat, 3 Heat, 2 Cool
Energy StarYes
Warranty3 Year Warranty Against Defects
Resources
Safety InformationPROPOSITION 65 WARNING
You're reviewing:Hybrid 2 Ton 16 SEER2 96% AFUE 60,000 BTU ACiQ High Efficiency Heat Pump and Gas Furnace System | Inverter
Your Rating
Customer Questions
No Questions
Did you find what you were looking for?
